Summary of Contents for Mastervolt DC Master 24/12 50-60A

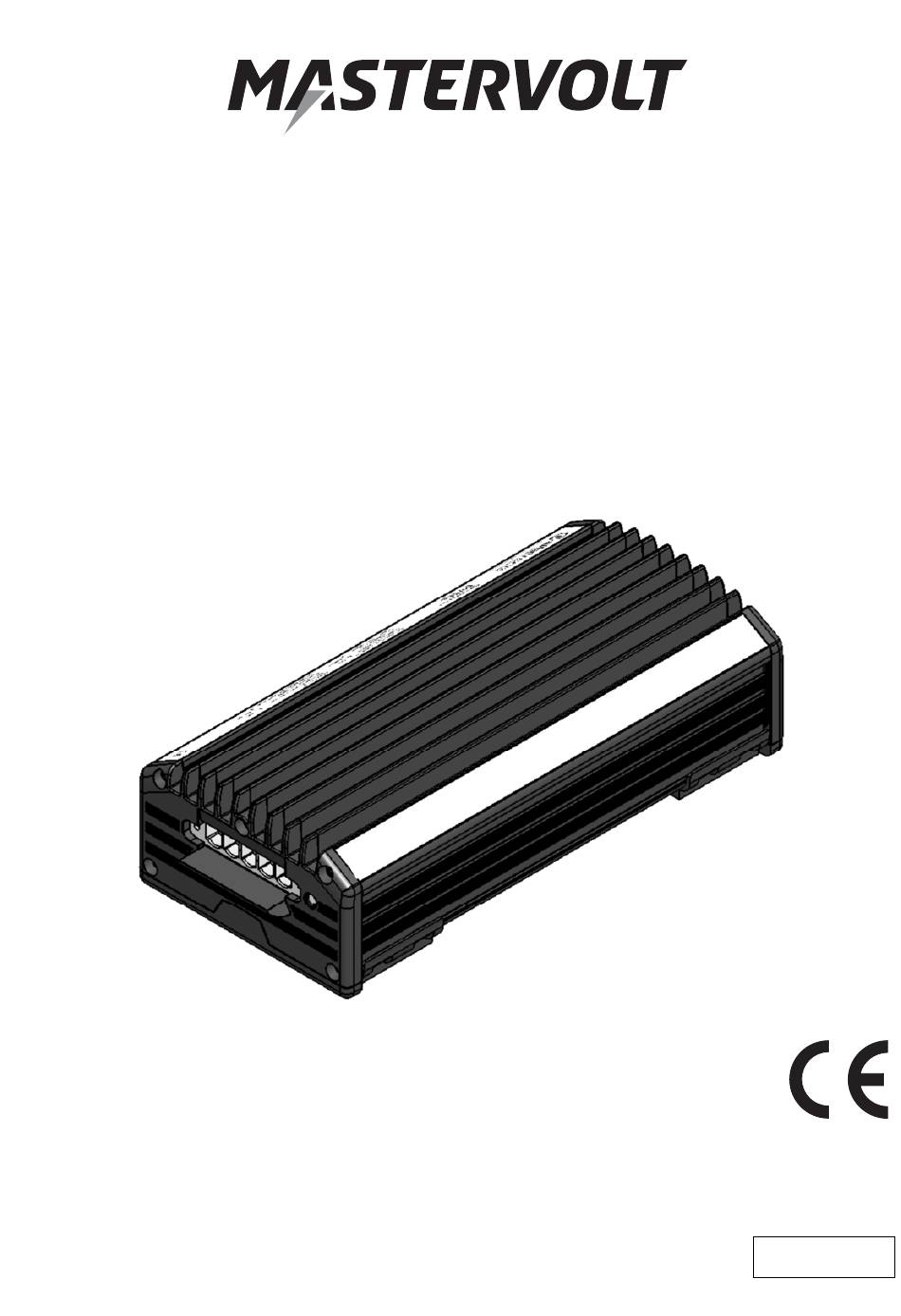

- Page 1 USERS MANUAL DC Master 24/12 50-60A DC-DC converter MASTERVOLT Snijdersbergweg 93, 1105 AN Amsterdam The Netherlands Tel.: +31-20-3422100 ENGLISH Fax.: +31-20-6971006 www.mastervolt.com Copyright © 2015 Mastervolt, 10000008899/01 - February 2015...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS: 10000008899/01 - February 2015 GENERAL INFORMATION .............................. 3 Use of this manual .............................. 3 Product description and application ........................3 Use of pictograms .............................. 3 ... -
Page 3: General Information
APPLICATION Figure 1: Position of the identification label This Mastervolt DC Master converts a 24V DC voltage to a The identification label is located at the rear side of the DC 12 V DC voltage. Typical application is a 24V battery bank Master (see Figure 1) Important technical information that powers 12V equipment. -
Page 4: Important Safety Instructions
Use of an attachment or spare part not recommended The DC Master is not sold for applications in any medical or sold by Mastervolt may result in a risk of fire, equipment intended for use as a component of any life electric shock, or injury to persons. -
Page 5: Installation
7 = Input fuse CONTENTS OF THE DELIVERY: 3 = Enable (Active high) 8 = Remote switch fuse DC Master 24/12 50-60A 4 = Negative output (0V) 9 = Remote switch 5 = Positive output (13.6V) 10 = Output fuse Mounting bracket ... -
Page 6: Operation
If you cannot solve a problem with the aid of this chapter, the article and serial number (See section 1.4) present if contact your local Mastervolt Service Centre. See you have to contact your local Mastervolt Service Center www.mastervolt.com/dealer-locator. Make sure you have to solve a problem:... -
Page 7: Technical Data
TECHNICAL DATA 6 TECHNICAL DATA SPECIFICATIONS Model 24/12 50A Article no. 81400352 Function Non isolated 24V to 12V DC DC converter Nominal input voltage: 27.2 V (18.0-32.0 V) Max. input current Nominal output voltage: 13,6 V +/- 5% Output current 50 A continuous, 60 A peak during 2 minutes @ 30°C [86 °F] Ripple 2% of output voltage... -
Page 8: Ec Declaration Of Conformity
Declare under our sole responsibility that Product: DC-DC-converter Model: 81400352 DC Master 24/12 50-60A Is in conformity with the provisions of the following EC directives: 2004/108/EC (EMC directive); the following harmonized standard has been applied: EN 60945: 2002 Maritime navigation and radio communication equipment and systems...
