CHAPTER 3 - 575V (VFD) INVERTER PROGRAMMING

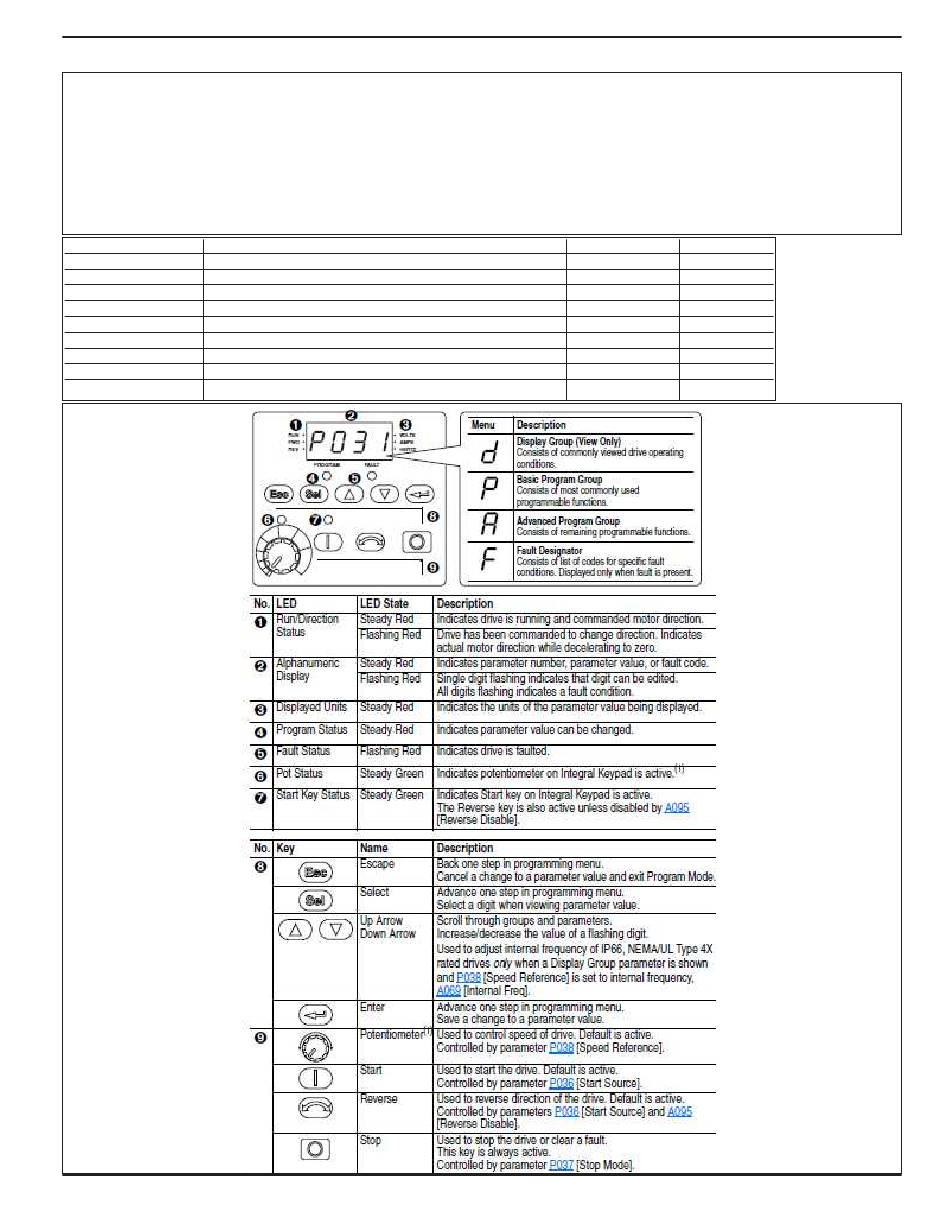

Press "ESC" once to display the Display Group parameter.
Press "ESC" again to enter the group menu, the group letter will flash. Press "UP" or "DOWN" arrow to scroll through the group menu.
Press "Enter" or "Sel" to enter a group. Press "UP" or "DOWN" arrow to scroll through the group menu.
Press "Enter" or "Sel" to view the value of the parameter. Press "ESC" to exit without making any changes. Press "Enter" or "Sel" to edit
parameter, when # is flashing (Program LED will illuminate if parameter can be edited), press "UP" or "DOWN" arrow to change value.
Press "Enter" when completed to save changes. Press "ESC" to exit and return to program list.
"WARNING: Consult factory before changing any parameters not listed in this table."
Parameter Number Name
039 Accel Time
040 Decel Time
056 Torque Detection Level
072 Open Speed
073 Approach Open Speed
077 Close Speed
080 DC Brake Injection Time
081 DC Brake Injection Level
101 Program Lock
