Syclone NEGATIVE AIR MACHINE Operating & Maintenance Manual

GENERAL INFORMATION

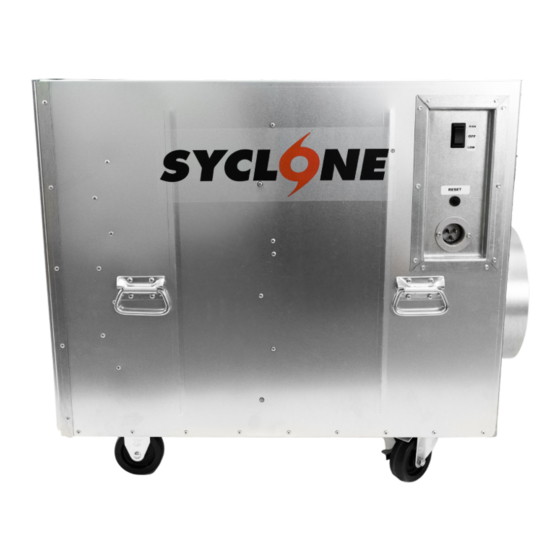

The SYCLONE Negative Air Machine is designed
for indoor use and to provide the most efficient air
filtration with three stages of filtration. The final
stage includes a HEPA (High-Efficiency Particulate
Air) filter that can remove 99.97% of particles 0.3
micron or larger from the air stream.
Specifications
Housing - galvanized steel or aluminum
Power & Motors - 115 volts, 60 Hz, 1625 rpm
1.0 HP, 2 Speed (9 amps)
0.5 HP, 2 Speed (5 amps)

Control Panel Options

Economy Panel
hi/low rocker switch
circuit breaker/reset button
inlet flange (plug receptacle)
Gauge Panel
hi/low rocker power switch
circuit breaker/reset button
inlet flange (plug receptacle)
minihelic pressure gauge
Full Feature
hi/low rocker power switch
circuit breaker/reset button
inlet flange (plug receptacle)
minihelic pressure gauge
replacement light/alarm
REPLACMENT PART NUMBERS
NC-MOTOR1HP 1 HP motor/capacitor
1/2 HP motor/capacitor
NC-MOTOR-5HP
(16x16 models only)
Motor replacements come as a complete kit (includes band and three support arms).
NC-HANDLE handle (4)
NC-CASTER rigid caster (2)
NC-SWIVCASTER swivel caster with brake (2)
NC-OUTLETRING outlet ring for exhaust
Contact distributor for replacement filters and parts.

LIMITED WARRANTY

NC Filtration (FSNC LLC "Seller") warrants the SYCLONE Negative Air Machine
shall be free from defects in material and workmanship for a period of one year
after receipt of equipment.
REMEDIES
Seller's sole obligations and the buyer's exclusive remedies with respect to
goods determined to be defective shall be limited to repair or replacement.
RETURN PROCESS
Buyer must call or email to receive an RMA# (return merchandise authorization)
and return address information. Buyer assumes responsibility for return freight
costs and must ship equipment pre-paid. The RMA# must be clearly marked on
returned items.
phone — 704.822.4444
email — customerservice@ncfiltration.com
Returned equipment will be inspected for defects and contaminants by seller. If
equipment is deemed defective by seller, the buyer will receive a
reimbursement for return freight costs and replacement may constitute, at
seller's option: new, refurbished, or functionally equivalent item(s).
Releases & Notes May
2023 — The purpose of this document is to provide
basic information regarding operation, maintenance procedures, and warranty
details for the Negative Air Machine.
