Sealey CP108VCIDBO Manual
Sealey CP108VCIDBO Manual

Sealey CP108VCIDBO Manual

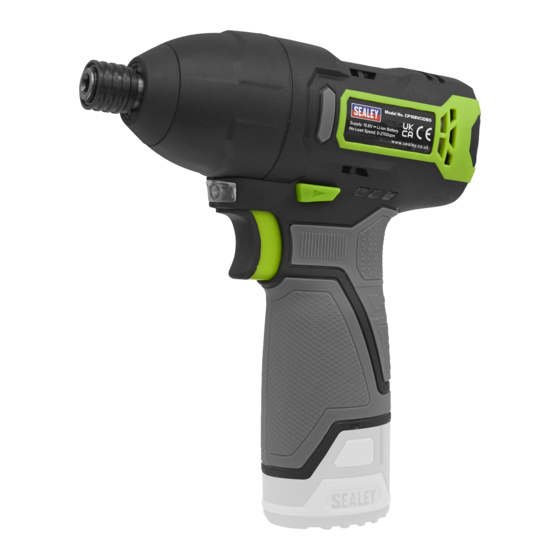

10.8v 1/4”hex drive cordless impact driver - body only

Advertisement

Quick Links

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear protective
instruction
gloves
manual
1. SAFETY
i
Maintain the tool and battery in good condition. Check moving parts alignment on a regular basis.
9
Replace or repair damaged parts. Use an authorised service agent and recommended parts only. Unauthorised parts may be
9
dangerous and will invalidate the warranty.
Ensure the tool is switched off before installing the battery pack.
9
Keep the tool and charger clean for best and safest performance.
9
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain long hair.
9
Evaluate your working area before using the tool; e.g. ceilings, floors and enclosures may contain electrical items or water piping.
9
Ensure battery pack is correctly inserted into the handle and latched in place before attempting to switch on tool.
9
Secure loose work pieces with a clamp, vice or other adequate holding device.
9
Avoid unintentional starting.
9
Wear approved safety eye protection (standard spectacles are not adequate).
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-skid shoes.
9
Keep direction switch in the locked position until the tool is required for use.
9
Keep children and unauthorised persons away from the working area.
9
DO NOT use the tool where there are flammable liquids, solids or gases, such as paint solvents, etc.
8
DO NOT allow children to operate the tool.
8
DO NOT operate the tool if any parts are missing as this may cause failure and/or personal injury.
8
DO NOT hold unsecured work piece in your hand.
8
DO NOT leave the tool operating unattended.
8
DO NOT carry the tool with your finger on the power switch. Keep chuck direction switch in the locked position.
8
DO NOT use the tool for a task it is not designed to perform.
8
DO NOT operate the tool when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT get the tool or battery charger wet or use in damp or wet locations.
8
2. INTRODUCTION
Compact, lightweight cordless 1/4"Hex drive impact driver - body only. Comfortable housing with soft grip to reduce vibration. With variable
speed that give more control during application. Integrated LED battery level indicator and LED work light. Requires compatible 10.8V 2Ah or
4Ah battery and mains charger, sold separately.
3. SPECIFICATION
Model no ........................................................CP108VCIDBO
Battery .................. 10.8V 2Ah-4Ah Lithium-ion (not included)
Consumable parts (not included)
..........................................................CP108VBP 2Ah Battery
........................................................CP108VBP4 4Ah Battery
Drive ......................................................................... 1/4" hex
Impact rate ......................................................... 0-40500bpm
Max. torque .................................................................120Nm
Noise power/pressure .................................... 84.2/73.2dB(A)
No-load speed .......................................................0-2700rpm
Replacement parts .....................CP108VMC - mains charger
Vibration/uncertainty ........................................ 0.571/1.5m/s²
4. OPERATION
4.1.
Fit battery.
4.2.
BATTERY CHARGE STATUS TEST
4.2.1.
Press trigger, all LEDs lit: battery charged, one LED lit: battery
needs charging.
4.3.
In order to maintain battery efficiency:
DO NOT fully discharge. After every use fully charge the battery, charge every 4 months even if tool is not used.
If a decrease of performance of the tool is noticed, charge the battery.
© Jack Sealey Limited
10.8V 1/4"HEX DRIVE CORDLESS IMPACT DRIVER
- BODY ONLY
CP108VCIDBO
MODEL NO:
Wear eye
Wear ear
Wear a mask
protection
protection
Original Language Version
CP108VCIDBO Issue:1 02/02/21
