TruVision NVR 22 (S/P) Quick Start
Guide

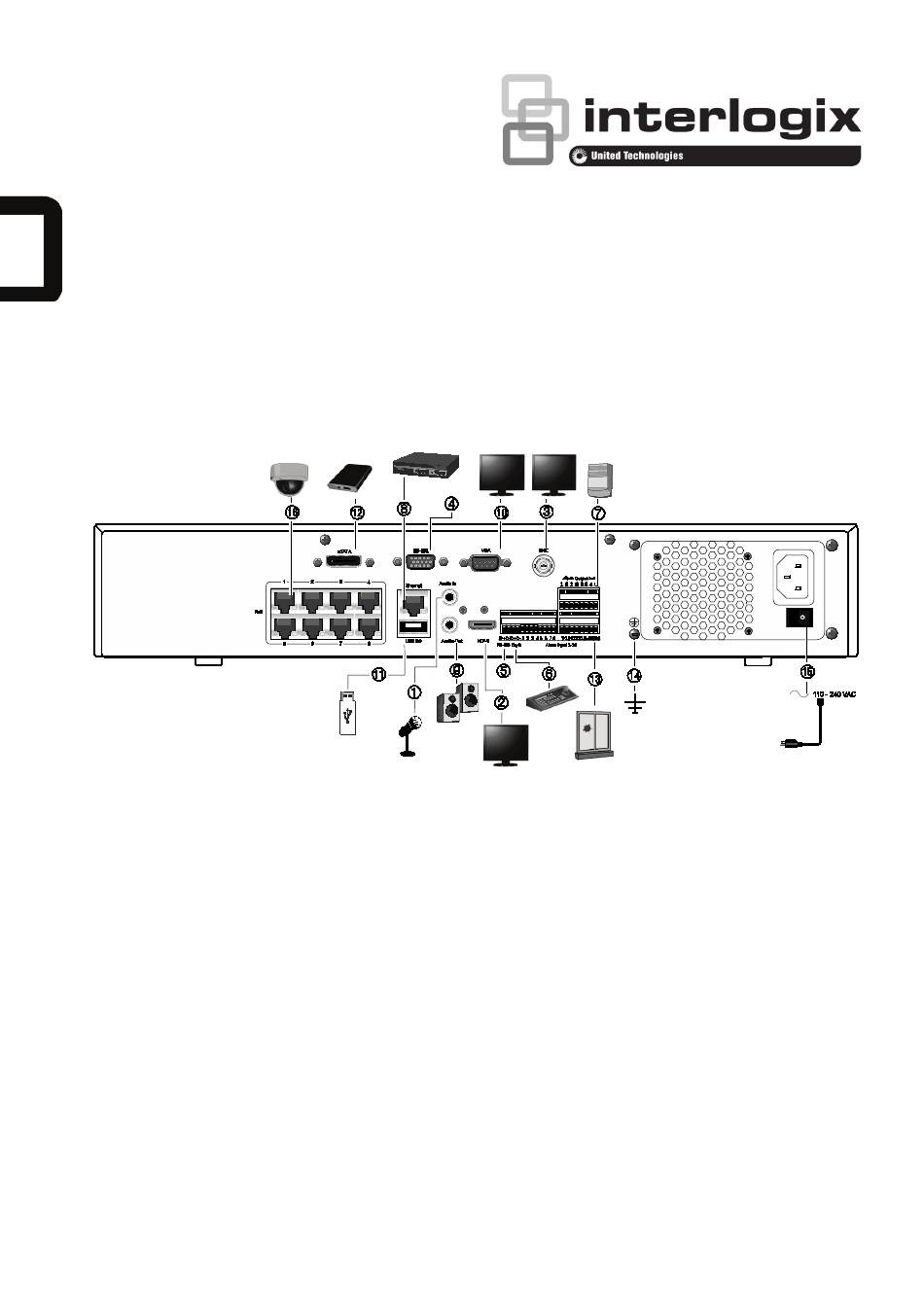

Figure 1: Back panel connections (TVN 22S shown)
1. Connect one audio input to RCA connectors.
2. Connect to an HDTV. The HDMI connection
supports both digital audio and video.
3. Connect one CCTV monitor (BNC-type
connectors).
4. Connect to a RS-232 device.
5. RS-485 port not used.
6. Connect to a keypad (KTD-405 shown).
7. Connect up to four alarm relay outputs.
8. Connect to a network (RJ45).
9. Connect to speakers for audio output.
Default user ID and password:
•
User ID: admin
•
Password: 1234
P/N 1073193-EN • REV C • ISS 16AUG16
© 2016 United Technologies Corporation. Interlogix is part of UTC Climate, Controls & Security, a unit of United
Technologies Corporation. All rights reserved.
10. Connect to a VGA monitor.
11. Universal Serial Bus (USB). Connect to an
additional device such as a USB mouse,
CD/DVD burner, or USB HDD.
12. Connect to an optional eSATA device such as
HDD, CD/DVD-RM.
13. Connect up to 16 alarm inputs (depending on
model).
14. Connect to ground.
15. Connect to a power cord.
16. 8/16 PoE ports (depending on model). (TVN 22S
only)
Default IP address: 192.168.1.82
Advertisement
Table of Contents
Related Manuals for United Technologies Interlogix TruVision NVR 22 S
Summary of Contents for United Technologies Interlogix TruVision NVR 22 S
- Page 1 Default IP address: 192.168.1.82 • User ID: admin • Password: 1234 P/N 1073193-EN • REV C • ISS 16AUG16 © 2016 United Technologies Corporation. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
- Page 2 Figure 2: Front panel controls For detailed information on all the button functions, please refer to the user manual. Name Description Channel buttons Switch between different cameras in live, PTZ control or playback modes. Use the soft keyboard to enter numerals 0 to 9. Display buttons F1: In Playback mode, click to start and stop video clipping.
- Page 3 Front panel lock You can lock or unlock the front panel with a key (provided). Status LEDs Power: A steady green light indicates the recorder is working correctly. Red indicates a fault. Event Alarm: A flashing red light indicates that there is a sensor Alarm In or another alarm such as motion or tampering.
- Page 4 Figure 3: Quick access toolbar 1. Pause: Freeze live image of the selected 6. PTZ Control: Enter PTZ control mode. camera. 7. Digital Zoom: Enter digital zoom mode. 2. Start Manual recording: Start/stop manual 8. Image Settings: Modify the image lighting levels. recording.
- Page 5 By default, the setup wizard will start once the To connect the remote control to the recorder has loaded. The wizard walks you recorder: through some of the more important settings 1. Press Menu on the front panel or right-click of your recorder.
- Page 6 Menu • Gateway address - 192.168.1.1 • Right-click the mouse and select from the pop-up menu. • Server Port: 8000 The main menu screen appears. Move the • HTTP Port: 80 mouse over a command icon in the menu • RTSP port: 554 toolbar and click to select it.
- Page 7 Configures user settings. View system information. Provides reference information to the various toolbars and menus within the interface. Provides access to logout, reboot and shutdown options. Specifications Power supply: TVN 22 100 to 240 VAC, 1 A, 50 to 60 Hz TVN 22S 100 to 240 VAC, 2.5 A, 50 to 60 Hz...
