VLIP-H5HD-EC
1G H.265 HDMI 1080p@60HZ over IP w/Videowall
Processing Receiver (Encoder)
VER 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLIP-H5HD-EC and is the answer not in the manual?

Questions and answers

Summary of Contents for VigilLink VLIP-H5HD-EC

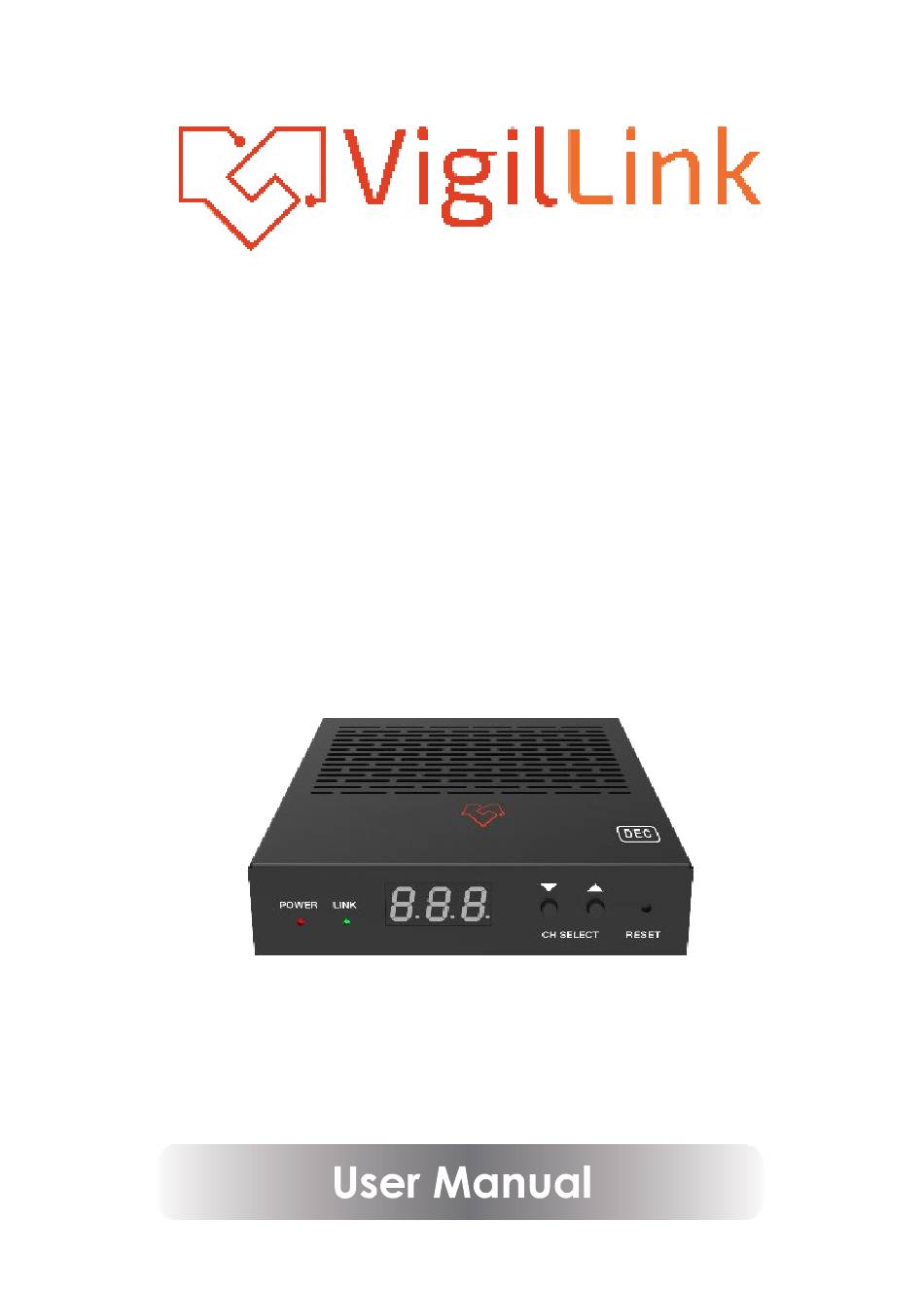

  • Page 1 VLIP-H5HD-EC 1G H.265 HDMI 1080p@60HZ over IP w/Videowall Processing Receiver (Encoder) VER 1.1...
  • Page 2: Table Of Contents

    Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device is recommended. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc.
  • Page 3: Introduction

    1. Introduction The AV over IP product distributes multiple HD contents to multiple HD display devices over a 100M/1G Network Switch. It offers configurable high-quality, low-bandwidth H.265/H.264 configurable compression video and supports resolution up to 1920x1200@60Hz 4:4:4. Signal transmission distance can be extended up to 328ft / 100m via CATE5E/6/6A/7 cable.
  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 1.3 HDCP Compliance HDCP 1.4 Video Bandwidth 4.95Gbps Video Compression H.265/H.264 Standard Transmission 100m (CAT5E/6/6A/7) Distance Video Resolution Up to 1920x1200@60Hz 4:4:4 Color Space RGB4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Input: 8-bit, 10-bit, 12-bit (1080p@60Hz); Color Depth Output: 8-bit Audio Formats...
  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Encoder Panel Name Function Description POWER LED The LED flashes at 1 Hz during the system startup, and the LED is always on after the startup is complete. (Red) Network connection status LED. ▪ Light on: Network is connected well, and there is a compatible signal (the resolution is less than 1920*1200, and the frame rate is less than or equal to 60) access.
  • Page 6 CH SELECT Used to set Encoder ID and other settings. System reset button. Press and hold this button for 5 RESET seconds; the system will restart and restore factory Settings. RS-232 serial port, supporting signal pass-through and local RS-232 serial port control. AUDIO IN: Analog stereo audio input port.
  • Page 7 4, Press the UP or DOWN button for Channel ID settings to display the current ID number (e.g., 001) on the LED screen. Press and hold the UP + DOWN buttons for 5 seconds, then release them to enter the “ID Settings” mode. The ID number (e.g., 001) on the LED screen will flash at 1Hz;...
  • Page 8: Decoder Panel

    5.2 Decoder Panel Name Function Description POWER LED The LED flashes at 1 Hz during the system startup, and the (Red) LED is always on after the startup is complete. Network connection status LED. ▪ Light on: Network is connected well, and there is video data. LINK LED ▪...
  • Page 9 100M/1G Network port. Connect to a Switch/Router/Hub for LAN (POE) data transmission or POE function. Link Signal ▪ Illuminating: The network cable is typically connected. Indicator lamp ▪ Dark: The network cable is not connected well. (Green) Data Signal ▪ Flashing: There is data transmission. Indicator lamp ▪...
  • Page 10: Rack Mounting Instruction

    The corresponding output resolution ID is as follows: Resolution ID Resolution Description Pass-Through (default) 1080P60 1080P50 1080P30 1080P25 1080P24 720P60 720P50 576P50 480P60 640X480P60 800X600P60 1024X768P60 1280X800P60 1280X1024P60 1366X768P60 1440X900P60 1600X1200P60 1680X1050P60 1920X1200P60 6. Rack Mounting Instruction 6.1 4U Rack Mounting This product can be mounted in a standard 4U rack (Please contact your supplier for a 4U rack sale).
  • Page 11 Step 1: Use included screws to fix two mounting ears on the product, as shown in the figure below: Step 2: Insert the product with mounting ears into a 4U rack (up to 12 units can be installed vertically), as shown in the figure below: Step 3: Use screws to fix mounting ears on the rack to complete the mounting, as shown in the figure below: 9/21...
  • Page 12: Rack Mounting

    6.2 1U Rack Mounting This product also can be mounted in a standard 1U rack (up to 8 units can be installed horizontally). The mounting steps are as follows: Step 1: Stack two products on top of each other, then use included screws to fix two 1U rack panels on the products, as shown in the figure below: Step 2: Fix two 1U rack panels on another two stacked products in the same way, then use screws to fix two 1U rack panels together, as shown in...
  • Page 13: Encoder And Decoder Matching Settings

    7. Encoder and Decoder Matching Settings When multiple Encoders and Decoders are in the system without a Controller Box, it is necessary to match them well first. You can match all Encoders and Decoders in the following two methods. Method 1: Use the CH SELECT buttons on the front panel of the Encoder/ Decoder.
  • Page 14: Web Gui User Guide

    8. Web GUI User Guide The built-in Web GUI can configure all products through a Switch. The operation method is shown below. Step 1: Match all Encoders and Decoders as described in Chapter 7. Step 2: Connect the PC and IP products you need to configure to a Switch. The connection diagram is shown below.
  • Page 15 Step 3: Press and hold the (CH SELECT) UP button on the front panel of the Encoder/Decoder for 5 seconds to check the IP address. (Please refer to Chapter 5 for details.) Step 4: Set the PC’s IP address in the same network segment as the Encoder/Decoder;...
  • Page 16 The Web GUI function pages are shown below: ■ Device Information Page The Status page provides basic information about the Encoder/Decoder, such as Firmware Version, IP Address, Subnet Mask, Gateway, and MAC Address. ■ Video Configuration Page On this page, you can configure the video properties as required. 14/21...
  • Page 17 Encoder Video Configuration Encoder video configuration page includes Main Stream, Sub Stream, ID Setting, Audio Selection, and EDID Setting. Main Stream: You can configure Video Encoding Format, Audio Encoding Format, and Bitrate. Video Encoding Format supports H.264 and H.265 (H.265 by default). Audio Encoding Format supports PCM and AAC (PCM by default).
  • Page 18 User EDID 1 and User EDID 2 can be uploaded in the Select User EDID1 File and Select User EDID2 File, and the content of the uploaded binary file is EDID. (This file can be downloaded from the Download EDID of the Decoder Video page.) Decoder Video Configuration The decoder video configuration page includes Transmission Protocol,...
  • Page 19 Transmission Protocol: You can select “udp unicast” or “udp multicast” (udp multicast by default). Scaler Setting: You can set the output resolution (Pass Through by default). Download EDID: You can download the EDID binary file of the display device connected to the Decoder. The EDID file can be used as the User EDID file to be uploaded to the Encoder.
  • Page 20 Notes: (1) The Network Settings can be set only when the Mode button is set to Static. (2) All changes will take effect by clicking “Save” below. (3) After any changes to the Network Settings, username, or Login Password, it will redirect to the Web browser home page or the Web GUI login interface. You must log in to the Web GUI again with the new settings.
  • Page 21: Switch Model

    ■ Log Out Page Click “Log Out” on the left; the Web GUI will automatically exit and skip to the login interface. 9. Switch Model A network Switch used to set up the system should support the below features: 1. Type of layer 3/managed network Switch. 2.
  • Page 22: Over Ip System Control

    10. 1080P over IP System Control This product also can be controlled by Controller Box or a third-party controller. For details of 1080P over IP system control, please refer to 1080P over IP Controller Box user manual. 11. Application Example Notes: (1) For the default IP mode of the Control LAN port of the Controller Box is DHCP, the PC also needs to be set to “Obtain an IP address automatically”...
  • Page 23 Box; they are managed by Controller automatically. (5) When the Network Switch does not support PoE, the Encoder, Decoder, and Controller Box should be powered by a DC power adapter. HDMI and HDMI High-Definition Multimedia interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
