Installation and Operation of the NEO UPS 12V

SAFETY WARNINGS

USE COMMON SENSE!
Only qualified personnel should service this equipment.
The battery contains hazardous currents and may present a burn hazard if damaged, shorted, or installed improperly.
USE ONLY GS BATTERY MODEL GT12080-HG and ESPi MODEL DCSPI150200 AC/DC ADAPTER
The following precautions should be followed to insure your safety:
• Remove watches, rings, or other metallic objects.
• Wear protective clothing and eye protection when working with batteries.
• Always carry a water supply to wash eyes or skin in the event of exposure to battery electrolyte.
• Use of tools with insulated handles is required.
• Do not disassemble the unit. No user-serviceable parts are inside except the battery.
• Keep liquid and foreign objects from getting inside the unit.
• Avoid operating unit in excessive humidity or near water.
• Do not operate near gas or fire.
• Inspect unit for leaking substance. If substance is leaking, do not use product.
• Servicing this equipment may require working with protective covers removed and utility power connected. Use EXTREME CAUTION during these procedures.
• Check that power cord, plugs, and output terminals are in good working order.

FUSE REPLACEMENT

• Fuse rating is 3A, 32VDC. This is a fast blow type of fuse.
• Replace fuse with littlefuse part number 0297003 rated at 3AMP 32V.
• Before replacing a failed fuse, consider examining the unit for signs of a hardware fault that could result in subsequent fuse failure, damage or safety hazard.

PRIMARY CIRCUIT PROTECTION

• AC Adapter shall be inserted in an AC outlet that is protected by a properly rated branch circuit per national or local codes.

BATTERY WARNINGS

• Danger of explosion if battery is incorrectly connected or replaced with an incorrect type. Use only approved replacement batteries. (GS BATTERY MODEL GT12080-HG)
Contact ESPi for replacement.
• Worn out or damaged batteries are considered environmentally unsafe. ALWAYS recycle used batteries in accordance with all federal, state, and local regulations.
This is your planet too.
• Any gel or liquid emissions from a VRLA battery contain sulfuric acid, which is harmful to the skin and eyes.
• Batteries can produce explosive gases. Avoid all open flames and sparks.
• Batteries contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Battery post terminals contain lead and
lead compounds. Wash hands after handling. (California Proposition 65)
• Wear protective clothing and eye protection when installing, maintaining, servicing, or replacing batteries.
• If battery emissions contact the skin or eyes, immediately wash area with water. Report chemical spills and seek medical attention if necessary.
• Always replace batteries with new batteries of identical type and rating.
• A battery showing signs of cracking, leaking, or swelling should be replaced immediately with an approved battery.

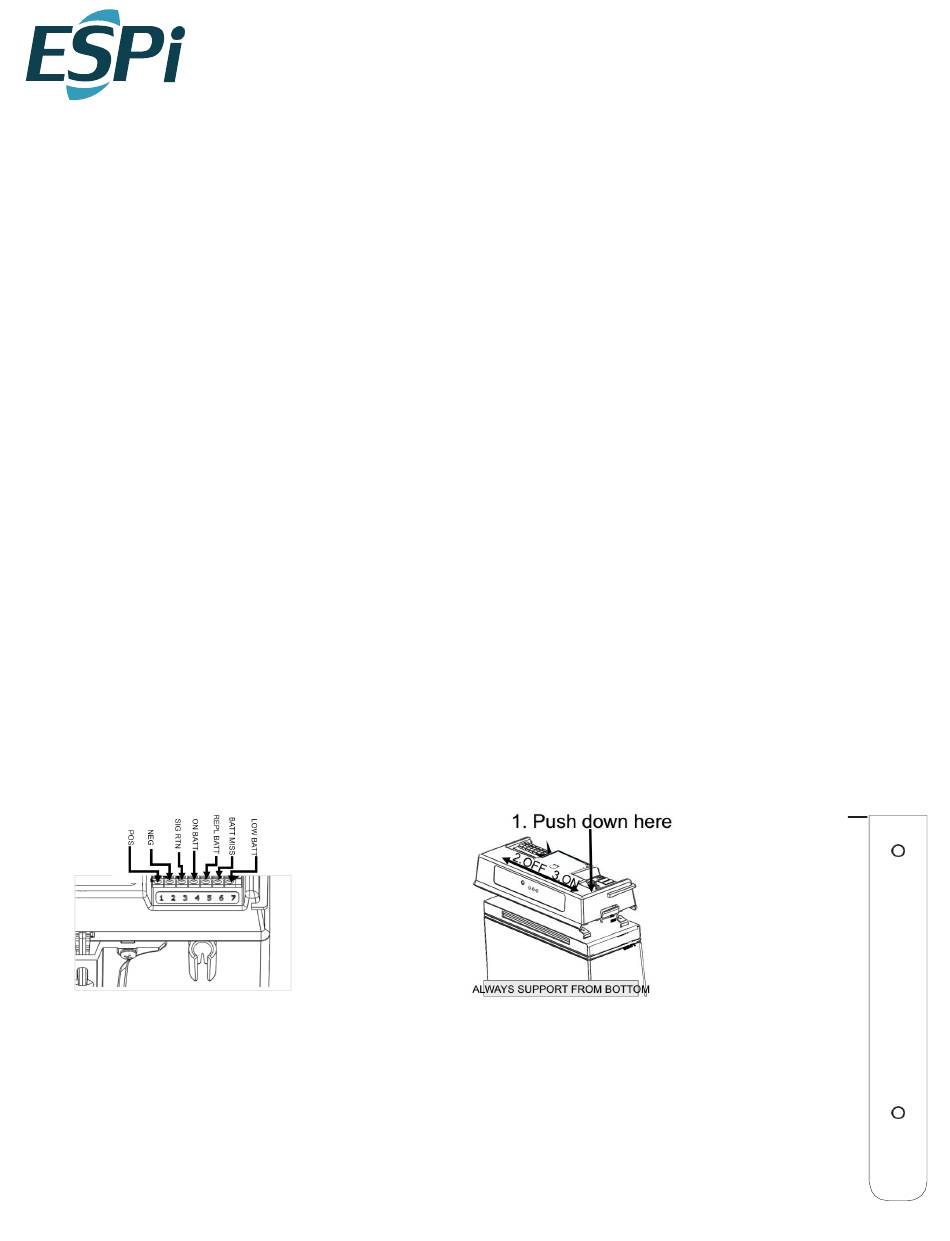

Wiring DIAGRAM
• ALWAYS support the unit from the bottom with your hand or place on a firm surface.
• Output and Alarm Connectors: The Neo output wiring is as follows: +,-,On battery, Replace Battery, Battery missing, low battery, Battery failure
Once wiring is complete, push down on the unit as you slide the Neo UPS over a battery. The enclosure has a groove that will contain the battery
and lid.

INSTALLATION

• Installation of the unit must be performed by skilled technicians and electricians familiar with electrical equipment. Do not allow unqualified
personnel to handle, install or operate equipment.

MAX DISTANCE:

• The NEO UPS has been engineered for a maximum distance between the AC outlet and the UPS. The recommended cable from
the switching power supply and the UPS is 16 AWG cable for cable runs up to 115'. From the UPS to the ONT, the maximum distance is 70'. Install
the unit in a sheltered location away from gas, fire, potential sparks, water, and rain.

MOUNTING ORIENTATION

WALL MOUNT:
• Choose your mounting location. Locate a stud within the wall. Pre-drill holes suitable for appropriate screw size. #10- 1 ½" pan
head sheet metal screws are suggested. Choose an appropriate screw for the material. Place screws in vertical alignment on stud at 2 ¼" apart
vertically. This will allow the NEO to fit over the screws and slide down into a secure position. To remove from the wall slide the unit up holding
the unit from below and then remove from the wall. One screw should be fastened into a stud. Screws should be part of an anchoring system this
is rated to support 20 pounds per screw.
NEO
U s e r s M a n u a l
Top of Case
TEMPLATE
Pre-drill holes
