OMNI
3
Quick Start User Guide Rev 3.1
Please remove standard +5 lens before installation of +10 plan1x, +25 or +50 lens.
Also ensure the newly installed lens is selected in System settings and save to Startup

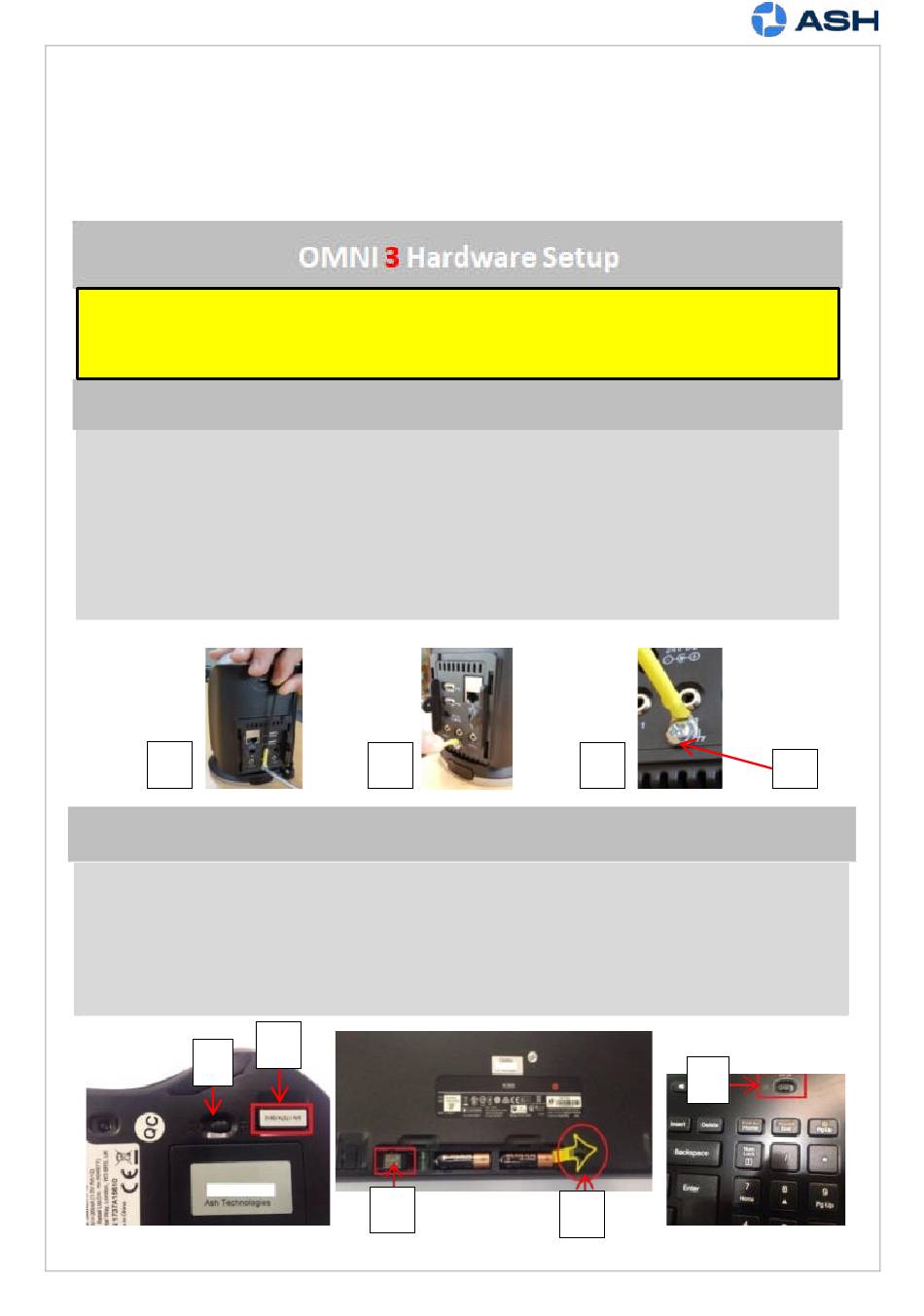

STEP 1: ESD Grounding Cable Assembly (Optional)
Remove the OMNI
1.
Screw the cable as indicated with the M4 screw provided. Ensure that the
cable is pulled upward during assembly.
2.
When screwed in place, bend the cable so that it feeds outward.
3.
Ensure that the bottom ridge
could stop the OMNI
1
STEP 2: Mouse & Keyboard Set-Up
Remove USB dongle from the underside of the mouse.
1.
Ensure mouse is switched to on. Ensure keyboard is switched to on.
2.
3.
Remove USB dongle from the underside of the keyboard located in the
batteries compartment.
Remove yellow "arrow" tab in the keyboard.
4.
2
OMNI
Quick Start User Guide
Settings.
3
Camera Head and all cables from packaging.
*
3
Arm bracket from attaching correctly.
2
1
3
3
under the screw has not been covered as it
3
4
*
2
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ash OMNI 3
Summary of Contents for Ash OMNI 3
- Page 1 OMNI Quick Start User Guide Rev 3.1 OMNI Quick Start User Guide Please remove standard +5 lens before installation of +10 plan1x, +25 or +50 lens. Also ensure the newly installed lens is selected in System settings and save to Startup Settings.
- Page 2 USB port to free up a side port). Now hook the OMNI on to the hooks of the Arm Receiver by slotting the 4 hooks into the unit. Tighten the front 2 Thumb Screws on both sides to secure the OMNI 3. P a g e...
- Page 3 OMNI Quick Start User Guide Rev 3.1 OMNI Software Setup STEP 5: Setting the Correct Height for Measurement Press and hold the power button on the OMNI to switch on. Click on the Settings icon on the main toolbar on the right-hand side of your screen.
- Page 4 OMNI Quick Start User Guide Rev 3.1 STEP 6: Camera & System Settings Click on the Settings icon on the right-hand side of your screen. In Camera Settings, adjust exposure and lighting setting to suit test sample inspection conditions e.g. Ringlight Settings: •...
- Page 5 General Safety • Indoor use only • Exercise caution when lifting, handling or moving the Omni 3. • Exercise caution when installing or removing accessories, ensuring a central and stable body position, thus preventing any possible strains or injury. •...
- Page 6 OMNI Quick Start User Guide Rev 3.1 Electrical Safety To prevent electrical shock or accidental short circuits leading to component damage, follow the points outlined below. • Ensure proper grounding of AC adapters. • Do not operate with open housing, both from a safety and warranty perspective (there are no user-serviceable parts or fuses in the system).
- Page 7 OMNI Quick Start User Guide Rev 3.1 B5, M7 Business Park, Naas, Co. Kildare, W91 P684, Ireland P: +353 45 882212 info@ashvision.com www.ashvision.com P a g e...
