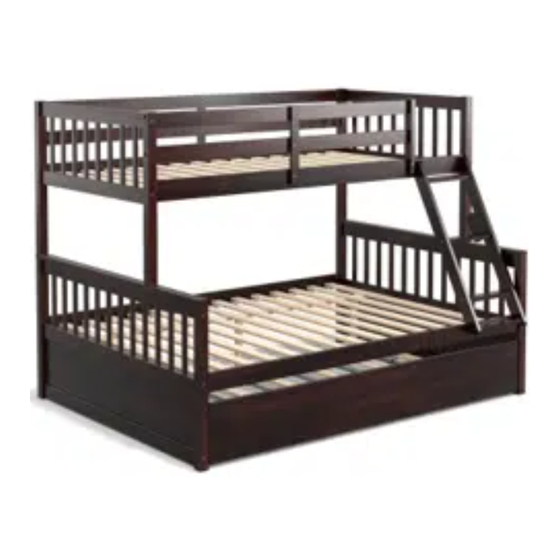

Twin/Full Bunk Bed With Trundle
Lit Superposé Simple/Double avec Lit Gigogne
HU10397
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Advertisement
Related Manuals for Costway HU10397
Summary of Contents for Costway HU10397
- Page 1 GBR office: Ipswich FRA office: Saint Vigor d'Ymonville USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com customer team is always here to help. GBR:cs.uk@costway.com THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. FRA:cs.f r @costway.com...
- Page 2 Before You Start Return / Damage Claim Instructions DO NOT discard the box / original packaging. Please read all instructions carefully. In case a return is required, the item must be returned in original box. Without this Retain instructions for future reference. your return will not be accepted.
- Page 3 Detail View / Vue Détaillée...
- Page 4 Part List / Liste des Pièces HU10397-12 Lower Leg HB (Left back) Lower Leg FB (Right Front) Lower Leg HB (Left Front) /Pied inférieur HB /Pied inférieur FB /Pied inférieur HB (arrière gauche) (avant gauche) (avant droit) Lower Leg FB (Right back)
- Page 5 HU10397-22 Cap for Headboard/ Lower Headboard/Footboard Lower side panel Capuchon pour tête de lit frame /Panneau latéral inférieur /pied de lit Cadre inférieur de tête de lit /pied de lit Upper Headboard/Footboard Vertical guard rail Lower Horizontal bar frame Garde-corps vertical /Barre horizontale inférieure...
- Page 6 Hardware List / Liste des Accessoires HU10397-12 (Ø15)1/4"*80mm Ø10*40mm (Ø15)1/4"*100mm Hex-Head bolts Wood dowel Hex-Head bolts /Boulons à tête /Cheville en bois /Boulons à tête hexagonale hexagonale (Ø12)1/4"*40mm (Ø12)1/4"*35mm (Ø12)1/4"*60mm Hex-Head bolts Hex-Head bolts Hex-Head bolts /Boulons à tête /Boulons à tête /Boulons à...
- Page 7 Ø3.5*15mm (1/4")4.5*58mm Metal bracket Allen key crews/Vis / Support métallique /Clé Allen (Ø12)1/4"*40mm Hex-Head bolts Ladder stopper /Boulons à tête /Butée d'échelle hexagonale EN: ASSEMBLY TOOLS REQUIRED ( NOT INCLUDED ) FR: OUTILS D'ASSEMBLAGE REQUIS (NON INCLUS) 234mm FR : VEUILLEZ FAIRE ATTENTION DE NE PAS ENDOMMAGER LA POSITION DES TROUS LORSQUE VOUS UTILISEZ DES OUTILS ÉLECTRIQUES ! EN: Note: Do not lock the screws of the bed slats to the outermost edge of...
- Page 8 EN: Note: Part 8 will face up with the "x" mark on it, otherwise it cannot be tightened. FR : Remarque : La pièce 8 doit être orientée vers le haut avec la marque « x », sinon elle ne peut pas être serrée.
- Page 9 61mm EN: Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing, hold it in place with one hand, then lock the screw.
- Page 10 Assembling leg support (T) with lower support slat (S) later rotate, move support slat inside Full bunk bed. /Assemblez le support de pied (T) avec la latte de support inférieure (S), puis tournez, déplacez la latte de support à l'intérieur du lit superposé double. EN: Note: Part 8 will face up with the "x"...
