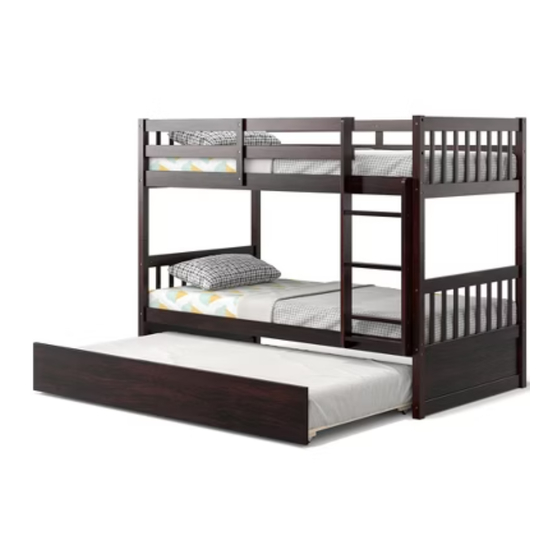

Twin/Twin Bunk Bed With Trundle
Lit Superposé Simple/Simple avec Lit Gigogne
HU10398
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Costway HU10398
Summary of Contents for Costway HU10398
- Page 1 GBR office: Ipswich FRA office: Saint Vigor d'Ymonville USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com customer team is always here to help. GBR:cs.uk@costway.com THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. FRA:cs.f r @costway.com...
- Page 2 Before You Start Return / Damage Claim Instructions DO NOT discard the box / original packaging. Please read all instructions carefully. In case a return is required, the item must be returned in original box. Without this Retain instructions for future reference. your return will not be accepted.
- Page 3 Detail View / Vue Détaillée...
- Page 4 Part List / Liste des Pièces HU10398-12 Lower Leg (Left Back/Right Front) Lower Leg (Left Front/Right Back) Upper Leg (Left Front/Right Back) /Pied inférieur (avant gauche /IPied inférieur (arrière gauche /Pied supérieur (avant gauche /avant droit) /arrière droit) /arrière droit)
- Page 5 HU10398-22 Lower Headboard/Footboard Lower Horizontal bar Lower side panel frame /Barre horizontale inférieure /Panneau latéral inférieur Cadre inférieur de tête de lit/pied de lit Upper Headboard/Footboard Vertical guard rail Trundle slats frame /Garde-corps vertical /Lattes du lit gigogne Cadre supérieur de tête de...
- Page 6 Hardware List / Liste des Accessoires HU10397-12 Ø10*40mm (Ø15)1/4"*100mm (Ø15)1/4"*80mm Hex-Head bolts Wood dowel Hex-Head bolts /Boulons à tête /Cheville en bois /Boulons à tête hexagonale hexagonale (Ø12)1/4"*60mm (Ø12)1/4"*40mm (Ø12)1/4"*30mm Hex-Head bolts Hex-Head bolts Hex-Head bolts /Boulons à tête /Boulons à tête /Boulons à...
- Page 7 234mm EN: Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing, hold it in place with one hand, then lock the screw.
- Page 8 EN: Note: Part 8 will face up with the "x" mark on it, otherwise it cannot be tightened. FR: Remarque : La pièce 8 doit être orientée vers le haut avec la marque « x », sinon elle ne peut pas être serrée.
- Page 9 61mm EN: Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing, hold it in place with one hand, then lock the screw.
