Summary of Contents for FREEWAY M205

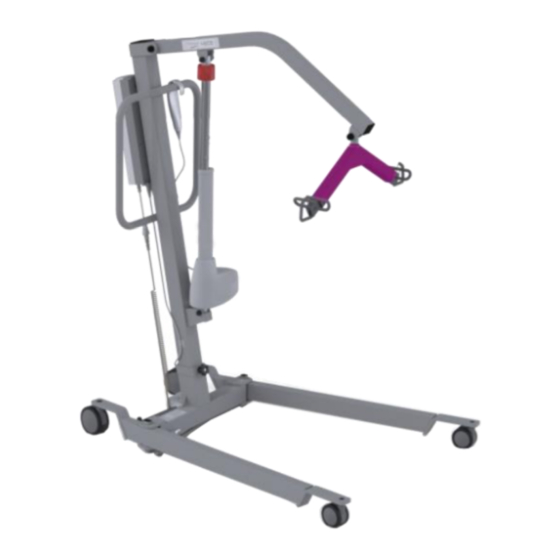

- Page 1 M205 Mobile Hoist Pre Sales Document Doc No. 993069 Revision of document: A Revision Date: 25.05.21...
-
Page 2: Table Of Contents
Detachable Parts ............................. 6 Attaching/detaching QRS (Quick Release System) Carry Bar ............. 6 Attaching/detaching the Battery ......................7 Technical Specification ..........................8 Freeway M205 Mobile Hoist Dimensions ................... 8 Specifications............................9 Electrical Specifications ........................9 Environmental - Storage and Operating Conditions ................10 Normal Operating Conditions ...................... -
Page 3: Intended Use
ALL Mobile Hoists are dangerous to the person being transferred when used recklessly or pushed at speed. 1.2 Operating Environment The M205 Mobile Hoist is intended for use within the professional healthcare facility environment as well as the home health care environment. The Hoist is not suitable for any other environment or special environments. -
Page 4: Slings
10535 before its use. The slings with a safe working load of 205kg that can be used with the Freeway M205 Mobile Hoist are shown in the table below, for full details on the various Sling sizes and material options. See the User Manual for the specific Sling Model. - Page 5 Mackworth Sling Range - Product Material and Code Mackworth Oak Mackworth Oak with head support Mackworth Yew Mackworth Yew with head support Mackworth Hazel Mackworth Hazel with head support Mackworth Willow Mackworth Willow with head support Mackworth Beech Mackworth Beech with head support Mackworth Pine Mackworth Pine with head support Table 1...
-
Page 6: Detachable Parts
Detachable Parts Detachable parts that are included with the product consist of the Battery and the QRS (Quick Release System) Carry Bar. This is an optional accessory that is not included with the standard product. Below are the instructions for attaching and detaching the QRS Carry Bar and the Battery. 3.1 Attaching/detaching QRS (Quick Release System) Carry Bar If you have chosen to have QRS carry bar please follow the following section to attach and detach the carry bar from hoist. -
Page 7: Attaching/Detaching The Battery
3.2 Attaching/detaching the Battery The attachment and detachment of the Battery can be completed safely by following the following procedure: Attach Grab Hold of the Battery from the top position as shown in figure 13 and place your fingers onto the latch. Press the latch to release the Battery and lift the Battery from its fixing. -
Page 8: Technical Specification
Technical Specification 4.1 Freeway M205 Mobile Hoist Dimensions All dimensions below are shown in millimetres. Figure 16 Figure 17 993069 – Revision A P a g e | 8 of 12... -
Page 9: Specifications
4.2 Specifications Dimensions Turning Circle 1010mm Overall Height 2010mm Overall Width 625mm Ground Clearance 15mm Front and Rear Castors Size 75mm and 100mm Table 3 Weights: Safe Working Load (SWL) 205 kg Full Product 40 kg Base Assembly 18.5 kg Mast &... -
Page 10: Environmental - Storage And Operating Conditions
+35°C to 70°C (95⁰F to 158⁰F) non-condensing at a water vapour pressure up to 50hPa. Maintenance No service is to be carried out on the M205 Mobile Hoist, while transferring a person to reduce the risk of injury. Service must be completed by a Prism Medical UK authorised Service Engineer. -
Page 11: Cleaning
The exterior of the Freeway M205 can be cleaned using a damp soapy cloth for general cleaning duties. Please ensure the cloth is damp and not wet. Ensure the exterior of the device is dry after cleaning. Dry using a clean dry cloth. - Page 12 Manufacturer contact details: Prism Medical UK Address: Unit 1 • Tir Llwyd Industrial Estate • St Asaph Avenue • Kinmel Bay • Conwy • LL18 5JZ Telephone Number: 01924 840100 Disclaimer While every effort has been made to ensure the accuracy of information contained in this user manual, no liability can be accepted by Prism Medical UK for any errors or omissions.
