Kohler K-8798T Installation Instructions

·
Thank you for choosing the products of Kohler. Kohler
craftsmanship offers you a rare combination of proven
performance and graceful sophistication that will satisfy
you for years to come. The quality and dependability of
your Kohler toilet seat will surpass your highest
expectations. We're very proud of our products here at
Kohler and we know you will be too.
·
Please take a few minutes to study this manual. Pay
special attention to the Care and Cleaning instructions.
·
All information in this manual is based upon the latest
product information available at the time of publication. At
Kohler, we constantly strive to improve the quality of our
products. We reserve the right to make changes in
product characteristics, packaging or availability at any
time without notice.
ORDERING INFORMATION
PRESQU'ILE Quiet-Close Toilet Seat.........................K-8798T
Quiet-Close Toilet Seat ...............................................K-8827T
Toilet Seat ...................................................................K-8020T

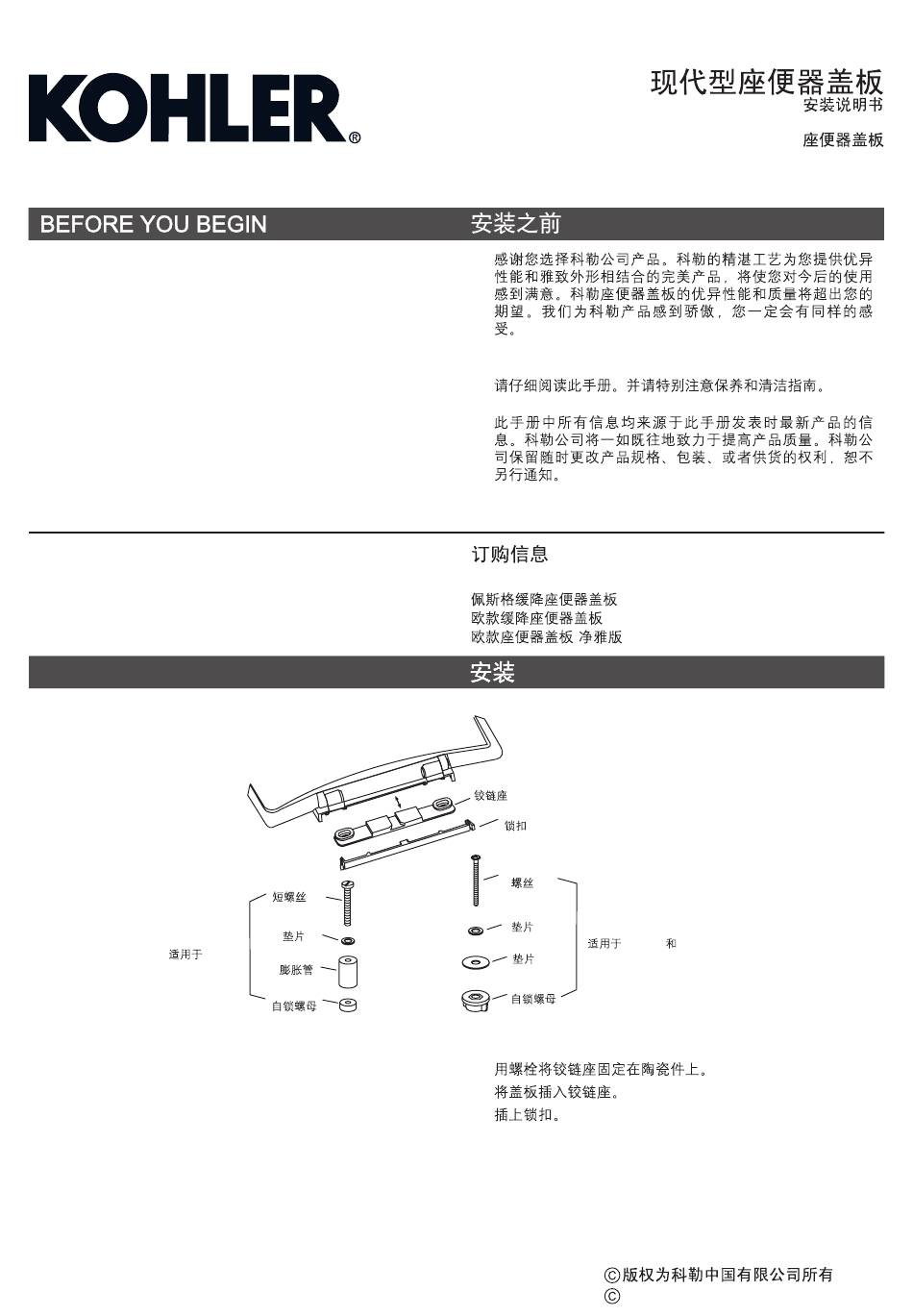

INSTALLATION
For K-8798T
·
Fix the hinge onto the bowl with screws.
·
Insert the seat into the hinge base.
·
Insert the hinge lock.
1069467-T01-D
Screw, Short
Washer
K-8798T
Anchor
Lock Nut
·
·
·
....................................................K-8827T
(
Hinge Base
Hinge Lock
Screw
Washer
For K-8827T and K-8020T
Washer
Lock Nut
·
·
·
-1-
INSTALLATION INSTRUCTIONS
TOILET SEATS
K-8798T/K-8827T/K-8020T
................................................K-8798T
) ..............................................K-8020T
K-8827T K-8020T
