Summary of Contents for Rosemor ET15B

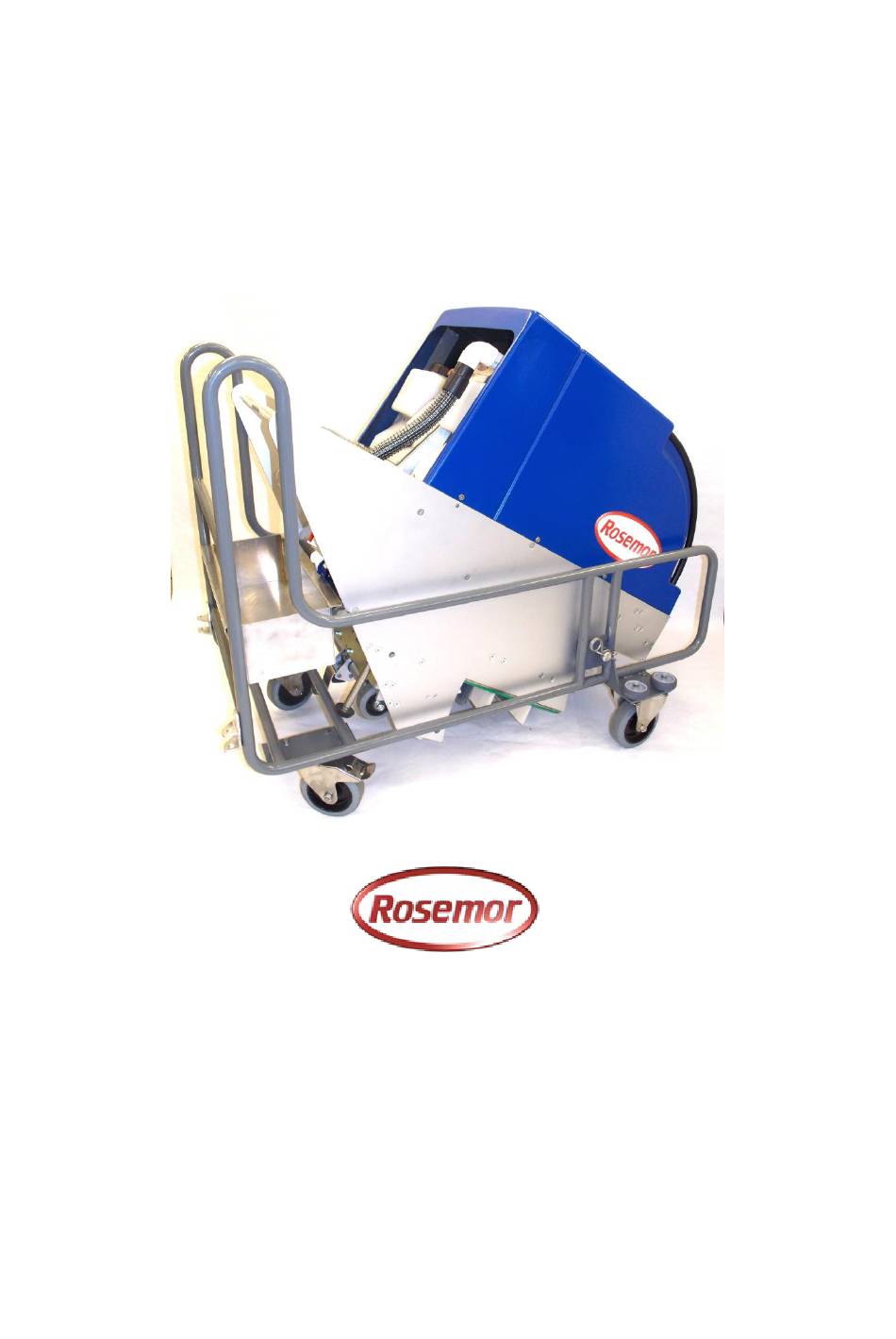

- Page 1 Operation and Maintenance Instructional Manual Automatic Escalator/Travelator Deep Cleaner ET15B ROSEMOR INTERNATIONAL LIMITED UNIT F MOSES WINTER WAY WALLINGFORD OXFORDSHIRE OX10 9FE TELEPHONE (+44)01491 838011 FAX (+44)01491 832010 info@rosemor.com www.rosemor.net...
- Page 2 It is therefore vital that the operator receives instruction and training from Rosemor International Ltd specialists before the cleaning machine is started for the first time. The present operation and maintenance instruction manual represent additional assistance for the operator in obtaining the information necessary for correct and safe use of the cleaning machine.
-
Page 3: Table Of Contents
3.14 Emptying the dirty-water tanks ......................16 3.15 Ending the cleaning process ......................17 3.16 Use of transport trolley ........................18 3.16.1 Preparation for transport......................18 3.16.2 Use of transport trolley for maintenance..................19 Created by Rosemor International Ltd Page 3... - Page 4 4.9 Troubleshooting and remedy......................23 5 Attaching the T10 module..................24 5.1 Lowering the Wheels on the T10……………………………………............ 24 5.2 Starting the Cleaning Cycle……………………………………………………………………………….. 25 6 Battery Back up…………………………………………………………………………...26 7 Replacing and Maintaining the T10 Brushes ……………..………………………...26 Created by Rosemor International Ltd Page 4...
-
Page 5: Preliminary Remarks
1.4 Who may operate the machine? The machine may only be used by persons who have been instructed in its operation and who are expressly authorised to carry out such work. Created by Rosemor International Ltd Page 5... -
Page 6: Safety Instructions
It is forbidden for reasons of safety to carry out be replaced by a service workshop approved by modifications to this machine. Any unauthorised Rosemor International Ltd as special tools are modifications to the machine automatically required for such work. -
Page 7: Warning Signs And Stickers
If the machine is not used for the intended purpose, such use will be at the sole 1.14 Procedure in case of emergency risk and responsibility of the user. Rosemor Lower machine, turn key switch (10) to “0” and International Ltd will not accept any liability in such cases. -
Page 8: Description
(RC91) Capacity of dirty-water tank: 15 L Dimensions Length 1350mm Width 536mm Height 1250mm Operational weight (Including 170Kg filled fresh-water tank and mains cables): Noise level 78 ± 2 dB (A) Batteries Created by Rosemor International Ltd Page 8... -
Page 9: List Of Reference Numbers
Spray nozzle Brake Coupling ring Safety support / step height adjustment Rim comb Suction basin Fixing axle Seal strip Emergency STOP button Stripping brush Battery Button Brush Tail Housing Cover for brush-replacement opening Created by Rosemor International Ltd Page 9... -
Page 10: Location Of Components
Automatic Escalator/Travelator Deep Cleaning Machine – ET15 V1.0 2.3 Location of components Fig. 1: Location of components Fig. 2: Control panel Created by Rosemor International Ltd Page 10... -
Page 11: Operation
Auto start button will flash when ready Raise machine [pushbutton (7) on operating console (4)] Move rail in the opening for replacing brushes (27) (pushbutton (8) Touch operation for bush) Fig. 4: Control Panel Created by Rosemor International Ltd Page 11... -
Page 12: Filling Fresh Water
The operator must furthermore obtain instruction on manual control of the escalator or else ensure that some person familiar with the workings of the escalator is available near by at all times. Created by Rosemor International Ltd Page 12... -
Page 13: Safety Measures On Site
3.8 Positioning machine on escalator The machine with extended lifting spindles (18) should then be pushed into the escalator and moved by authorised escalator operators to the first completely extended step (Fig. 7). Created by Rosemor International Ltd Page 13... -
Page 14: Setting Step Height
If this is not the case, the adjustment procedure must be repeated! Incorrectly adjusted travelling supports (16) will mean that the operator will have to use more force! Start the cleaning operation. Created by Rosemor International Ltd Page 14... -
Page 15: Select Cleaning Programme
Duration of cleaning cycle 60 seconds. Fig. 9: Control Panel The machine is provided with 4 cleaning programmes, which have been tested and optimised by Rosemor International Ltd. An ideal cleaning performance is achieved with a minimum use of water. Created by Rosemor International Ltd... -
Page 16: Cleaning The Escalator
Caution when lowering not to trap the brushes. The switched-off and lowered machine is then driven downwards with the escalator to the position of the last extended step. Created by Rosemor International Ltd Page 16... -
Page 17: Subsequent Cleaning
Manual cleaning equipment has been developed dumped! by Rosemor International Ltd by means of comprehensive practical tests. With this equipment, any subsequent cleaning Place dirty-water tank (2) onto shaft (13) -
Page 18: Ending The Cleaning Process
It is recommended that escalator key holders must be trained by the escalator supplier in the correct operation of the escalator. Created by Rosemor International Ltd Page 18... -
Page 19: Use Of Transport Trolley
(46) has been removed and driven into the shaft (see Fig. 18:). Fig. 19: Machine in transport position Fig. 18: Moving into transport position Created by Rosemor International Ltd Page 19... -
Page 20: Use Of Transport Trolley For Maintenance
After the fixing axle (46) has been inserted and secured again, the travelling gear can be drawn in to about half its length and the machine then swung into the maintenance position on the trolley. Created by Rosemor International Ltd Page 20... -
Page 21: Maintenance / Care
(Fig.22:) necessary (Fig. 22:). Check sliding elements of the step adjustment device (16 and 19). Replace in case of wear Check seal strip (22) and renew if necessary (Fig. 22:) Created by Rosemor International Ltd Page 21... -
Page 22: Maintenance After 100 Service Hours
An electrically driven machine must be examined every year in accordance with VDE 702 or some comparable international standards. Maintenance work may be carried out by trained personnel only. Fig. 25: Wear measurement chain drive Created by Rosemor International Ltd Page 22... -
Page 23: Cleaning And Replacing Fresh-Water Nozzles
Fig. 26: Chain drive / spray nozzles according to the turning safety device! The coupling ring should only be twisted on manually! Fig. 25: Chain drive / spray nozzles Created by Rosemor International Ltd Page 23... -
Page 24: Supplied Fork
If the fault in the machine can not be remedied according to the procedures described in the table above, the customer service of Rosemor International Ltd should be notified and the necessary repair work carried out by its staff. Created by Rosemor International Ltd... -
Page 25: Attaching The T10 Module
This will indicate it is in position. Power Cable These hoses will now need to be connected to the ET15 machine as per Fig. 31 Fig. 31 Connections on the ET15 Created by Rosemor International Ltd Page 25... -
Page 26: Starting The Cleaning Cycle
Screws ready. Press the Auto Start button (12) which will power up the T10. Now manoeuvre the T10 on to the Travelator. Fig. 35 Remove Screws Created by Rosemor International Ltd Page 26...
