INSTALLATION INSTRUCTIONS
EURO C22/L22 In-Roof Mounting System
for Pantile Roofing (after 2010)

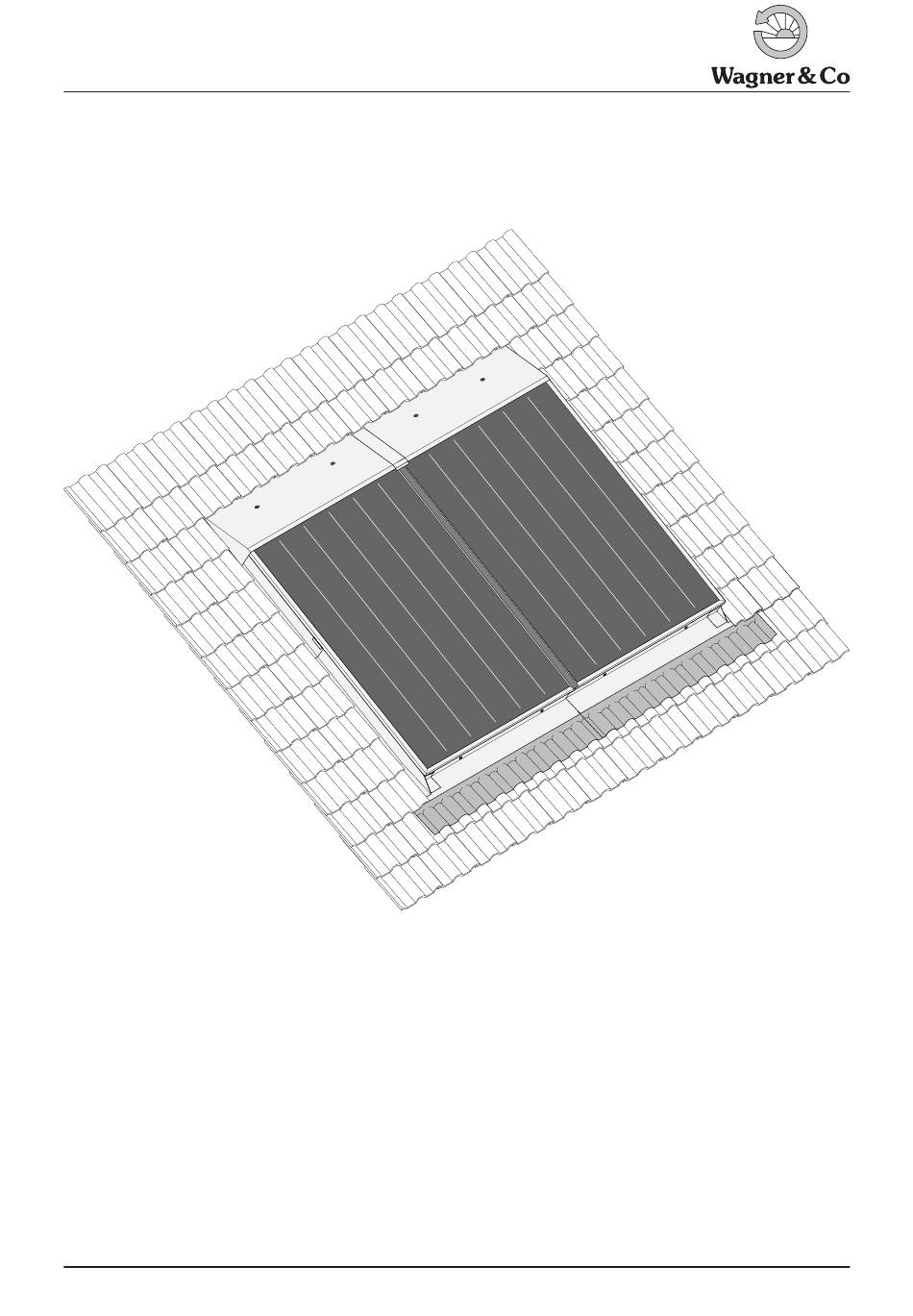

Figure 1 EURO in-roof installation on pantile roof
For roof pitch > 20°
●
Weather proof integration thanks to aluminium clad-
●
ding panels and aluminium skirting
Pipe connections protected under upper cladding
●
sheets
1) also applies to EURO 22
Solar Thermal / Solar Collectors
EN-XXX_EURO-C22-L22-In-Roof-Pantile_MA-121217-1WA10142
Content
1
2
3
4
2
2
2
2
2
3
3
4
4
5
6
8
1
Advertisement
Table of Contents
Related Manuals for Wagner & Co EURO C22
Summary of Contents for Wagner & Co EURO C22
-
Page 1: Table Of Contents
INSTALLATION INSTRUCTIONS EURO C22/L22 In-Roof Mounting System for Pantile Roofing (after 2010) Figure 1 EURO in-roof installation on pantile roof Content General Safety Notes 1 1 Symbols 1 2 Norms and Regulations 1 3 Qualification of the Installer 1 4 Intended Use and Application For roof pitch >... -
Page 2: General Safety Notes
1 General Safety Notes 1.3 Qualification of the Installer 1.1 Symbols Setup, installation and proper commissioning of the solar installation must be carried out by authorized profession- The following symbols are used throughout these instruc- als Non-compliance renders the warranty void tions and must be adhered to: 1.4 Intended Use and Application DANGER of possibly serious personal injury... -
Page 3: 5 Pre Installation Notes
1.5 Pre Installation Notes Risk of burns at collector connections as soon as uncov- ● ered collector is exposed to the sun (figure 3) Danger of open injuries when working with sharp ● edged metal sheets and components! Remove protective plastic caps from connections be- ●... -
Page 4: Setup And Scope Of Delivery
2 Setup and Scope of Delivery 2.1 Basic Kit Figure 5 Components of basic set Table 1 Scope of Supply, Basic Set 192 010 64 Table 1 cont. Component Qty. Part No. Supporting laths 1158 mm 819 920 54 Flashing sheet, top left 819 721 46 Supporting laths 200 mm 190 102 19... -
Page 5: 2 Extension Kit
2.2 Extension Kit Figure 6 Components of extension set Table 2 Scope of Supply, Extension Set 192 010 61 Pos. Component Qty. Part No. Flashing sheet, top 819 721 47 Wooden support 819 920 53 Collector connection hose 130 000 10 Foam rubber tape 819 450 20 Cellular rubber tape... -
Page 6: Prepare Installation Field
3 Prepare Installation Field To warrant permanence of the installation, various prereq- Leave the existing roof battens in place as supporting uisites have to be fulfilled: construction, and affix the additional laths required for the A waterproof and diffusion reducing foil with at least 24 installation according to the dimensions given in figure 7 ●... - Page 7 Figure 8 In roof installation longitudinal section (upper drawing) and cross section (lower drawing). 1 Roof batten, 2 Counter lathing, 3 Sarking, 4 Rafters, 5 Low diffusion foil, 6 ventilation space Solar sensor Solar sensor Solar sensor Figure 9 Vertical collector arrangement for two, three and at max. four collectors in serial connection. Connection of more than four units by combining parallel and serial connection.
-
Page 8: Installation
4 Installation Figure 10 Installation tools: folding rule, drilling machine, Phillips-Bit Figure 11 Pipe lead with sarking membrane: make a T-shape cut into PZ 2 and 3, open spanner sizes 16, 19, 24, hammer, cutter knife, silicone the sarking, lead through the connection hose and close cuts with ap- gun (where required angle grinder with stone cutter) propriate tape. - Page 9 Figure 16 Connect collectors. Use 2nd wrench to secure connection Figure 17 Connect collectors to solar circuit. and avoid damage. ATTENTION: Danger of burns at connections dur- Later check for leak tightness! ing solar irradiation! Figure 18 Slip rubber seal over cable, insert solar sensor into sensor Figure 19 Position wooden support along collector and fasten with sleeve;...
- Page 10 Figure 22 Insert the pushed together side panels into the rear groove Figure 23 Push lower panel section downwards, until it snaps into the of the frame in such a way that the upper notch (1) snaps into the col- latch of the lower corner.
- Page 11 Figure 28 Fix upper flashing sheets on the batten using 2 fixing clips. Figure 29 Position the roof-tile supporting bar by vertically shifting it, so that later the tile row will be aligned with the tiles on the sides. Then affix with metal strips to roof battens.
- Page 12 Figure 34 Along the side panels, the retaining edge or nose of the Figure 35 Remove adhesive protection foil from lower aluminum skirt- roofing tiles may have to be removed; lateral size reduction may be ing and press to surface of tiles. required.
