This user manual is subject to
change without prior notice.
- Thank you for purchasing this product.
- This user manual contains instructions on how to use the product properly.
- Please read this manual carefully. Be sure to follow the instructions and notices.
- Disable the lock before use (refer to p. 20).

Advertisement

loading

  Related Manuals for LG PS34GNGB.AES2STD

  Summary of Contents for LG PS34GNGB.AES2STD

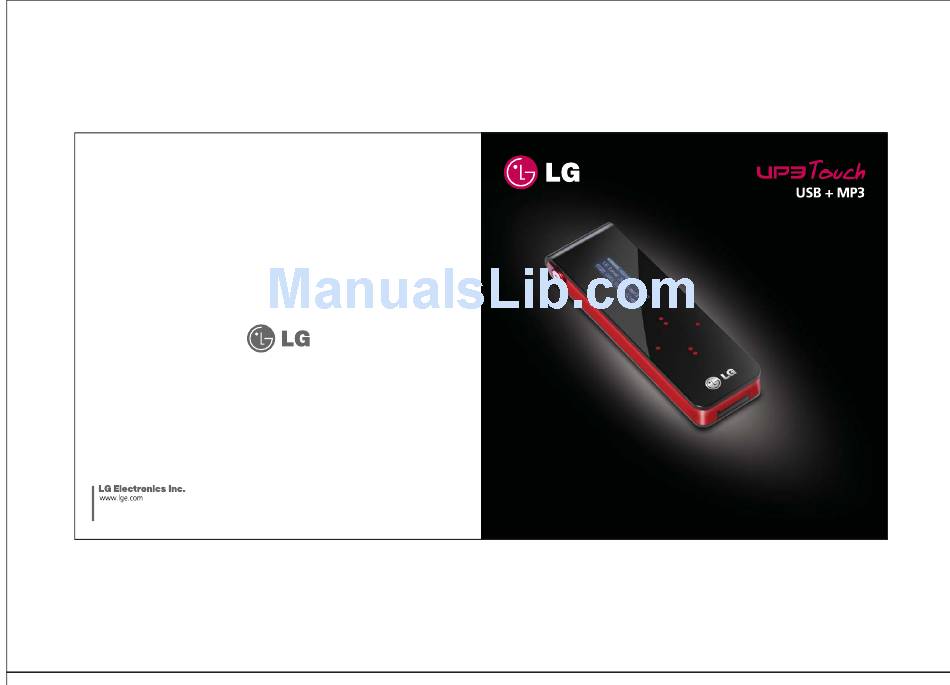

  • Page 1 This user manual is subject to change without prior notice. - Thank you for purchasing this product. - This user manual contains instructions on how to use the product properly. - Please read this manual carefully. Be sure to follow the instructions and notices. - Disable the lock before use (refer to p.
  • Page 2: Table Of Contents

    Table of Contents 1. Before Safety Cautions Using the Product Features Product Product Components Names of Parts Connecting the USB (MSC) Removing the USB (MSC) File Import (MTP) Recharging/Battery Use Installing Windows 98SE Driver Display 2. Basic Use Reset/Lock Volume Control/Previous or Next Track Menu Mode Listening to Music Listening to FM Radio...
  • Page 3: Product

    Before Using the Product Cautions During Use Failure to follow the instructions below may result in injuries or product damage. Warning Keep away from heat. Do not disassemble, repair, or rebuild. Keep away from humidity, dust, and soot. Make sure no dust or other foreign matter gets inside the product.
  • Page 4 Before Using the Product Product Features Slim design and touch buttons The design is slim and simple, with touch buttons. Use the touch buttons to access various menus and features. Mobile storage device Supports MP3 (8 ~ 320kbps), WMA (32~192kbps), ASF (Only Audio), and OGG (Q1~Q10) formats USB 1.1/2.0 supported USB2.0 speed is supported for fast upload and download;...
  • Page 5: Product Components

    Before Using the Product 200MHz Pentium Processor or higher - Windows 98SE/ME/2000/XP/Vista (32bit/64bit) - Mac OS X (ver 10.0 or higher supported) - Linux Kernel 2.6 or higher USB port SVGA graphic card 64MB main memory or more Mouse CD-ROM driver (2X speed) HDD 100MB or more of space Caution when using the touch buttons Product Components...
  • Page 6: Names Of Parts

    Before Using the Product Names of Parts Neck strap MIC/ link Earphone jack Reset hole Record button Repeat A-B Display window Menu/Previous menu Volume control/ REW button Up, Down FF button USB port Names of Parts Names of Parts Lock (Hold) Neck Strap connection USB slide button...
  • Page 7: Connecting The Usb (Msc)

    Before Using the Product Before Using the Product Connecting the USB (MSC) Removing the USB (MSC) When used as mobile storage device Removing the USB 1. Connect the UP3 product to the USB port of the computer. 2. The following window will then appear.
  • Page 8: File Import (Mtp)

    Before Using the Product Before Using the Product File Import (MTP) File Import (MTP) MTP mode environment Connecting to MTP Mode Supported in Windows XP/SP1 or higher and Windows Media Player 10 or higher 1. Window when UP3 is connected to 2.
  • Page 9 Battery Use 화면구성 Battery Use [Low battery] This symbol is applicable in Europe Union. Please contact authorized LG Electronics service center to replace or remove. Hand over used batteries to recycling collection point of waste batteries. Before Using the Product...
  • Page 10: Installing Windows 98Se Driver

    Before Using the Product Installing Windows 98SE Driver Before installing Installation Before Using the Product Display Play Volume EQ status Lock status Play status Battery status Filename/Artist name Play mode Frequency range Current frequency Preset channel number Preset mode/ Autoscan mode FM mode Record Recording source...
  • Page 11: Basic Use

    Basic Use Power on Power on [Power On] If you turn the power on, initial booting may take time since finding the saved files may also take time. S3 supports auto playback when audio file exists. Music starts from the stop point previous. Reset Reset Reset hole...
  • Page 12: Volume Control/Previous Or Next Track

    Basic Use Volume Control Volume Control Previous/Next Track - Press the FF button to move to the next track. - Press and hold down the FF button to explore the next track. - Press the REW button to move to the previous track. - Press and hold down the REW button to explore the previous track.
  • Page 13: Listening To Music

    Basic Use Listening to Music Listening to Music In the main menu, press the FF button in music mode to shift to Music mode. To play a file, press the Play/Pause button. press it one more time to pause the file. [Play music] Move to the Next/Previous track Press the REW button for 5 seconds after the playback of the current track ends to listen...
  • Page 14: Listening To Fm Radio

    Basic Use 동영상보기 FM 라디오 듣기 Listening to FM Radio Listening to FM Radio In the main menu, press the FF button in FM mode to listen to the radio. If you have not set a preset channel, automatic scan will be executed. Up to 30 channels can be saved.
  • Page 15: Recording Voice

    Basic Use Recording Voice Recording Voice In the menu, select the Record menu to record your voice using the built-in microphone. You can record a radio program in Radio mode only. (You can change the recording settings in the Settings menu.) [Start recording]: In Record Standby mode, press and hold down the REC button to start recording.
  • Page 16: Play Setting/Equalizer Setting

    Setting 재생설정 Play Setting Play range You can set the play range. In the Setting menu, go to Play Setting and press the FF button. Select Play Range and press the FF button. Press the Volume Up or Down button, select Onel/Folder/All, and press the FF button. To go to the previous category, press the REW button.
  • Page 17: Record Setting

    Setting Power Setting Sleep setting You can set the sleep settings while music or radio is playing. In the Setting menu, go to Power Setting-> Sleep and press the FF button. Press the Volume Up or Down button, select 0/30 minutes/1/2/3 hours, and press the FF button. Display brightness You can set the display brightness.
  • Page 18: Fm Setting/Play Speed Setting

    Setting FM Setting FM Region You can set the region for FM radio. In the Setting menu, go to FM Region and press the FF button. Press the Volume Up or Down button, select Korea/US, Europe/China, Japan, and press the FF button.
  • Page 19: Reset/About The Product

    Setting Reset Reset You can reset the settings to default settings. In the Setting menu, go to Reset and press the FF button. Press the Volume Up or Down button, select Yes/No, and press the FF button. The device will then be restarted, and all settings will be changed to the default settings. About the Product About the Product You can check the information on the device.
  • Page 20: Firmware Upgrade

    Customer Support Firmware Upgrade Firmware Upgrade 1. What is Firmware? - Just as an OS is used in the computer to operate it (e.g., Windows 2000, Windows XP, Linux), a program is needed to operate the MP3 device in an MP3 player. This program is called firmware.
  • Page 21: Troubleshooting

    Customer Support Troubleshooting Problems Solutions Power does not Power will not turn on if the battery is completely discharged. turn on Try turning on the power after recharging the battery. Press the Reset hole and check whether the Hold button is displayed as [HOLD▶].
  • Page 22: Menu Structure

    22.7g Memory 1GB, 2GB, 4GB, 8GB Play Mode Play Time 15 Hours for audio (based on the test conducted by LG) 2.0 High Speed (USB 1.1 Compataible) Earphone Output 10mW + 10mW(16Ω), S/N 90dB MS DRM10, Net-Sync, X-Sync Display Off...
  • Page 23: Warranty

    (2) Defect (damage and defect in function) caused by dropping the device or applying force to it (3) External damage and change in shape caused by thinner and benzene solution (4) Defect caused by using parts other than the original parts of LG Electronics for repair (5) Defect caused by using the wrong voltage...
