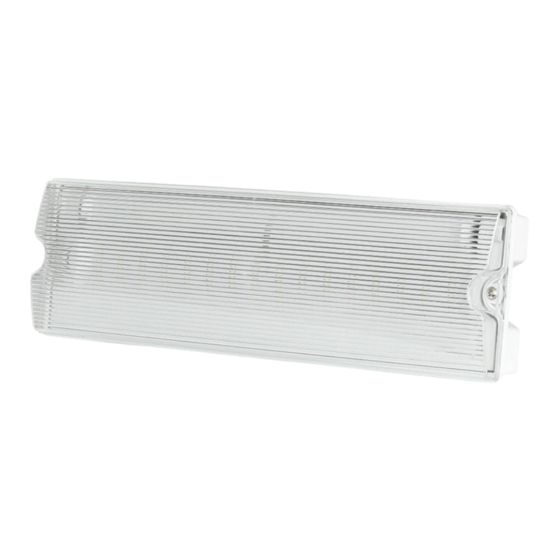

V-TAC VT-543 Instruction Manual

TECHNICAL DATA

Model
VT-543
SKU
83111
Watts
3W
Lamp Type 16 SMD LEDs, Wall-Bulkhead
Lumens
140 LM
Input Power AC: 220-240V, 50/60Hz
Protection Rating IP65
Operation Time >3 Hours (Maintained)
Charging Current
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc-
tions carefully before starting the installation and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They
are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The
warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company
gives no warranty against damage to any surface due to incorrect removal and installation of the product. The
products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the
warranty. This product is warranted for manufacturing defects only.
Our products are designed to comply with the recommendations of BS EN 60598-1:2008 code of practice for
emergency lighting and should be installed by a competent person in accordance with the relevant regulations.
Before installation of any type of emergency lighting always seek the advice of the local fire prevention o cer
(or equivalent authority).
WARNING!
1. Please make sure to turn o the power before starting the
installation.
2. The light source of this luminaire is not replaceable, when
the light source reaches its end of life the whole luminaire
should be replaced.
3. Installation should only be done by a certified electrician.
Non-replaceable light source
This marking indicates that this product
should not be disposed of with other
household wastes.
INSTRUCTION MANUAL
EMERGENCY LIGHTS
70~150mA
Caution, risk of
electric shock.
WEEE Number: 80133970
Discharging Current
Battery type
Recharge time
Indicator
Material
Product size
4 Legends included
MAINTAINED
Ls N L
380~400mA
Ni-Cd 3.6V 1200mAh
12 hours
(Initial charge: 36 hrs)
Green Light Indicator
PC Cover
346x107x60 mm(LxWxH)
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
NON-MAINTAINED
Ls N L
