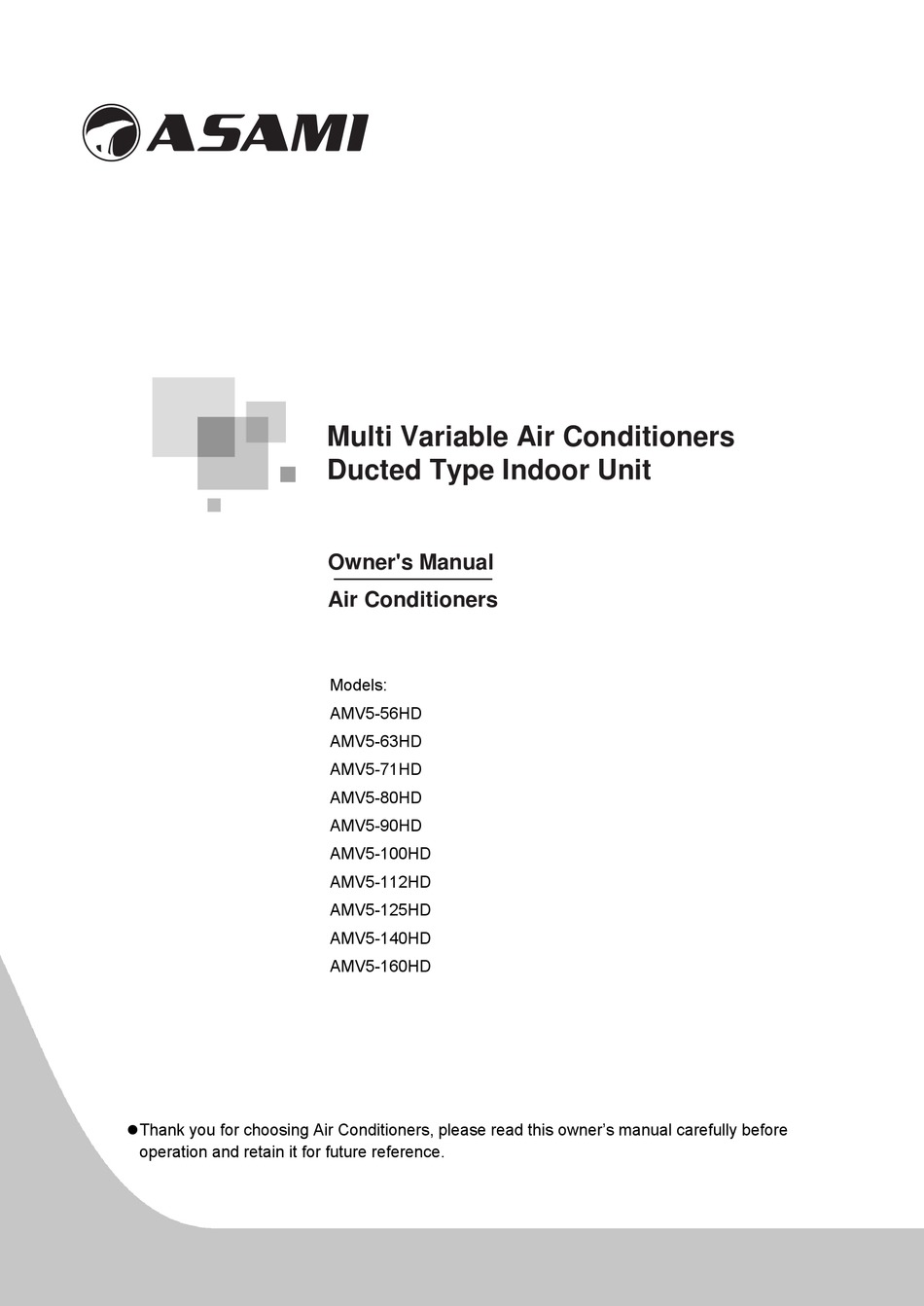

 Thank you for choosing Air Conditioners, please read this owner's manual carefully before
operation and retain it for future reference.
Multi Variable Air Conditioners
Ducted Type Indoor Unit
Owner's Manual
Air Conditioners
Models:
AMV5-56HD
AMV5-63HD
AMV5-71HD
AMV5-80HD
AMV5-90HD
AMV5-100HD
AMV5-112HD
AMV5-125HD
AMV5-140HD
AMV5-160HD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMV5-56HD and is the answer not in the manual?

Questions and answers

Related Manuals for Asami AMV5-56HD

Summary of Contents for Asami AMV5-56HD

  • Page 1 Multi Variable Air Conditioners Ducted Type Indoor Unit Owner's Manual Air Conditioners Models: AMV5-56HD AMV5-63HD AMV5-71HD AMV5-80HD AMV5-90HD AMV5-100HD AMV5-112HD AMV5-125HD AMV5-140HD AMV5-160HD  Thank you for choosing Air Conditioners, please read this owner’s manual carefully before operation and retain it for future reference.
  • Page 3 Preface For correct installation and operation, please read all instructions carefully. Before reading the instructions, please be aware of the following items: This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. This mark indicates procedures which, if improperly performed, might lead to the death or serious injury of the user.

  • Page 5: Table Of Contents

    Contents 1 Safety Precautions ................1 2 Product Introduction ................3 2.1 Names of Key Components................3 2.2 Rated Working Condition ................3 3 Preparations for Installation ..............4 3.1 Standard Fittings .................... 4 3.2 Location for Installation .................. 5 3.3 Requirements for Communication Line ............

  • Page 6: Safety Precautions

    Multi Variable Air Conditioners Ducted Type Indoor Unit 1 Safety Precautions Means items that must be forbidden! Otherwise, it may lead to personal injury or death or serious damage. Means items that must be followed! Otherwise, it may lead to personal injury or property loss.
  • Page 7 User is not allowed to repair main power supply, and the unit. Fault service may then immediately contact cause electric shock or fire ASAMI appointed service accidents. Please contact center. abnormality ASAMI appointed service keeps going, the unit center for help.

  • Page 8: Product Introduction

    Multi Variable Air Conditioners Ducted Type Indoor Unit 2 Product Introduction 2.1 Names of Key Components ① ② ③ ④ ⑤ Name Filter Air Inlet Air Outlet Fittings Drain Pipe 2.2 Rated Working Condition Indoor Side Condition Outdoor Side Condition Dry Bulb Temp℃(℉) Wet Bulb Temp℃(℉) Dry Bulb Temp℃(℉) Wet Bulb Temp℃(℉) Rated Cooling...

  • Page 9: Preparations For Installation

    Multi Variable Air Conditioners Ducted Type Indoor Unit 3 Preparations for Installation Note: Product graphics are only for reference. Please refer to actual products. Unspecified measure unit is mm/in. 3.1 Standard Fittings Please use the supplied standard fittings listed below as instructed. Name Appearance Q'ty...

  • Page 10: Location For Installation

    Multi Variable Air Conditioners Ducted Type Indoor Unit 3.2 Location for Installation (1) The appliance shall not be installed in the laundry. (2) The top holder must be strong enough to support unit’s weight. (3) Drain pipe can drain water out easily. (4) There is no obstacle at inlet or outlet.
  • Page 11 Multi Variable Air Conditioners Ducted Type Indoor Unit 3.3.1 Select Communication Line for Indoor Unit and Wired Controller Fig 3.3.1 Total length of communication line between Wire size Material Material type Remarks indoor unit and /AWG) Standard wired controller L (m/ft.) 1.

  • Page 12: Wiring Requirements

    Multi Variable Air Conditioners Ducted Type Indoor Unit 3.4 Wiring Requirements (1) Power Cord Size and Air Switch Capacity Air Switch Minimum Sectional Minimum Sectional Model Power Cord Size apacity Area of Ground Wire Area of Power Cord 5.6KW 6.3KW 7.1KW 8.0KW 220~240V-1ph-...
  • Page 13 Multi Variable Air Conditioners Ducted Type Indoor Unit Fig 4.1.1 Below are dimensions of A, B, C, etc. for different models: Unit: mm/in. Model 5.6KW 6.3KW 1101 1159 1271 1002 (43-3/8) (20-3/8) (32-1/4) (45-5/8) (50) (22) (39-1/2) (6-1/4) (9-1/4) (10-1/2) 7.1KW 8.0KW 9.0KW...
  • Page 14 Multi Variable Air Conditioners Ducted Type Indoor Unit Fig 4.1.3 Fig 4.1.4 2) Insert the M10 expansion bolt into the hole and then knock the nail into the bolt, as shown in fig 4.1.5. Note: The length of bolt depends on the installation height of the unit, bolts are field supplied. Fig 4.1.5 (3) Install the indoor unit temporarily Assemble suspension bolt on the expansion bolt, attach the hanger bracket to the suspension...

  • Page 15: Refrigerant Pipe Connection

    Multi Variable Air Conditioners Ducted Type Indoor Unit (8) Remove the paper pattern. Fig 4.1.7 4.2 Refrigerant Pipe Connection (1) Aim the flaring port of copper pipe at the center of screwed joint and then tighten the flaring nut with hand as shown in fig 4.2. (2) Tighten the flaring nut with torque wrench.
  • Page 16 Multi Variable Air Conditioners Ducted Type Indoor Unit be about 100mm (4 in.) lower than the drainage port of each unit. In this case, thicker pipes should be applied. Fig 4.3.1 4.3.2 Drainage Pipe Installation (1) Insert the drain hose into the drain hole and tighten it with tapes, as shown in Fig 4.3.2. (2) Tighten the pipe clamp, with the distance between screw nut and hose smaller than 4mm (3/16in.).
  • Page 17 Multi Variable Air Conditioners Ducted Type Indoor Unit NO1: Connection of drainage pipe joints (Fig4.3.6) NO2: Connection of downspout elbow (Fig4.3.7) NO3: Inserting pipe connection (Fig4.3.8) Fig 4.3.6 Fig 4.3.7 Fig 4.3.8 (9) The installation height of raising pipe for drainage should be lower than B. The gradient from raising pipe towards drainage direction should be at least 1%~2%.

  • Page 18: Installation Of Air Duct

    Multi Variable Air Conditioners Ducted Type Indoor Unit 4.3.3 Test of Drainage System (1) Please test drainage system after electric work is finished. 1) Inject approximately 1L purified water to drain pan from air vent, ensure that not to splash the water over the electrical components (e.g. water pump. etc). 2) In case of commissioning finished, please energize the IDUs and switch to cooling or dry mode, meanwhile, the water pump operates, you can check the draining through the drain socket.
  • Page 19 Multi Variable Air Conditioners Ducted Type Indoor Unit 4.4.1 Installation of Air-out Duct (1) Installation of the Rectangular Duct Fig 4.4.1 Name Name Hanger Rod Static Pressure Box Return Air Duct Main Supply Air Duct Canvas Duct Supply Air Outlet Return Air Inlet 4.4.2 Shape and Size of Air Outlet and Air-return Opening Fig 4.4.2 Air Outlet...

  • Page 20: Installation Of Wired Controller

    Multi Variable Air Conditioners Ducted Type Indoor Unit 4.4.3 Installation of the Return Air Duct (1) The default installation location of the rectangular flange is at the back and the return air cover plate is at the bottom, as shown in Fig 4.4.4. Fig 4.4.4 (2) The installation method can be chosen with considering the conditions of the building and maintenance etc., as shown in Fig 4.4.5.

  • Page 21: Wiring Work

    Multi Variable Air Conditioners Ducted Type Indoor Unit 5 Wiring Work WARNING Before obtaining access to terminals, all supply circuits must be disconnected. (1) Units must be earthed securely, or it may cause electric shock. (2) Please carefully read the wiring diagram before carry out the wiring work, incorrect wiring could cause malfunction or even damage the unit.

  • Page 22: Power Cord Connection

    Multi Variable Air Conditioners Ducted Type Indoor Unit 5.2 Power Cord Connection NOTICE! Every unit should be equipped with a circuit breaker for short-circuit and overload protection. During operation, all indoor units connected to the same outdoor unit system must be kept energized status. Otherwise, the unit can’t operate normally. Fig 5.2 ●...

  • Page 23: Illuminate For Connection Of Wired Controller And Indoor Units Network

    Multi Variable Air Conditioners Ducted Type Indoor Unit (4) Fix the communication wire with wire clip on the electric box. (5) Wiring instructions of remote receiving light board and wired controller: 1) Fig 5.4.1 shows the installation of wired controller. Fig 5.4.1 Fig 5.4.2 2) Fig 5.4.2 shows the installation of remote controller.
  • Page 24 Multi Variable Air Conditioners Ducted Type Indoor Unit Fig 5.5...

  • Page 25: Routine Maintenance

    Multi Variable Air Conditioners Ducted Type Indoor Unit 6 Routine Maintenance (1) Do turn off the unit and cut off the main power supply when cleaning the air conditioner to avoid electric shock or injury. (2) Stand at solid table when cleaning the unit. (3) Do not clean the unit with hot water whose temperature is higher than 45°C to prevent fade or deformation.

  • Page 26: Table Of Error Codes For Indoor Unit

    Multi Variable Air Conditioners Ducted Type Indoor Unit 7 Table of Error Codes for Indoor Unit Error Error Error Content Content Content Code Code Code Indoor Units Indoor Unit Error Jumper Cap Error Incompatibility Error Indoor Unit Network Indoor Fan Protection Low Air Quality Warning Address Error ODU-IDU...
