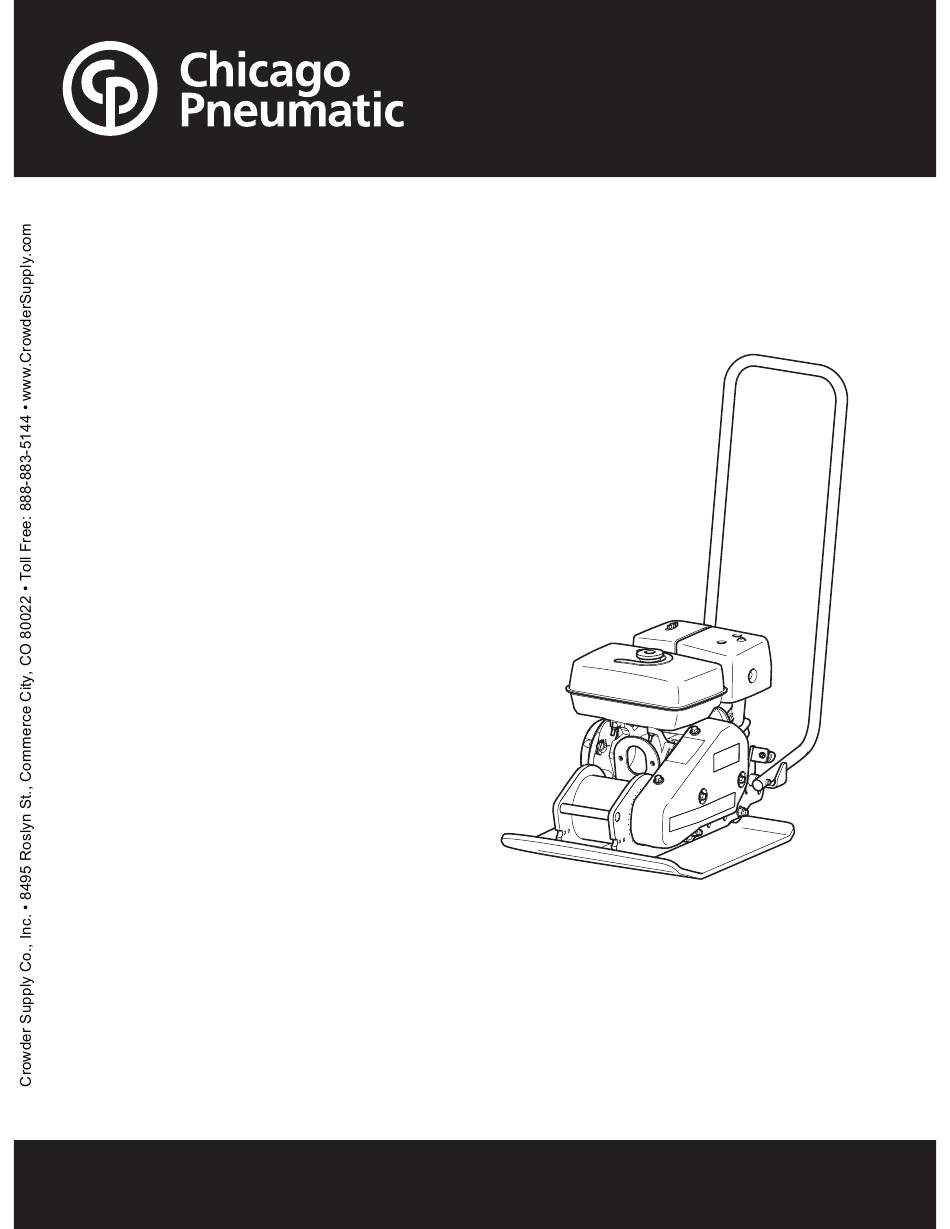

- Page 1 • Toll Free: 888-883-5144 Safety and operating instructions Forward plate LF 82 www.cp.com...
- Page 2 • Toll Free: 888-883-5144 LF 82 3308 0031 01 | Original instructions...
-
Page 3: Table Of Contents
• Toll Free: 888-883-5144 LF 82 Contents Contents Introduction............... 5 About the Safety and operating instructions. - Page 4 • Toll Free: 888-883-5144 Safety and operating instructions LF 82 3308 0031 01 | Original instructions...
-
Page 5: Introduction
LF 82 Safety and operating instructions Introduction Thank you for choosing Chicago Pneumatic brand products. For over a century, the Chicago Pneumatic brand has represented performance and innovation in the pneumatic tool industry. Today the brand is found around the world on a range of pneumatic and hydraulic tools that includes breakers, rock drills, chipping hammers, clay-diggers, picks and busters, scabblers, pumps and a whole lot more. -
Page 6: Safety Instructions
• Toll Free: 888-883-5144 Safety and operating instructions LF 82 > Respiratory protection when appropriate Safety instructions > Protective gloves To reduce the risk of serious injury or death to > Proper protective boots yourself or others, read and understand the Safety >... - Page 7 • Toll Free: 888-883-5144 LF 82 Safety and operating instructions DANGER Fuel hazard WARNING Dust and fume hazard The fuel is flammable and fuel fumes can explode Dusts and/or fumes generated or dispersed when when ignited, causing serious injury or death.
- Page 8 • Toll Free: 888-883-5144 Safety and operating instructions LF 82 ► Wear washable or disposable protective clothes WARNING Projectiles at the worksite, and shower and change into clean Failure of the work piece, of accessories, or even of clothes before leaving the worksite to reduce...
- Page 9 • Toll Free: 888-883-5144 LF 82 Safety and operating instructions See the ”Noise and vibration declaration statement” WARNING Vibration hazards for the machine, including the declared vibration Normal and proper use of the machine exposes the values. This information can be found at the end of operator to vibration.
-
Page 10: Transport, Precautions
• Toll Free: 888-883-5144 Safety and operating instructions LF 82 WARNING Noise hazard CAUTION High temperature High noise levels can cause permanent and disabling The machine's engine exhaust pipe, and bottom hearing loss and other problems such as tinnitus become hot during operation. -
Page 11: Overview
• Toll Free: 888-883-5144 LF 82 Safety and operating instructions Honda Overview To reduce the risk of serious injury or death to yourself or others, read the Safety instructions section found on the previous pages of this manual before operating the machine. - Page 12 • Toll Free: 888-883-5144 Safety and operating instructions LF 82 Lifting point label Atlas Copco Construction Tools AB 105 23 Stockholm, Sweden Type Operating mass kg Rated power kW Year of Mfg roduct dentification umber Made in China Safety label...
-
Page 13: Transport
• Toll Free: 888-883-5144 LF 82 Safety and operating instructions Transport WARNING Transport hazard During transportation always strap the machine securely, otherwise it can cause injury. Lifting the machine Place lashing straps in a U-shape around the ► bottom plate and secure both front and rear. -
Page 14: Operation
• Toll Free: 888-883-5144 Safety and operating instructions LF 82 Filling procedure Operating near edges 1. Stop the engine and let it cool down before filling the tank. WARNING Overturning hazard 2. Release the filler cap slowly to let any pressure When operating along edges, at least ⁄... -
Page 15: Start And Stop
• Toll Free: 888-883-5144 LF 82 Safety and operating instructions Operating on slopes 1. Check the engine oil level on the dipstick. Ensure that the work area is secure. Wet and loose ♦ earth reduces manoeuvrability especially on sloping ground. Always exercise extreme caution on sloping and uneven terrain. - Page 16 • Toll Free: 888-883-5144 Safety and operating instructions LF 82 Starting the engine, Honda 4. Turn the start switch (D) to ON. 1. Open the fuel cock (A). 5. Grip the handle of the recoil starter (E) and pull until resistance is felt.
- Page 17 • Toll Free: 888-883-5144 LF 82 Safety and operating instructions 7. Allow the engine to idle a few minutes before Stopping the engine, Honda increasing to full power (G). 1. Move the throttle control to idling position (A). Let the engine idle for a few minutes.
-
Page 18: Operating
• Toll Free: 888-883-5144 Safety and operating instructions LF 82 Operating ♦ Check the tightness of all nuts and bolts. Keep the machine clean. ♦ NOTICE Always operate the machine at full speed, Check and clean the engine's cooling flanges. -
Page 19: After 20 Hours Of Operation
• Toll Free: 888-883-5144 LF 82 Safety and operating instructions Checking the engine, Honda After 20 hours of operation 1. Check the oil level on the dipstick. Maintenance routines Applies to all: Change engine oil. ♦ Check the engine speed. -
Page 20: Every 500 Hours Of Operation (Yearly)
• Toll Free: 888-883-5144 Safety and operating instructions LF 82 Checking spark plug, Honda Checking the V-belt Check, clean and replace the spark plug. The V-belt must be checked and adjusted by ♦ authorized service personnel. 1. Remove the protective cover (A). -
Page 21: Disposal
• Toll Free: 888-883-5144 LF 82 Safety and operating instructions ♦ Clean and check fuel filter and tank. See the Disposal engine manual for more information. A used machine must be treated and disposed of in Clean the engine's cooling flanges. See the engine ♦... -
Page 22: Technical Data
• Toll Free: 888-883-5144 Safety and operating instructions LF 82 Technical data Machine data LF 82 Honda, electrical start Engine Type Honda GX160 Power, kW (hp) 4.1 (5.5) Rated speed, r.p.m. 3,600 Idling r.p.m. 1,400 Performance Operating speed, m/min (feet/min) -
Page 23: Noise And Vibration Data
Type at operator's ear dB(A) rel 1pW rel 1pW hours/day LF 82 Honda 16.5 Permitted working hours per day are calculated on action value of 2.5 m/s as per 2002/44/EC. Uncertainties, sound value Uncertainties, sound value dB(A) dB(A) -
Page 24: Dimensions
• Toll Free: 888-883-5144 Safety and operating instructions LF 82 Dimensions mm (in.) *Contact area, m (sq feet). 0.1766 (1.9)* 460 (18.1) 540 (21.2) 1000 (39.3) 3308 0031 01 | Original instructions... -
Page 25: Ec Declaration Of Conformity
EC Directive 2006/42/EC (Machinery Directive) and 2000/14/EC (Noise Directive), and the harmonised standards mentioned below. Guaranteed sound power level Measured sound power level Forward plate [dB(A)] [dB(A)] LF 82 Honda Following harmonised standards were applied: ♦ EN500-1:2006+A1:2009 EN500-4:2006+A1:2009 ♦ Following other standards were applied: 2000/14/EC, appendix VIII ♦... - Page 26 • Toll Free: 888-883-5144 LF 82 3308 0031 01 | Original instructions...
- Page 27 • Toll Free: 888-883-5144 LF 82 3308 0031 01 | Original instructions...
- Page 28 www.CrowderSupply.com • Toll Free: 888-883-5144 2011-06 | No. 3308 0031 01 © Copyright Atlas Copco Construction Tools AB | STOCKHOLM • SWEDEN...
