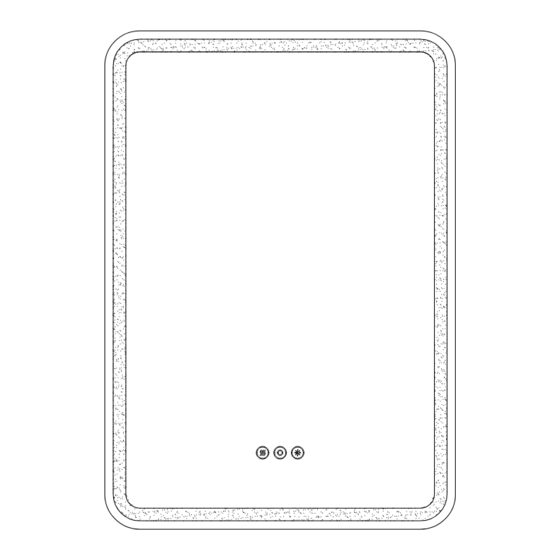

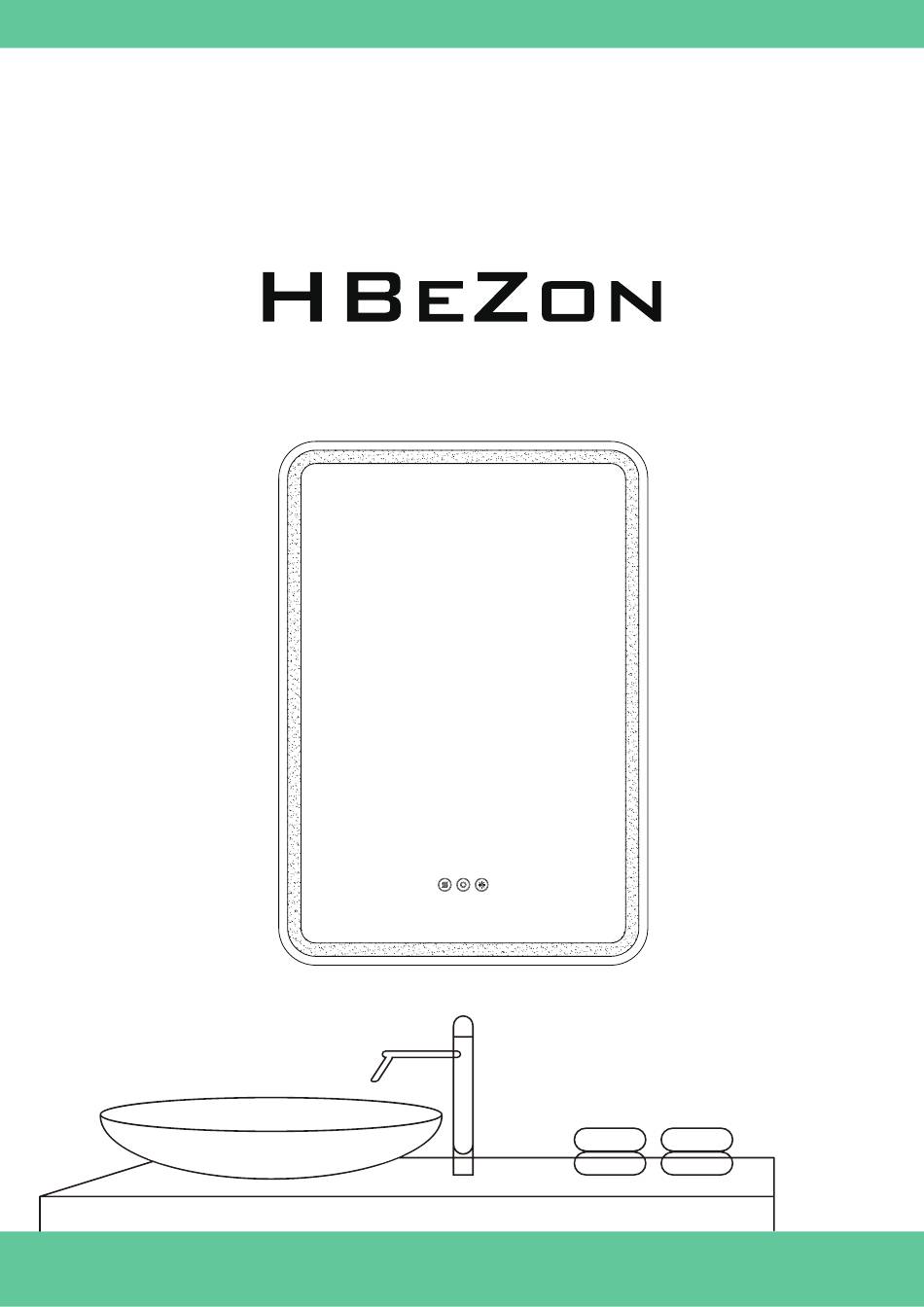

- Page 1 INSTALLATION MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed ,including the following: WARNING: To reduce the risk of burns,fire,electric shock or injury to persons. Use this furnishing only for its intended use as described in these instructions. -
Page 3: Installation Instructions
HARDWARE AND TOOLS ( Tools not included) Power Drill Mallet Tape Measure Safety Goggles 1/4”& 1/8” Drill Bits Pencil Level HARDWARE LISTS ITEM IMAGE NAME Mounting Screw Wall Anchor INSTALLATIONINSTRUCTIONS Please read carefully and save these instructions Don't discard any of the packaging until you are sure that you have all of the parts and the fitings Make sure power to the junction box is off before commencing installation. - Page 4 SURFACE MOUNT INSTRUCTION Step 1 Step 2 Measure and mark the back mounting holes on the wall. Draw horizontal line connecting the marked location. Unpack the LED medicine mirror and prepare The line should be level. tools needed. Adjust to level if necessary. Step 3 Drill holes,and put in the plastic expansion bolt.
- Page 5 Step 4 Connect hardwire to power line. Make sure the power off(Voltage:AC110-12V,50/60Hz) Neutral / ribbed. Live / smooth Step 5 Attach the cabinet to the wall with mountin screws from the hardware pack.
- Page 6 20 in.(W) x 28 in.(H) x 4.8 in.(D) 17-1/2 in.(W) x 22-1/4 in.(H) x 3-1/2 in.(D) Step 1...
- Page 7 Step 2 Connect hardwire to power line. Make sure the power off(Voltage:AC110-12V,50/60Hz) Neutral / ribbed. Live / smooth Step 3...
- Page 8 INTRODUCTION OF TOUCH FUNCTION After power on, the button shows white and it is in waiting stagte, click to turn on the light function and the button turn on yellow. Click again to turn off the light function and the button to turn to white. Long click the button to make the light gradually dims Click the button again and the light gradually brightens After power on, the button shows white and it is in waiting state,...
- Page 9 SKU# A - Width BA-0013MC-L B - Height C - Depth BA-0014MC-R Unit: Inch Note: All dimensions & specifications are approximate and subject to change without notice. Customer Service: For any questions or queries regarding our products, please contact our support team：...
