- Page 1 ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ Sinclair ASC-60BI/ASGE-60BI-3...
- Page 7 To Users Thank you for selecting S i n c l a i r ’ s product. Please read this instruction manual carefully before installing and using the product, so as to master and correctly use the product. In order to guide you to correctly install and use our product and achieve expected operating effect, we hereby instruct as below: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of...
- Page 8 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (10) Sinclair Corporation Ltd. assumes no responsibility for personal injury, property loss or equipment damage caused by improper installation and...
-
Page 9: Table Of Contents
Contents 1 Safety Notices (Please be sure to abide) ......1 2 Product Introduction ............. 5 2.1 Overall Layout ................5 2.2 Product Operating Range ............6 2.3 Standard Accessories .............6 3 Controller ................7 5 Maintenance ..............24 5.1 Failures Not Caused by Faults of the AC ......24 5.2 Error Code ................ -
Page 10: Safety Notices (Please Be Sure To Abide)
1 Safety Notices (Please be sure to abide) SPECIAL WARNING: Be sure to comply with national gas regulations. Do not pierce or burn. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. Be aware that refrigerants may not contain an odor. - Page 11 Before installing the air conditioner, please read the instruction manual. Before repairing the air conditioner, please read the instruction manual. The figures in this manual may be different with the material objects, please refer to the material objects for reference. PROHIBITED (1) The air conditioner should be grounded to avoid electric shock.
- Page 13 (6) Air conditioner should be stored with protective measures against mechanical damage caused by accident. (7) If the installation space for air conditioner pipe is too small, adopt a protective measure to prevent the pipe from physical damage. (8) During installation, use the specialized accessories and components, otherwise water leakage, electric shock or fire hazard may occur.
- Page 14 NOTICE (1) Do not put a finger or other objects into the air inlet or air return grill. (2) Please adopt safety protection measures before touching the refrigerant pipe, otherwise your hands may be hurt. (3) Please arrange the drain pipe according to the instruction manual. (4) Never stop the air conditioner by directly cutting off the power.
-
Page 15: Product Introduction

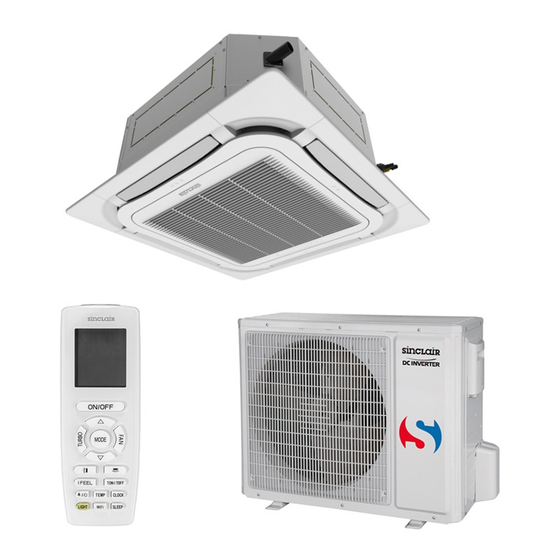

2 Product Introduction 2.1 Overall Layout... -
Page 16: Product Operating Range
2.2 Product Operating Range Cooling（DB） Heating（DB） -20℃〜48℃ -20℃〜24℃ Outdoor temperature ≥16℃ ≤30℃ Indoor temperature 2.3 Standard Accessories Indoor Unit Accessories Name Appearance Q'ty Usage To connect with the Drain Hose hard PVC drain pipe To fix the hook on the Nut with Washer cabinet of the unit. - Page 17 Outdoor Unit Accessories Name Appearance Q'ty Usage To plug the unused Drain Plug 1or3 drain hole. To connect with the hard Drainage Connecter PVC drain pipe...
-
Page 19: Controller
Buttons on remote controller ON/OFF button MODE button FAN button TURBO button ▲/ button button button T-ON / T-OFF button I FEEL button CLOCK button SLEEP button WiFi button button LIGHT button TEMP button Introduction for icons on display screen Set fan speed fan speed. - Page 20 Introduction for buttons on remote controller Note: ● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
- Page 21 Introduction for buttons on remote controller Note: ● For preventing cold air, after starting up heating mode, indoor unit will delay 1~5 minutes to blow air (actual delay time is depend on indoor ambient temperature). ● Set temperature range from remote controller: 16~30℃ (61-86°F); Fan speed: auto, low speed, low-medium speed,medium speed, medium-high speed,high speed.
- Page 22 Introduction for buttons on remote controller ● When setting T-ON, T-OFF or CLOCK, press "▲" or " " button to adjust time. (Refer to CLOCK, T-ON, T-OFF buttons) When setting T-ON, T-OFF or CLOCK press "▲" or " " button to adjust time. (Refer to CLOCK,T-ON, T-OFF buttons) button Press this button can select left &...
- Page 23 Introduction for buttons on remote controller T-ON / T-OFF button ● T-ON button "T-ON" button can set the time for timer on. After pressing this button, " " icon disappears and the word "ON" on remote controller blinks. Press "▲" or "...
- Page 25 Introduction for buttons on remote controller CLOCK button Press this button to set clock time. " " icon on remote controller will blink. Press "▲" or " " button within 5s to set clock time. Each pressing of "▲" or " "...
- Page 26 Introduction for buttons on remote controller LIGHT button Press this button to turn off display light on indoor unit. " " icon on remote controller disappears. Press this button again to turn on display light. " " icon is displayed. TEMP button By pressing this button, you can see indoor set temperature, indoor ambient temp- erature or outdoor ambient temperature on indoor unit’s display.
- Page 27 Function introduction for combination buttons Energy-saving function Under cooling mode, press "TEMP" and " CLOCK" buttons simultaneously to start up or turn off energy-saving function. When energy-saving function is started up, "SE" will be shown on remote controller, and air conditioner will adjust the set temperature automatically according to ex-factory setting to reach to the best energy-saving effect.
- Page 28 Operation guide After putting through the power, press "ON/OFF" button on remote controller to turn on the air conditioner. Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN, HEAT. Press "▲" or " " button to set your required temperature. (Temperature can’t be adjusted under auto mode).
-
Page 29: Maintenance
5 Maintenance 5.1 Failures Not Caused by Faults of the AC (1) If your air conditioner fails to function normally, please first check the following items before maintenance: Problem Cause Corrective measure If you turn off the unit and then immediately turn it on, in order to protect the compressor and avoid Please wait for a while. - Page 31 (2) The following situations are not operation failures. Problem Time of occurrence Cause Mist comes If the unit is running under high from the air During operation. humidity, the wet air in the room conditioner. will be quickly cooled down. Defrosting process will generate System switches to heating some water, which will turn to...
-
Page 32: Error Code
If the air conditioner continues to function poorly, please stop the air conditioner immediately and contact Sinclair’s authorized local service center. Ask our professional service staff to check and repair the unit. 5.2 Error Code Warning ①. - Page 33 Error Number Error code Compressor overload protection Overload IPM protection DC fan error Driver out-of-step protection HC Pfc protection Startup failure Compressor phase-sequence protection Power protection IDU and ODU unmatched 4–way valve switch-over error Driver reset protection Over-current protection Master control and driver communication error Driver module sensor error Driver module high temperature protection Zero-crossing protection...
-
Page 34: Unit Maintenance
code will be simultaneously shown on it. 5.3 Unit Maintenance Warning ①. Only professionals are allowed to carry on daily maintenance. ②. Before contacting any wire, make sure power is cut off. ③. Do not let any inflammable objects near the unit. ④. - Page 35 5.3.1 Clean Air Filter If the air conditioner is used at a dusty place, clean the air filter regularly. (Once every half a year) How to clean the air filter 1) Open the air intake grill. Push the clasps outward and then open the air intake grill.
- Page 37 5.3.2 Clean Air Intake Grill How to clean the air intake grill Same with step 1 in “Clean Air Filter”. 1) Open the air intake grill. Same with step 2 in “Clean Air Filter”. 2) Take out the air filter. 3) Take out the air intake grill.
-
Page 38: After-Sales Services
(4) If the outdoor unit is rusty, coat the rusty location with paint to prevent it from expanding. 5.3.7 Components Replacement Components are available in Sinclair agency or Sinclair distributors nearby. 5.4 After-Sales Services Any quality or other issues encountered in the purchased air conditioner,... - Page 39 SINCLAIR CORPORATION Ltd. 1-4 Argyll St. London W1F 7LD Great Britain www.sinclair-world.com This product was manufactured in China (Made in China). REPRESENTATIVE SINCLAIR Global Group s.r.o. Purkynova 45 612 00 Brno Czech Republic TECHNICAL SUPPORT SINCLAIR Global Group s.r.o. Purkynova 45...
- Page 40 СМОТРИТЕ ТАКЖЕ Кондиционеры сплит- Моноблочные Потолочные Мультисплит-системы системы кондиционеры вентиляторы Установка настенных Сервис Бытовые рекуператоры Очистители воздуха кондиционеров кондиционеров Аксессуары для Напольные вентиляторы Фреон Труба медная кондиционеров Кронштейны для кондиционеров...
