Summary of Contents for mychway SR-NF108

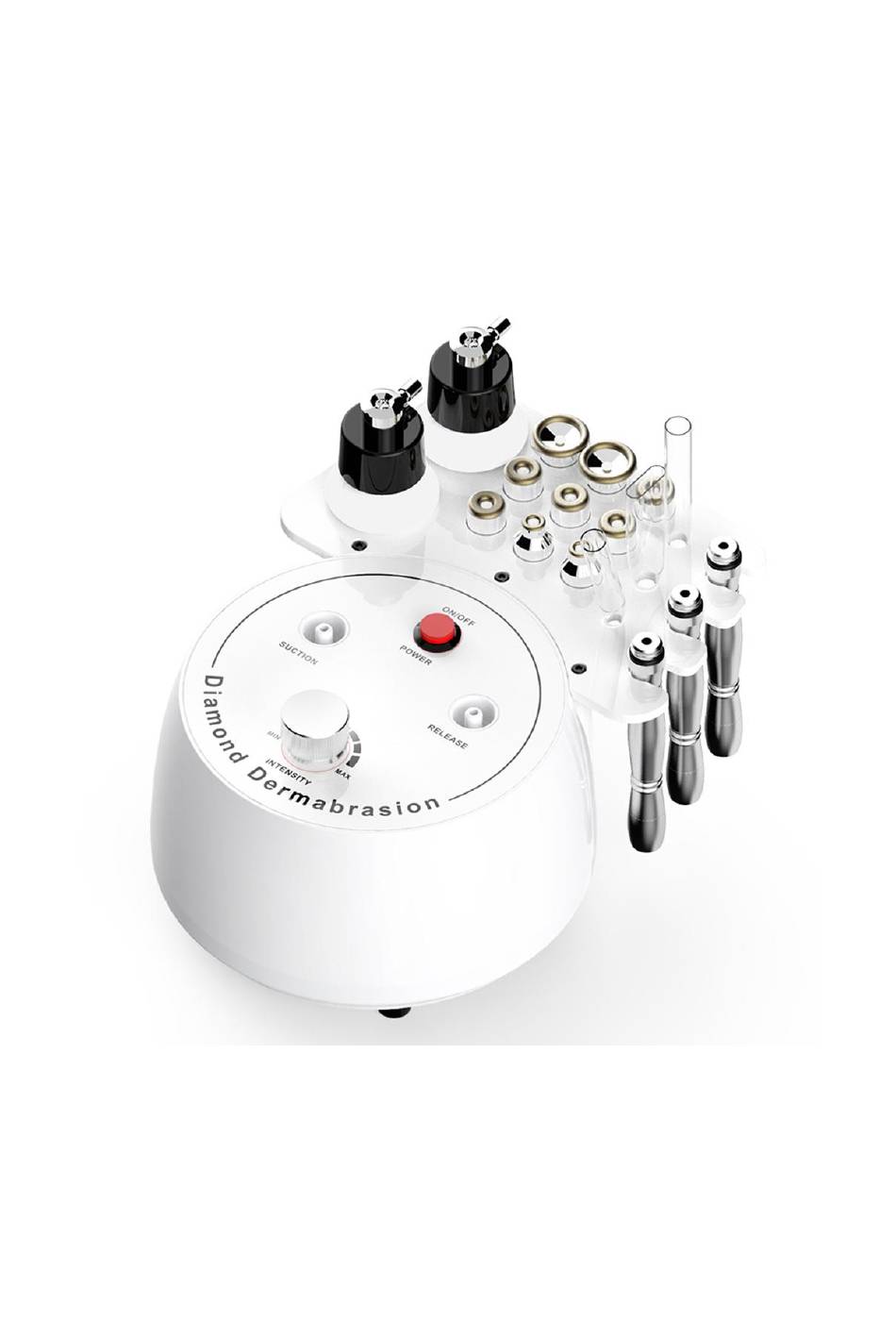

- Page 1 3 IN 1 Microdermabrasion Skin Rejuvenation Machine SR-NF108...
- Page 2 Preface Dear users: We’re pleased to present to you the 3 In 1 Portable Microdermabrasion Vacuum Blackhead Removal Machine that mainly work on dry skin, large pores, clogged pores, inelastic skin and so on. It is a multifunctional beauty machine, targeted at both face and body.
-
Page 3: Table Of Contents
Table of Contents Preface Part I Brief Introduction Advantages Working Principles & Treatments Deep Cleaning Skin Rejuvenation Part II 1. Detailed Operations 2. Technical Parameters 3. Safety Precautions 4. Dos and Don’ts 5. Troubleshooting & Solutions 6.FAQs 7.Packing List 8.Operational Diagrams... - Page 4 Part I Brief Introduction Microdermabrasion and hydro spray jet machines are currently the most popular beauty machines that work on deep cleaning and deep hydration. It’s an effective replacement of all the traditional facial cleaning and facial care programs in beauty salons.
- Page 5 same time, combined with manual massage techniques also play an improving role in skin lifting. Physical Effects Vacuum negative pressure suction technology is adopted to reduce internal air pressure, which can effectively remove waste cuticle, draw out blackheads and excessive oil and other pore garbage. Also, it helps achieve free skin breathing circulation, which can dredge pores, improve large pore sizing and brighten skin tone.
- Page 6 3. Unclog pores. 4. Shrink large pores. 5. Effectively remove strawberry nose, acne and blackheads. 6. Deeply clean pores and dirt, and thoroughly clean the skin. Applicable Range 1. Those with loose and inelastic facial skin. 2. Those with clogged pores and thick cuticles. 3.
- Page 7 non-invasive and physical. By removing dead skin cells from the surface of the skin, the regeneration ability and skin quality can be improved. After treatment, the skin will be slightly reduced, and the skin will become more smooth and tender. At the same time, combined with manual massage techniques also play an improving role in skin lifting.
- Page 8 Applicable Range 1. Those with imbalanced skin. 2. Those who has or experience dry skin, dehydration, peeling, etc. 3. Those with large and clogged pores. 4. Those with dull skin. 5. Those with poor skin metabolism and poor absorption. 6. Those with thick cuticle and high turnover of oil secretion. Inapplicable Range 1.
-
Page 9: Detailed Operations
Part II 1. Detailed Operation 1.1 Function Selection ON/OFF SUCTION INTENSITY +/- SUCTION Insert PVC hose when operating microdermabrasion and glass tube RELEASE Insert PVC hose when operating hydro spray jet Note: DO NOT insert PVC hose into SUCTION when operating hydro spray jet to avoid machine damage... - Page 10 1.2 Detailed Operation: Microdermabrasion Fixate the black rubber ring on the PVC vavuum hose Cotton Filter Insert cotton filter to prevent dirt entering the device to avoid damage and at the same time examining cleansing result Connect the probe tightly with the PVC vacuum hose Twist the screw off the other end of the probe;...
- Page 11 counterclockwise to the minimum level Suction (on the left side) Connect one end of the tube with SUCTION and the other with the probe Select the tip of your choice based on the size of the treatment area Suitable for small treated area, e.g. face, nasolabial folds Suitable for big treatment area, e.g.
- Page 12 Press on the hole of the glass tube to treat and let go to cease operation Glass Tubes The glass tube (indicated by the red arrow) is for small patches of blackheads The glass tube (indicated by the red arrow) is for small patches of stubborn clogged pores The glass tube (indicated by the red arrow) is for small patches of facial massage...
- Page 13 SUCTION INTENSITY It is advised to set between 20%-80%. Adjust accordingly. Avoid high suction intensity for it may cause petechiae. Tuning clockwise to the maximum level; turning counterclockwise to the minimum level Suction (on the left side) Connect one end of the tube with SUCTION and the other with the probe 1.4 Detailed Operation: Hydro Spray Jet Fill the bottle with essence/toner/purified water/normal saline...
-
Page 14: Technical Parameters
Press on the top of the bottle (where the arrow is) to spray RELEASE (on the right side) Connect one end of the red rubber tube with RELEASE and the other with the bottle 2. Technical Parameters Voltage: 110V-240V Power: 22W Packing Size: 30x26x24 G. - Page 15 power supply is unstable, we recommend that users increase to the matching power voltage. 3. In order to ensure the therapeutic effect and normal service life expectancy of the device, please use the specified accessories provided or recommended by the original manufacturer.
-
Page 16: Troubleshooting & Solutions
5. Troubleshooting & Solutions 1. The instrument can't start and the key lamp on the back of the instrument doesn't work? A. Ensure that the power cord is connected to a working power outlet. B. Ensure the fuse tube on the back of the instrument is not loose or being burnt. 2. -
Page 17: Packing List
maintenance and improving skin of malnutrition caused by other factors. It’s used to help skin absorb nutrition products, solve other issues such as dull, sallow skin, dehydration, coarse and wrinkled skin. Without the treatment you skin will only go back to secretion of its own and aging, therefore no dependence factor is involved. 7. - Page 18 Technique4 arm first then Facial mask+ and lift it up on face, SR-NF108 (forehead→nose→chin) 5 meanwhile min. check with 4. Operation on cheek: Start customers from chin, and operate in dots constantly.)
- Page 19 5-8 min. customers Essence+ 3. Microdermabrasion (try the set Facial mask+ operation: stay on forehead energy on lower SR-NF108 for one sec, then gently twist arm first then and leave it up in the on face, air(forehead→nose→chin) 5 meanwhile min.
- Page 20 Hydro Energy with temple, 3 min. Level: 5. Do the same on the other Liquid export side, 3 min. volume is 6. Wash face clean, 2 min. recommended 7. Apply hydrating facial mask to set as small + cold steam, 10 min 8.
