Summary of Contents for mychway SR-JK673

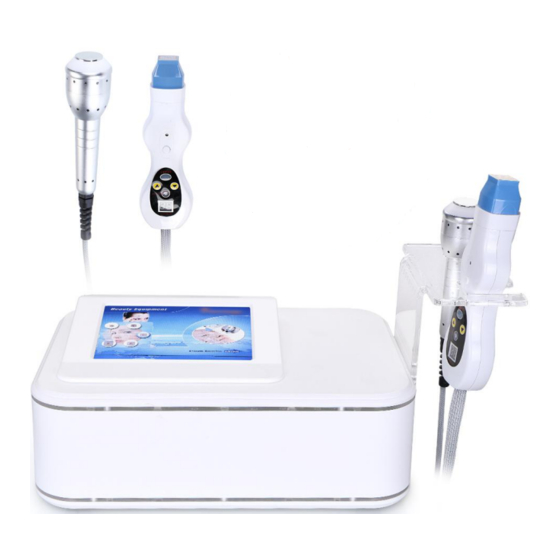

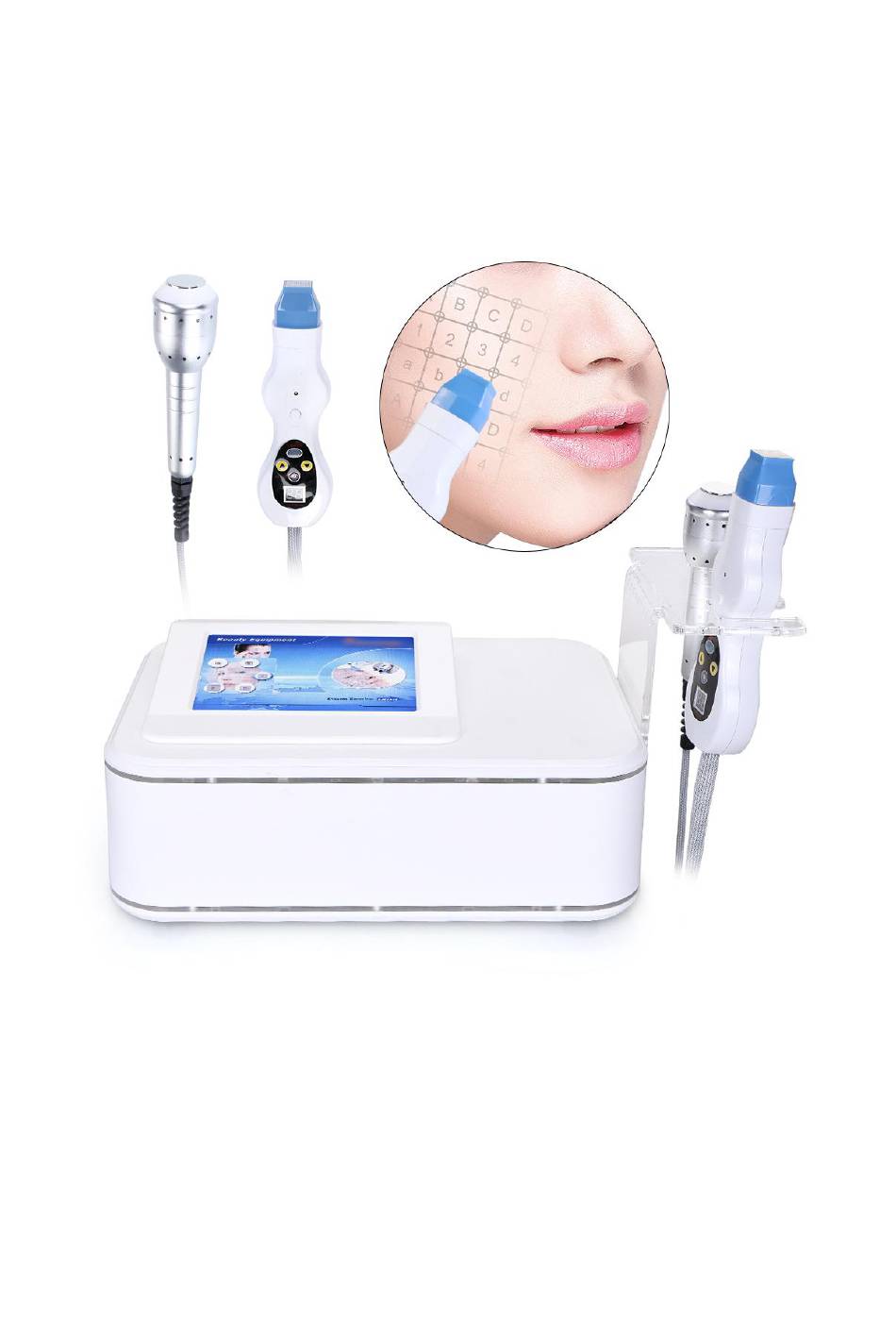

- Page 1 User Manual SR-JK673...
- Page 2 Preface Dear users： We’re pleased to present to you our Fractional RF, a highly efficient anti-aging beauty machine. It targets at both face and body, mainly focusing on lifting and tightening of face, removing wrinkles, lifting skin around eyes and neck, and face line shaping and body shaping.
-
Page 3: Table Of Contents
Table of Contents Preface Part I Brief Introduction Advantages Principles & Treatments Anti-Aging: Face Anti-Aging: Eyes Anti-Aging: Neck Repair Post-Pregnancy Stretch Marks Part II 1. Detailed Operations 2. Technical Parameters 3. Safety Precautions 4. Dos and Don’ts 5. Troubleshooting & Solutions 6.FAQs 7.Packing List 8.Operational Diagrams... - Page 4 Part I Brief Introduction Fractional RF beauty machines are currently the most popular beauty machines that work on tightening, body-shaping and anti-aging. It’s an effective replacement of all the facial and body care programs in beauty salons. Moreover, they are convenient and easy to operate.
- Page 5 Fractional RF : Face (Probe B) Through transferring numerous cluster heat, this unique probe can send the matrix molecular energy waves of up to 6 million times per second, repair skin in deep layers, from the focal facade of RF in hypodermis, make a strong impact on dermal tissues, which produces an aggregation effect of electric field in the dermal tissues, make the skin temperature up to 60 ℃...
- Page 6 3. Those with loose, sagging, inelastic facial skin. 4. Those with large pores and facial dullness. 5. Those with undefined contours. Inapplicable Range 1.Those who has been implanted with a pacemaker or other similar electronic device. 2. Those who are pregnant. 3.Those have been...
- Page 7 molecular energy waves of up to 6 million times per second, repair skin in deep layers, from the focal facade of RF in hypodermis, make a strong impact on dermal tissues, which produces an aggregation effect of electric field in the dermal tissues, make the skin temperature up to 60 ℃...
- Page 8 5. Those with dynamic fine lines around eyes. Inapplicable Range 1.Those who has been implanted with a pacemaker or other similar electronic device. 2. Those who are pregnant. 3.Those have been taking isotretinoin past months (Accutane/Roaccutane/Oratane). 4. It is not recommended to do it for those who has filler inside one’s face, such as gold wire implantation.
- Page 9 from the focal facade of RF in hypodermis, make a strong impact on dermal tissues, which produces an aggregation effect of electric field in the dermal tissues, make the skin temperature up to 60 ℃ or so, produce immediately shrinkage, using the electromagnetic wave in the skin resistance to generate heat, and heat energy into deep skin, direct affect dermal tissue, stimulate collagen in the skin, as as to achieve long-term skin lifting and firming effect.
- Page 10 1.Those who has been implanted with a pacemaker or other similar electronic device. 2. Those who are pregnant. 3.Those have been taking isotretinoin past months (Accutane/Roaccutane/Oratane). 4. It is not recommended to do it for those who has filler inside one’s face, such as gold wire implantation.
- Page 11 Cool Hammer Use the principle of air conditioner. Special wafer ceramics are used to absorb energy and refrigerate at - 5 degrees in an instant. The method of physical heat accumulation produced by wafer energy absorption makes one side produce heat up to 40 degrees. The fan discharges excess heat energy and achieves the effect of constant temperature and freezing alternately.
-
Page 12: Detailed Operations
4. It is not recommended to do it for those who has filler inside one’s face, such as gold wire implantation. 5. Those with severe heart disease, diabetes, and hyperthyroidism. 6. Those whose surgical wound is not healed. 7. Those with late-stage tumor. 8. - Page 13 1.1 Function Selection Time Selection Time: Decrease Time: Increase Pause Start...
- Page 14 Fractional RF 1.2 Detailed Operation: Click to go to the interface below Intensity Adjustment Pulse Time Adjustment Pulse Time: Increase Pulse Time: Decrease...
- Page 15 Probe A Display(It lights up when using probe A. ) Probe B Display(It lights up when using probe B. ) Probe C Display(It lights up when using probe C. ) Probe D Display(It lights up when using probe D. ) Probe E Display(It lights up when using probe E.
- Page 16 Cool Hammer Energy Intensity Cool Hammer Energy Intensity: Decrease Cool Hammer Energy Intensity: Increase Intensity Level Display...
-
Page 17: Technical Parameters
2.Technical Parameters Fractional RF Frequency: 10MHZ Fractional RF Energy Level: 1-20J/CM Fractional RF Head : 5 Types Voltage: 100V-240V RF Tips Pins: 16 pins, 49pins, 100pins, 169pins, 576pins Fractional RF Size: Φ8mm, Φ20mm, 4.0cm Control System: 8 inch color touch screen Thermal RF Types: Interval pulse, continuous pulse Output Power: 350W G.W: 15 KG... -
Page 18: Troubleshooting & Solutions
connected before each operation. 2. Ensure that the voltage of the device is appropriate. If the voltage of the local power supply is unstable, we recommend that users increase to the matching power voltage. 3. In order to ensure the therapeutic effect and normal service life expectancy of the device, please use the specified accessories provided or recommended by the original manufacturer. - Page 19 B. Ensure the fuse tube on the back of the instrument is not loose or being burnt. 2. No energy output of the instrument? A. Please check whether the plug connecting the instrument handle and the body is tightly connected. B.
-
Page 20: Packing List
the collagen, causing it to instantly contract and gradually tighten the skin. Step 3: cool down again. When the RF heat energy decreases to the lowest point, the experiencer can feel the cool feeling of the skin again. 4. Q: What's the difference between Fractional RF and traditional facelift? A: Compared with the traditional electric wave skin tightening surgery, on the probe of Fractional RF, the heat energy goes deep into the skin through the way of cluster heat transfer of countless dot arrays, thus the fascia layer forms a dot matrix of... - Page 21 Pulse Time: paper+ gel 4. Apply gel evenly on one 0.5-2.0 +facial side (thickness:coin), 1 min. mask+95% 5. Device operation: install Cool Hammer alcohol face probe on handle and Energy operate on marking cubes Intensity: accordingly, 3-5 times. (Make 30%-80% sure the device is close to the skin.) 6.
- Page 22 Energy remover clean face, 5 min. Intensity: oil+ 2. Place marking paper on Technique 5-15 cleanser+ lower eye area and apply facial alcohol on paper, 2-3 sec. Fractional RF marking 3. Remove marking paper. Pulse Time: paper+ gel 4. Apply gel evenly on one 0.5-2.0 +eye side (thickness:coin), 1 min.
- Page 23 0.5-2.0 +neck side (thickness:coin), 1 min. mask+95% 5. Device operation: install Cool Hammer alcohol neck probe on handle and Energy operate on marking cubes Intensity: accordingly, 3-5 times. (Make 30%-80% sure the device is close to the skin and avoid throat.) 6.
- Page 24 navel.) Add gel during the process if needed. 6. Scrape off the rest gel with mask spatula, 2 min. 7. Wash the treatment area clean, 2 min. 8. Cool Hammer Operation: move from left to right in circles; cover the whole abdomen, 15 min.
- Page 25 close to the skin.) 8. Operation Face: operate on marking cubes accordingly, 3-5 times. 9. Do the same on forehead, 8 min. 10. Repeat the operation on another side. 11. Switch to eye probe and operate on eyes. 12. Operate marking cubes accordingly, 3-5 times.
- Page 26 cubes accordingly, 3-5 times. (Make sure the device is close to the skin and avoid navel.) Add gel during the process if needed. 27. Cool Hammer Operation: move from left to right in circles; cover the whole abdomen, 15 min. 28.
