SIRIUS CAPACITOR MODULE
User Manual
Model number: 5000-384-A-1C-TM-SD-A-X-X-G
Version 1.2; Release Date: October 2020
Author:
Mamoona Khalid
Sirius Capacitor Module – User Manual
Model Number -5000-384-A-1C-TM-SD-A-X-X-G
This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc.
Kilowatt Labs, Inc. |
www.kilowattlabs.com
1
Advertisement
Table of Contents
Related Manuals for Kilowatt Labs SIRIUS 5000-384-A-1C-TM-SD-A-X-X-G
Summary of Contents for Kilowatt Labs SIRIUS 5000-384-A-1C-TM-SD-A-X-X-G
- Page 1 Version 1.2; Release Date: October 2020 Author: Mamoona Khalid Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 2 All trademarks are recognized, even if not explicitly identified as such. Kilowatt Labs® is a registered trademark of the Company. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 3: Table Of Contents
7 Automatic Safety Shutdown:..................... 26 8 Trouble Shooting:........................28 9 Features:............................ 29 Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 4 13.2 Test Method for Self-Discharge: ..................33 14 FAQs:............................ 34 Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 5: Safety Instructions
‘Note” provides tip that are valuable for optimal operation of your product. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 6: Safety Precautions
→ When connecting to external devices ensure that galvanic isolation does not exceed 1000V. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 7: Module Connection Safety Precautions
Selling and installation of this Module is only through the Company’s Resellers who are trained on installation, operation and maintenance of the Sirius Modules. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 8: Product Introduction
8) Not Available 9) Not Available 10) General Module Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 9: Product Overview

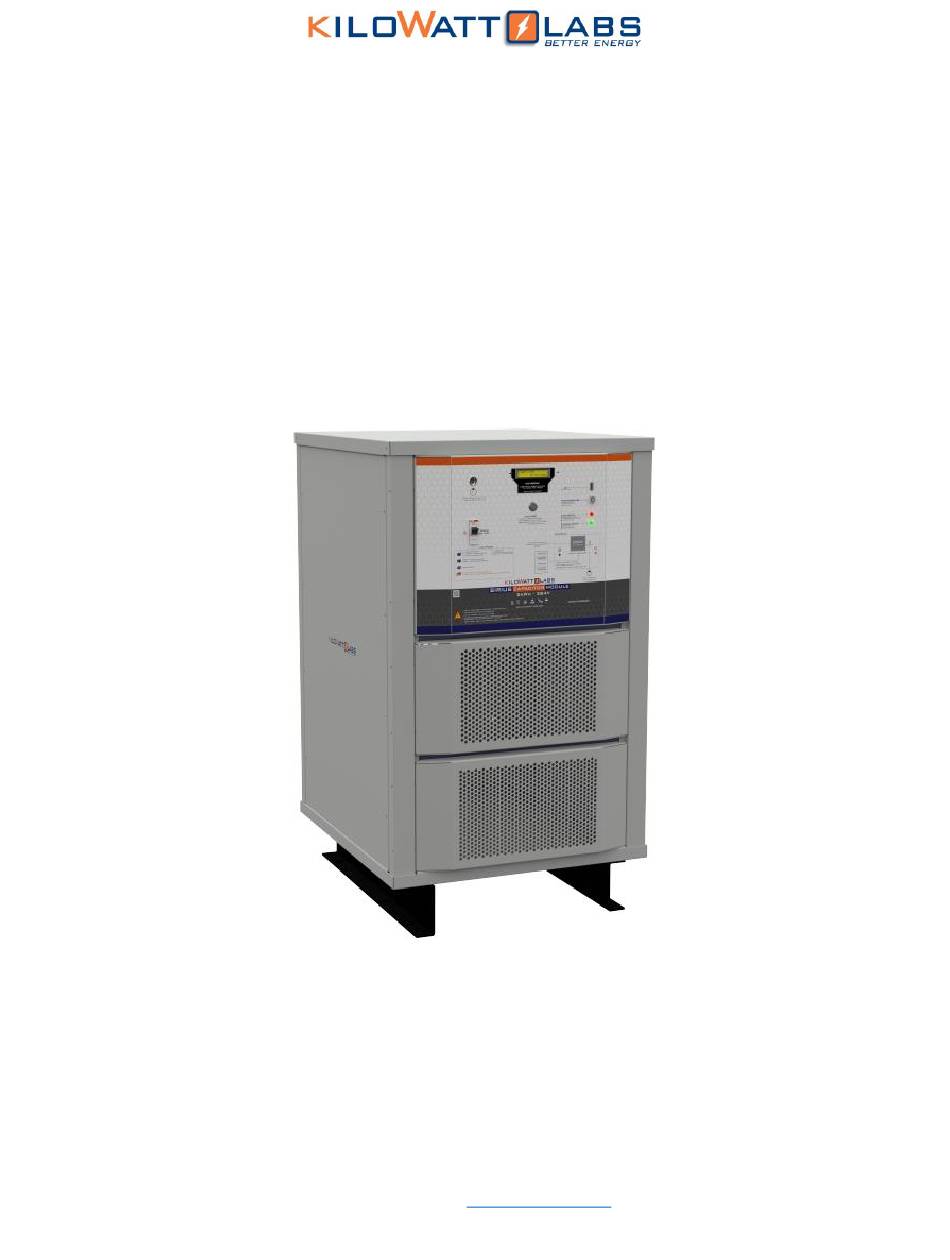

The appearance of the Sirius Module is shown below: Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 10: Mechanical Drawings
2.2.2 Mechanical Drawings: Back View Front View Side View Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 11: Dimension And Weight
Depth 660 mm Height 931.50 mm Weight 178 kg Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 12: Parts Description
2× 125A 2P DC circuit DC Circuit Breaker breakers DIN Connector For Recovery Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 13 Once the power is switched ON from the circuit breaker, the Module gets power and the LCD shows the following message after 3 seconds under normal operation: Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 14 To make the current zero, hold the fault reset button for 3 seconds and the LCD will display the following message. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 15 Module terminal is active Green Module terminal is not active. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 16 40°C and will turn OFF once the temperature goes down to 35°C and below. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 17: Module Installation
Sirius Capacitor Module: 5000Wh, 384VDC • USB Cable A-B • 35mm² Charging Cables Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 18: Electrical Installation
3. Make sure to activate the Module by turning ON the power switch to get the output from the terminal. 4. Turn ON the Charger. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 19: Connecting Module To Load
Make sure to activate the Module by turning ON the power switch to get the output from the terminals. • Turn ON the discharger. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 20: Connecting Modules In Parallel
Charge all the Modules to 100% SOC or same voltage level before connecting them in Parallel. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 21 Modules cannot be connected in series-parallel combination under any circumstance. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 22: Operation Procedures
4. Turn ON the circuit breakers at the back of the Module. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 23: Software Configuration
5. Please refer to Sirius VIEW manual. Download Sirius VIEW manual from Amber and Waseem Website. https://www.amberandwaseem.com/downloads.html Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 24: Recovery Procedure
DIN connector. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 25 5. When the Module reaches the required voltage, the Module can be charge through the positive and negative terminals of the Module. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 26: Automatic Safety Shutdown
Charge will display this message every 30 Module seconds. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 27 Temperature This means that electronic switch has reached 80 Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
-
Page 28: Trouble Shooting
Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 29: Features
4. LCD contrast can be configured anytime over Sirius VIEW Monitoring application. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 30: Technical Features
7. Sirius Module firmware can be customized easily based on user needs. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 31: Shelf Life
The Sirius Module does not require periodic maintenance. 12 Disposal: Dispose according to local regulation. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 32: Test Procedures
Record test time, test current, voltage and total charge energy at the end of charge cycle (t2, I2, V2, E1). Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 33: Test Method For Self-Discharge
Vmax−Voc • Self-discharge (%) = [ ] × 100 Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... -
Page 34: Faqs
Module needs to be calibrated. But before that please check the Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com... - Page 35 Module will delete it automatically. By default, data logging is OFF for firmware version 3.3 3 and above. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 36 (Please refer to USB serial driver quick install). Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
- Page 37 (current, voltage, date and time, alarm, temperature) you can use Sirius Config for calibrating. For more information contact your Resellers. Sirius Capacitor Module – User Manual Model Number -5000-384-A-1C-TM-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. Kilowatt Labs, Inc. | www.kilowattlabs.com...
