- Page 1 SIRIUS CAPACITOR MODULE User Manual Model number: 1860-24-B-1C-M-SD-A-X-X-G Version 1.0; Release Date: June 2020 Author: Mamoona Khalid...
- Page 2 All trademarks are recognized, even if not explicitly identified as such. Kilowatt Labs® is a registered trademark of the Company. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
-
Page 3: Table Of Contents
9.1 Key Features: ..........................35 9.2 Physical features: ........................35 Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... - Page 4 13.2 Test Method for Self-Discharge: ....................39 14 FAQs:.............................40 Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
-
Page 5: Safety Instructions
→ Always wear proper personal protective equipment (eyes protection, gloves and safety shoes). Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... - Page 6 → Do not subject the Module to high pressure. → Do not step on the Module. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
-
Page 7: Modules Connection Safety Precautions
Sirius Modules. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 8: Product Introduction

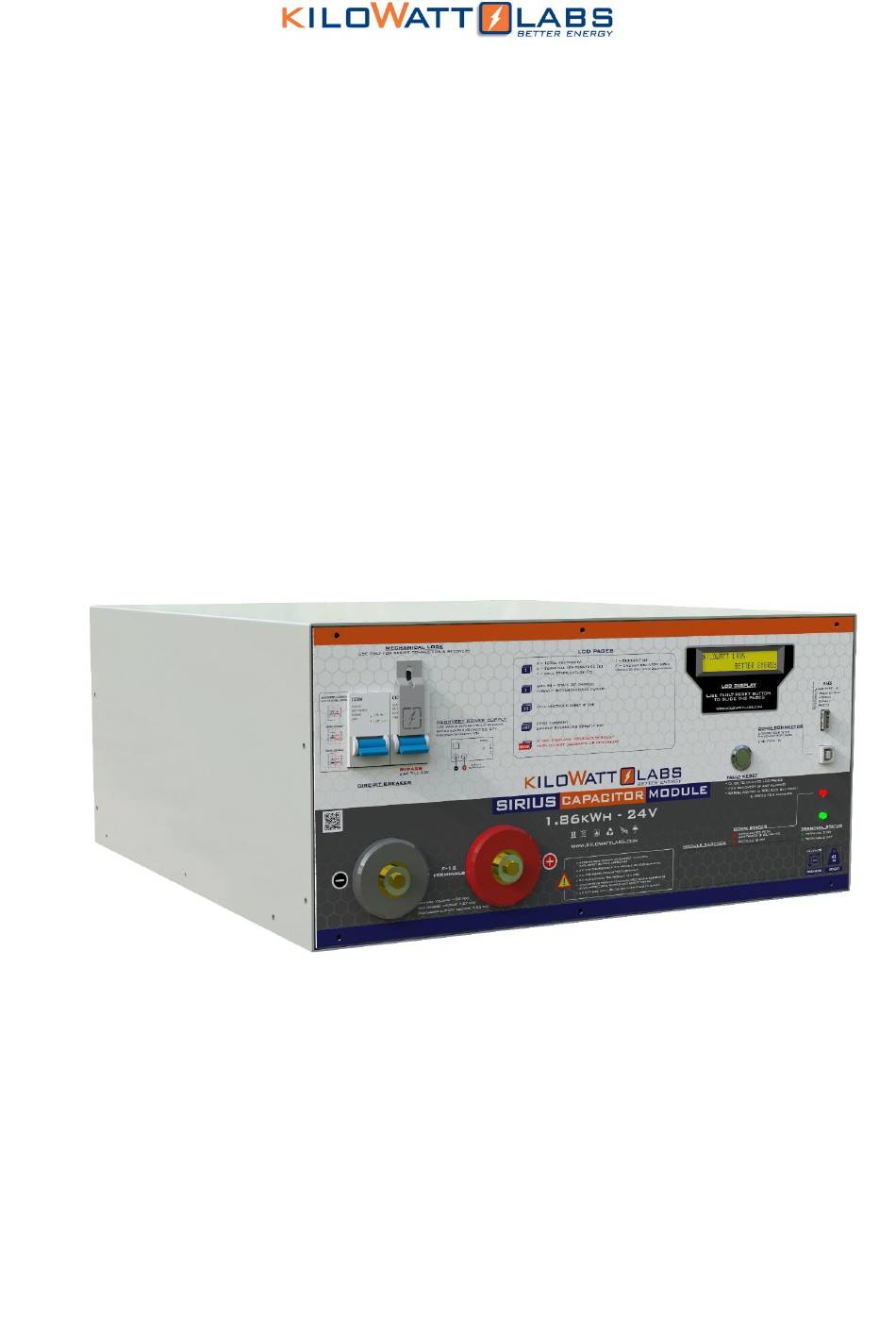

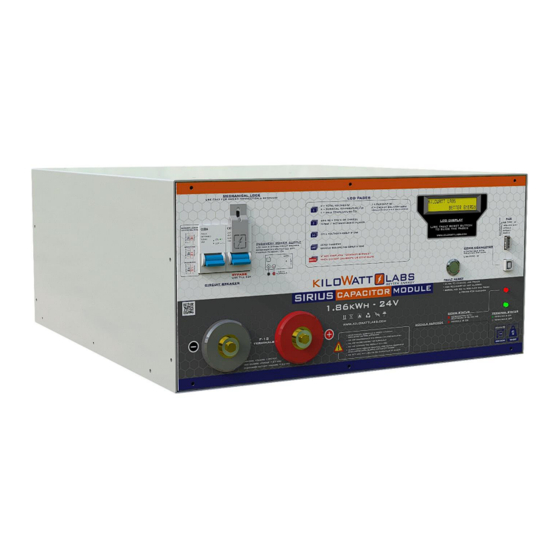

The appearance of the Sirius Module is shown below: Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 9: Mechanical Drawings
2.2.2 Mechanical Drawings: Front View Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... - Page 10 Side View Top View Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
-
Page 11: Dimensions And Weight
474 mm Height 200 mm Weight 41 kg Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 12: Product Description
Terminal Status Terminal Status LED F08 terminals Terminals Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... - Page 13 → After 1 second, the following two LCD screens get switched with each other. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
- Page 14 Step 1: When current is zero, LCD will display the message as illustrated below. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
- Page 15 Balancing is automatically disabled if there is a Current reading greater than zero. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
- Page 16 8. COMM Status LED: COMM Status LED indicates the communication status. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
- Page 17 Never connect the red cable to the negative terminal of the Module. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
-
Page 18: Module Installation
2) Bolts × 2 3) Washers × 4 Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 19: Electrical Installation
Connecting washers, lugs and bolts to positive terminal of Module Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 20: Connecting Module To Power Supply
Make sure to activate the Module by pressing the fault reset button to get the output from the terminal. • Turn ON the Charger. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 21: Connecting Module To Load
Make sure to activate the Module by pressing the fault reset button to get the output from the terminal. • Turn ON the discharger. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 22: Connecting Modules In Parallel
Charge all the Modules to 100% SOC or same voltage level before connecting them in Parallel. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 23: Connecting Modules In Series
The figure given below shows n number of Modules connected in series. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... - Page 24 Modules cannot be connected in series-parallel combination under any circumstance. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
-
Page 25: Operation Procedures
2. The picture below shows that the Module is turned ON. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... - Page 26 Always turn OFF the Module when not in use because it is Self-Powered. If left ON, the self-discharge rate will increase. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
-
Page 27: Software Configuration
6. When the Log-In appears, enter the default username and password as shown below. Default Username: admin Default Password: 123 Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... - Page 28 9. Follow instructions and press Run button on interface. (Auto Pop-up dialogs). Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
- Page 29 The Application manual is downloaded automatically when you install Sirius VIEW application. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
-
Page 30: Recovery Procedure
ON. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... - Page 31 Do not use more than 10A to recover the Module. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
-
Page 32: Automatic Safety Shutdown
LCD will display the message. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... - Page 33 This means that electronic switch has reached 80 Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
-
Page 34: Trouble Shooting
Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 35: Features
4. Sirius Module can be used with Power Save Mode, this feature can be activated by Sirius VIEW Monitoring application. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 36: Technical Features
Manual/Auto Data Logging\Module firmware updating • Internal SD card reading/refreshing Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 37: Shelf Life
The Sirius Module does not require periodic maintenance. 12 Disposal: Dispose according to local regulation. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 38: Test Procedures
Record test time, test current, voltage and total charge energy at the end of charge cycle (t2, I2, V2, E1). Step 3: Discharge Cycle: Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 39: Test Method For Self-Discharge
• Self-discharge (%) = [ ] × 100 Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... -
Page 40: Faqs
Module needs to be calibrated. But before that please check the following: Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |... - Page 41 ON before the Module will start logging and data logging is limited to 30 Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
- Page 42 After the troubleshooting if the problem still doesn’t solve, please consult with your Reseller. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
- Page 43 Auto balancing: Auto balancing is activated automatically during charging when the cells get unbalanced. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
- Page 44 For more information contact your Reseller. Sirius Capacitor Module – User Manual Model Number - 1860-24-B-1C-M-SD-A-X-X-G This manual is subject to change without notice and at the sole discretion of Kilowatt Labs, Inc. www.kilowattlabs.com Kilowatt Labs, Inc. |...
