BLAUBERG Ventilatoren SRS-1 Quick Start Manual

Sensor speed controller
SRS-1/SRS-2.5

DESCRIPTION

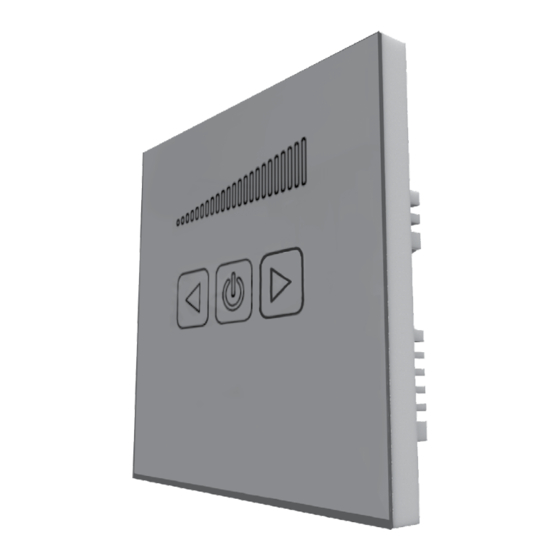

The sensor thyristor speed controller SRS-1/SRS-2.5 is designed for output power of ventilation units
and domestic fans as well as their turning on and off. The speed controller is equipped with a sensitive
sensor panel made of hardened glass, with the button
minimum ( ) to maximum value (

TECHNICAL DATA

Power supply voltage [V/Hz]
Maximum load current [A]
Cable cross section [mm ]
2
Temperature range [°C]
Humidity range [%]
Service life
Ingress Protection Rating
Weight [g]

MOUNTING

WARNING! Make sure that the speed controller is not damaged. Do not operate a damaged speed controller! Do not install the speed controller
on an uneven surface! Do not apply excessive forces to avoid the product deformation.
Mounting sequence of the sensor speed controller:
Unfasten gently the front panel latches of the speed controller.
Remove the front panel.
Route the cable in the wall to the panel mounting place.
Attach the back panel to the wall or in the mounting box through the mounting holes.
Install the front panel on the latches.

OVERALL AND CONNECTING DIMENSIONS

WIRING DIAGRAM

WARNING! Disconnect the speed controller from power supply prior to any maintenance operations.
All work related to mounting, amendments, modification and maintenance may only be carried out by qualified personnel with work permit for
electric operations.
and two buttons for speed control from
).
SRS-1
1
from 0.35 up to 1
from -10 up to +45
5-80 (no condensation)
100 000 switching operations
Sensor speed controller mounting
86
SRS-2.5
110-240/50
2.5
from 0.75 up to 1
IP30
138
31
21
11
R1.5
58
