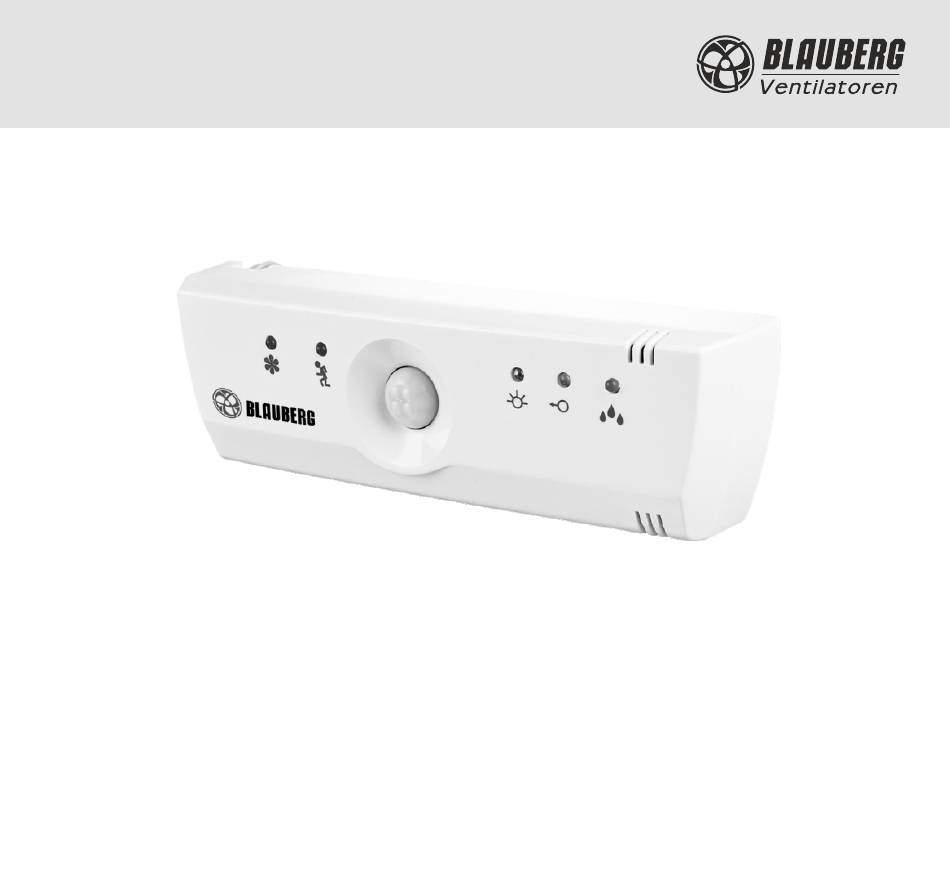

- Page 1 MCD 60/0.3 User’s Manual...
-
Page 2: Table Of Contents
MCD 60/0.3 CONTENTS 1. Functions p. 3 2. Package p. 4 3. Specifications p. 4 4. Operating conditions p. 4 5. Safety requirements p. 4 6. Description and structure p. 5 7. Installation p. 6 8. Connecting to supply network p. -
Page 3: Functions
(hygrostat), lighting sensor (photo switch), moving sensor, timer and hand control of inner and outer switch. Also MCD 60/0.3 provides cyclic turning the power on and off. Using switches you can set any function mode fit to situation. For example, in the toilet you can use lighting sensor and timer. So the fan will turn on... -
Page 4: Package
The ambient air must include no explosive and corrosive impurities. CAUTION Using MCD 60/0.3 out of temperature range and in the rooms with aggressive impurities in NOT ALLOWED the air. MCD 60/0.3 scheme is under voltage. Install only when voltage is off. -
Page 5: Description And Structure

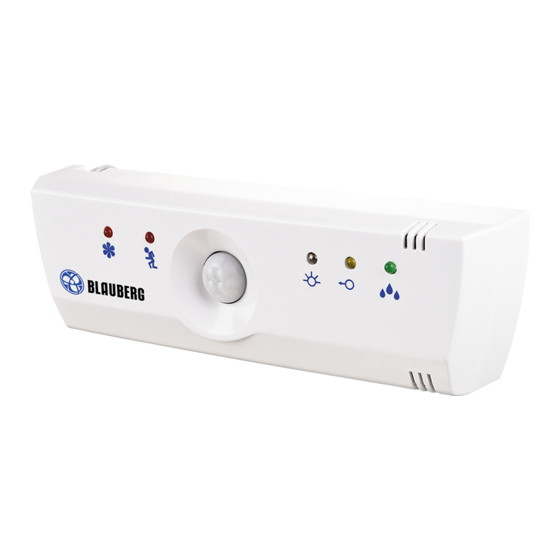

MCD 60/0.3 Description and structure To reach the best design and effect MCD 60/0.3 should be installed right under the fan (pic. 1) MCD 60/0.3 front panel includes: moving sensor (option) lighting sensor MCD 60/0.3 function modes are indicated by: red LED the fan is on;... -
Page 6: Installation
MCD 60/0.3 installation requires: Installation - to take off MCD 60/0.3 front panel; - to choose MCD 60/0.3 installation position and to outline it with the pencil (pic. 3); - to make holes for dowels; - to screw screws into the dowels;... -
Page 7: Connecting To Supply Network
MCD 60/0.3 1. Connecting to supply network must be provided with the switch with the clearance between Connecting to the contact not less than 3 mm mounted into the fixed wiring. supply network Explore connecting scheme (pic. 5). Install only when the power is off (pic. 4). - Page 8 3. Open the fan. Connect supply wire to the input terminal block. Close the fan. Fan's connecting depends on its model. CAUTION We recommend you to explore its passport before connecting. 4. Connect MCD 60/0.3 input terminal block (pic. 8) according to connection scheme (pic. 5). Scheme marking Outer switch 1 2 3 4...
-
Page 9: Configuring And Set-Up
MCD 60/0.3 To configure MCD 60/0.3 settings: Configuring 1. Choose one of the five modes using the switch (pic. 8). and set-up Function modes' details. 1.1 Hygrostat (option) The fan turns on when moisture level is exceeded. Moisture level is set with RP1 regulator (pic. - Page 10 MCD 60/0.3 1.3 Outer signal control The fan is turned on in 3 seconds with the inner or outer switch. After being turned on it keeps working for the time set with RP2 regulator. The mode is activated y setting switch 3 into On position and can be combined with hygrostat and photo switch modes.
-
Page 11: Storage Precautions
MCD 60/0.3 2. Carry MCD 60/0.3 set-up with the help of potentiometers RP1 and RP2. By turning potentiometer's handle you configure parameters from the mode description. Setting handle on one of the six segments you can choose a value of needed parameter according to the table 1, 2. -
Page 12: Acceptance Certificate P
MCD 60/0.3 MANUFACTURER isn't responsible for the damage appeared after MCD 60/0.3 CAUTION misuse or in the result of rude mechanical invasion. MCD 60/0.3 owner must follow the manual. Fan control unit MCD 60/0.3 Acceptance certificate Is compliant with the technical specifications and is recognized as serviceable.
