For questions, visit globalindustrial.com or contact Customer Service at 1-800-645-2986.
SAFETY INFORMATION
TO AVOID RISK OF SERIOUS INJURY OR DAMAGE, READ AND FOLLOW ALL SAFETY PRECAUTIONS,
OTHERWISE WARRANTY WILL BE VOIDED.
WARNING: To prevent overheating, keep the air inlets and outlets clean and free of anything that may
cause blockage. Often check all inlets and outlets to ensure they are clear of any dirt or dust
accumulation. DO NOT COVER.
WARNING: Parts of the heater may exceed 390ºF, contact with the heating tube, reflector, or mental
parts near the heating tube, may cause severe BURNS. DO NOT let bare skin touch hot surfaces. Switch
off, unplug and allow the heater to completely cool off before making contact.
WARNING: If provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet from the front of the heater and
keep them away from the sides and rear.
DO NOT insert fingers or objects into any of the openings.
Keep all objects a minimum of 3-ft. away from the heater.
DO NOT cover the heater, or put objects such as fabrics or combustible materials in contact with the heater.
DO NOT allow children to play with the appliance. Keep children away unless continuously supervised.
Check that the voltage in the rating label fits the power supply.
The use of these heaters is forbidden in any area where there is a presence of gases, explosives or
inflammable objects.
Neither the connecting cable nor any other object must come into contact with the heater.
This heater should be switched off at the isolating switch before maintenance or repair work.
Installation must be carried out by a qualified installer in accordance with current local electrical regulations.
The heater must not be installed just below an electrical socket-outlet.
Read this manual thoroughly prior to installation and operation.
Keep these instructions in a safe location for future reference.

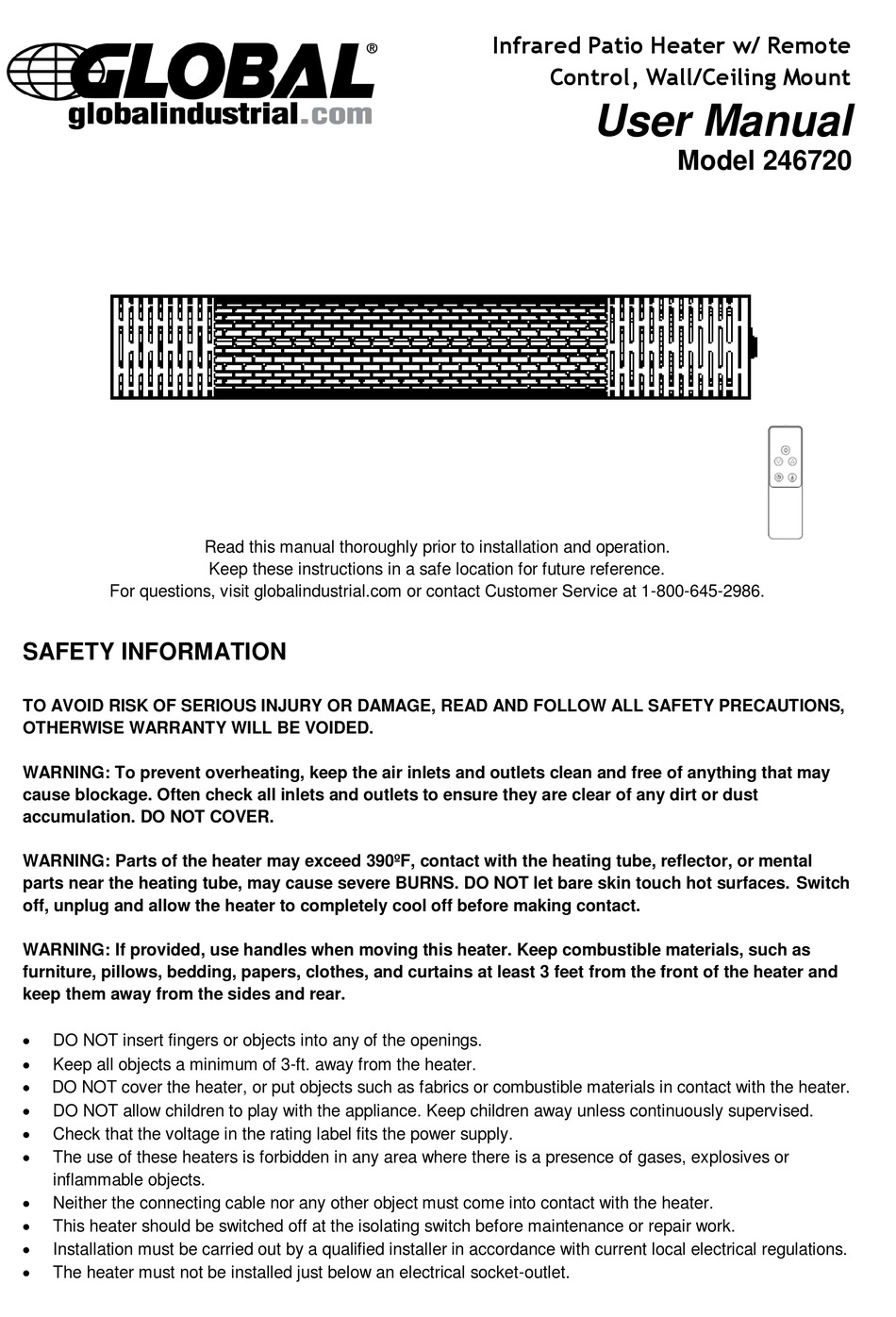

Infrared Patio Heater w/ Remote
Control, Wall/Ceiling Mount
User Manual
Model 246720
Advertisement
Table of Contents
Related Manuals for Global Industrial 246720
Summary of Contents for Global Industrial 246720
- Page 1 Infrared Patio Heater w/ Remote Control, Wall/Ceiling Mount User Manual Model 246720 Read this manual thoroughly prior to installation and operation. Keep these instructions in a safe location for future reference. For questions, visit globalindustrial.com or contact Customer Service at 1-800-645-2986.
- Page 2 The heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored. NEVER dismantle the components of the heater or replace with components not offered or recommended by Global Industrial. SPECIFICATIONS: Model: 246720...
- Page 3 WARNING: The heater must be installed on the solid surfaces like concrete, wood or metal, etc. WARNING: Ensure that the supply cable is well mounted and does not come into contact with reflector of the heater or that does not trail into heated area. The supply cable can be fixed to the metal mounting bracket behind heater with plastic zip ties.
- Page 4 Wall Mounted Installation: WARNING: The heater must be installed at least 6-1/4 feet above the floor and 15-3/4” away from the walls on both sides. The power cable must not pass through the heater while installing.
- Page 5 UP and DOWN buttons. Note: All Global Industrial 246720 heaters and their remote controls have the same frequency, so it is possible to control several heaters with just one remote.
- Page 6 Inserting Batteries Insert 2 AAA/ Alkaline type batteries into your remote control 1. Remove the battery cover on the backside of the remote control. 2. Insert (2) AAA/alkaline type batteries. 3. Reattach the battery cover. CAUTION: Remove batteries if remote will not be used for long period of time; to prevent leakage which may impair your remote control.
- Page 7 E2 Error on Display: Tip over function. Adjust heater less than a 60° working angle and restart. L1,2,3 on Display (but no heat): Bulb is damaged/replace bulb. Contact Global Industrial for additional information. The symbol on the product or in its packaging indicates that this heater may not be treated as household waste.
