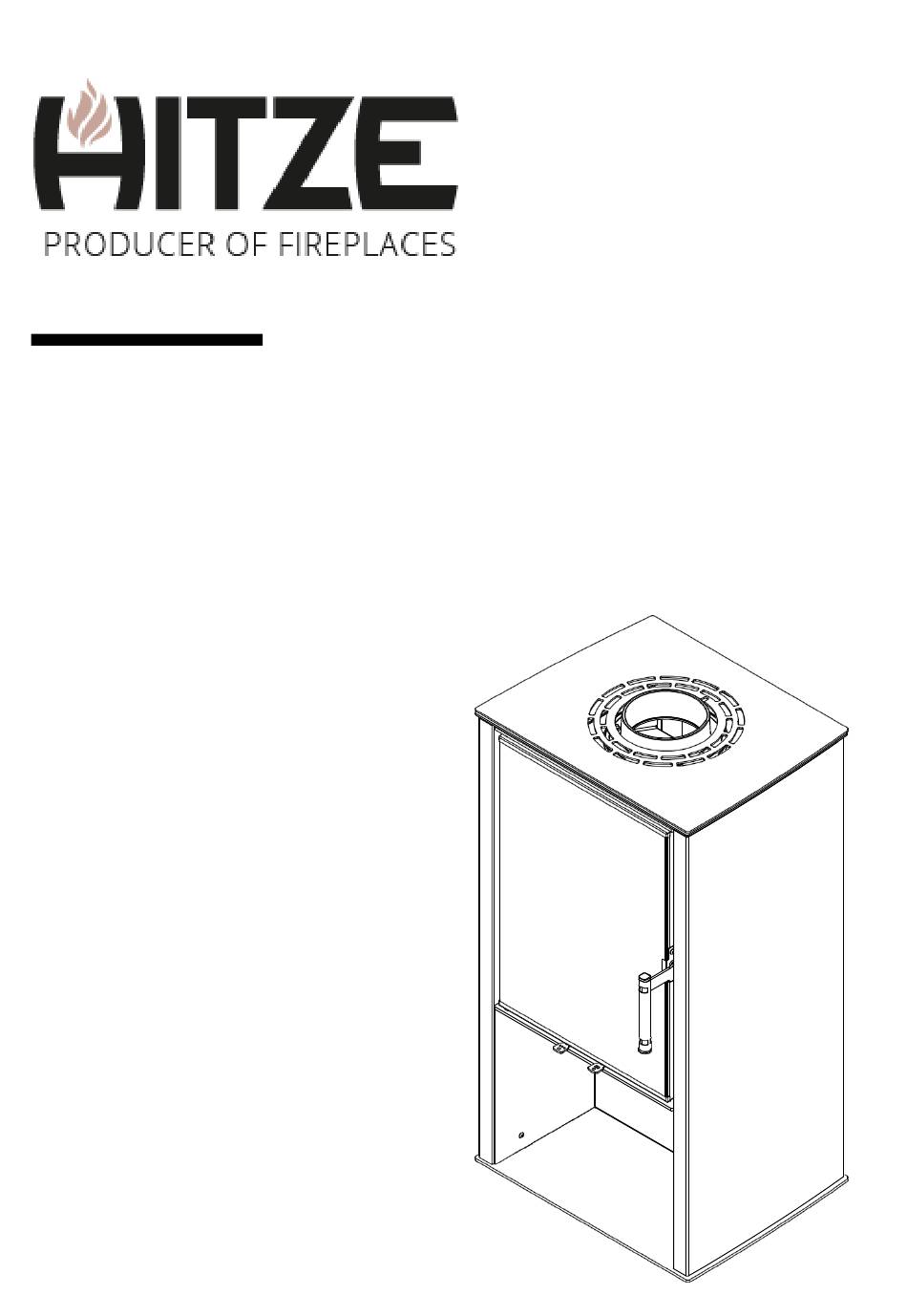

- Page 1 OPERATING AND ASSEMBLY INSTRUCTIONS Freestanding stove LUPO LYNX CANE In compliance with the requirements of the Ecodesign Directive within the EU Member States: "This product cannot be used as a primary source of heating." www.hitze.pl...
- Page 2 Dear Customer, Thank you for purchasing a Hitze freestanding stove! IT IS ESSENTIAL TO READ THE OPERATING AND INSTALLATION INSTRUCTIONS IN FULL BEFORE FIRST USE AND CHECK THE COMPLETENESS OF THE PRODUCT...
-
Page 3: Table Of Contents
1.2. In order to comply with the necessary safety rules, it is necessary to ........2 1.3. Never .............................. 3 1.4. Hitze is exempted from civil and criminal liability in the event of ........... 3 1.5. Purpose of the cooker ......................3 1.6. - Page 4 NEWS INTRODUCTION Warmth from Nature - these words perfectly encapsulate the Hitze brand philosophy. In line with this philosophy, we manufacture fireplaces and cookers that burn wood or wood pellets, which are the least environmentally damaging raw materials. Thanks to modern technology, we have developed innovative solutions that are characterised by their modern design and high heating efficiency.
-
Page 5: Never
1.5m of the cooker; ▪ light fires with flammable materials and burn waste. 1.4. Hitze is exempt from civil and criminal liability in the event of: ▪ use of the cooker not in accordance with the Operating and Installation Instructions;... - Page 6 Dimensions [mm] LUPO S LUPO M LUPO L Width Height Overall depth Carcase depth Firebox width Burner depth Air intake diameter Flue diameter Glazing width Glazing height Table 1 LUPO dimensions Fig. 2 LYNX cooker dimensions Dimensions [mm] LYNX S...
- Page 7 Fig. 3 CANE dimensions Dimensions [mm] CANE S CANE SF Width Height 1020 1020 Overall depth Carcase depth Firebox width Burner depth Air intake diameter Flue diameter Glazing width Glazing height Table 3 CANE dimensions...
-
Page 8: Construction And Operation Of The Cooker
Technical data: LUPO S, parameter unit CANE S, CANE SF LUPO M LUPO L LYNX S, LYNX B Rated power Heating load range 3-8,5 4,5-11,5 5,5-14 Maximum fuel loading weight Average fuel consumption kg/h Thermal efficiency 83,5 CO emissions (at 13% O2) -
Page 9: Transport, Assembly, Installation Of The Cooker
flue ashtray 14. side protection deflector special profile doors 15. decor glass flue cap 10. back plate 16. handle afterburning system 11. base plate 17. air curtain combustion chamber with 12. adjustment lever 18. levelling screws insert secondary air damper 19. -
Page 10: Transport And Handling
It is a requirement that the cooker is installed by a qualified person or company and that technical acceptance is carried out by a master chimney sweep and a fire specialist. Sequence of work for cooker installation: ▪ Preparing the location where the cooker is to be installed, checking the load-bearing capacity of the ground ▪... - Page 11 The operation of transferring the flue from the top plate to the rear wall is shown in the drawing. 1. view of the cooker in its 2. remove the top cover, cut a 3. Using an allen key, unscrew hole in the rear panel with a factory configuration, the back plate, hacksaw or cut a hole for the...
- Page 12 Fig. 6 Replacement of flue pipe...
- Page 13 Fig. 7 Tightening the feet 2.3. Recommendations for substrates: ▪ Before installing the cooker, check the load-bearing capacity of the floor (whether it meets the load- bearing conditions for the type of appliance depending on its weight); ▪ the floor must be made of a non-combustible material at least 30 cm thick, with a strip of space in front of the cooker door, at least 60 cm wide and extending beyond the edges of the door by at least 30 cm.
- Page 14 2.4. flue The cooker requires a suitable cross-section of the flue pipe (flue duct) and a suitable height of the flue pipe. The cross-sectional area of the flue and smoke duct is determined according to the formula: Where: F - cross-sectional area of the flue and smoke duct [m2]; Q - rated thermal output of the insert [kW];...
-
Page 15: Flue Pipe
2.6. The flue pipe system should meet the following features: ▪ the cross-section of the flue pipe must not be smaller than that of the flue pipe and must not narrow towards the chimney (adapters may be used to increase the diameter from the flue pipe to the chimney); ▪... -
Page 16: Ventilation Of The Cooker
2.7. Ventilation cooker: ▪ It is necessary to provide fresh air from outside by unsealing the windows so that there is a constant supply of air. Too little fresh air from outside can cause poor combustion (production of carbon monoxide) and, in the worst case scenario, air with carbon monoxide can backflow through the ventilation ducts when the windows are tightly closed and there is a risk of fume poisoning;... -
Page 18: Connection Of Hot Air Distribution System (Dgp)
▪ Do not install the cooker in bedrooms, bathrooms or rooms where there is another heating appliance without an independent air supply; ▪ The cooker is a unitary structure and does not require additional supports; ▪ The height (levelling) of the cooker can be adjusted by means of the feet (a maximum of 20 mm can be unscrewed);... - Page 19 Fig. 13 The arrows indicate the cutting points before fitting the connectors when connecting from above Fig. 14 Correctly installed connectors when connected from the top of the cooker Fig. 15 Correctly installed connectors when connected from the bottom of the cooker...
-
Page 20: Starting Up
Pipes carrying the heated air to other rooms are placed on the properly installed connectors. For proper operation of the system, cool air must be returned to the room where the cooker is located. STARTING UP The initial start-up of the cooker, after it has been seated and properly connected to the chimney, must be carried out by the installer or an authorised service technician. -
Page 21: Use
If flue gas is escaping from the cooker chamber, adjust the flue damper setting and increase the chimney draught. Clean the hearth of ash residue before the next lighting. Fig. 16 Throttle operation - pressed in - air supply closed, pulled out - air supply open The surface of the cooker is coated with a special heat-resistant paint which, when the cooker is lit, first becomes soft (care should be taken not to scratch it) and then hardens. - Page 22 ▪ Wood billets in the combustion chamber must be laid parallel to the plane of the door. ▪ before loading a fresh batch of fuel into the firebox, the grate should be ash-free and the ash container emptied if necessary. 4.3.
- Page 23 Fig. 17 Door open, ash pan partially extended NOTES: The manufacturer recommends that the ash pan should not be overfilled. The manufacturer recommends that the ash pan should not be overfilled. Overfilling the ash pan limits the air supply to the grate which results in poor combustion parameters and in extreme cases can make it impossible to light the cooker.
-
Page 24: Conservation
NOTES: Emergency extinguishing of the cooker consists of filling the fuel with dry sand or cold ash. WATER MUST NOT BE USED! When working on a malfunctioning cooker, it is also necessary to ensure that the room is in- tensively ventilated and the operations are assisted by a second person equipped with a powder extinguisher. -
Page 25: Recommended Periodic Cleaning Of The Cooker
5.1. Recommended periodic cleaning of the cooker In order to ensure efficient combustion in the firebox of the cooker, the combustion chamber, grate, chimney and flue pipes. Element Frequency Tools and resources Convection surfaces of the cooker As required, but at least once a Spring material brush, ash and connecting pipes to the flue year or after a prolonged break in... -
Page 26: Faults And Anomalies During Operation
Once the cover has been unscrewed, you will gain access to the cleanout. They are fastened with M8 nuts. It is advisable to use new sealing tape for reassembly after cleaning the inside of the cooker. Fig. 19 Location of the cleanout Thorough cleaning should be carried out once a year after the heating season, or as needed. -
Page 27: Nameplate
insufficient fuel increase the amount of fuel to the required in the hearth level Low productivity heating fuel humidity too high use wood with a moisture content of up or phenomenon to 20% furnace extinction check the efficiency of the chimney inadequate flue draught installation unsuitable, low- calorific wood was... - Page 28 CARD REVIEWS FURNACE INSPECTION LOG Overview Date, signature and stamp Overview Date, signature and stamp Overview Date, signature and stamp Overview Date, signature and stamp Overview Date, signature and stamp Overview Date, signature and stamp...
- Page 29 FLUE INSPECTION LOG Overview Date, signature and stamp Overview Date, signature and stamp Overview Date, signature and stamp Overview Date, signature and stamp Overview Date, signature and stamp Overview Date, signature and stamp...
- Page 30 HitzeProducentKominkow hitze_producent_kominkow HITZE Producent Kominków manufacturer STALKO Biuro: +48 48 380 18 98 NIP 9482603545 spółka z ograniczoną odpowiedzialnością Gdyńska 32 +48 800 88 00 30 REGON 361379132 spółka komandytowa 26-600 Radom KRS 0000836475 info@hitze.pl ul. Solec 24/253 POLSKA 00-403 Warszawa, POLSKA...
