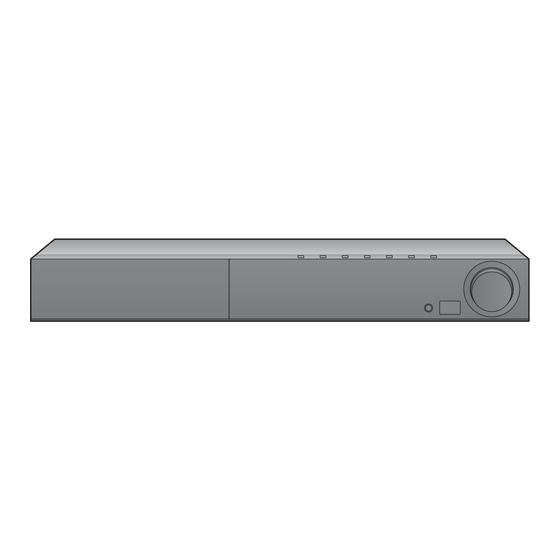

Blu-ray Disc Receiver
SERVICE MANUAL
MODEL: XV-BD212
CAUTION
BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS"
IN THIS MANUAL.
P/NO : AFN75474499
MAY, 2011

Advertisement

Table of Contents
loading

Related Manuals for LG XV-BD212

Summary of Contents for LG XV-BD212

  • Page 1 Blu-ray Disc Receiver SERVICE MANUAL MODEL: XV-BD212 CAUTION BEFORE SERVICING THE UNIT, READ THE “SAFETY PRECAUTIONS” IN THIS MANUAL. P/NO : AFN75474499 MAY, 2011...
  • Page 2 CONTENTS SECTION 1 ..SUMMARY SECTION 2 ..ELECTRICAL SECTION 3 ..CABINET & MAIN CHASSIS SECTION 4 ..BCM7633 F/E LOADER PART SECTION 5 ..REPLACEMENT PARTS LIST...

  • Page 3: Table Of Contents

    SECTION 1 SUMMARY CONTENTS PRODUCT SAFETY SERVICING GUIDELINES FOR BLU-RAY DISC PLAYER PRODUCTS ....1-3 SERVICING PRECAUTIONS .......................... 1-4 • GENERAL SERVICING PRECAUTIONS • INSULATION CHECKING PRODEDURE • ELECTROSTATICALLY SENSITIVE (ES) DEVICES HIDDEN KEY MODE ............................1-5 SOFTWARE UPGRADE ..........................1-6 SPECIFICATIONS ............................

  • Page 4: Product Safety Servicing Guidelines For Blu-Ray Disc Player Products

    PRODUCT SAFETY SERVICING GUIDELINES FOR BLU-RAY DISC PLAYER PRODUCTS IMPORTANT SAFETY NOTICE This manual was prepared for use only by properly trained audio-video service technicians. When servicing this product, under no circumstances should the original design be modified or altered without permission from Pioneer Corporation. All components should be replaced only with types identical to those in the original circuit and their physical location, wiring and lead dress must conform to original layout upon completion of repairs.

  • Page 5: Servicing Precautions

    SERVICING PRECAUTIONS CAUTION: Before servicing the Blu-ray Disc Receiver cov- Electrostatically Sensitive (ES) Devices ered by this service data and its supplements and addends, Some semiconductor (solid state) devices can be damaged read and follow the SAFETY PRECAUTIONS. easily by static electricity. Such components commonly are NOTE: if unforeseen circumstances create conflict between called Electrostatically Sensitive (ES) Devices.

  • Page 6: Hidden Key Mode

    HIDDEN KEY MODE AVAILABLE HIDDEN MODE ENTRANCE KEY EXIT KEY DISPLAY STATUS PAUSE or HOME SYSTEM DISPLAY SYSTEM 1+3+9+7+1+3+9+ SETUP MENU ON ※ 'Pause' Key INFORMATION INFORMATION ENTER or MP2 FACTORY RESET (KEY,VERSION) 1.PLATFORM INFORMATION 2.FATAL ERROR MESSAGE 3.SYSTEM DEBUG DISPLAY DEBUG (NO DISC or OPEN) 4+5+6+2+5+8+0...

  • Page 7: Software Upgrade

    SOFTWARE UPGRADE • Burn a DVD recordable disc or USB with a file that is named to ‘PIONEER_HB_6200B33.ROM’. • Insert a upgrading disc or USB. • Show help message for disc upgrade as follows. < in the case of Back End program & Front End program > Press enter key to upgrade and it will show progress information.

  • Page 8: Specifications

    SPECIFICATIONS • GENERAL Power requirements AC 220-240 V, 50/60 Hz Power consumption 150 W (In Standby mode: Less than 0.3 W) Dimensions (W x H x D) Approx. 430 x 64 x 304 mm Net Weight (Approx.) 3.6 kg Operating temperature 5 °C to 35 °C (41 °F to 95 °F) Operating humidity 5 % to 90 %...
  • Page 9 MEMO...
  • Page 10 SECTION 2 ELECTRICAL CONTENTS DIGITAL DISPLAY & MEDIA TRAINING MASTER ..................2-2 ONE PONIT REPAIR GUIDE .......................... 2-30 1. NO POWER PROBLEM ........................2-30 2. THE LAYOUT OF MAIN BOARD ......................2-32 3. NO BOOTING WHEN YOU TURN THE UNIT ON, NO MESSAGE OR “PLEASE WAIT” ON FRONT PANEL ... 2-34 4.

  • Page 11: Digital Display & Media Training Master

    DIGITAL DISPLAY & MEDIA TRAINING MASTER Objective: To provide clear and concise guidelines for customer service agents to handle calls on box goods calls. 1. DISTORTED PICTURE 1-1. Lines on Picture Distorted picture refers to the customer getting video, but there is a problem with the video. Determine what cables the customer is using to connect What cables is the BD to the TV and if connected properly.
  • Page 12 DIGITAL DISPLAY & MEDIA TRAINING MASTER 1-2. Ghost Picture Distorted picture refers to the customer getting video, but there is a problem with the video. Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. What cables is the customer Tighten any loose cables.
  • Page 13 DIGITAL DISPLAY & MEDIA TRAINING MASTER 1-3. Rolling Picture Distorted picture refers to the customer getting video, but there is a problem with the video. Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. What cables is the customer Tighten any loose cables.
  • Page 14 DIGITAL DISPLAY & MEDIA TRAINING MASTER 1-4. Shaky Picture Distorted picture refers to the customer getting video, but there is a problem with the video. Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. What cables is the customer Tighten any loose cables.
  • Page 15 DIGITAL DISPLAY & MEDIA TRAINING MASTER 1-5. Blurry Picture Distorted picture refers to the customer getting video, but there is a problem with the video. Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. What cables is the customer Tighten any loose cables.
  • Page 16 DIGITAL DISPLAY & MEDIA TRAINING MASTER 2. NO PICTURE 2-1. Black Screen The entire screen is black. Make sure the customer did not select 480i resolution in the menu Does the BD on-screen of the BD player if using HDMI connections. Change resolution on menu appear? upconversion BD player by pushing the resolution button of the remote controller.
  • Page 17 DIGITAL DISPLAY & MEDIA TRAINING MASTER 2-2. Blue Screen The entire screen is a solid blue color. Make sure the customer did not select 480i resolution in the menu Does the BD on-screen of the BD player if using HDMI connections. Change resolution on menu appear? upconversion BD player by pushing the resolution button of the remote controller.
  • Page 18 DIGITAL DISPLAY & MEDIA TRAINING MASTER 2-3. Snowy Screen A snowy picture is when black and white dots are all over the screen. Make sure the customer did not select 480i resolution in the menu Does the BD on-screen of the BD player if using HDMI connections. Change resolution on menu appear? upconversion BD player by pushing the resolution button of the remote controller.
  • Page 19 DIGITAL DISPLAY & MEDIA TRAINING MASTER 2-4. No Signal A “no signal” message appears on the screen of the display. Make sure the customer did not select 480i resolution in the Does the BD on-screen menu of the BD player if using HDMI connections. Change resolution on menu appear? upconversion BD player by pushing the resolution button of the remote controller.
  • Page 20 DIGITAL DISPLAY & MEDIA TRAINING MASTER 2-5. Invalid Format or Format Not Supported Make sure the customer’s simultaneously connecting analog component cable with HDMI cable. And then If Copy Protected Disc is playing back, Is the customer using a analog component output is no picture. Only when the analog output digital cable connection? is 480i, you can see the picture.
  • Page 21 DIGITAL DISPLAY & MEDIA TRAINING MASTER 3. PICTURE COLOR 3-1. No Color The video displays no color and only shows in black and white. Determine what cables the customer is using to connect the BD What cables is the customer to the TV and if connected properly.
  • Page 22 DIGITAL DISPLAY & MEDIA TRAINING MASTER 3-2. Poor Color The color is poor. Examples would be washed out colors, colors bleeding into one another, or a solid tint to a screen. Determine what cables the customer is using to connect the BD to What cables is the customer the TV and if connected properly.
  • Page 23 DIGITAL DISPLAY & MEDIA TRAINING MASTER 4. NOISE/AUDIO PROBLEMS 4-1. No Audio The customer is not able to get audio. Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. What cables is the customer Tighten any loose cables.
  • Page 24 DIGITAL DISPLAY & MEDIA TRAINING MASTER 4-2. Distorted Audio The audio sounds muffled, scratchy, or the audio skips. Determine what cables the customer is using to connect the BD to the TV and if connected properly. Refer to OM for connections. What cables is the customer Tighten any loose cables.
  • Page 25 DIGITAL DISPLAY & MEDIA TRAINING MASTER 4-3. Humming/Clicking Noise The unit is making a humming noise or a clicking noise. BDs make a slight hum when playing discs. Does the noise only A clicking noise or a noise interfering with audio may indicate a problem. happen when a disc Try multiple discs.
  • Page 26 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5. MISCELLANEOUS 5-1. No Power The unit will not turn on. Is the unit plugged in? Make sure the unit is plugged into a surge protector or the wall. Does the unit turn on See if the unit will turn on when the power button the unit is pressed.
  • Page 27 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5-2. Disc Error The unit displays “disc error” when a disc is inserted into the BD player. Is the disc inserted into Make sure the disc has been inserted into the BD player properly. the BD player properly? The player can not read a disc inserted into the unit upside down.
  • Page 28 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5-3. Unit Locks Up Unit does not respond to any commands. If the unit will turn on or off with the button on the unit, Does the unit respond to troubleshoot the remote control. Please refer to the buttons on the unit? Remote Control Not Working call flow.
  • Page 29 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5-5. Remote Control Not Working If the buttons on the front of the unit do not respond, Does the unit respond to determine if the product has locked up or if the unit will not turn on. buttons on the front of the unit? The problem is not the remote control.
  • Page 30 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5-6. Will Not Play Disc The unit will not play a disc when a disc is inserted into the player. Is the disc inserted into Make sure the disc has been inserted into the BD player properly. the BD player properly? The player can not read a disc inserted into the unit upside down.
  • Page 31 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5-7. Disc Freezes or Skips The audio and video freeze and skip during play back of a BD or DVD disc. Is the disc inserted into Make sure the disc has been inserted into the BD player properly. the BD player properly? The player can not read a disc inserted into the unit upside down.
  • Page 32 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5-8. Can Access Menu, but Not Play a Movie The disc menu is displayed but the disc will not play. Go into the system information screen of the BD player. To access this menu, bring up the main menu. Go to TV aspect, Check the system information highlight 16:9, press 1397139 and hit enter.
  • Page 33 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5-10. Aspect Ratio The customer has bars on the top and bottom of the screen, the left and right of the screen, or both. A full screen movie played on a wide screen TV will have bars Is the movie on the left and right side of the TV.
  • Page 34 DIGITAL DISPLAY & MEDIA TRAINING MASTER 5-11. My Unit Won’t Upconvert The customer has a problem with getting the unit to change resolutions to 480p, 720p, 1080i, or 1080p. Ask the customer to press stop to stop the disc from playing. Is the disc Ask the customer to press the resolution button to change the resolution.
  • Page 35 DIGITAL DISPLAY & MEDIA TRAINING MASTER 6. BLU-RAY PLAYER 6-1. Slow Loading Times for BDs The loading times for a blu-ray disc is 30 seconds. Why does it take so When a customer switches from one disc to another, the lens long to load my BDs? will change which is what causes the delay.
  • Page 36 DIGITAL DISPLAY & MEDIA TRAINING MASTER 7. YouTube 8-1.Frequent buffering happens while playing videos. Network Condition Meter indicate current network speed between BD Player and YouTube stream server. To play videos without buffering, Network Condition Meter should have more than 3 Bars. Do you have adequate We recommend a minimum connection speed of 1.5Mbps.
  • Page 37 DIGITAL DISPLAY & MEDIA TRAINING MASTER 8. PICASA 8-1. Create Picasa Web Albums Account Don’t have a Picasa Visit “piccasaweb.google.com” and click the “Create an Account >>” button. Web Albums account? You can get 1GB of free storage which can store about 4,000 pictures. 8-2.
  • Page 38 DIGITAL DISPLAY & MEDIA TRAINING MASTER 9. AccuWeather 9-1. Policy There may be network congestions. Is “The Request cannot be Please retry it 2 or 3 more times. processed.” message displayed? If it is Home menu, no data will be displayed. If it is Favorite City menu, it will return to the favorite city list.

  • Page 39: One Ponit Repair Guide

    ONE POINT REPAIR GUIDE 1. NO POWER PROBLEM No power problem occurs when you power on the unit. 1-1. Fuse & Bridge diode 1-1-1. Solution Replace F901, BD901 on SMPS board. 1-1-2. How to troubleshoot (Countermeasure) 1) Look at the physical of fuse F901. 2) Check the bridge diode BD901.
  • Page 40 ONE POINT REPAIR GUIDE No power problem occurs when you power on the unit. 1-2. VFD, 14 VA, 6 VA, 3.8 VA 1-2-1. Solution Replace D921, D923, D925, D926, D927, IC901. 1-2-2. How to troubleshoot (Countermeasure) Case 1) FLD Abnormal: Check D927, D926, ZD951, ZD952, FR952 and replace it. Case 2) 6 VA Abnormal: Check D924 and replace it.

  • Page 41: The Layout Of Main Board

    ONE POINT REPAIR GUIDE 2. THE LAYOUT OF MAIN BOARD JK299 CN2A1 IC200 TUN01 IC401 IC201 JK251 IC101 JK803 IC801 JK802 X500 IC150 IC506 JK801 IC500 JK203 CN252 IC502 IC503 IC151 CN250 JK250 CN150 CN401 < MAIN board top view > 2-32...
  • Page 42 ONE POINT REPAIR GUIDE IC154 IC202 IC405 IC402 IC810 IC102 SIC704 SIC710 IC153 IC152 < MAIN board bottom view > 2-33...

  • Page 43: Booting When You Turn The Unit On, No Message Or "Please Wait" On Front Panel

    ONE POINT REPAIR GUIDE 3. NO BOOTING WHEN YOU TURN THE UNIT ON, NO MESSAGE OR “PLEASE WAIT” ON FRONT PANEL When you turn on your set, it will blank / no message or “PLEASE WAIT” display on front panel, and it will not boot-up.
  • Page 44 ONE POINT REPAIR GUIDE When you turn on your set, it will blank / no message or “PLEASE WAIT” display on front panel, and it will not boot-up. 3-2. IC153 (NO 3.3 V) 3-2-1. Solution Replace IC153 on MAIN board. 3-2-2.
  • Page 45 ONE POINT REPAIR GUIDE When you turn on your set, it will blank / no message or “PLEASE WAIT” display on front panel, and it will not boot-up. 3-3. IC150 (NO 1.2 V) 3-3-1. Solution Replace IC150 on MAIN board. 3-3-2.
  • Page 46 ONE POINT REPAIR GUIDE When you turn on your set, it will blank / no message or “PLEASE WAIT” display on front panel, and it will not boot-up. 3-4. IC151 (NO 1.5 V) 3-4-1. Solution Replace IC151 on MAIN board. 3-4-2.
  • Page 47 ONE POINT REPAIR GUIDE When you turn on your set, it will display “PLEASE WAIT” display on front panel, and it will not boot-up normally. 3-5. X500 3-5-1. Solution Replace X500 on MAIN board. 3-5-2. How to troubleshoot (Countermeasure) 1) Please check the soldering status of 27 MHz crystal (X500). 2) Please check the frequency of 27 MHz crystal (X500).
  • Page 48 ONE POINT REPAIR GUIDE When you turn on your set, it will display “PLEASE WAIT” on front panel, and it will not boot-up normally. 3-6. IC506 (NAND FLASH MEMORY) 3-6-1. Solution Replace IC506 on MAIN board. 3-6-2. How to troubleshoot (Countermeasure) 1) Please check physical status of IC506 on your eyes.
  • Page 49 ONE POINT REPAIR GUIDE When you turn on your set, it will display “PLEASE WAIT” on front panel, and it will not boot-up normally. 3-7. IC502, IC503 (DDR3 MEMORY) 3-7-1. Solution Replace IC502, IC503 on MAIN board. 3-7-2. How to troubleshoot (Countermeasure) 1) Please check 0.8 V of DDR3_CLK01.(between R591).
  • Page 50 ONE POINT REPAIR GUIDE When you turn on your set, it will display “PLEASE WAIT” on front panel, and it will not boot-up normally. 3-8. IC500 (MPEG IC) 3-8-1. Solution Replace IC500 on MAIN board. 3-8-2. How to troubleshoot (Countermeasure) 1) Please Check 1.2 V.
  • Page 51 ONE POINT REPAIR GUIDE When you turn on your set, it will display “PLEASE WAIT” on front panel, and it will not boot-up normally. 3-9. MAIN Board 3-9-1. Solution Replace MAIN board. 3-9-2. How to troubleshoot (Countermeasure) 1) Please remove IC500, IC502, IC503, and then check the Impedance between each signal (DATA, ADDRESS, and so on.).

  • Page 52: Wired Network Connection Error

    ONE POINT REPAIR GUIDE 4. WIRED NETWORK CONNECTION ERROR When you connect Accu Weahter, You-tube or Picasa through the wired LAN, the “no connection“ message appears. 4-1. JK250 4-1-1. Solution Replace JK250 on MAIN board. 4-1-2. How to troubleshoot (Countermeasure) 1) Check you internet connection.

  • Page 53: Bad Hdmi Video / Audio Output

    ONE POINT REPAIR GUIDE 5. BAD HDMI VIDEO / AUDIO OUTPUT When unit is connected to HDMI TV using HDMI cable, picture shows bad color, no output or mixed color on the screen. But component output is OK. 5-1. JK803 5-1-1.

  • Page 54: Bad Hdmi Video / Audio Input

    ONE POINT REPAIR GUIDE 6. BAD HDMI VIDEO / AUDIO INPUT When unit is connected to HDMI IN(1 or 2) using HDMI cable, picture shows bad color, no output or mixed color on the screen. 6-1. JK801 & JK802 6-1-1. Solution Replace JK801 or JK802 (HDMI Jack).

  • Page 55: Electrical Troubleshooting Guide

    ELECTRICAL TROUBLESHOOTING GUIDE 1. POWER SUPPLY ON SMPS BOARD No 3.8 VA Replace F901 (same fuse). Is F901 normal? Replace TH901. Is TH901 normal? Is BD901 normal? Replace BD901. Is the Vcc Is D922/ D923 normal? (11 V ~ 25 V) supplied to IC901 pin4? Check or replace D922/ D923.
  • Page 56 ELECTRICAL TROUBLESHOOTING GUIDE No 36 VA / 26 VA Replace Q901 (same fuse). Is Q901 normal? Replace D928. Is D928 normal? Is IC902 normal? Replace IC902. Is the Vcc Is Q910 normal? (11 V ~ 25 V) supplied to IC902 pin7? Check or replace Q910.

  • Page 57: Power Supply On Main Board

    ELECTRICAL TROUBLESHOOTING GUIDE 2. POWER SUPPLY ON MAIN BOARD No 3.3 V Is the Check 3.8 VA on SMPS board. Vcc 3.8 VA supplied to IC152/ IC153 pin2? Is there Check LDO_CTRL/ DCDC33_CTRL line ‘H’ signal at IC152/ IC153 from IC101(pin58, 68). pin1? Check IC152/ IC153 and replace.
  • Page 58 ELECTRICAL TROUBLESHOOTING GUIDE No 1.2 V Is the Check 14 VA on SMPS board. Vcc 14 VA supplied to IC150 pin2? Check the DCDC12_CTRL line Is there 3.3 V at IC150 pin6? from IC101(pin60). Check IC150 and replace. No 1.5 V Is the Check 14 VA on SMPS board.

  • Page 59: Front Part

    ELECTRICAL TROUBLESHOOTING GUIDE 3. FRONT PART Power on “WELCOME CN301 cable PLEASE WAIT” Display Connect 24p FFC cable connection ok? on VFD ok? CN301 pin3, 4, 5 Check SMPS board power ok? CN301 pin6, 7, 8 Check MAIN board data signal ok? IC301 Replace IC301 check ok?

  • Page 60: System Part

    ELECTRICAL TROUBLESHOOTING GUIDE 4. SYSTEM PART Power cord in CN150 Check CN150 “BOOT” display VKK, FL-, + & SMPS board. on FLD OK? check OK? VFD_CLK Check R362, R363, R364 DO, STB vol. level. Replace DIS301. Check DIS301. Check Noise cap. PWR_SENS Power on.
  • Page 61 ELECTRICAL TROUBLESHOOTING GUIDE 1.2 V/ 1.5 V/ Check IC150, IC151, IC153 Menu “Home” display 3.3 V OK? and SMPS board. on monitor OK? Reset & UART_TX2, RX2 Check X101 and IC101. X500 Replace X500. 27.00 MHz IC506 Replace IC506 NAND_ALE, NAND_CLE (NAND FLASH).

  • Page 62: Cvbs Video Output

    ELECTRICAL TROUBLESHOOTING GUIDE 5. NO CVBS VIDEO OUTPUT No CVBS video on display Is there Check IC251 signal or Vcc. CVBS signal on R2A8? Is there Replace IC250. CVBS signal out of IC250 pin6? Is there Check R567. signal on CA203? Check JK251 and RCA cable connection.

  • Page 63: Audio Output

    ELECTRICAL TROUBLESHOOTING GUIDE 6. NO AUDIO OUTPUT Optical function IC201 Check JK203 or replace. pin6 OPT_IN signal IC201 Check IC201 or replace. pin27 ~ 29 I2S signal IC401 Check IC401 or replace. pin23, 24, 26, 27, 29, 30 signal OK? CN401 Check IC404 or replace.
  • Page 64 ELECTRICAL TROUBLESHOOTING GUIDE Tuner function IC200 Check tuner module or replace. pin11, 12 audio L/R IC201 Check IC200 or replace. pin13, 14, 15 I2S signal IC401 Check IC201 or replace. pin23, 24, 26, 27, 29, 30 signal CN401 Check CN401 or replace. pin13, 14, 15 signal Update new μ-COM firmware.
  • Page 65 ELECTRICAL TROUBLESHOOTING GUIDE BD / CD / DVD disc or USB play IC511 Check IC500 or replace. pin4, 6, 8, 17 I2S input signal R446, R447, Check IC511 or replace. R448, R432 I2S Input signal R423, Check IC401 or replace. R422, R424 output signal IC401 Check IC201 or replace.

  • Page 66: Hdmi Output

    ELECTRICAL TROUBLESHOOTING GUIDE 7. NO HDMI OUTPUT No HDMI audio / video output JK803 Check L803 and Vcc 5 V line. pin18 Vcc 5 V JK803 Check hot plug detect signal from TV. pin19 HP_DET about 3.3 V Is there signal on Check IC801 Vcc or replace IC801.

  • Page 67: Hdmi Input

    ELECTRICAL TROUBLESHOOTING GUIDE 8. NO HDMI INPUT No HDMI audio / video output JK801, Check transmitter device. JK802 pin18 Vcc 5 V OK ? JK801, Check IC801 status. JK802 pin19 HP_DET about 3.3V Is there Replace IC801. signal on JK801, JK802 pin15,16? JK803 Check L803 and Vcc 5 V line.

  • Page 68: Waveforms

    WAVEFORMS 1. SYSTEM PART-1 (X-TAL) IC500 IC101 X500, 27 MHz X802, 28.63 MHz X101, 20 MHz X200, 24.57 MHz 2-59...

  • Page 69: System Part-2 (Ddr3 Memory)

    2. SYSTEM PART-2 (DDR3 MEMORY) IC500 DDR3_BA0 DDR3_nWE DDR3_nCAS DDR3_CLK01_P 2-60...

  • Page 70: Video Part (100% Full Color-Bar)

    3. VIDEO PART (100% FULL COLOR-BAR) COMPOSITE COMP_Y COMP_Pb COMP_Pr 2-61...

  • Page 71: Hdmi Part

    4. HDMI PART HPD_TX DDC_SDA DDC_SCL TXC+ 2-62...

  • Page 72: Micom And Mpeg I/F Part

    5. MICOM AND MPEG I/F PART BCM_nRESET MICOM_UART_RX2 MICOM_UART_TX2 2-63...
  • Page 73 MEMO 2-64...

  • Page 74: Wiring Diagram

    WIRING DIAGRAM 22PIN FFC CABLE 14PIN HARNESS MAIN CABLE CN2A1 CN1J1 CN252 CN250 8PIN B’d to B’d 8PIN 5PIN 12PIN FFC 24PIN FFC HARNESS HARNESS CABLE CABLE CABLE CABLE CN3U1 SMPS Bluetooth Wi-Fi USB/PORT JACK OPTIONAL PART CN301 FRONT TACT 2-65 2-66...

  • Page 75: Block Diagrams

    BLOCK DIAGRAMS 1. MPEG / AMP BLOCK DIAGRAM 24.576 MHz 3.3 V/ 5 V 3.3 V 12C(1) 2ch ADC 24.576 12C(1) 1.2 V/ 3.3 V Option (CS5346) 3.3 V i-Pod DRV603 Audio DSP 32 V/ 39 V/ 12 V SDRAM CS495314 Portable CS8422...

  • Page 76: Hdmi / Vfd / Video / Dc-Dc Block Diagram

    2. HDMI / VFD / VIDEO / DC-DC BLOCK DIAGRAM MAIN PCB 12C(1) AMP PCB SMPS PCB SPI(2) ABOVE EDID_I2C From HDMI Micom DC-DC Block EDID_SW VCC_12V ADV7622 3.3V 1.5V 1.2V EDID EDID SW EEPROM DC-DC AOZ1037 HDMI Connector DC-DC AOZ1073 DDC_DAT, CLK HDMI_5V...

  • Page 77: Circuit Diagrams

    IMPORTANT SAFETY NOTICE CIRCUIT. SPECIAL COMPONENTS ARE SHADED ON NOTE : THE SCHEMATIC FOR EASY IDENTIFICATION. 1. Shaded( ) parts are critical for safety. Replace only WHEN SERVICING THIS CHASSIS, UNDER NO THIS CIRCUIT DIAGRAM MAY OCCASIONALLY with specified part number. CIRCUIT DIAGRAMS CIRCUMSTANCES SHOULD THE ORIGINAL DESIGN DIFFER FROM THE ACTUAL CIRCUIT USED.

  • Page 78: Main - Cpu#1 Circuit Diagram

    2. MAIN - CPU#1 CIRCUIT DIAGRAM CPU#1 : WAVEFORM NUMBER EBY61389301(#2), REV2.3 2011.04.20 2-73 2-74...

  • Page 79: Main - Cpu#2 Circuit Diagram

    3. MAIN - CPU#2 CIRCUIT DIAGRAM : WAVEFORM NUMBER CPU#2 EBY61389301(#3), REV2.3 2011.04.20 2-75 2-76...

  • Page 80: Main - Ddr3, Nand Circuit Diagram

    4. MAIN - DDR3, NAND CIRCUIT DIAGRAM DDR3 / NAND EBY61389301(#4), REV2.3 2011.04.20 2-77 2-78...

  • Page 81: Main - Bcm7633 Front End Circuit Diagram

    5. MAIN - BCM7633 FRONT END CIRCUIT DIAGRAM FRONTEND EBY61389301(#5), REV2.3 2011.04.20 2-79 2-80...

  • Page 82: Main - Micom Circuit Diagram

    6. MAIN - MICOM CIRCUIT DIAGRAM MICOM : WAVEFORM NUMBER EBY61389301(#6), REV2.3 2011.04.20 2-81 2-82...

  • Page 83: Main - Hdmi Circuit Diagram

    7. MAIN - HDMI CIRCUIT DIAGRAM HDMI : WAVEFORM NUMBER EBY61389301(#7), REV2.3 2011.04.20 2-83 2-84...

  • Page 84: Main - Adc, Dir Circuit Diagram

    8. MAIN - ADC, DIR CIRCUIT DIAGRAM ADC / DIR : WAVEFORM NUMBER EBY61389301(#8), REV2.3 2011.04.20 2-85 2-86...

  • Page 85: Main - Dsp Circuit Diagram

    9. MAIN - DSP CIRCUIT DIAGRAM EBY61389301(#9), REV2.3 2011.04.20 2-87 2-88...

  • Page 86: Main - Power Circuit Diagram

    10. MAIN - POWER CIRCUIT DIAGRAM POWER EBY61389301(#10), REV2.3 2011.04.20 2-89 2-90...

  • Page 87: Main - I/O Circuit Diagram

    11. MAIN - I/O CIRCUIT DIAGRAM : WAVEFORM NUMBER EBY61389301(#11), REV2.3 2011.04.20 2-91 2-92...

  • Page 88: Pwm Circuit Diagram

    12. PWM CIRCUIT DIAGRAM EBY60991601(#1), REV7.1 2011.02.12 2-93 2-94...

  • Page 89: Amp Circuit Diagram

    13. AMP CIRCUIT DIAGRAM EBY60991601(#2), REV7.1 2011.02.12 2-95 2-96...

  • Page 90: Front Circuit Diagram

    14. FRONT CIRCUIT DIAGRAM FRONT EBY61389401, REV1.3 2011.04.20 2-97 2-98...

  • Page 91: Jack Circuit Diagram

    15. JACK CIRCUIT DIAGRAM JACK EBY61389501, REV1.3 2011.04.20 2-99 2-100...

  • Page 92: Circuit Voltage Chart

    CIRCUIT VOLTAGE CHART IC SPEC. LOCATION NO. DIVISION SPEC.(V) REAL (V) IC SPEC. LOCATION NO. DIVISION SPEC.(V) REAL (V) 2.0~5.5 3.26 7~13.2 12.43 IC204, IC205, 74HCT244 0~5.5 3.246 7~13.2 12.43 IC404, IC811 R2A30209SP SIC704 3.257 7~13.2 12.43 TVDD 3.14~3.47 3.26 5VCC 4.5~5.5 4.98...

  • Page 93: Printed Circuit Board Diagrams

    PRINTED CIRCUIT BOARD DIAGRAMS 1. MAIN P. C. BOARD DIAGRAM (TOP VIEW) 2-103 2-104...
  • Page 94 MAIN P. C. BOARD DIAGRAM (BOTTOM VIEW) 2-105 2-106...

  • Page 95: Smps P. C. Board Diagram

    2. SMPS P. C. BOARD DIAGRAM (TOP VIEW) (BOTTOM VIEW) NOTE) Warning Parts that are critical with respect to risk of fire or electrical shock. 2-107 2-108...

  • Page 96: Amp P. C. Board Diagram

    3. AMP P. C. BOARD DIAGRAM (TOP VIEW) (BOTTOM VIEW) 2-109 2-110...

  • Page 97: Front P. C. Board Diagram

    4. FRONT P. C. BOARD DIAGRAM (TOP VIEW) (BOTTOM VIEW) 5. JACK P. C. BOARD DIAGRAM (TOP VIEW) (BOTTOM VIEW) 2-111 2-112...
  • Page 98 SECTION 3 CABINET & MAIN CHASSIS CONTENTS EXPLODED VIEWS ............................3-3 1. CABINET AND MAIN FRAME SECTION ....................3-3 2. DECK MECHANISM SECTION (BM12T) ....................3-5 3. PACKING ACCESSORY SECTION ......................3-6...
  • Page 99 MEMO...
  • Page 100 EXPLODED VIEWS 1. CABINET AND MAIN FRAME SECTION CABLE2 CABLE3 MAIN CABLE1 CN901 SMPS...
  • Page 101 2. DECK MECHANISM SECTION (BM12T) 3. PACKING ACCESSORY SECTION 1439 808 Battery 811 Video cable 825 FM antenna 1002 A001 1001 1005 801 Owner’s manual 900 Remote control 1003 1004 1026 804 Bag 1030 1025 1437 802A Accessory box 803 Packing, casing 1437 1024 1025...
  • Page 102 SECTION 4 BCM7633 F/E LOADER PART CONTENTS COMPONENT REPAIR GUIDE ....................... 4-2 1. ABNORMAL MD OPERATION ......................... 4-2 2. "ALL BD DISC" READING ERROR ......................4-3 3. "ALL DVD DISC" READING ERROR ....................... 4-4 4. "ALL CD DISC" READING ERROR ......................4-5 5.

  • Page 103: Component Repair Guide

    COMPONENT REPAIR GUIDE 1. ABNORMAL MD OPERATION Abnormal disc reading or abnormal tray open/close. Replace new MD and test if it is operated normally. 1-1. Component 1) Traverse assembly 2) FFC cable from MAIN board to MD 1-2. How to troubleshoot (Countermeasure) 1) Check the connection between main board and FFC cable, 2) Confirm the connection point.

  • Page 104: All Bd Disc" Reading Error

    COMPONENT REPAIR GUIDE 2. "ALL BD DISC" READING ERROR - All the Blu-ray disc is not operated, but DVD and CD are operated normally. - If the LDO for APC of BD laser diode is abnormal, BD doesn't work. - If the LD current control is abnormal, BD doesn't work. 2-1.

  • Page 105: All Dvd Disc" Reading Error

    COMPONENT REPAIR GUIDE 3. "ALL DVD DISC" READING ERROR - All the DVD disc is not operated, but BD and CD are operated normally. - If the LD current control is abnormal, DVD doesn't work. 3-1. Component 1) MD (Traverse Assembly) 2) SQ712, SQ717 3-2.

  • Page 106: All Cd Disc" Reading Error

    COMPONENT REPAIR GUIDE 4. "ALL CD DISC" READING ERROR - All the CD disc is not operated, but BD and DVD are operated normally. - If the LD current control is abnormal, CD doesn't work. 4-1. Component 1) MD (Traverse Assembly) 2) SQ713, SQ715 4-2.

  • Page 107: Abnormal Servo Operation

    COMPONENT REPAIR GUIDE 5. ABNORMAL SERVO OPERATION - The actuator, spindle and sled operation of pick-up are abnormal. - After changing MD, the motors are abnormal operations. - After changing Motor Drive IC, the motors are abnormal operations. 5-1. Component 1) MD (Traverse Assembly) 2) SIC706 –...

  • Page 108: How To Use The Sa Reset Function

    HOW TO USE THE SA RESET FUNCTION 1. SA RESET PURPOSE 1) If we change system, we should do SA adjustment to get better performance of BD disc. 2) This is the operation to locate collimator lens of pick-up at the exact point. 3) We use this value to playback the BD disc after we store into the flash memory.
  • Page 109 4) Select 6 on debug window to perform SA Reset. 5) Press Return key and Pause key to finish debug mode. 6) Playback once BD disc more than 3 seconds. (At this time, you must use BD ROM single layer and BDR single layer disc.) - Check the disc reverse side of printed label and How to check the BD Single Layer and Double Layer Disc...

  • Page 110: Major Ic Internal Block Diagram And Pin Description

    MAJOR IC INTERNAL BLOCK DIAGRAM AND PIN DESCRIPTION 1. BCM7633 1-1. Front-end Block Diagram PICK-UP & MOTOR RF IN CD,DVD,BD Demodulator, Decoders Wobble Detector A~J IN Servo FORCUS, TRACKING, DACs MOTOR ARM Cortex R4 Laser Processor LASER Control FE Control OSC, MEMORY(DDR,FLASH) :B/END SHARING...
  • Page 111 1-2. Pin Function OFE – Motor Driver Interface Label PU/PD Tol. (V) Loc. Description Function I/O OFE_MDI_FG Spindle Motor Feedback OFE_MDI_DMO – Spindle Motor Output OFE_MDI_STEP1 – Sled Step Motor PDM DAC OFE_MDI_STEP2 – Sled Step Motor PDM DAC OFE_MDI_FOO –...
  • Page 112 OFE–Serial Interface Label PU/PD Tol. (V) Loc. Description Function I/O OFE_SER_SEN2 STI/O SSI Enable Out OFE_SER_SCLK SSI Clock Out OFE_SER_SDATA SSI Data In/out OFE_SER_SBUSY SSI Busy In/SEN4 OFE–General Purpose Label PU/PD Tol. (V) Loc. Description Function I/O OFE_GP_PA0 – OFE_GP_PA0/Gain SW2 OFE_GP_PA1 –...

  • Page 113: Drive Ic (R2A30209Sp) : Spindle Motor And 6Ch Actuator Driver

    2. DRIVE IC (R2A30209SP) : SPINDLE MOTOR AND 6CH ACTUATOR DRIVER 2-1. Block Diagram 4-12...
  • Page 114 2-2. Pin Function PIN NO SYMBOL FUNCTION SPIN Spindle control voltage input SL1IN Slide control voltage input 1 SL2IN Slide control voltage input 2 SPLIM Input terminal for spindle current limit Motor Power Supply 2(for Slide) SL2+ Slide non-inverted output 2 SL2- Slide inverted output 2 SL1+...

  • Page 115: Pick-Up Connector Terminal Pin Assignments (Lth-A12)

    FOCUSING1- Stepping Motor A-Terminal Stepping Motor B-Terminal CMU SHIFTER Stepping Motor A+Terminal Stepping Motor B+Terminal PGND(NC) GND for PDIC(NC) NC(VCC) NC(Terminal for LG pick-up recognation) A output B output C output D output SA output SB output SC output PDIC...

  • Page 116: Block Diagram

    BLOCK DIAGRAM RF / Servo Signal BCM7633 F/E BLOCK / Monitor (Broadcom) OPU :LTH-A12 - RF Amp LD(BD/DVD/CD) ALPC SPINDLE Power SLED Servo Signal Motor Motor Processor - Function TILT DSP/Servo control Active CP Decoder Encoder Feed Mecha. ARM Processor Loading Motor AACS...
  • Page 117 MEMO 4-16...
  • Page 118 RUN DATE : 26-April-2011 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS ASSEMBLY PARTS SECTION AGL73555205 Panel Assembly,Front HOME THEATER HB916(XV-BD212) 5 ADV74045805 Frame Assembly HOME THEATER HB916-DH0(XV-BD21 EBR72869002 PCB Assembly HB906/HB966 AMP TOTAL (5.1CH) EBR73676201 Option Code Assembly 4445008D2553EA0C 2001958000000...
  • Page 119 1043 6600KW3004G Switch,Micro JDS 2160 2C2P 5VDC 0.01A VERTI ALTERNATE 1045 EAD54155311 Cable,FFC AT10005210G01 210MM 1.00MM 5P 1049 EAZ61122502 Traverse Assembly LTH-A12(LG) for LGEIN LTH-A12 1050 MCK66014301 Cover MOLD HIPS 60HR DECK/MECHA BM11 1431 1SZZR-0011A Screw,Customized MACHINE 1433 1SZZR-0075A Screw,Customized - + 1.7MM 10MM SWRCH FZW SIN...
  • Page 120 . ELECTRICAL SECTION AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS PCB Assembly EBR72869002 PCB Assembly HB906/HB966 AMP TOTAL (5.1CH) C601 0CK104CKG6A Capacitor,Ceramic,Chip CS1608X7R104K500NRB 100nF 10% C602 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C630 0CH5220K618 Capacitor,Ceramic,Chip 0402N220M500LT 22pF 5% 50V C0G C631 0CK104BF56A Capacitor,Ceramic,Chip...
  • Page 121 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C724 0CH1333K562 Capacitor,Ceramic,Chip CC0603KRX7R8BB333 33nF 10% 50V C725 0CH1333K562 Capacitor,Ceramic,Chip CC0603KRX7R8BB333 33nF 10% 50V C726 0CK104CKG6A Capacitor,Ceramic,Chip CS1608X7R104K500NRB 100nF 10% C727 EAE36194101 Capacitor,Ceramic,Chip CS2012X7R224K101NR 220nF 10% 1 C728 0CK104DN56A Capacitor,Ceramic,Chip CS2012X7R104K101NRE 100nF 10% C730 0CK331DN56A Capacitor,Ceramic,Chip...
  • Page 122 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C787 0CH1333K562 Capacitor,Ceramic,Chip CC0603KRX7R8BB333 33nF 10% 50V C788 EAE36194101 Capacitor,Ceramic,Chip CS2012X7R224K101NR 220nF 10% 1 C789 0CH1104K566 Capacitor,Ceramic,Chip CC0805KRX7R9BB104 100nF 10% 50 C790 0CH1331K412 Capacitor,Ceramic,Chip CC0603JRX7R9BB331 330pF 5% 50V C791 0CK104DN56A Capacitor,Ceramic,Chip CS2012X7R104K101NRE 100nF 10% C793 0CE477EK610 Capacitor,AL,Radial...
  • Page 123 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS L707 0LCCE00005N Filter,Bead HH-1M2012-221JTA 220OHM 2.0X1. L708 0LCCE00005N Filter,Bead HH-1M2012-221JTA 220OHM 2.0X1. L709 0LCCE00005N Filter,Bead HH-1M2012-221JTA 220OHM 2.0X1. L712 0LCCE00005N Filter,Bead HH-1M2012-221JTA 220OHM 2.0X1. L713 0LCCE00005N Filter,Bead HH-1M2012-221JTA 220OHM 2.0X1. L718 0LCCE00005N Filter,Bead HH-1M2012-221JTA 220OHM 2.0X1.
  • Page 124 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R747 0RH0331C622 Resistor,Chip MCR03EZPJ3R3 3.3OHM 5% 1/10W 1 R750 0RH0331D622 Resistor,Chip MCR10EZPJ3R3 3.3OHM 5% 1/8W 20 R751 0RH0331D622 Resistor,Chip MCR10EZPJ3R3 3.3OHM 5% 1/8W 20 R752 0RH0331D622 Resistor,Chip MCR10EZPJ3R3 3.3OHM 5% 1/8W 20 R753 0RH0331D622 Resistor,Chip...
  • Page 125 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C1C2 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C1C3 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C1C7 0CH1682K562 Capacitor,Ceramic,Chip CC0603KRX7R9BB682 6.8nF 10% 50 C1C8 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C1E3 0CK104CKG6A Capacitor,Ceramic,Chip CS1608X7R104K500NRB 100nF 10% C1E4 0CK104BF56A Capacitor,Ceramic,Chip...
  • Page 126 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C299 0CK225DF56A Capacitor,Ceramic,Chip CS2012X7R225K160NRE 2.2uF 10% C2A1 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C2A2 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C2B1 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C2C1 0CK102BK56A Capacitor,Ceramic,Chip CS1005X7R102K500NR 1nF 10% 50V C2C4 0CK104BF56A Capacitor,Ceramic,Chip...
  • Page 127 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C520 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C523 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C524 0CK225CFK7A Capacitor,Ceramic,Chip CS1608X5R225K160NRB 2.2uF 20% C525 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C526 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C527 0CK104BF56A Capacitor,Ceramic,Chip...
  • Page 128 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C586 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C587 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C588 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C596 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C597 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C598 0CK104BF56A Capacitor,Ceramic,Chip...
  • Page 129 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C828 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C829 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C830 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C832 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C833 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 C834 0CK104BF56A Capacitor,Ceramic,Chip...
  • Page 130 JSR1164-02-JBBN 3P RX 2.54MM A JK250 EAG32089105 Jack,Modular BS-RB10107 8P 1.27MM ANGLE TR JK251 EAG61072104 Jack,RCA RCA-638AS-00-08 15.0MM 2RX3C A JK801 EAG62611202 Connector,HDMI 51U019S-312HFN-E-R-C-LG A 1P 0 JK802 EAG62611202 Connector,HDMI 51U019S-312HFN-E-R-C-LG A 1P 0 JK803 EAG62611202 Connector,HDMI 51U019S-312HFN-E-R-C-LG A 1P 0 L101 0LCCE00005N Filter,Bead HH-1M2012-221JTA 220OHM 2.0X1.
  • Page 131 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS L153 0LCCE00005N Filter,Bead HH-1M2012-221JTA 220OHM 2.0X1. L159 EAM58459601 Filter,Bead CIS21J121 120ohm, 5A, DCR 0.02 L201 0LCCE00004E Inductor,Multilayer,Chip FI-C2012-103KJT 10UH 10% 0V 25 L205 0LCCE00005N Filter,Bead HH-1M2012-221JTA 220OHM 2.0X1. L206 0LC11608C01 Filter,Bead HB-1M1608-102JT 1000OHM 1.6X0. L207 0LCCE00005N Filter,Bead...
  • Page 132 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R130 0RJ0102C678 Resistor,Chip MCR01MZPJ100 10OHM 5% 1/16W 10 R131 0RJ1000C678 Resistor,Chip MCR01MZPJ101 100OHM 5% 1/16W 1 R132 0RJ1000C678 Resistor,Chip MCR01MZPJ101 100OHM 5% 1/16W 1 R133 0RJ0102C678 Resistor,Chip MCR01MZPJ100 10OHM 5% 1/16W 10 R134 0RJ1000C678 Resistor,Chip...
  • Page 133 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R1A2 0RH1002C422 Resistor,Chip MCR03EZPF103 10KOHM 1% 1/10W 1 R1A3 0RH1002C622 Resistor,Chip MCR03EZPJ103 10KOHM 5% 1/10W 1 R1A4 0RH5600C422 Resistor,Chip MCR03EZPFX5600 560OHM 1% 1/10W R1A5 0RH0000C622 Resistor,Chip MCR03EZPJ000 0OHM 5% 1/10W 160 R1A6 0RH1002C422 Resistor,Chip MCR03EZPF103 10KOHM 1% 1/10W 1...
  • Page 134 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R224 0RJ4700C678 Resistor,Chip MCR01MZPJ471 470OHM 5% 1/16W 1 R226 0RJ1003C678 Resistor,Chip MCR01MZPJ104 100KOHM 5% 1/16W R227 0RJ0332C678 Resistor,Chip MCR01MZPJ330 33OHM 5% 1/16W 10 R228 0RJ4700C678 Resistor,Chip MCR01MZPJ471 470OHM 5% 1/16W 1 R229 0RJ4700C678 Resistor,Chip MCR01MZPJ471 470OHM 5% 1/16W 1...
  • Page 135 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R439 0RJ2200C678 Resistor,Chip MCR01MZPJ221 220OHM 5% 1/16W 1 R443 0RJ1002C678 Resistor,Chip MCR01MZPJ103 10KOHM 5% 1/16W 1 R444 0RJ0332C678 Resistor,Chip MCR01MZPJ330 33OHM 5% 1/16W 10 R446 0RJ0000C678 Resistor,Chip MCR01MZPJ000 0OHM 5% 1/16W 100 R447 0RJ0000C678 Resistor,Chip...
  • Page 136 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R567 0RJ0752C478 Resistor,Chip MCR01MZPF75R0 75OHM 1% 1/16W 1 R568 0RJ0752C478 Resistor,Chip MCR01MZPF75R0 75OHM 1% 1/16W 1 R573 0RH1001C422 Resistor,Chip MCR03EZPFX1001 1KOHM 1% 1/10W R574 0RH1001C422 Resistor,Chip MCR03EZPFX1001 1KOHM 1% 1/10W R575 0RJ2400C478 Resistor,Chip MCR01MZPF241 240OHM 1% 1/16W 1 R576...
  • Page 137 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R850 0RJ4702C678 Resistor,Chip MCR01MZPJ473 47KOHM 5% 1/16W 1 R851 0RJ1002C678 Resistor,Chip MCR01MZPJ103 10KOHM 5% 1/16W 1 R852 0RJ2202C678 Resistor,Chip MCR01MZPJ223 22KOHM 5% 1/16W 1 R853 0RJ1002C678 Resistor,Chip MCR01MZPJ103 10KOHM 5% 1/16W 1 R854 0RH1801C622 Resistor,Chip...
  • Page 138 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS SC765 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 SC767 0CK102BK56A Capacitor,Ceramic,Chip CS1005X7R102K500NR 1nF 10% 50V SC773 0CK102BK56A Capacitor,Ceramic,Chip CS1005X7R102K500NR 1nF 10% 50V SC774 0CK104BF56A Capacitor,Ceramic,Chip CS1005X7R104K160NR 100nF 10% 1 SC776 0CK102BK56A Capacitor,Ceramic,Chip CS1005X7R102K500NR 1nF 10% 50V SC777 0CK102BK56A Capacitor,Ceramic,Chip...
  • Page 139 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS SR707 0RJ4701C678 Resistor,Chip MCR01MZPJ472 4.7KOHM 5% 1/16W SR708 0RJ1001C678 Resistor,Chip MCR01MZPJ102 1KOHM 5% 1/16W 10 SR709 0RJ0000C678 Resistor,Chip MCR01MZPJ000 0OHM 5% 1/16W 100 SR710 0RJ0000C678 Resistor,Chip MCR01MZPJ000 0OHM 5% 1/16W 100 SR711 0RJ0682C477 Resistor,Chip MCR03EZPF680 68OHM 1% 1/10W 16...
  • Page 140 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS SR783 0RJ1502C678 Resistor,Chip MCR01MZPJ153 15KOHM 5% 1/16W 1 SR784 0RJ1002C678 Resistor,Chip MCR01MZPJ103 10KOHM 5% 1/16W 1 SR786 0RJ0000C678 Resistor,Chip MCR01MZPJ000 0OHM 5% 1/16W 100 SR789 0RJ1502C678 Resistor,Chip MCR01MZPJ153 15KOHM 5% 1/16W 1 SR790 0RH0000D622 Resistor,Chip...
  • Page 141 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS C941 0CH1104K566 Capacitor,Ceramic,Chip CC0805KRX7R9BB104 100nF 10% 50 C944 624-087D Radial Type Ceramic Capacitor HI-VOL 470P/1KVDC SMPS SAMHWA CM901 EAE61103301 Capacitor,Film,Box MPX-X2 100nF 10% 275V MPX -25T CM901 624-088F Capacitor,Film,DIP PCX2 335M9663 100nF 10% 275V M ALTERNATE CM901 EAE39104801...
  • Page 142 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS Q914 0TRKE80041A TR,Bipolar KTC3265Y NPN 5V 35V 30V 800mA Q915 0TR103009AC TR,Bipolar KRA103S-T1 PNP -40V 10V -50V - Q916 0TR103009AM TR,Bipolar KRC103S NPN 40V 0V 50V 100mA 5 R900 EBC60972001 Resistor,Carbon Film PRC92F34M70J 4.7MOHM 5% 1/2W 1 R901 0RH1003D622...
  • Page 143 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS R959 0RH1002D622 Resistor,Chip MCR10EZPJ103 10KOHM 5% 1/8W 20 R960 0RH0000D622 Resistor,Chip MCR10EZPJ000 0OHM 5% 1/8W 2012 R961 EBC31729501 Resistor,Metal Oxide Film PPRR 197 53100 10OHM 5% 1W 6.5 R962 0RH0000D622 Resistor,Chip MCR10EZPJ000 0OHM 5% 1/8W 2012 R963 0RH4701D622 Resistor,Chip...
  • Page 144 AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS Q302 0TR103009AC TR,Bipolar KRA103S-T1 PNP -40V 10V -50V - Q303 0TRKE80041A TR,Bipolar KTC3265Y NPN 5V 35V 30V 800mA Q306 0TR102009AC TR,Bipolar KRA102S PNP -30V -10V -50V -0. Q307 0TR150509AD TR,Bipolar KTA1505S-Y PNP -5V -35V -30V - Q308 0TR387509AC TR,Bipolar...
  • Page 145 . PACKING ACCESSORY SECTION NSP : Non SVC Parts AL LOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS AFN75473202 Manual Assembly,Owners HOME THEATER HB916-DH0.BDEUPPK YXIN5 MAY65120586 Box,Master BOX SW-A 513 149 370 1 COLOR H AFN75473207 Manual Assembly,Owners HOME THEATER HB916-DH0.BGBRPPK VXIN5 MAY65120558 Box,Master...

Table of Contents
