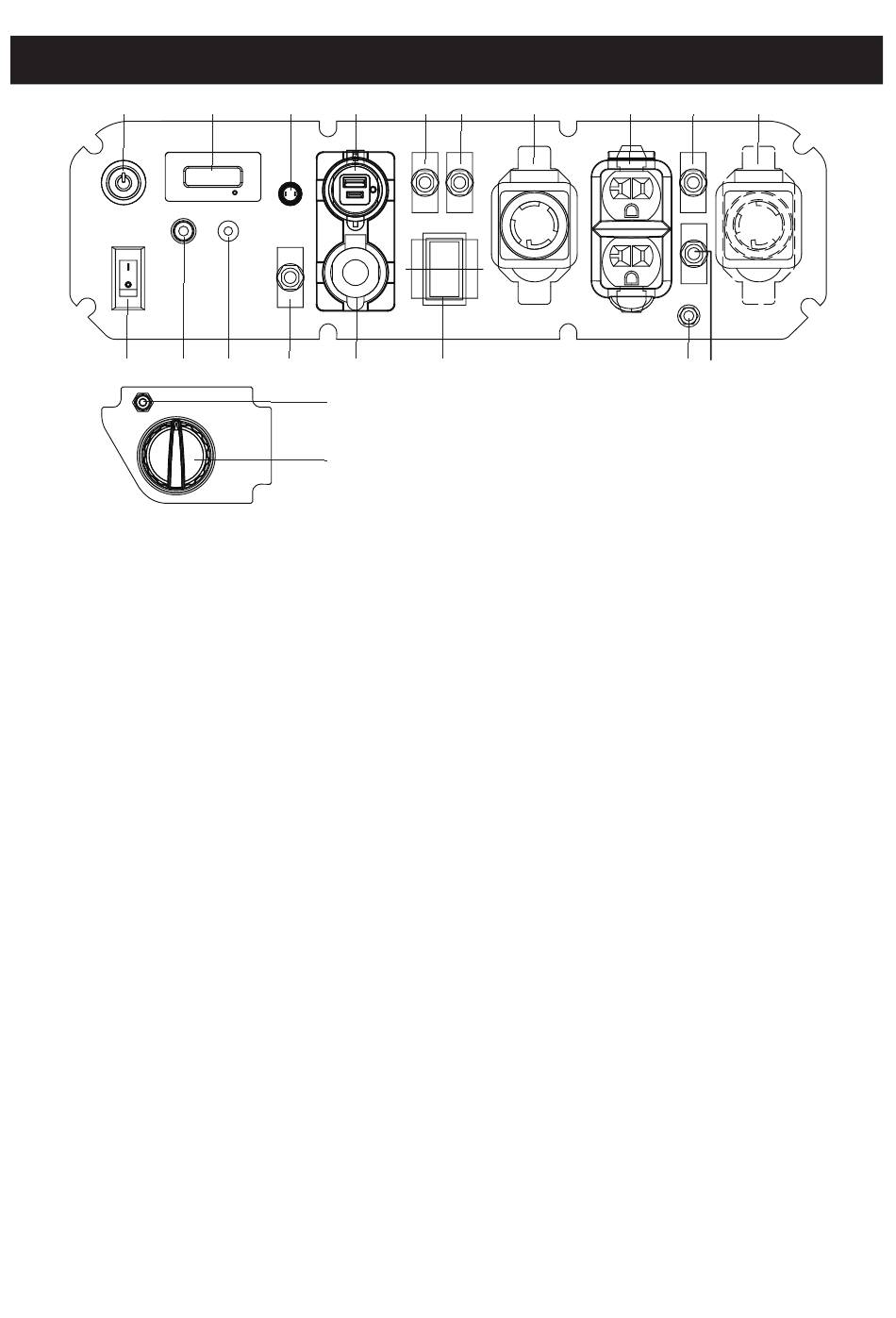

CONTROL PANEL FEATURES

1
15 14
1. Push-Button START/STOP: Push once to automati-
cally start the engine. Push again to stop the engine.
2. Data Center: Push the SELECT button to display
the voltage (V), frequency (Hz) and total run
time(Hour).
3. Remote Set Button: To pair the new remote control
fob.
4. 5V DC USB Outlets: Supply 3.6A USB-A type and
3.0A USB-C type for different applications.
5. Circuit Breaker(AC): Protects the generator against
electrical overloads.
6. 120/240V AC, 30A Twist Lock, Single Phase,60Hz
Outlet (NEMA L14-30R): Supply either 120 Volt or
240 Volt output up to 30 amps.
7. 120V AC, 20A Duplex, Single Phase, 60Hz Outlets
(5-20R): Each outlet is capable of carrying a maxi-
mum of 20 amps on a single outlet or a ombination of
both outlets.
8. 120V AC, 30A Twist Lock outlet, single phase,
60Hz Outlet (NEMA L5-30R): This receptacle can
provide120 volt output up to 30 amps.
9. Grounding Terminal: To ground the generator.
10. Voltage Selector Switch: To select 120 Volt or
240 Volt. Turn generator off before switching voltages.
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.
2 3 4
12V
13 12 11
16
17
5 5 6
10
11. 12V DC, Outlet (Automotive): Provides 12 volt
DC power up to 8.3 amps.
12. Circuit Breaker(DC): Protects the generator
against electrical overloads.
13. Low Oil Indicator: The Light will be illuminated
when the engine oil level is low. Add oil.
14. CO (Carbon Monoxide) WATCH-GUARD
Indicator Light (Red for Shut off and Yellow for
Service): The CO(Carbon Monoxide) WATCH-GUARD
monitors for the accumulation of poisonous CO gas
around the generator produced by engine exhaust
when the generator is running. If the CO
WATCH-GUARD detects increasing levels of CO
gas, it automatically shuts off the engine. See CO
WATCH-GUARD section for more information.
15. Battery Switch: Restore the battery power to the
control module. you must turn the switch to ON
position before start the generator.
16. Propane/LPG inlet: Used to connect
Propane/LPG hose to generator.
17. Fuel Source Switch: Used to select gasoline or
propane/LPG operation.Engine switch is ON when
the switch is on GAS or LPG positions.
Page 12
7 5 8
9 5
