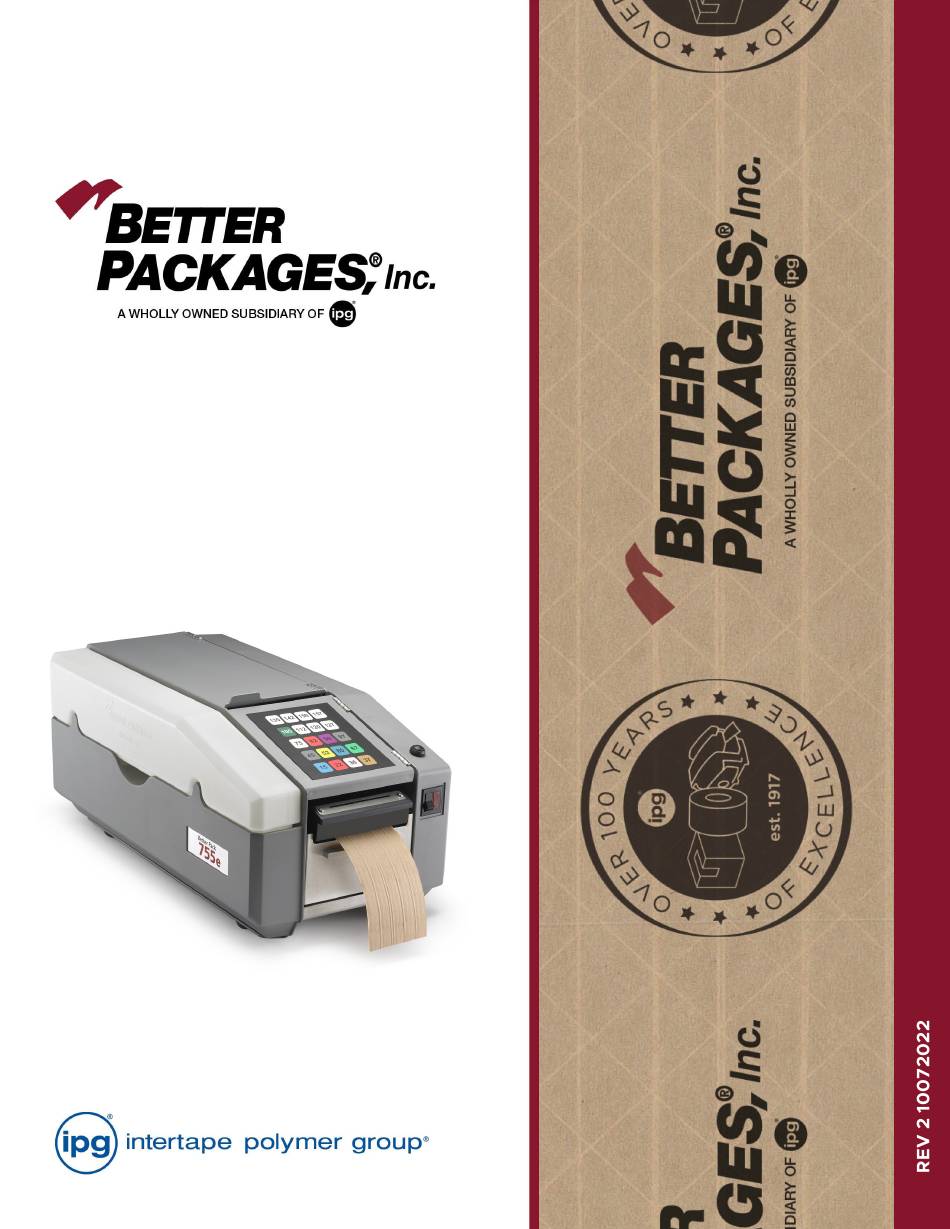

- Page 1 USER MANUAL BP755eM...
- Page 2 This manual is a non-controlled document. Information in this manual does not constitute a warranty of performance. Futhermore Better Packages reserves the right to revise this publication and make changes in its content from time to time. Better Packages ASSUMES NO LIABILITY WHATSOEVER FOR ANY LOSSES OR DAMAGES INCURRED AS A RESULT OF INFORMATION CONTAINED IN THIS MANUAL Proprietary Notice This publication contains information proprietary and confidential to Better Packages.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Precautions ......Page 4 Technical Data ....... Page 5 Unpacking . -
Page 4: Safety Precautions
SAFETY PRECAUTIONS This must be read before servicing equipment. Always unplug the machine before performing any maintenance or repair. Line voltages may be present even with power switch in Off position. This machine is designed for sealing cartons with water activated tape. Any other use will void all warranties and any responsibility or liability of Better Packages, Inc. -
Page 5: Technical Data
TECHNICAL DATA Size: 21” L x 10.5” W x 9.5” H Dispensing Speed: Up to 32” per second Water Bottle Capacity: 2 quarts Tape Width: 1” to 4” Wide Maximum Roll Size: Up to 600 ft. of tape Up to 7.5” diameter roll Tape Lengths Dispensed: 6”... -
Page 6: Unpacking
UNPACKING When unpacking your new Better Pack Tape Dispenser, check to make sure you have the following items before discarding packing material: Operating Manual • Power Cord • Upper Tape Plate • Water Bottle • Water Tank and 2 Brushes •... -
Page 7: Preparing The Machine For Operation
PREPARING THE MACHINE FOR OPERATION ADJUSTING TAPE ROLL GUIDES Adjust tape roll guides located inside the rear of the machine to accommodate the width for your tape. The guides should be adjusted to minimize roll movement from side to side, but should not be tight against the sides of the roll, which could create excessive drag. - Page 8 3. LOADING TAPE (wound adhesive side in). Take the roll and unwind about 12". Place the roll in the machine so that the strip unwinds off the rear of the roll as the leading end is brought up toward the front of the machine with the adhesive side down.
- Page 9 5. PREPARING THE WATER BOTTLE Fill bottle with water and place in bottle holder so that the spout of the bottle is in the tank. Water Bottle ELECTRICAL CONNECTION Attach power cord to the receptacle in the rear of the machine. Plug machine into a standard power outlet (115Vac - 60 Hz current only).
- Page 10 7. SETTING WATER LEVEL The water level is factory preset to provide proper moistening of the tape adhesive for most types of tape and should not need to be adjusted unless the tape is not sticking to the box properly. If more or less water is needed for optimum performance of your tape, then the water level may need to be adjusted.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS Dispense Keys 20 Lengths Random Button Power Switch After following the machine preparation instructions, including loading the roll of tape, you are now ready to operate the machine. To dispense tape, just quickly touch the "key" for the length of tape you wish to produce. Only light momentary pressure is needed on the dispense "button". -
Page 12: Recommended Maintenance
Recommended Maintenance To ensure ongoing performance of your 755eM tape dispensing machine, regular maintenance is important. Maintenance is quite simple and just takes minutes. Without regular maintenance, the efficiency of your equipment will be undermined. The frequency of maintenance depends on many factors, including the volume of machine use. - Page 13 General Machine Cleaning The feed wheel pushes tape through the machine. Obstructions such as dirt or dried adhesive can divert the tape and cause it to jam. Periodical cleaning of the tape path will mitigate tape jams. Procedure 1. Remove the upper tape plate that sets on the tape next to the feed wheel. Pull tape off from the lower tape plate if it hasn’t already been removed.
-
Page 14: Warranty Statement
Better Packages, Inc. Limited Warranty Better Packages warrants each new machine and accessory to be free from defects in materials and workmanship under normal and proper use conditions. The following warranty periods from date of purchase apply: Model Parts Labor Better Pack 755e Series 2 Years 6 Months... - Page 15 Warranty Service Better Packages will replace or repair (at the company’s discretion) any defective parts within the warranty period, on a no-charge basis. The Authorized Distributor/Service Center will furnish, without charge, necessary labor to service the machine. For service under this warranty, call or write your nearest Better Packages Distributor/Service Center or Better Packages, Inc. Ansonia, CT at 800-237-9151 (US only) or (203) 926-3700.
