IPG Better Packages 755E Series User Manual

Electric water-activated tape dispenser
Hide thumbs Also See for Better Packages 755E Series:

Advertisement

Quick Links

Download this manual
USER MANUAL
755E SERIES

Advertisement

loading
Need help?

Need help?

Do you have a question about the Better Packages 755E Series and is the answer not in the manual?

Questions and answers

Related Manuals for IPG Better Packages 755E Series

Summary of Contents for IPG Better Packages 755E Series

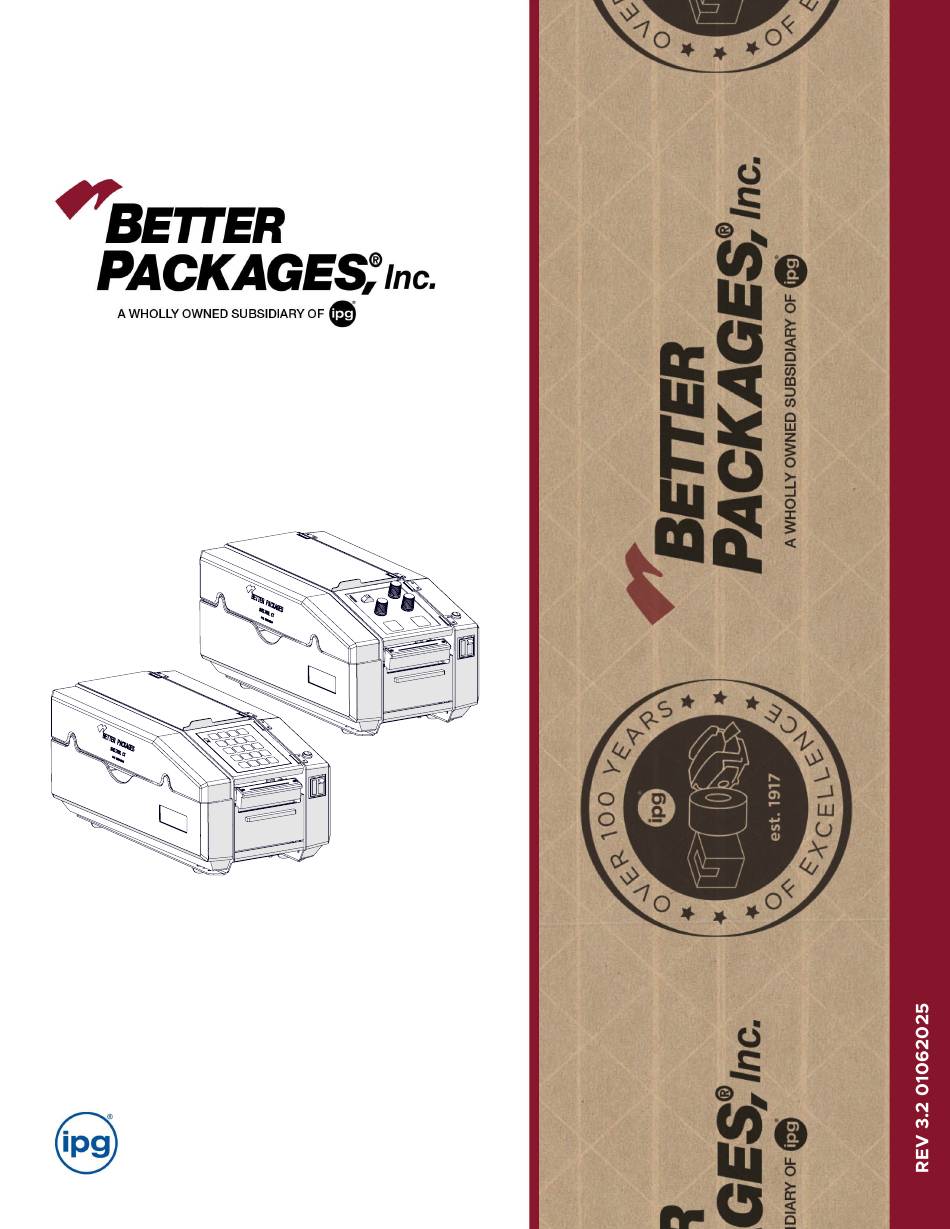

  • Page 1 USER MANUAL 755E SERIES...
  • Page 2 User Notes For all IPG product manuals please visit www.itape.com/systems-manual or use this QR code Better Packages 755e Rev 3.2...
  • Page 3 Table of Contents Technical Assistance Replacement Parts Warranty Information Warranty Registration General Information Description of the 755e Definitions Important Safeguards Label Placement Label Descriptions Machine Nameplate Important Safeguards Explanation of Signal Word Consequences Operator Skill Level Descriptions Specifications 755e Dimensions 755e Components Operating Conditions Tape Requirements...
  • Page 4 If contact with the authorized distributor is not possible, IPG Machinery Support is available. Should the need to contact IPG Machinery Support arise, please have the equipment model and serial number available prior to contact. This information can be found on the nameplate of the Dispenser.
  • Page 5 Warranty Information Better Packages, Inc. Limited Warranty Better Packages warrants each new machine and accessory to be free from defects in materials and workmanship under normal and proper use conditions. The following warranty periods from date of purchase apply: Model Parts Labor Better Pack 755e Series...
  • Page 6 Warranty Information Warranty Service Better Packages will replace or repair (at the company’s discretion) any defective parts within the warranty period, on a no- charge basis. The Authorized Distributor/Service Center will furnish, without charge, necessary labor to service the machine. For service under this warranty, call or write your nearest Better Packages Distributor/Service Center or Better Packages, Inc.
  • Page 7 Definitions Common terms that will be used throughout this manual. WAT – IPG Brand Water Activated Tape User/Operator – The individual who has been trained on the daily use of the Machine System Maintenance Champion – The individual(s) who work for the end user of the Machine System who are responsible for conducting general and preventative maintenance Rev 3.2 755e...
  • Page 8 Important Safeguards There are a number of safety labels used on the 755e. These labels are placed at different locations on the dispenser to warn operators and service personnel of possible dangers. Please read the labels on the machine and the following safety precautions before using the machine.
  • Page 9 Label Placement DESCRIPTION ® Better Pack INITIAL RELEASE Model BP755eS 115VAC 60 Hz 4.0 Amps Warning Do Not Use Spray LubricaPage 1 3/28/07 1:13:18 PM SER. No. WARNING DUTY CYCLE: 20% 0N-80% OFF T 4 A CAUTION: DISCONNECT POWER SOURCE BEFORE SERVICING UNIT DO NOT USE SPRAY LUBRICANTS, Better Packages, Inc.
  • Page 10 Label Descriptions The label shown is affixed to the heaters. It warns operators and service personnel to keep their hands clear of hot elements. Allow time to cool, minimum of 30 minutes, prior to servicing. DESCRIPTION Figure 3: Hot Decal Reorder number: 9004150 INITIAL RELEASE...
  • Page 11 Machine Nameplate Model Number ® Better Pack Model BP755eS Electrical Requirements 115VAC 60 Hz 4.0 Amps SER. No. Serial Number DUTY CYCLE: 20% 0N-80% OFF Fuse Information T 4 A CAUTION: DISCONNECT POWER SOURCE BEFORE SERVICING UNIT Manufacturer Details Better Packages, Inc. Ansonia, CT, U.S.A.
  • Page 12 Important Safeguards Explanation of Signal Word Consequences WARNING: INDICATES A POTENTIALLY HAZARDOUS SITUATION, WHICH IF NOT AVOIDED COULD RESULT IN DEATH OR SERIOUS INJURY OR PROPERTY DAMAGE CAUTION: INDICATES A POTENTIALLY HAZARDOUS SITUATION, WHICH IF NOT AVOIDED COULD RESULT IN MINOR OR MODERATE INJURY OR PROPERTY DAMAGE WARNING To reduce the risk associated with mechanical, pneumatic, and electrical hazards: ◦...
  • Page 13 Skill “C” Factory Trained Technician A Skill “C” technician is trained by IPG and may perform extraordinary maintenance. This includes electrical components. Operators skill level required to perform the following tasks on the Tape Head...
  • Page 14 Specifications 755e Dimensions Dispenser Weight (without tape roll): 33.5 lbs (15.2kg) Shipping Weight: 42 lbs (19kg) Maximum tape roll diameter: 7.5in (190mm) Maximum tape roll length: Up to 600ft (183m) 10.5” 362mm 21” 533mm 9.5” 247mm Figure 9: 755e Dimensions Better Packages 755e Rev 3.2...
  • Page 15 Specifications 755e Components Keypad and Tape Basket Lids shown in open position. Tape Guide Adjustment Water Bottle Feed Wheel Keypad Cutting Blade Main Power Switch Upper Tape Plate Heater Water Tank Figure 10: 755e Components Rev 3.2 755e...
  • Page 16 This dispenser is not designed to operate in a refrigerated or freezer environment. Tape Requirements Use only IPG Brand Water Activated Tape. Maximum tape roll length of 600 ft. long or 7.5” diameter roll of tape (182.5 meter long or 190mm diameter roll).
  • Page 17 Set-up Procedure Unpacking After opening all the top flaps on the carton, you will find instructions for properly removing the dispenser and its included materials. It is recommended to keep all packing materials in case you need to ship the dispenser later or wish to pack and store it.
  • Page 18 Set-up Procedure Loading the Tape Gum Side In The loading procedure is for all 755e models Open the Keypad Lid Open the Tape Basket Lid Using scissors cut the end of the tape so it is a square clean cut Adjust the Roll Guides if necessary Place the roll in the tape basket so that: ◦...
  • Page 19 Set-up Procedure Checking the Upper Tape Plate Verify the upper tape plate is completely installed and in the proper position. If the tape plate is not in proper position remove it by grasping the bent rear portion and sliding it all the way to rear of the dispenser, then lift the rear end up just over the tape guide adjustment screw.
  • Page 20 Set-up Procedure Installing the Brushes and Water Tank The 755e dispenser takes two (2) independent brushes placed in the water tank. To install the brushes: Orient the brushes in the proper direction with the shortest bristles closest to the Dispenser. Place the brushes in the opening allowing them to rest against the molded sections of the water tank.
  • Page 21 Set-up Procedure Water Tank Install CAUTION: UNDER NORMAL OPERATIONAL CONDITIONS THE BOTTOM OF THE HEATER WILL BE HOT. HANDLE THE HEATER ONLY BY USING THE FRONT GRIP LIP OR ALLOW TIME FOR THEM TO FULLY COOL BEFORE HANDLING. Open the keypad cover to expose the heater. Raise the heater, be sure to only grip the heater from the front lip.
  • Page 22 Set-up Procedure Water Bottle Install The 755e series machines all use the same 64oz (1.8 liter) water bottle. For best results fill it with room temperature water. There is no need for any special water, such as distilled water. In the event your facility has hard water or water with a higher than normal mineral count you may want to consider using filtered water.
  • Page 23 Set-up Procedure Connecting Power and Utilities The 755e series machines come equipped with a three (3) pin power socket that is capable of accepting a variety of power cords for use around the world. The Dispenser is also equipped with a fuse holder. There are four models of the 755 that are manufactured for world wide use.
  • Page 24 Set-up Procedure Setting and Adjusting Temperature CAUTION: UNDER NORMAL OPERATIONAL CONDITIONS THE BOTTOM OF THE HEATER WILL BE HOT. HANDLE THE HEATER ONLY USING THE HEATER GRIP ON THE FRONT LIP OF THE HEATER OR ALLOW TIME FOR THEM TO FULLY COOL BEFORE HANDLING, AT LEAST 30 MINUTES.
  • Page 25 Operation General Operating Procedures Verify the Dispenser is plugged into a properly grounded outlet. If the power cord is not connected to the Dispenser verify the main power switch is in the off position before connecting the cord to the rear of the Dispenser prior to plugging it into an outlet.
  • Page 26 Operation Selecting the Length of Tape 755eSA and 755eMA The 755eSA and 755eMA have a mode selector switch for Manual, Automatic, and 1-2-2 for easy “H” patterns. The MAN / AUTO / 1-2-2 DELAY Delay dial is used in automatic and 1-2-2 modes it controls the delay after a piece of tape has been removed before the 755 dispenses the next strip.
  • Page 27 Reinforced Paper Tape material, typically fiberglass IPG offers a variety of different grades of Paper Tape or Kraft Paper Tape. In most circumstances this non-reinforced tape is good for smaller and lighter cartons. IPG offers a variety of different grades of Reinforced Tape or Reinforced Paper Tape. In most circumstances this reinforced tape is good for larger boxes and those with increased weight.
  • Page 28 Applying Tape to a Carton Sealing the Carton Based off of use by many operators the best way to apply the tape to the carton after it has been dispensed is: Grip the tape from the sides. Place the wet tape on the end of one of the flaps to be sealed so that: ◦...
  • Page 29 Preventative Maintenance Suggested Preventative Maintenance Schedule WARNING: TURN OFF ELECTRICAL POWER SUPPLY BEFORE PERFORMING MAINTENANCE. THE CUT-OFF BLADE IS EXTREMELY SHARP USE CUT RESISTANT GLOVES WHEN SERVICING OR REPLACING THE BLADE. THE HEATER WILL BE HOT. ALLOW TIME TO COOL PRIOR TO SERVICING. Weekly •...
  • Page 30 If you are experiencing trouble with your Dispenser or it is functioning in a way that is not consistent with this manual please contact IPG Machinery Support at +1 813-345-3070 between the hours of 8am and 7pm Eastern Standard Time or via email at machsupp@itape.com.
  • Page 31 User Notes Rev 3.2 755e...

This manual is also suitable for:

Better packages 555e seriesBetter packages 500 seriesBetter packages 333 seriesBp755esBp755esaBp755em ... Show all
