Summary of Contents for linarie MARSEILLE RAHP6X

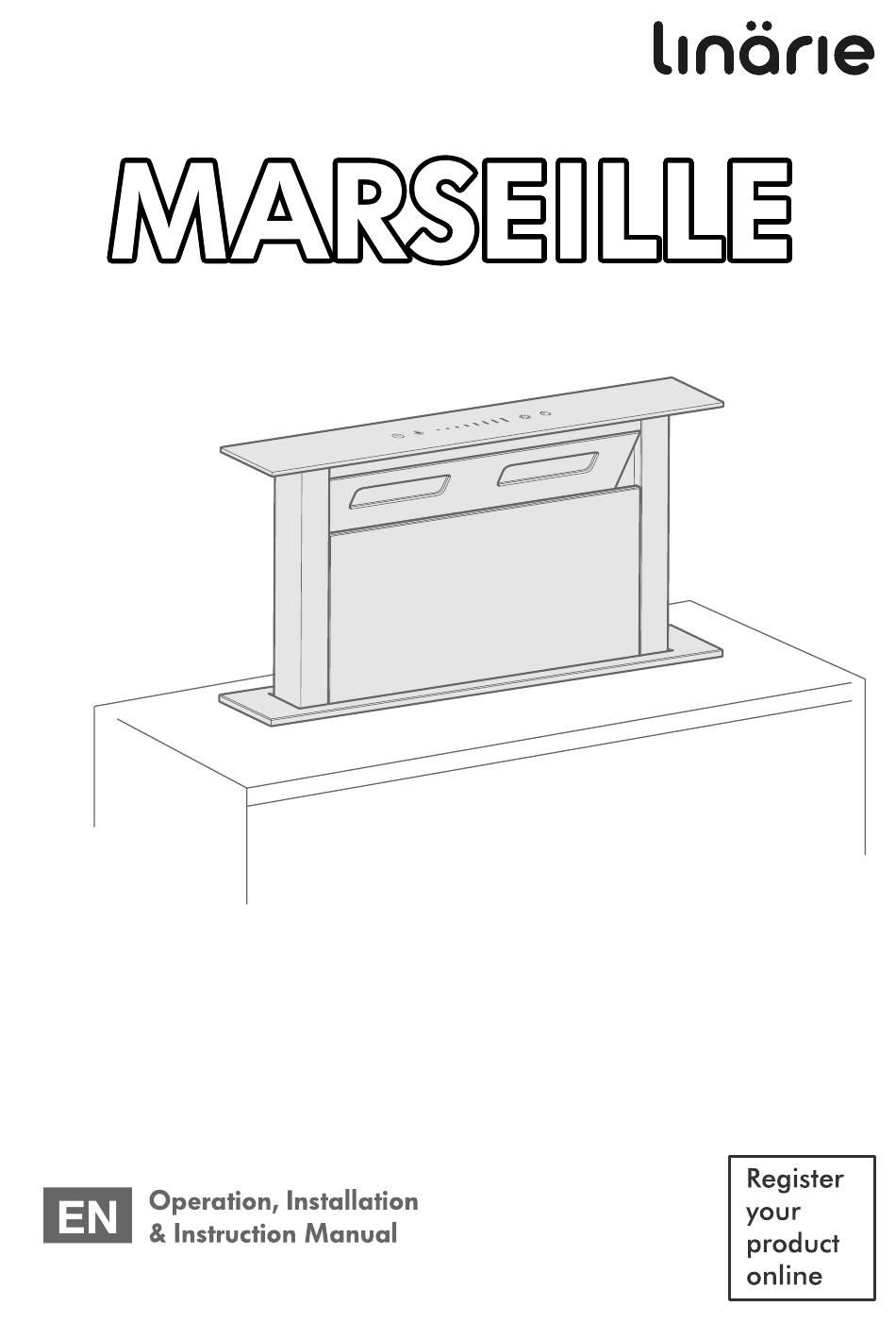

- Page 1 Downdraft rangehood RAHP6X www.linarie.com.au...
-
Page 2: Table Of Contents
The electricity connection Serial Number ......................must be made by a qualified specialist. Installation must Register your product www.linarie.com.au comply with the valid standards, regulations and laws. All safety and warning information and the operating and installation instructions must be complied with. -
Page 3: General Information
1. GENERAL INFORMATION 1.1 Appliance Information A damaged appliance can be dangerous. If you find the Faulty components must only be replaced by genuine Linärie appliance is damaged or marked, you must report it within spare parts. The manufacturer can only guarantee the safety 7 days if you wish to claim for damage/marks under the of the appliance when Linärie replacement parts are used. -
Page 4: Exhaust Air Operation
Ensure that all specified vents, openings and airspaces Tampering with electrical connections or components are not blocked. and mechanical parts is highly dangerous to the user All ducting, pipework and fittings must be of and can cause operational faults. Only open the non-flammable material. -
Page 5: Disassembling And Disposal
Linärie cannot accept liability. Work on electrical components must only be conducted by Please check www.linarie.com.au for more information. trained electrical personnel. 3. DESCRIPTION OF THE FUNCTIONS Non-return flap... -
Page 6: Technical Data Sheet
4. TECHNICAL DATA SHEET Parameter Value 220-240V ~ Power Supply Voltage Power Supply Voltage 50Hz Dimensions Dimensions 60 x 11.5 x 105.3 (width, depth x height) (width, depth x height) Carton Size Carton Size 68.5 x 52 x 84.5 (width, depth x height) (width, depth x height) Weight (incl. - Page 7 cont. installation Use 2pcs of ST4x8mm screw and 2pcs ST4x14mm Insert the hood in the cabinet as shown. to fix the hood. Fix the pipe on the outlet using 4pcs of ST4x14mm Attach attach exhaust pipe. unto the PCB box. Insert the cavity to the hood using 8pcs of M4x10mm screw.
-
Page 8: Installation {Air Extraction
cont. installation 5.3 Installation [Air Extraction] CAUTION CAUTION Risk of injury! For safety reasons, only use the size of fastening or Before installation, it is important to read the information given mounting screw recommended in these operating instructions. on the following pages as well as the "Appliance Dimensions" Non-compliance with these instructions can lead to injuries and and the "Warning and Safety instructions"... -
Page 9: Operation
6.2 Energy Saving tips This rangehood operates very efficiently and economically. When a large volume of cooking vapors is being The following will help you to save even more energy when produced, switch to a high-power level in good time. using it: This is more efficient than operating the rangehood Ensure that there is sufficient ventilation in the kitchen... -
Page 10: Cleaning And Maintenance
8. CLEANING & MAINTENANCE WARN ING GENERAL INFORMATION Observe all safety and warning information during operation Allow the appliance to cool down completely before cleaning and (see the “General Safety Instructions” section). maintenance. Before maintenance or cleaning, the rangehood should always The surfaces and controls are susceptible to scratches and be disconnected from the power supply. -
Page 11: Activated Carbon Filter
Replace the main filters. Replacement charcoal filters can be obtained from Reconnect the power supply. www.linarie.com.au Disposing of the activated charcoal filter The used activated charcoal filter can be disposed with the normal household waste. -
Page 12: Environmental Tips
When contacting Linärie, please quote the model and invalidated, and Linärie cannot accept liability. serial number of your appliance. These can be found on the data plate, after removing the grease filter. Please check www.linarie.com.au for more information. - Page 13 LIKE TO KNOW MORE? For further information on all Linärie appliances, or to obtain detailed dimension and installation information, phone or email our Customer Care team or visit our website: Australia hello@linarie.com.au www.linarie.com.au Follow Us @Linarie.Appliances © Linärie www.linarie.com.au...
- Page 14 Osass Australia Pty Ltd. ACN 005 635 398 ABN 96 005 635 398 Linärie Contact hello@linarie.com.au www.linarie.com.au The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised. These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted.
