Summary of Contents for Cerwin-Vega XED693

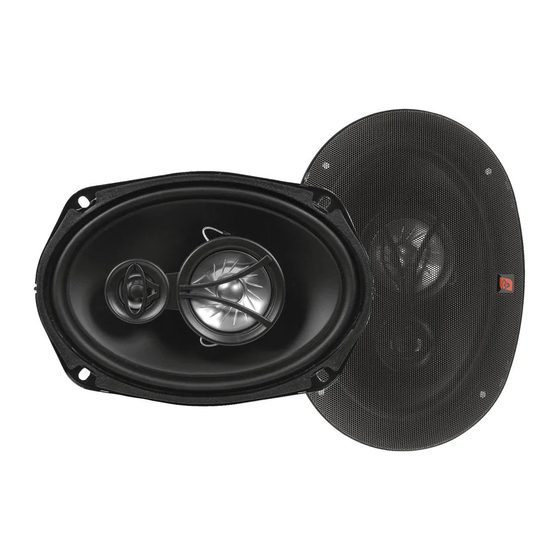

- Page 1 User Manual of Product 1: CERWIN Vega XED693 6" x 9" 350W Max / 45W RMS 3-Way Coaxial Speaker w/ 0.75” Balanced Metal Dome CV Tweeter Set …...
- Page 2 XED SPEAKERS XED693/XED650C/XED62 XED52/XED42/XED525C USERS MANUAL...
- Page 3 Black Coat Stamped Steel Basket Balanced Piezo Metal Dome .75” CV Tweeter the warranty procedure to ensure that your claim will be processed in a timely manner. All Signature Cerwin-Vega Sound! Black Coat Stamped Steel Basket Hardware warranty returns must be accompanied with a proof of purchase (a copy of the original sales...
-
Page 4: Specifications
Specifications NOTE: DIMENSIONS ARE IN INCHES AND MILIMETERS Tweeter Installation 3.4”(87.5mm) When flush or surface mounting tweeters, make sure the desired location can accommodate the hole sizes 6.5”(167mm) and depth required. The tweeter can also be surface mounted atop the dash, door, or rear deck. Mount cup using the provided hardware, flush mount illustration shown below. - Page 5 Specifications NOTE: DIMENSIONS ARE IN INCHES AND MILIMETERS Installing the Speakers XED42 1.86in.(47.2mm) Your new Cerwin Vega Mobile series speakers were designed with the flexibility to be installed in multiple locations. However, to ensure the best performance possible, it is important to isolate the front sound waves of the speaker from its rear sound waves.
