Summary of Contents for OBLO Living DOC 400

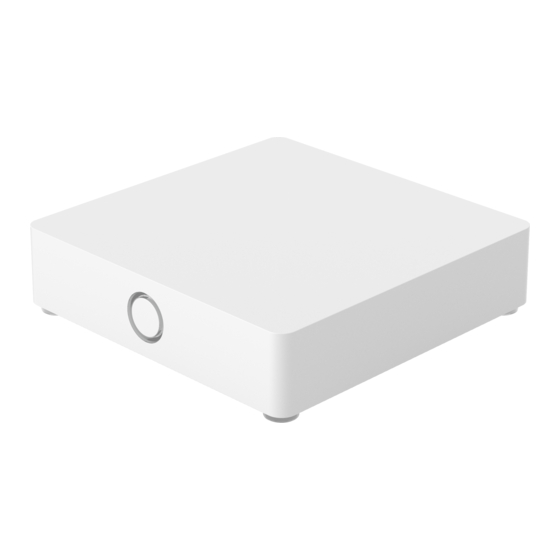

- Page 1 USER MANUAL Home Automation Gateway DOC 400...
-
Page 3: Table Of Contents
DEVICE DESCRIPTION ........... 5 INSTALLATION OF THE OBLO LIVING GATEWAY ......6 WIFI CONFIGURATION OF THE GATEWAY ....................7... -
Page 4: Important Safety Information
Limited Power Source according to IEC 60950-1. 1. IMPORTANT SAFETY INFORMATION Before using OBLO Living Home Automation Gateway, please read the following information to avoid any potential dangers: Read the instructions carefully and follow the precautions in this manual. All mains connec-... -
Page 5: Device Description
By supporting the most popular wireless communication protocols today (Zigbee, Z-Wave, IP), OBLO Living gateway communicates with connected devices and enables users to monitor and control their home. FRONT... -
Page 6: Installation Of The Oblo Living Gateway
3. INSTALLATION OF THE OBLO LIVING GATEWAY In order to install your OBLO Living gateway, please follow next steps: Plug in the Home Automation Gateway to the AC power supply Connect the Gateway to the home network router by using Ethernet ( Illustration 2) or WiFi... -
Page 7: Wifi Configuration Of The Gateway
3.1 WIFI CONFIGURATION OF THE GATEWAY In case you would like to connect the gateway device to the home network router by using WiFi connection, please follow next steps: After powering up, the gateway enters AP (Access Point) mode if Ethernet cable is not con- nected. -
Page 8: Configuring The Oblo Living Home Automation System
OBLO Living cloud Illustration 6: Our System OBLO Living client application is intuitive and easy to use. Its comfortable graphical user interface will smoothly guide users through the process of configuration of their space. The app can be used both in-home or remotely – it is smart enough to connect to the gateway directly if possible, to ensure the best user experience. -
Page 9: Install Oblo Living Client Application
4.1 INSTALL OBLO LIVING CLIENT APPLICATION In order to start configuring OBLO Living home automation system, the user needs to install OBLO Living client application. By using client application, users can control their household devices and manage their accounts as well as the list of their gateways and configuration options. -
Page 10: Create User Account By Using Web Application
Illustration 9 Illustration 10 Once the account has been successfully registered, a verification link will be sent to the email address specified in the account name (make sure to check Spam folder). Otherwise, a failure notice will be displayed Confirm the activation link sent in the email message 4.2.2 Create user account by using web application Please follow next steps in order to create new account: Visit https://cloud.oblo.rs... -
Page 11: Add The Gateway To The User Account
Please follow next steps in order to add the gateway to the user account: Make sure that your smart phone/tablet and the gateway are active within the same network Open the OBLO Living application and log into the user account Select Home Setup option from the main menu (Illustration 13) On the Home Setup screen tap the “Add gateway”... -
Page 12: Home Setup
4.4 HOME SETUP The user can setup its smart home by using OBLO Living client application. To setup the home, please follow next steps: Make sure that your smart phone/tablet and the gateway are active within the same network... -
Page 13: Device Management
b. To delete the room, select the floor at which the room is located, tap and hold the room name until the delete option appears NOTE: Devices associated with the deleted room will be unsorted. c. To change the room name, briefly tap on the existing room name (Illustration 17) Illustration 16 Illustration 17 Once you are satisfied with the home configuration, tap the button... -
Page 14: Remove A Device
After having read the instructions, tap the “Find devices” button in the upper left corner. This action will open a new window for integrating the device. The remaining time for device inte- gration will be displayed (see Illustration 19) Add the device based on manufacturer’ s instructions, since the process may vary from device to device Once the device is added to network, it will be displayed among the list of devices NOTE: In order to add a new Z-Wave device to the network, make sure that the device is removed... -
Page 15: Update Device Name And Location
5.1.3 Update device name and location To update device name and location, please follow next steps: Tap on the device name and hold it until the “Edit” option appears Tap on the “Edit” button In the new dialog, change the device name and choose the device location from the drop down list Tap the button “Done”... -
Page 16: Devices By Type
6.2 DEVICES BY TYPE Please follow next steps in order to control or monitor devices by type: Select Device by type option in the application’ s main menu To filter devices by type, choose a desired type from the menu on the left side In a quick control dialog on the right side (Illustration 23), the user is able to control actuators (e.g. -
Page 17: Scene Management
7. SCENE MANAGEMENT One of the main features of OBLO Living client application is scene. Scene is specific event or set of actions created by end user. Scenes can be triggered by one or more events/devices, which are called triggers. The scene can also be set to send an email notification to the user’ s email address or push notification to the user’... - Page 18 case the event should repeat, choose the Weekly option button and the days when the scene should occur c. Tap the “OK” button to add the trigger Illustration 26 Illustration 27 Repeat steps 3 to 5 and use logical operators AND/OR (upper right corner) to combine multiple triggers (e.g.
- Page 19 c. Send email notification d. Send push notification e. Set the status Illustration 29 Illustration 30 In addition to definition of an action set, you will be able to set delay time between actions sets execution. Delay time can be added by pressing “Delay” button in the upper left corner (Illustration 31).
-
Page 20: Run The Scene
Illustration 33 Illustration 34 Illustration 35 Once you have set action sets/delay time you will be able to test defined scene: a. In case you are using tablet, tap the button “Test” in the upper right corner to test the scene b. -
Page 21: Delete The Scene
7.4 DELETE THE SCENE Please follow next steps in order to delete the scene: Select Scenes option in the application’ s main menu to open the list of available scenes Choose the scene you want to delete and tap the button From the drop down menu select option Delete Confirm deletion 7.5 DISABLE THE SCENE... -
Page 22: Buttons/Functions
W x H x D: 108 x 26 x 108 mm 13. DECLARATIONS OF CONFORMITY Hereby, OBLO Living LLC declares that HA Gateway device is in compliance with the essential requirements and other relevant provisions of following European directives: •... - Page 24 MANUFACTURER’S INFORMATION Dear customer Should you require any technical support and not be able to get it at your specialist dealer’ s , please contact our technical support team. OBLO Living Narodnog Fronta 23A 21000 Novi Sad Serbia www.obloliving.com sales@obloliving.com...
