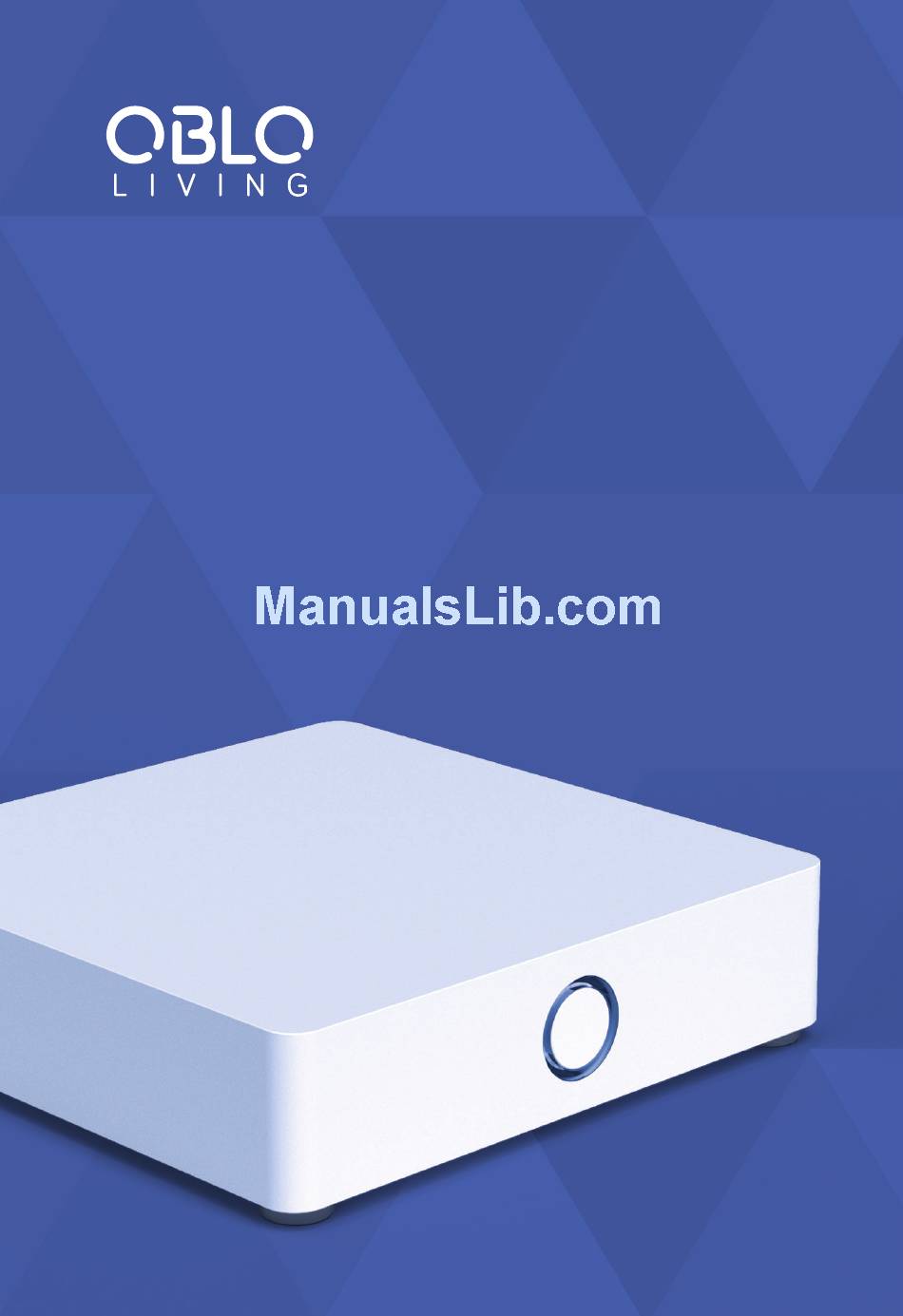

- Page 1 USER MANUAL Home Automation Gateway DOC400...
- Page 3 Congratulations and thank you for purchasing the DOC400 OBLO Living Product Home Automation Gateway. The following product description will provide you with useful infor- mation about its use. ATTENTION! Note regarding the integration of a new gateway: In order to add the gateway to your account, please use the password and the...
-
Page 4: Table Of Contents
CONTENTS OBLO LIVING HOME AUTOMATION GATEWAY............... TECHNICAL INFORMATION....................CONFIGURING THE OBLO LIVING HOME SYSTEM............CONNECTING THE GATEWAYS TO THE HOME NETWORK.........7 REGISTERING THE USER’S ACCOUNT..................ADDING THE GATEWAY TO THE USER ACCOUNT..............HOME INSTALLATION......................... MANAGING Z-WAVE COMPONENTS..................3.5.1 Adding Z-Wave device....................10 3.5.2... -
Page 5: Oblo Living Home Automation Gateway
It can control large number of the home automation devices in the user’ s home, such as alarms, outlets, thermostats and more. OBLO Living gateway is capable to control devices that use one of the following communications protocols: Z-Wave, ZigBee and IP. -
Page 6: Technical Information
2. TECHNICAL INFORMATION Specifications: • RJ45 Ethernet port • FRONT and BACK button • RGB LED for user interaction Power Supply: • Adapter (AC/DC): input ~100-240 V, 0.3 A, 50/60 Hz output DC 5 V, 2 A • Micro USB port Wireless: •... -
Page 7: Configuring The Oblo Living Home System
The SSID for the gateway has been assigned an identifier that will be displayed using the identifier “SSID:DOC400...”. Create a connection to the access point and enter „http://192.168.1.1” as the URL in the browser for the smart phone or tablet. The page that opens allow an SSID and serial number for the home network’... -
Page 8: Registering The User's Account
OBLO Living Home Automation application ask for a valid email address to be entered as the user name. This email address is used to send a link to activate the account. Additional legal information will be provided after tapping on the General Terms and Conditions and Data Protection Provisions link. -
Page 9: Home Installation
As soon as the required information has been entered, tap the button to continue. When gateway information validity is verified and if gateway is not assigned to another user account, then will be added to user account. The gateway must be connected with the same local network used with mobile phone with OBLO Living client application. -
Page 10: Managing Z-Wave Components
Z-Wave networks. To do so, follow the instructions in the device’ s manual. When another controller is included in OBLO Living Gateway it will initiate network information replication from the OBLO Living Gateway to the included controller. -
Page 11: Closing Z-Wave Network
3.5.3 Closing Z-Wave network The Z-Wave network is closed by pressing FRONT button 2 times while network is open or by using the client application. When the network is closed, the LED will turn off. 3.5.4 Z-Wave learn mode To enable Home Automation Gateway to receive information from another controller, start learn mode. -
Page 12: Home Automation Gateway Button Assignments
3.6 RESETTING THE GATEWAY, NETWORK AND FACTORY SETTINGS Reset user preferences This function permit to reset all user configuration settings (all user data, settings and devices will be erased). Short press on FRONT button six times reset user preference. During reset LED blink red two times per second. -
Page 13: Client Application Manager
4. CLIENT APPLICATION MANAGER 4.1 ACCOUNT MANAGEMENT 4.1.1 Creating a new account Illustration 1 Illustration 2 Tap the Create New Account button on the login dialog (see Illustration 1). Enter a valid email address and the password on the login dialog. An activation link will be sent to the specified email address (see Illustration. -
Page 14: Updating Account Information
folder). Otherwise, a failure notice will be displayed. Confirm the activation link sent in the email message. 4.1.2 Updating account information Illustration 5 Illustration 6 To update the user account information, tap the user icon in the upper right corner of the main menu and select the Account Settings option (see Illustration 5). -
Page 15: Home Configuration
4.2 HOME CONFIGURATION 4.2.1 Adding a gateway to the account Illustration 9 Illustration 10 Illustration 11 User can register more than one gateway on its account Follow these steps to add a gateway Log into the account that should register the new gateway. Select the Home Installation menu option to open a list of the gateways associated with the account (see Illustration 9). -
Page 16: Removing A Gateway From An Account
way configuration will require a smart phone or tablet that is active in the same network as the gateway. 4.2.2 Removing a gateway from an account Illustration 12 Illustration 13 Follow these steps to remove a gateway properly. Start the mobile app. Select the Home Installation menu option to open a list of the gateways associated with the account (see Illustration 12). -
Page 17: Device Management
rooms will be moved into the unknown devices group. A floor name can be changed by tap- ping on the floor (see Illustration 14). To continue configuring rooms, tap the button. The rooms can be configured in the third step. To add a new room, choose the corresponding floor from the menu on the menu bar, tap the + option and enter the room name. -
Page 18: Adding A New Device
Illustration 18 Illustration 19 4.2.5 Adding a new device Please note, that the distance between the gateway and the clients shall not be more than 0.5 meters during integrating in/excluding from the network. To add a device, tap the Find Devices button. This action will open a new window for integrat- ing the device. -
Page 19: Updating The Device Name And Location
Illustration 19). When the dialog opens, the network will be opened for removing components. Follow the procedures for removing the device. Additional information can be found in the user’ s manual for the respective components. 4.2.8 Updating the device name and location By default a device will be assigned a predetermined name consisting of the device type and ID. -
Page 20: Controlling Devices By Location
Each device can be depicted and controlled using its own button in the middle of the appli- cation screen (see Illustration 20). Advanced device options will be made available by tapping on the device button and holding it. For more information, see 5.3.3. 4.3.2 Controlling devices by location Illustration 21 Illustration 22... -
Page 21: Special Features
Select the Device by Type or Device by Location options on the application’ s main menu. Find the device, tap the device button, and hold it to open the Advanced Device Configuration dialog. Each change to the device properties will be immediately applied to the gateway and the device. 4.3.4 Special features Z-Wave components can be linked to an ID number and scenarios can be created, without the gate- way being accessible. - Page 22 Illustration 26 Illustration 27 Adding triggers To add a new device trigger to a scenario, tap the Add option in the upper right corner (see Illustration 24) and select the device or time trigger. a. On the Device Trigger dialog, choose the drive function that should activate the scenario. b.
-
Page 23: Executing A Scenario
4.4.2 Executing a scenario Select the Scenarios option from the main menu to open a list of available scenarios Briefly tap the quick control for the scenario to execute the scenario. Confirm execution. 4.4.3 Editing a scenario Illustration 28 Select the Scenarios option from the main menu to open a list of available scenarios. Tap the scenario button and hold it to open the options menu. -
Page 24: Disabling A Scenario
4.4.5 Disabling a scenario Enabling email notification Select the Scenarios option from the main menu to open a list of available scenarios. Scenarios can be enabled or disabled by tapping the toggle switch button in the upper right corner of the scenario button. If a scenario has been disabled, the scenario button will be darkened. -
Page 25: Important Safety Information
Important safety information! Installation must be carried out by competent persons. Before setting up and first using the unit, please read and follow the safe- ty instructions carefully. Safety and installation information All of our products at the time of purchase conform to the currently applicable safety regulations and are, when used as intended, completely safe! Please heed the following information to avoid any potential dangers, damage or faults. - Page 26 installed power outlet! Avoid using multiple sockets! The mains adaptor/mains plug must only be plugged in once installation has been completed according to the instructions. The unit must not be used if the mains adaptor/mains plug is faulty or the unit is damaged in any other way. Should any liquids or foreign matter accidentally get into the unit, unplug the mains adaptor/ mains plug from the power outlet immediately.
- Page 27 EC Declaration of Conformity The Declaration of Conformity can be found at the following address: http://www.obloliving.com/ products/oblo-gateway. Disposal information for packaging Packaging materials can be recycled and should always be submitted for recycling. Packaging materials such as plastic bags do not belong in the hands of children. Guarantee information The guarantee period begins with the purchase of the product.
- Page 28 MANUFACUTRER’S INFORMATION Dear customer Should you require any technical support and not be able to get it at your specialist dealer’ s , please contact our technical support team. OBLO Living Home Automation Narodnog Fronta 23A 21000 Novi Sad Serbia www.obloliving.com...
