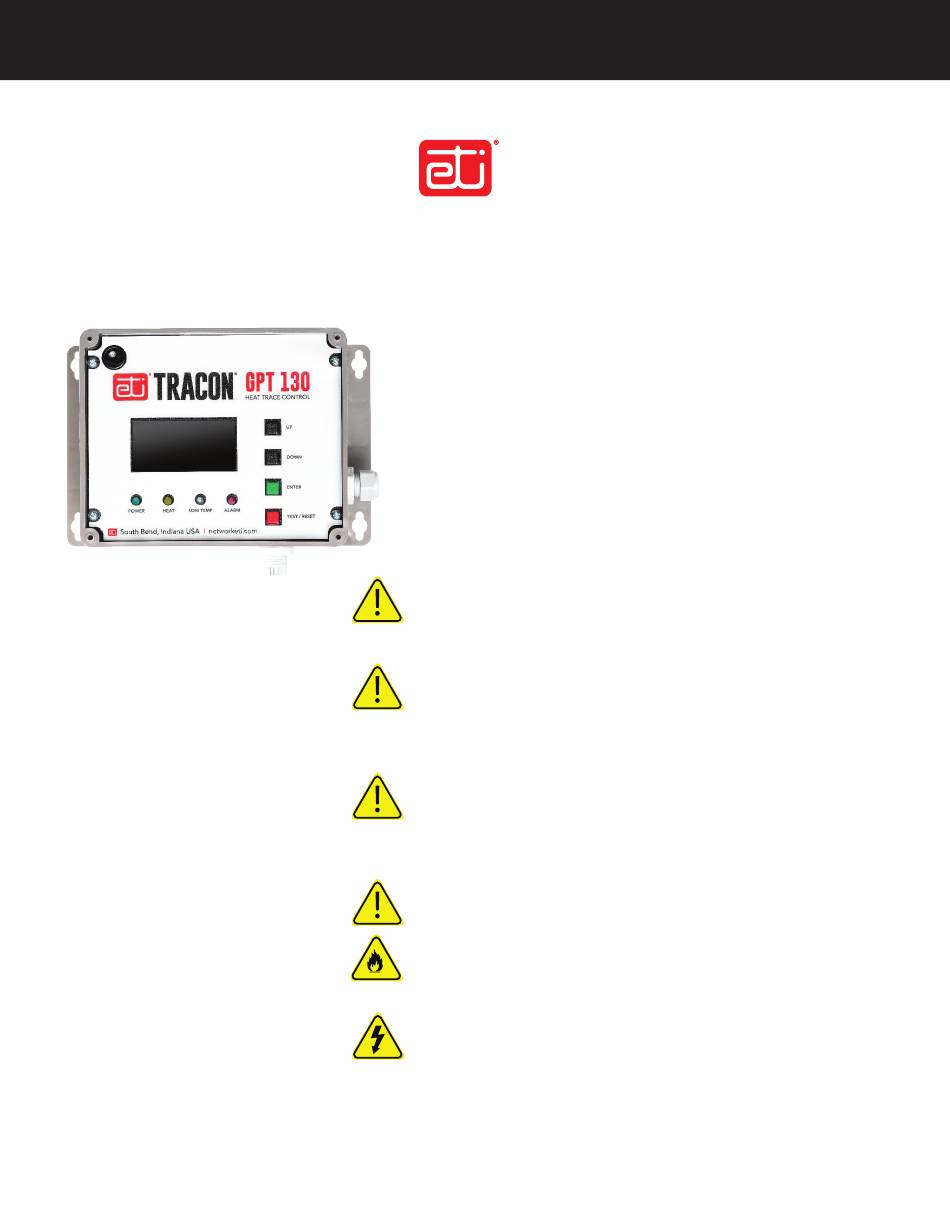

MODEL GPT-130
SINGLE-POINT HEAT-TRACE CONTROL THERMOSTAT
TABLE OF CONTENTS
GPT 130 Overview ................................................................................... 2
Installation ................................................................................................ 3
Power Source and Load Connection .................................................... 4
Temperature Sensor Installation ............................................................ 5
Panel Lockout and External Alarm ........................................................ 6
Operation ................................................................................................. 6
Controls and Screens .............................................................................. 7
Settings Screen Viewing/Editing Settings ............................................ 9
Specifications ......................................................................................... 11
Pilot Duty
The GPT 130 Automatic Heat-Trace Control with GFEP cannot be
used for Pilot Duty applications.
Resistive Load Usage Only
This product is not for use with Inductive loads. Inductive loads
may create nuisance tripping of the Ground-Fault Equipment
Protection circuit.
Abnormal Odor or Smoke
In the event of smoke or a burning or abnormal odor, immediately
interrupt power to the unit by turning off the circuit breaker protecting
the unit.
Electrical Shock / Fire Hazard
Any installation involving electric heater wiring must be grounded
to earth to protect against shock and fire hazard. Suitable ground
fault detection and interrupting systems must be in use at all times to
reduce shock and fire hazard and to protect equipment.
Electric wiring to heating elements must be installed in accordance
with National Electrical Code (NEC)/Canadian Electrical Code
requirements, as well as all other local and applicable electrical
codes and any thirdparty standards. This product is intended for
commercial and industrial applications. Follow the installation
South Bend, Indiana USA
|
networketi.com
GPT-130 INSTALLATION MANUAL | PART NO.
25166
REV
C
Advertisement
Table of Contents
Related Manuals for Tracon GPT-130
Summary of Contents for Tracon GPT-130
-
Page 1: Table Of Contents
National Electrical Code (NEC)/Canadian Electrical Code requirements, as well as all other local and applicable electrical codes and any thirdparty standards. This product is intended for commercial and industrial applications. Follow the installation South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166... -
Page 2: Gpt 130 Overview
• Fire Protection Mode maintains heater operation for use OVERVIEW in critical fire protection systems The TRACON GPT 130 Heat–Trace Control is a single–point • Durable weather–resistant NEMA 4X IP66 enclosure microprocessor–based heat–trace control thermostat. permits indoor or outdoor installation It is ideal for applications which require Ground–Fault... -
Page 3: Installation
All leads should be terminated; no unsecured leads should be left inside the wiring compartment. The GPT 130’s nonmetallic enclosure has one 1.046” hole for conduit entry; this can hold both power andload wiring. South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166... -
Page 4: Power Source And Load Connection
Test/Reset key is pressed again. A manual load test is recommended upon installation to verify heater function and load current. Copyright © 2019 ETI. All rights reserved. ® South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166... -
Page 5: Temperature Sensor Installation
−40 °F to 230 °F (−40 ˚C to 110 ˚C). See Figure 5 for proper wiring when using a thermistor sensor. FIGURE 5. Temperature sensor wiring and DIP switch configurations South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166... -
Page 6: Panel Lockout And External Alarm
GFEP. Alarms Critical Alarms are Latching alarms and include Ground FIGURE 7. External alarm connection Fault, High Current, Stuck Relay, Internal Circuit, and South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166... -
Page 7: Controls And Screens
When the unit has power, the green – Clearing any other latched alarm conditions if the POWER indicator will be lit. alarm condition no longer exists. South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166... - Page 8 Settings screen is entered. If the switch is changed, low Load Current alarm you must view the Load Current you need to re-enter the Settings screen. Display screen. FIGURE 9. Main screen sequence South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166...
-
Page 9: Settings Screen Viewing/Editing Settings
To restore all settings to factory default press columns. The left column displays the name of the both the UP and DOWN pushbuttons together for five parameter, and the right column displays the current seconds. South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166... - Page 10 FIGURE 10. Setting screen sequence South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166...
-
Page 11: Specifications
Ground fault limit current 1.0 mA to 300.0 mA Default 30 mA Self–Test Interval 1 h to 250 h Default 24 h Enabled Temperature Unit °F or °C Default °F South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166... - Page 12 Environmental Technology. For more information about replacement parts or for a replacement Data Sheet or Manual, please visit www.networketi.com. Copyright © 2019 ETI, All rights reserved. ® South Bend, Indiana USA networketi.com GPT-130 INSTALLATION MANUAL | PART NO. 25166...
