Tracon GPT-130 Operation

Heat Tracing Sales
Heat Tracing Sales
Mt. Airy, MD (410) 795-2223

TABLE OF CONTENTS

GPT 130 Overview ................................................................................... 2
Installation ................................................................................................ 3
Power Source and Load Connection .................................................... 4
Temperature Sensor Installation ............................................................ 5
Panel Lockout and External Alarm ........................................................ 6
Operation ................................................................................................. 6
Controls and Screens .............................................................................. 7
Settings Screen Viewing/Editing Settings ............................................ 9
Pilot Duty
The GPT 130 Automatic Heat-Trace Control with GFEP cannot be
used for Pilot Duty applications.
Devoir du pilote
Le GPT 130 Automatic Heat - Trace Control with GFEP ne peut pas
être utilisé pour les applications Pilot Duty
Resistive Load Usage Only
This product is not for use with Inductive loads. Inductive loads may
create nuisance tripping of the Ground-Fault Equipment Protection
circuit.
Utilisation de charge résistive uniquement
Ce produit n'est pas destiné à être utilisé avec des charges inductives.
Les charges inductives peuvent créer un déclenchement intempestif
du circuit de protection de l'équipement contre les défauts à la terre.
Abnormal Odor or Smoke
In the event of smoke or a burning or abnormal odor, immediately
interrupt power to the unit by turning off the circuit breaker protecting
the unit.
Mt. Airy, MD (410) 795-2223
www.heattracingsales.com

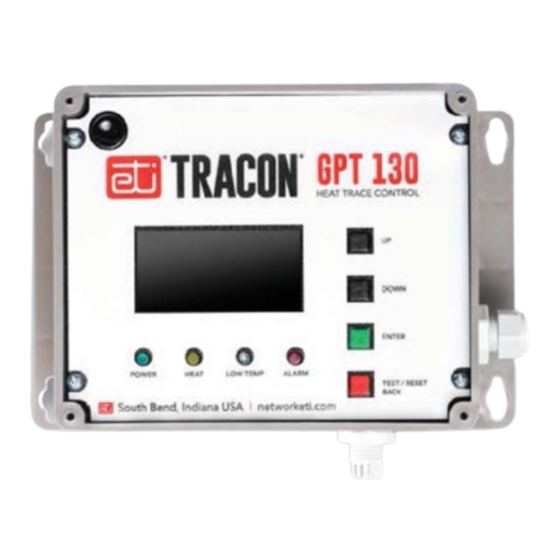

TRACON MODEL GPT-130
®
SINGLE-POINT HEAT-TRACE CONTROL THERMOSTAT
......................................................................................... 11
GPT-130 INSTALLATION MANUAL | PART NO.
www.heattracingsales.com
25166 REV E
