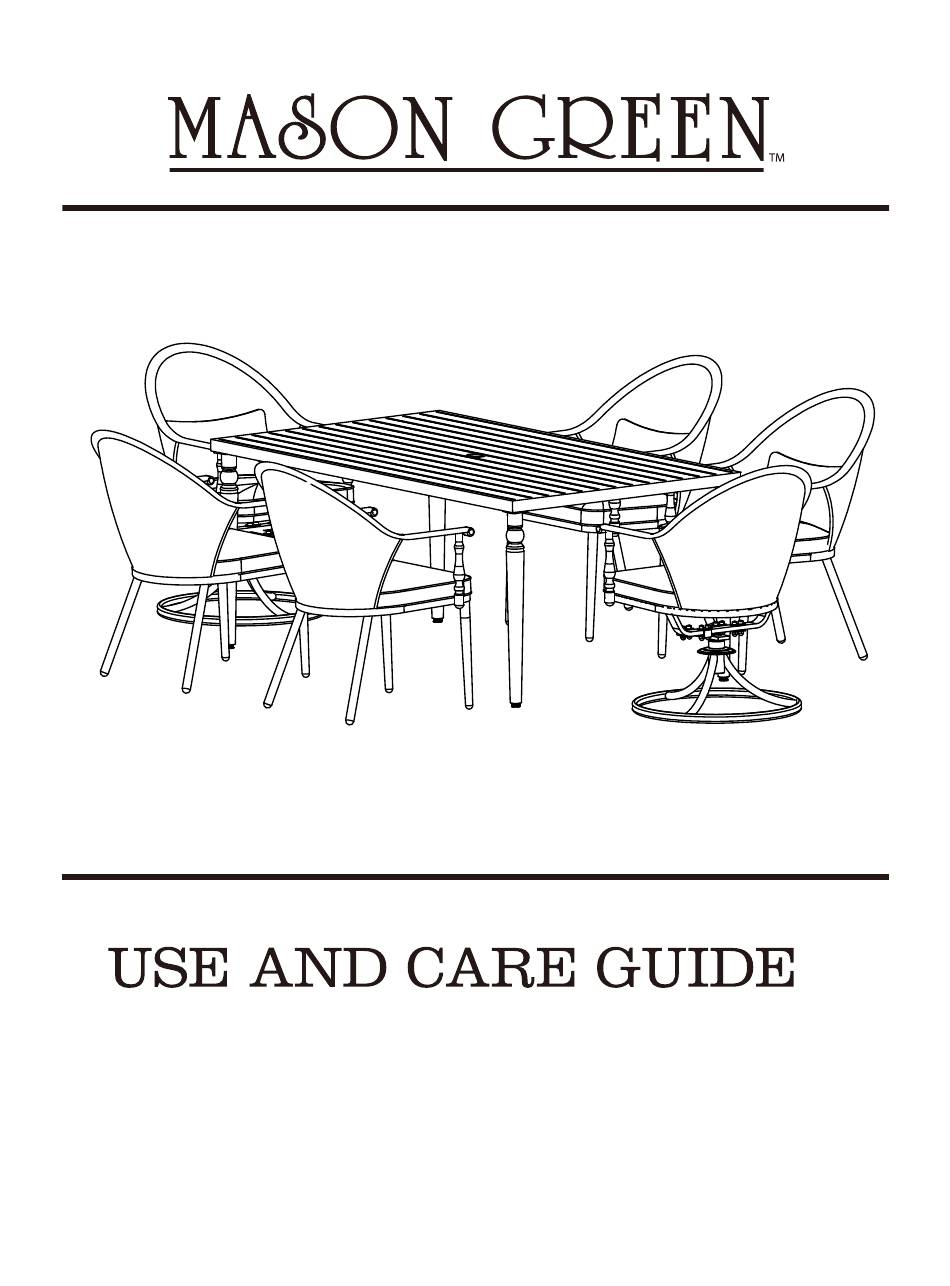

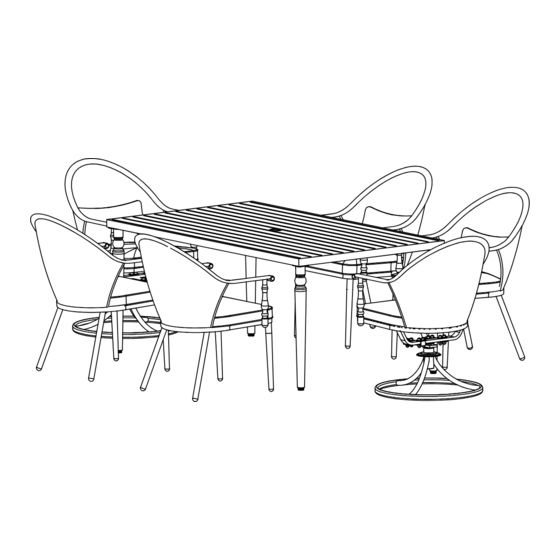

- Page 1 SOMERVILLE 7PC DINING SET Product Code: D71 M20779 KSN: 08837239-6 UPC Code: 885227002675 Date of Purchase: _____/ _____/ _____...
-
Page 2: Table Of Contents
Thank you for your purchase Thank you for your purchase! We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team. -
Page 3: Safety Information
Safety Information SET UP YOUR FURNITURE PROPERLY Ensure that all parts are assembled properly and fully tightened as per the instructions. When placing in the desired location, ensure that all legs are resting on the same surface. You may adjust the legs levelers as required to ensure that the item stands in a rigid position. -
Page 4: Care And Maintenance
Care and Maintenance When not in use, protecting furniture from the elements is highly recommended. Wipe frame with a lightly damp cloth and dry completely, do not use bleach or solvents. Wash cushions with mild solution of soap and water, rinse thoroughtly. Do not machine wash. -
Page 5: Assembly Instructions
Assembly Instructions Package Contents DESCRIPTION QTY. CODE PARTS DESCRIPTION QTY. CODE PARTS SEAT CUSHION BACK LEGS BOLTS & WASHERS M6x20mm CHAIR FRAME CAPS FOR BOLTS ALLEN PILLOW WRENCH Safety Information 1. EVERY BOLT NEEDS TO BE USED WITH A WASHER. 2 .DO NOT TIGHTEN BOLTS ALL THE WAY UNTIL YOU HAVE ASSEMBLED THE CHAIR. - Page 6 Assembly Instructions Step 1: Connect the back legs to the chair frame, cover the bolts with cap F after tighten the bolts. Step 2: Turn the assembling chair upward as shown,fully tighten all the bolts then check and make adjustment as needed.
- Page 7 Assembly Instructions Package Contents DESCRIPTION QTY. CODE PARTS DESCRIPTION QTY. CODE PARTS CAPS FOR CHAIR FRAME NUTS CAPS FOR BOLTS CHAIR BASE NUTS PILLOW SEAT WASHERS CUSHION ALLEN BOLTS WRENCH & WASHERS M8x35mm Safety Information 1. EVERY BOLT NEEDS TO BE USED WITH A WASHER. 2 .DO NOT TIGHTEN BOLTS ALL THE WAY UNTIL YOU HAVE ASSEMBLED THE CHAIR.
- Page 8 Assembly Instructions Step 1: Connect the base B to the chair frame A, cover the bolts with cap F & G after tighten the bolts. Step 2: Turn the assembling chair upward as shown, check and make adjustment as needed.
- Page 9 Assembly Instructions Package Contents DESCRIPTION QTY. CODE PARTS DESCRIPTION QTY. CODE PARTS BOLTS & WASHERS LEGS M6x18mm CAPS FOR BOLTS TABLE TOP ALLEN WRENCH Safety Information 1. EVERY BOLT NEEDS TO BE USED WITH A WASHER. 2 .DO NOT TIGHTEN BOLTS ALL THE WAY UNTIL YOU HAVE ASSEMBLED THE CHAIR. ONCE ASSEMBLY IS COMPLETE, GO BACK AND TIGHTEN EACH BOLT.
- Page 10 Assembly Instructions Step 1: Connects four legs to table top. Cover the bolts with caps D. Step 2: Turn the assembling table upward and check if the bolts were fully tightened, make adjustment as needed.
- Page 12 Please refer to part numbers when reordering For questions or comments about product: Email：acs@americancustomerservice.com or Call toll-free: 1-888-577-9825 Made in / Hech en CHINA Distributed by Sears, Roebuck and Co., Hoffman Estates, IL 60179 See our extensive assortment of outdoor living products on-line at www.sears.com and www.kmart.com...
