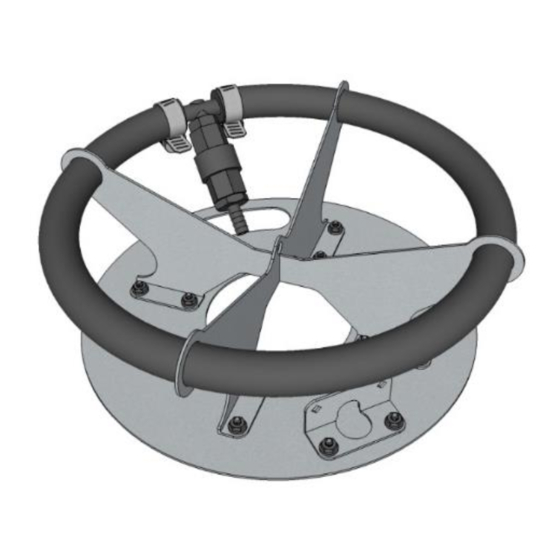

U.S. Solar Mounts DB-36-B Assembly Instructions

DB-36-B Assembly Instructions REV1
A
B
1. Position the Upper & Lower Support Arms as shown
in Figure 1 to the right.
2. Slide the Arms together so that the alignment slots
are fully engaged.
3. Set the assembled Arms onto the Base and align the
mounting holes.
4. Insert 8 Carriage Bolts from the bottom of the base
upward through the bent feet.
5. Install a Serrated-Flange Nut onto all 8 Bolts.
6. Tighten all hardware securely.

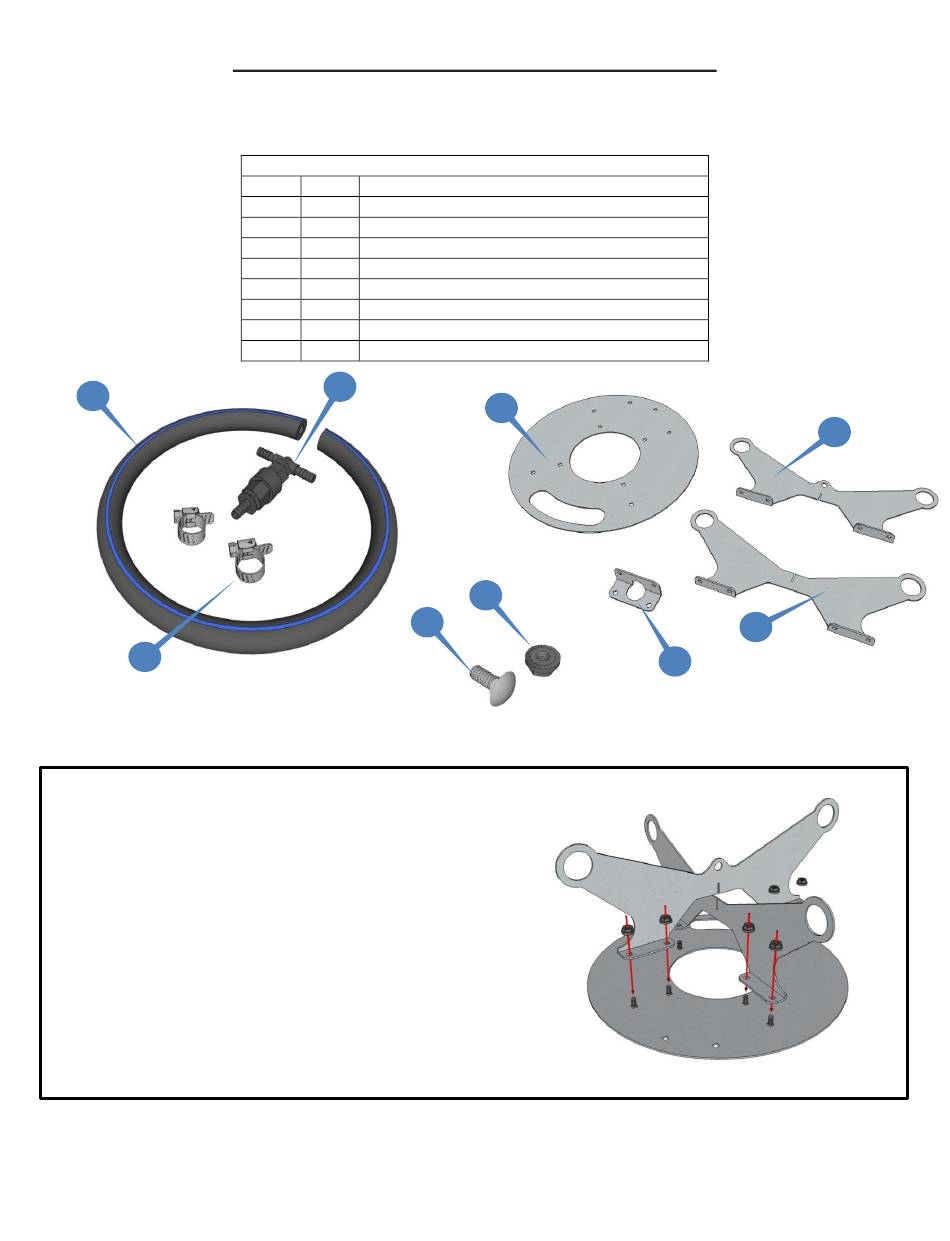

Package Contents

A 1 Aeration Bubble Tube
B 2 Hose Clamp
C 1 Check Valve Assembly
D 10 10-24 x ½" Carriage Bolt
E 10 10-24 Serrated Flange Nut
F 1 Base
G 1 Hose Strain Relief Clamp
H 1 Lower Support Arm
I 1 Upper Support Arm
C
D
©2020 U.S. Solar Mounts Corp. All Rights Reserved
F
E
I
H
G
Figure 1
1
