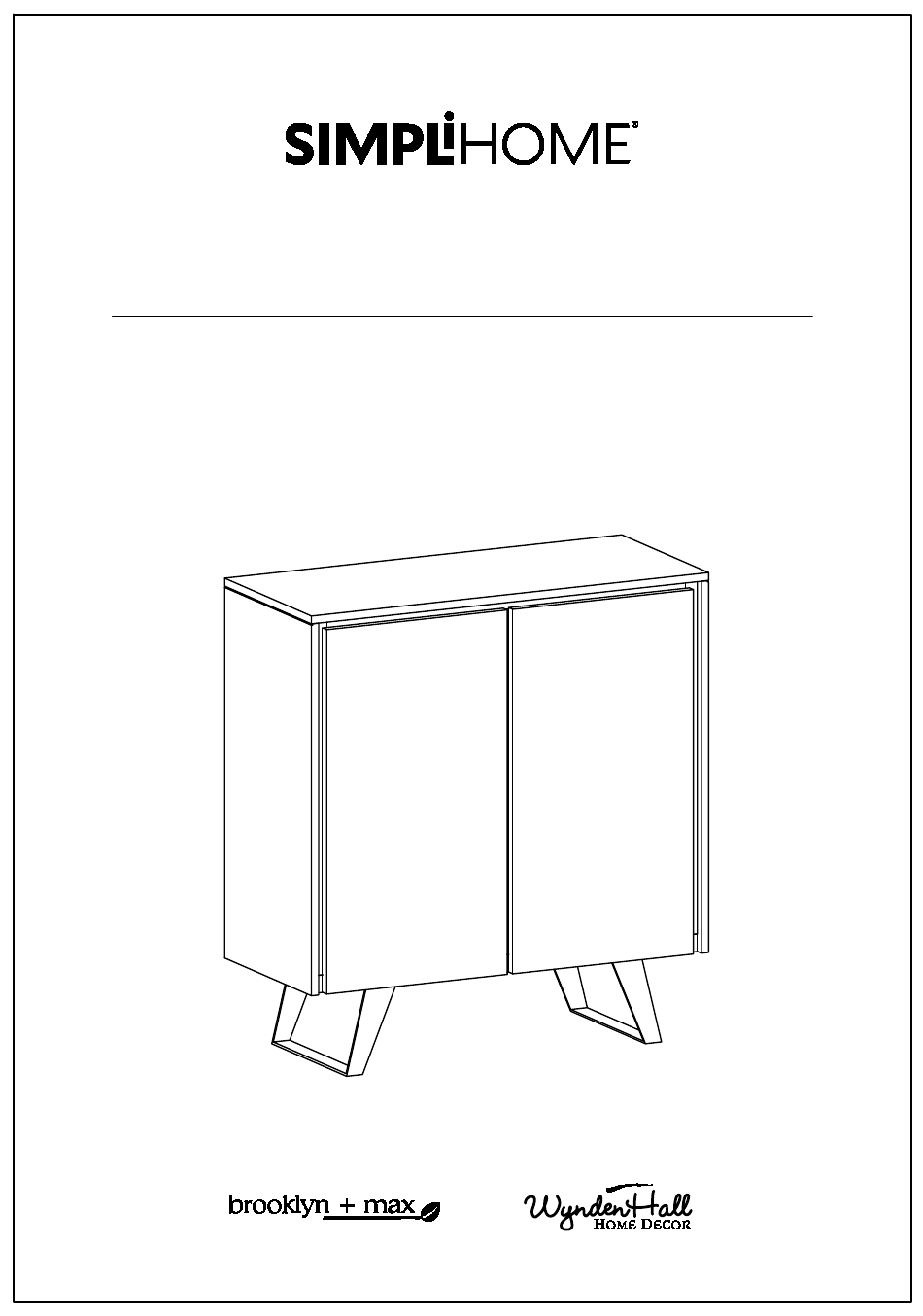

- Page 1 Lowry / Mitchell / Fulton Medium Storage Cabinet Model # AXCLRY-06GR...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 Pre-Assembly Information Model # AXCLRY-06GR Part Description LEFT SIDE BOTTOM SHELF QTY 1 QTY 1 QTY 1 RIGHT SIDE DIVIDER LEFT DOOR QTY 1 QTY 1 QTY 1 Warning Label TOP BACK PANEL SHELF RIGHT DOOR QTY 1 QTY 4 QTY 1 BOTTOM BACK PANEL JOINING STRIP...
- Page 8 Pre-Assembly Information Model # AXCLRY-06GR Hardware Description LOCK WASHER WASHER ALLEN KEY BOLT ALLEN KEY SCREW M8 x 20 mm M6 X 30mm Ø12 / Ø8 x 1.5 mm Ø19 / Ø8 x 1 mm QTY 12 QTY 18 QTY 12 QTY 12 PHILLIPS SCREW ROUND HEAD...
- Page 9 Components - Key Diagram Model # AXCLRY-06GR...
- Page 10 Assembly Model # AXCLRY-06GR Step 1 1. Insert two Dowels 11 into drilled holes on Divider D . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed. 1. Insert four Dowels 11 into drilled holes on Bottom Shelf B . 2.
- Page 11 Assembly Model # AXCLRY-06GR Step 2 1. Attach Divider D to Bottom Shelf B using three Allen Key Screws 4 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
- Page 12 Assembly Model # AXCLRY-06GR Step 3 & 1. Insert two Dowels 11 into drilled holes on each Left Side EL and Right Side ER . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 13 Assembly Model # AXCLRY-06GR Step 4 1. Attach Bottom Shelf B to Left Side EL using three Allen Key Screws 4 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
- Page 14 Assembly Model # AXCLRY-06GR Step 5 1. Repeat Step 4 for Right Side ER .
- Page 15 Assembly Model # AXCLRY-06GR Step 6 1. Attach Top A to Sides CL , CR using six Allen Key Screws 4 ( three Screws / each Side ). 2. Attach Top A to Divider D using three Allen Key Screws 4 ( three Screws / each Side ).
- Page 16 Assembly Model # AXCLRY-06GR Step 7 1. Attach Legs J to Bottom Shelf B . 2. Use twelve Allen Key Bolts 1 , twelve Lock Washers 2 and twelve Washers 3 to secure part J and B (six Bolts, six Lock Washers and six Washers on each Leg). 3.
- Page 17 Assembly Model # AXCLRY-06GR Step 8 Warning Label NOTE: The screwdriver is not included in the hardware pack. 1. Attach the Top Back Panel G to back frame by using Phillips Screws 4 . Only 1st top row of screws ( five screws ) to be screwed in advance. 2.
- Page 18 Assembly Model # AXCLRY-06GR Step 9 1. Attach Adjustable Hinges 12 to Doors EL , ER using Phillips Screws 10 into guide holes on Doors EL , ER .
- Page 19 Assembly Model # AXCLRY-06GR Step 10 1. Attach Adjustable Hinges 12 on Doors EL , ER to Sides CL , CR using Phillips Screws 10 into guide holes on Sides CL , CR . 2. Attach Magnets 7 using Phillips Screws 9 into guide holes on Divider D 3.
-
Page 20: Important Note
Assembly Model # AXCLRY-06GR IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II . - Page 21 Assembly Model # AXCLRY-06GR Step 11 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 8 for each Shelf F in desired location . 2. Two Shelf Supports 8 may be used on back top of each Shelf F as a tipping restraint.
- Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 12 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
