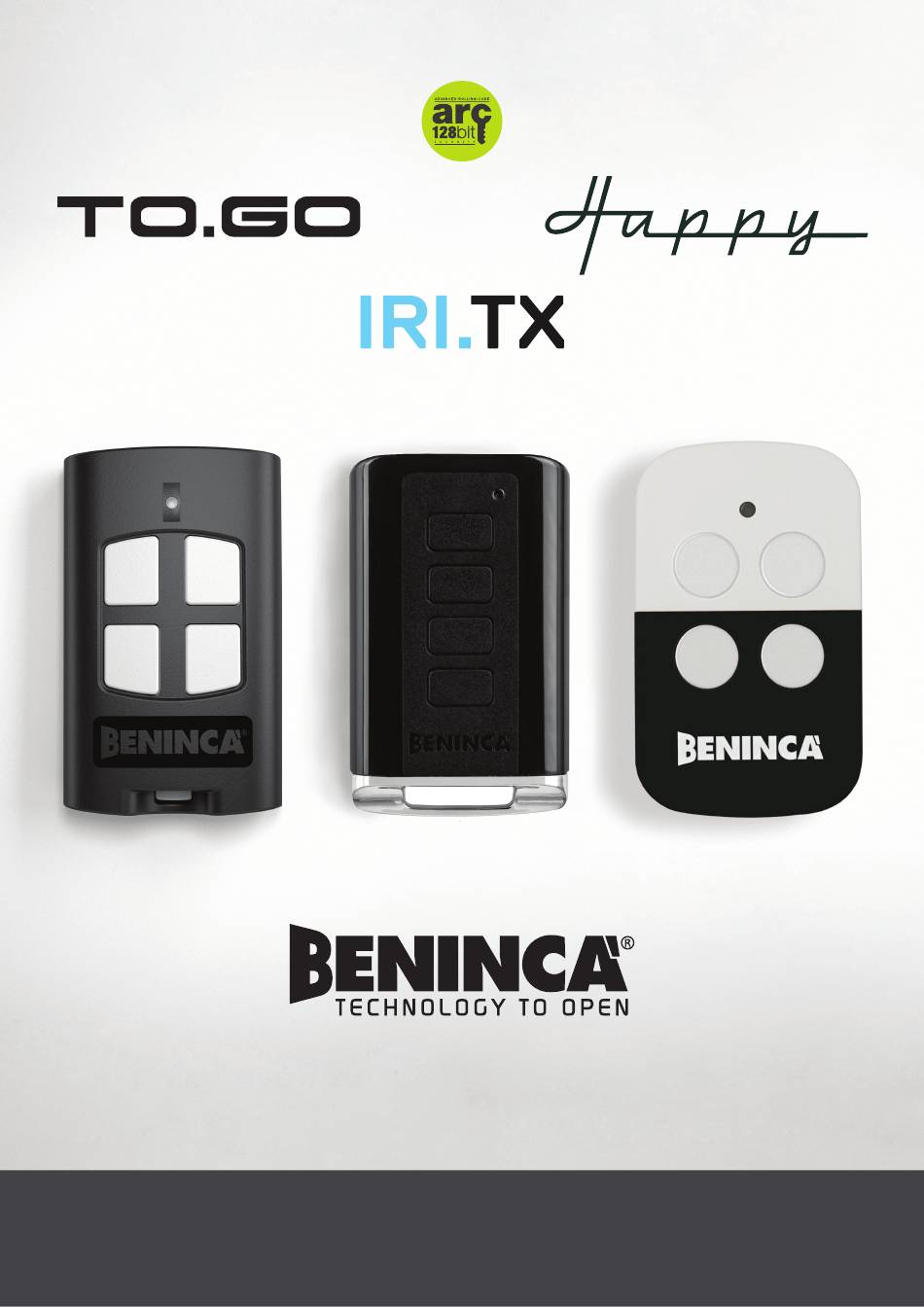

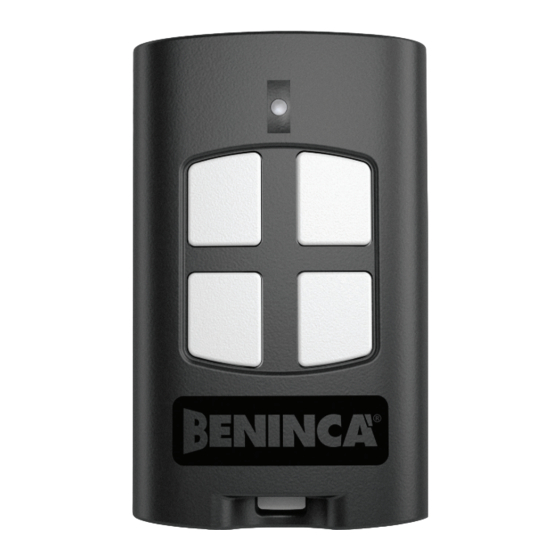

- Page 1 TO.GO 2A TO.GO 2VA TO.GO 2AS TO.GO 2AK HAPPY 2VA HAPPY 2AK TO.GO 4ASE TO.GO 2QV IRI.TX4VA IRI.TX4AK TO.GO 4A TO.GO 4VA TO.GO 4AS TO.GO 4AK HAPPY 4VA HAPPY 4AK PROGRAMMING GUIDE...
-
Page 2: Table Of Contents
INDEX ADVANCED ROLLING-CODE (ARC) 128 BIT ..............................3 TECHNICAL SPECIFICATIONS ................................... 3 IRI.TX - MODELS AND SPECIFICATIONS ................................3 HAPPY - MODELS AND SPECIFICATIONS ................................4 TO.GO - MODELS AND SPECIFICATIONS ................................4 THE RECEIVERS ......................................5 EEPROM ......................................... 5 STORING OF TRANSMITTERS .................................. -
Page 3: Advanced Rolling-Code (Arc) 128 Bit
> ADVANCED ROLLING-CODE (ARC) 128 BIT The introduction of the new rolling-code encoding at 128 bit ARC brings the safety of Benincà radio system to a higher level. ARC logo affixed to product packaging ensures compatibility of the receiver to the new standard: The memorization of new ARC transmitters is very similar to that of normal Rolling Code transmitters with HCS* code, but you should note the following: ARC and HCS Rolling Code transmitters cannot be saved on the same receiver simultaneously, since the two types of encoding are not... -
Page 4: Happy - Models And Specifications
> HAPPY - MODELS AND SPECIFICATIONS HAPPY 2VA - HAPPY 4VA HAPPY 2AK - HAPPY 4AK Rolling code transmitter 433.92 MHz ARC Rolling code transmitter 433.92 MHz with 2 or 4 channels with ARC or HCS with 2 or 4 channels. encoding (settable). -
Page 5: The Receivers
> THE RECEIVERS The receivers compatible with the new TO.GO/HAPPY ARC transmitters are available in 4 versions: External box receiver to apply to the inside of the controller container, if the controller is not provided with built-in receiver. This type of receiver has a terminal board for the connection of the power supply, the radio antenna and two settable outputs. -
Page 6: Storing Of Transmitters
> STORING OF TRANSMITTERS > BOX RECEIVER (ONE.2WB/ONE.2WO AND EARLIER VERSIONS) Connect the antenna to the appropriate input using only RG58 cable, then power the device according to the instructions given in the user’s manual. The box receivers usually feature two transmission channels (CH1 and CH2), to identify the channel on which you are performing the programming, the LED color is used: The channel CH 1 is associated with the color RED The channel CH 2 is associated with the color GREEN... -
Page 7: Control Units With Built-In Radio And Learning Button
> CONTROL UNITS WITH BUILT-IN RADIO AND LEARNING BUTTON This type of controller features a programming button and a LED indicator that allows the user to set up the functions of the inte- grated receiver. The control unit must be powered, the antenna must be connected to the relevant inputs using exclusively an RG58 cable. The name of the button and that of the LED vary depending on the controller. -
Page 8: Advanced Functions
> ADVANCED FUNCTIONS > TO.GO2VA TO.GO4VA SELECTION OF THE TYPE OF ENCODING (TO. GO/HAPPY VA) VA series transmitters can operate in either HCS (Benincà Rolling-code) or ARC (Advanced Rolling-code) mode. This allows you to use the transmitters on systems equipped with HCS receivers. -
Page 9: Remote Learning
> REMOTE LEARNING Remote learning allows you to enter a new transmitter in the receiver if you have a previously memorized transmitter, without having to access the receiver. Therefore, you will quickly have a new transmitter that resembles the one originally stored. It is mandatory to operate within the reception range of the receiver. -
Page 10: Transmitter Cloning
> TRANSMITTER CLONING TO.GO AK / HAPPY AK / IRI.TX AK Cloning is intended as the ability of the AK series transmitters to be programmed with the same code as an ARC or Fixed Code* tran- smitter already saved on a receiver, or to replace most fixed-code transmitters on the market with a simple and fast procedure without the need to access the receiver nor to open the remote control. -
Page 11: Additional Channels
> ADDITIONAL CHANNELS H DOUBLE CODING All the 4-channel ARC transmitters, with the exception of the clonable AK, have a further 5 transmission channels to select by simultaneously pressing two keys. Channels from 5 to 9 are therefore obtained, according to the combination of keys selected. Refer to the diagrams on this page, if necessary you can print the diagram and use it as a memo. -
Page 12: Battery Replacement
> BATTERY REPLACEMENT If during normal operation, the LED flashes by pressing any button, the battery is low and needs to be replaced. To replace the battery, open the battery lid using a screwdriver as shown in the picture, by lightly pressing on both slits. Replace the battery following the polarity, the symbol + is indicated in the printed circuit board. -
Page 13: Instructions For Disposal
> INSTRUCTIONS FOR DISPOSAL This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to an authorized collection point for the recycling of waste electrical and electronic equipment. - Page 14 AUTOMATISMI BENINCÀ SpA - Via Capitello, 45 - 36066 Sandrigo (VI) ITALY - Tel. 0444 751030 r.a. - Fax 0444 759728 www.beninca.com - sales@beninca.it...
