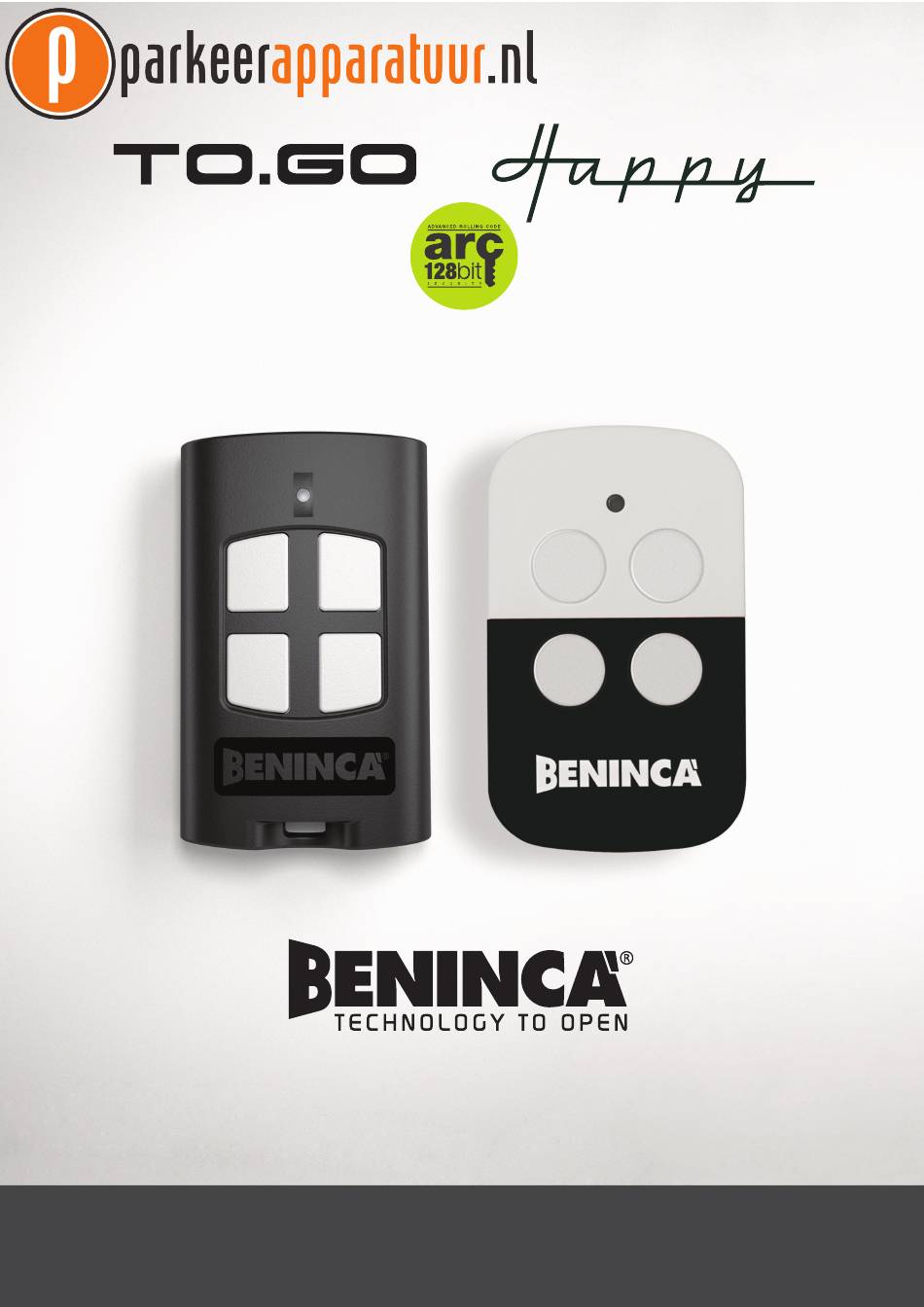

Page 1: Programming Guide
TO.GO 2A TO.GO 2VA TO.GO 2AS TO.GO 2AK HAPPY 2VA HAPPY 2AK TO.GO 4ASE TO.GO 2QV TO.GO 4A TO.GO 4VA TO.GO 4AS TO.GO 4AK HAPPY 4VA HAPPY 4AK PROGRAMMING GUIDE... -
Page 2: Table Of Contents
If you want to change the type of transmitter you must a reset the receiver (as shown in the userʼs manual of the device). * HCS Rolling-Code transmitters are traditional B enincà Rolling Code transmitters normally used prior to the introduction of the ARC encoding. > TECHNICAL SPECIFICATIONS TO.GO 2A TO.GO 2VA TO.GO 2AS TO.GO 2AK TO.GO... -
Page 3: T O .Go-Mo D Els Andspecifica T Io Ns
> T O .GO-MO D ELS ANDSPECIFICA T IO NS TO.GO 2A -TO.GO 4A TO.GO 2VA -TO.GO 4VA TO.GO 2AS -TO.GO 4AS Rolling code transmitter 433.92 MHz with Rolling code transmitter 433.92 MHz Transmitter 433.92 MHz with 2 or 4... -
Page 4: T H E Receivers
> T H E RECEIVERS The receivers compatible with the new TO.GO/HAPPY ARC transmitters are available in 4 versions: External box receiver to apply to the inside of the controller container, if the controller is not provided with built-in receiver. This type of receiver has a terminal board for the connection of the power supply, the radio antenna and two settable outputs. -
Page 5: T O .Go / H Appy-St O Ringo F T Ransmit T Ers
> T O .GO / H APPY-ST O RINGO F T RANSMIT T ERS > BOX RECEIVER (ONE.2WB/ONE.2WO AND EARLIER VERSIONS) Connect the antenna to the appropriate input using only RG58 cable, then power the device according to the instructions given in the userʼs manual. -
Page 6: Control Units With Built- In Radio And Learning Button
> CONTROL UNITS WITH BUILT- IN RADIO AND LEARNING BUTTON This type of controller features a programming button and a LED indicator that allows the user to set up the functions of the inte- grated receiver. The control unit must be powered, the antenna must be connected to the relevant inputs using exclusively an RG58 cable. The name of the button and that of the LED vary depending on the controller. -
Page 7: T O .Go / H Appy-Ad V An Cedfun Ct Io N S
> T O .GO-AD V ANCEDFUNCT IO NS > SELECTION OF THE TYPE OF ENCODING (TO. GO/HAPPY VA) VA series transmitters can operate in either HCS or ARC mode. This allows you to use the transmitters on systems equipped with HCS receivers. The transmitter comes with ARC mode factory setting. -
Page 8: Remote Learning In Receivers Built Into The Control Units
Remote Learning In Receivers Built Into The Control Units Proceed as follows: • Press the hidden key of the transmitter saved (the red LED on the transmitter flashes) • Press within 5 seconds the key on the previously memorized transmitter corresponding to the channel to associate with the new transmitter. -
Page 9: Battery Replacement
> BATTERY REPLACEMENT If during normal operation, the LED flashes by pressing any button, the battery is low and needs to be replaced. To replace the battery, open the battery lid using a screwdriver as shown in the picture, by lightly pressing on both slits. Replace the battery following the polarity, the symbol +is indicated in the printed circuit board. - Page 10 AUTOMATISMI BENINCÀ SpA -Via Capitello, 45 -36066 S andrigo (VI) ITALY -Tel. 0444 751030 r.a. -Fax 0444 759728 www.beninca.com -sales@beninca.it...
