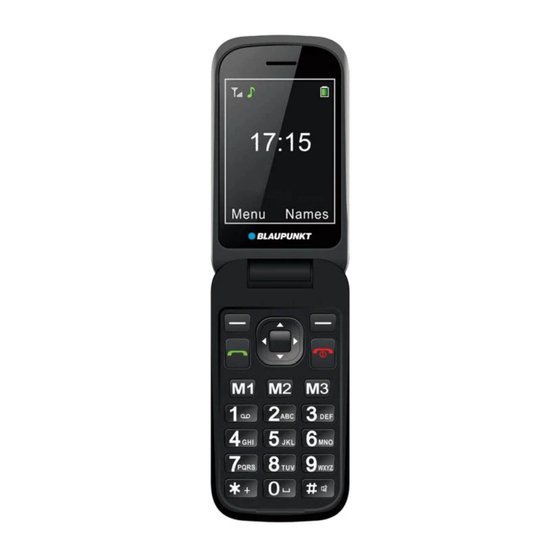

- Page 1 User's Guide Mobile phone BS 08...
-
Page 2: Table Of Contents
Contents General Information ..............1 1. Safety ..................2 2. Product specifications ............4 3. About the keys ..............4 4. Getting Started ..............6 4.1. Installation ..............6 4.2. Charging the battery ..........7 4.3. Maintaining the battery ..........7 5. - Page 3 6.2.4 Outbox .............. 15 6.2.5 Sent messages..........15 6.2.6 Message settings ..........15 6.3. Call history ..............16 6.4 Multimedia ............16 6.4.1 Camera ............. 16 6.4.2 Image viewer ............ 17 6.4.3 FM Radio ............18 6.5 SOS settings ............18 6.6 Settings ..............
- Page 4 6.8.1 Bluetooth............25 6.8.2 Calculator ............25 6.8.3 Calendar ............25 6.8.4 Tasks ..............25 6.8.5 Alarm ..............25 7. Declaration of Conformity ..........26...
-
Page 5: General Information
General Information Thank you for purchasing the product. Our mobile phone meets the GSM network standards and the most stringent European standards. This device can be used on various international networks, depending on the roaming rules of your service provider. To use the device, GSM service is required, provided by your service provider for a fee. -
Page 6: Safety
1. Safety Please read the safety instructions carefully, as ignoring it may be dangerous or illegal. The owner of the device is responsible for the use of this appliance. Explosion hazards and restricted areas Turn off the device in explosion hazardous areas. Sparks in such places may lead to an explosion or fire that may result in serious injury or death. - Page 7 by the manufacturer. Do not connect incompatible products. The mains power socket used must be close to the charger/holder and easily accessible, so that it can be used as an 'on/off' facility. Hearing protection To avoid hearing loss, do not listen to music or radio for a long time at high volume.
-
Page 8: Product Specifications
2. Product specifications The device handles a nanoSIM card. Power Supply Features: • Input: (AC), 100-240 V - 50/60 Hz – 0.15 A • Output: (DC), 5 V – 1 A – 5 W Battery Type and Voltage: • Li-ion battery, 3.7 V, 800 mAh Network type: •... - Page 9 various functions can be set in the directions. 6. Family numbers: You can set 3 phone numbers to the dedicated buttons. 7. SOS: In emergency, by pressing this button, alarms the previously set contacts for this function. 8. Volume button: Increase and decrease the volume during calls 9.
-
Page 10: Getting Started
4. Getting Started 4.1. Installation 1. Open and remove the phone back protection cover 2. Insert the SIM into the device. The golden contacts on the SIM card face down and the edges align with the corresponding edges of the SIM card. 3. -
Page 11: Charging The Battery
4.2. Charging the battery Connect the charger to the appliance and plug the other end into the socket. If the device is turned on while charging, the battery icon will move in the right corner of the display. Charging is completed when the charging indicator on the top right is lit. -
Page 12: Use Of This Unit
5. Use of this unit 5.1. Power On/Off Press and hold the End / On-Off button to turn the unit on or off. 1. If a SIM card is not inserted, it is defective or not fit correctly, a warning message will be displayed after switching on the display. -
Page 13: Receiving Calls
dial key to start the call if the specified number is correct. 5.2.2 Starting an international call To make an international call, press the [*] key two times for "+" international call sign appearing on the display. After entering the country code, enter the area code and then the phone number. -
Page 14: Emergency Call
vibration or ringing. 5. If you do not want to answer the call, press the End / Off button to reject the call. The Right softkey button can also be used to disconnect the call. 6. During a call, you can use the volume keys on the side of the phone to reduce or increase the loudspeaker volume. -
Page 15: Main Menu
Mute: You can mute your device's microphone when you need to make a conversation while you are on the call so that someone on the other side of the line does not hear it. for turning off it you can use the Unmute option. End all calls: * Hang up all calls Swap*: You can exchange the held and active calls. - Page 16 disconnect the line. Add new contact In Standby mode, enter the phone number and Select (left) Options> Save to Phonebook. Enter contact details: name, phone number. To save, press the Options (left) soft key and select Save. Press Options (left soft key) to select one of the following options: ➢...
-
Page 17: Messaging
number for the different (2-9) keys. Key 1 dial the voicemail number (if previously set). - Human voice prompt: If it’s active, the phone reads aloud the phone numbers. - Memory status: view the number of contacts stored on the device and the SIM card, and how many contacts can be stored. -
Page 18: Inbox
Press the left soft key [Options] during message editing to access the following functions: Send to: You can specify the recipient of the message manually or select it from Phonebook. Insert symbol: take a symbol in the text. Input method: Select the correct input method. Save: Save a message between drafts. -
Page 19: Drafts
6.2.3 Drafts You can view unfinished messages in this folder. 6.2.4 Outbox You can see the messages, what the phone can’t send due to various reason. In the messages list, press the View soft key (left soft key) to read the selected message. 6.2.5 Sent messages If the message is sent, the sent message is saved in the Sent Items folder. -
Page 20: Call History
6.3. Call history The device logs missed calls, dialed calls, received calls, and their dates. You can only log calls if these features are supported by the network. You can access the call history in standby mode by pressing the Dial key or Menu > Call history. - Missed / Dialed / Received calls Displays the list of Missed / Dialed / Received calls - Delete call logs... -
Page 21: Image Viewer
options by pressing Options (left soft key) in the popup window: Photos: Opens saved photos. Camera Settings: Use the Up / Down Navigation Keys to move between Anti-Flicker, Scene Mode, White Balance, Delay timer. To save the changes, press Options and after choose the Save (left soft key). -
Page 22: Fm Radio
6.4.3 FM Radio In Menu mode, go to Multimedia > FM radio. To turn on the radio press the middle navigation. If the quality of the broadcast is poor, we suggest to use the headset. But in this case, you can just listen to the radio via the headset, not in handsfree mode. -
Page 23: Settings
6.6 Settings 6.6.1 Tone settings Turn silent mode on or off: To activate the Silent mode, press and hold #. If you press and hold # again, you can activate the General Mode (or the mode that was set when you activated Silent Mode). In Menu mode, go to Settings >... -
Page 24: Phone Settings
key or Options > Save [Left softkey] method. 6.6.3 Phone settings · Time and date: you can set Time, Date and theirs format in this menu. . Language: You can select the language you want to use. · Schedule power on/off: You can set the time when the device automatically turning on/off. -
Page 25: Call Settings
Missed call: you can see blue flashing phone icon about the missed call. Battery low: you can see red flashing battery icon, when it is low. Charging: you can see a permanetly lighting battery icon, when you charge it. 6.6.5 Call settings You can choose the following options: Call Waiting (Depends on network support): Turn on or off or answer the... -
Page 26: Network Settings
• To new number: Use the up / down navigation key to select this line, then use the left soft key [OK] or middle navigation key to enter it. Enter the full phone number to which you want to divert incoming calls. You can add the number from Phonebook too via Options >... -
Page 27: Restore Settings
To change the SIM card and phone security settings in menu mode, go to Settings> Security Settings. To set the SIM card's settings, select SIM security, then press OK (left soft key). Within the SIM Security menu, you have the following options: •... -
Page 28: File Manager
To reset the settings - in the menu mode - go to Settings> Restore Settings to reset your device settings to factory defaults. Enter the phone password to reset. Selecting [Yes] will reset the device and restart the device. Attention! This setting can not be undone and deletes all data on the device (such as names, messages, personal settings). -
Page 29: Tools
memorycard. Move: move a file to another folder or the main folder of the memorycard. Details: Date and size of a file 6.8. Tools 6.8.1 Bluetooth You can make the following settings in the menu item: • Power: Turns on and off the function by using the left soft key. - Page 30 [OK] to activate the selected sound. To save the alarm parameters, press Options (left soft key) and then choose Save. 7. Declaration of Conformity The Blaupunkt BS 08 is compliant with the essential requirements and relevant provisions of RoHS Directive...
- Page 31 Import: HTM Mobile Ltd. Address: 1118 Budapest, Dayka Gábor street 3. Manufacturer: CSM Technology Co., Ltd. Address: 5F, Bld. C, Hongshengyuan Industrial Park, Longgang District, Shenzhen, China For more information on this product, visit our website at www.htmmobile.hu or www.blaupunkt.com.
