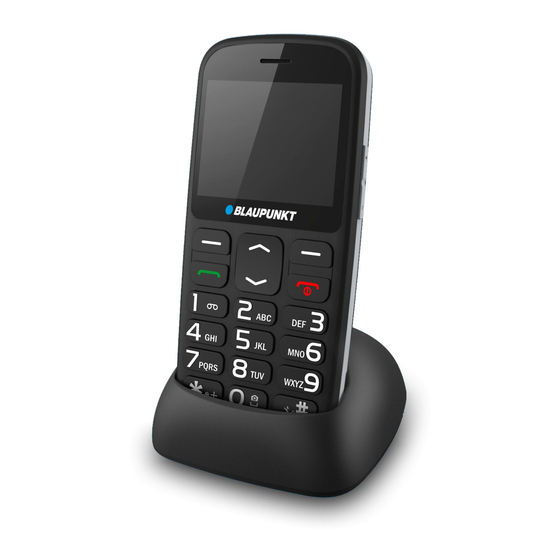

Blaupunkt BS 02 User Manual
  1. Manuals
  2. Brands
  3. Blaupunkt Manuals
  4. Cell Phone
  5. BS 02
  6. User manual

Blaupunkt BS 02 User Manual

Hide thumbs Also See for BS 02:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick User Manual
User's Guide
Mobile phone BS 02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS 02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blaupunkt BS 02

Summary of Contents for Blaupunkt BS 02

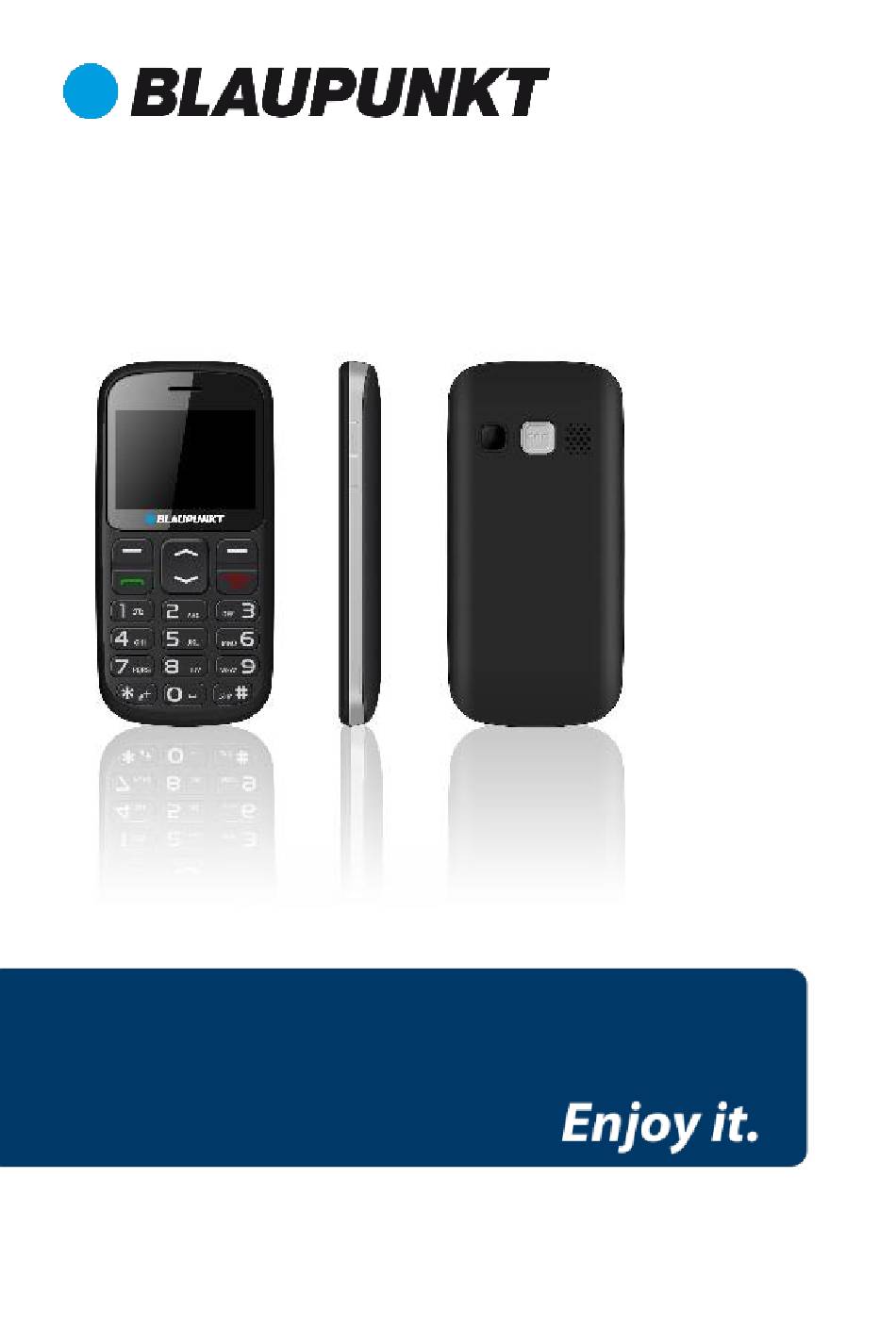

  • Page 1 User's Guide Mobile phone BS 02...

  • Page 2: Table Of Contents

    Contents General Information ..............1 1. Safety ..................1 2. Product specifications ............5 3. About the keys ..............6 4. Getting Started ..............8 4.1. Insert a SIM card ............8 4.2. Insert a memory card ..........9 4.3. Insert battery .............. 9 4.4.
  • Page 3 6.3. Phonebook ..............20 6.4. Camera ..............21 6.5. Multimedia ............... 22 6.6. Organizer ..............25 6.7. File Manager ............. 27 6.8. Settings ..............27 7. Target Keys ................. 31 8. Maintaining the battery............. 32 9. Declaration of Conformity ..........32...

  • Page 4: General Information

    General Information Thank you for purchasing the product. Our mobile phone meets the GSM network standards and the most stringent European standards. This device can be used on various international networks, depending on the roaming rules of your service provider. To use the device, GSM service is required, provided by your service provider for a fee.
  • Page 5 The owner of the device is responsible for the use of this appliance. Do not switch on the device, where it is prohibited to use a mobile phone or to interfere with radio waves. Never attempt to disassemble the appliance. Your device may be restricted by security rules to protect users and their environment.
  • Page 6 whenever the crew or warning signals are instructed to do so. Using a mobile phone may be dangerous to the operation of the aircraft and may interfere with network communication. Use of the device despite the ban may have legal consequences.
  • Page 7 Road safety Observe the local laws and regulations regarding smartphone usage while driving. If you make a phone call while driving, observe the following rules: Focus on driving to become aware of traffic conditions; If the device has a hands-free function, use handsfree.

  • Page 8: Product Specifications

    2. Product specifications Power Supply Features: • Input: (AC), 100-240 V - 50/60 Hz – 0.1 A • Output: (DC), 5 V - 500 mA Battery Type and Voltage: • Li-ion battery, 3.7 V, 1000 mAh Network type: • GSM 900/1800 MHz SAR values: •...

  • Page 9: About The Keys

    3. About the keys Buttons function Right softkey In standby mode, enter Names. In Menu mode: to return to the home screen. Left softkey In standby mode: enter the Main menu and select "OK" button in other menus Call (Dial) button Dialing and Receiving calls.
  • Page 10 Turning the flashlight on and off. SOS. In emergency, by pressing this button, alarms the previously set contacts for this function. Increase and decrease the volume during calls 0-9 alphanumeric keypad: Press the corresponding keys to enter numbers when dialing or the characters of the numbers when writing text.

  • Page 11: Getting Started

    4. Getting Started 4.1. Insert a SIM card To use your phone, you need to insert a valid SIM card to connect to the GSM network. To avoid missing or damaged the contents of the SIM card, please DO NOT hold the metal part of the SIM card with your hands free and keep it away from electromagnetic devices.

  • Page 12: Insert A Memory Card

    of the device. Note: Locate the SIM card slot on the back of the device and in the direction of the signal, with the collisions slide the card. 4.2. Insert a memory card The memory card is not part of the basic package, but the memory of the device can be expanded with an SD card.

  • Page 13: Charging The Battery

    cause abnormal operation when the skin is switched on. 4.5. Charging the battery Connect the charger to the appliance and plug the other end into the socket. If the device is turned on while charging, the battery icon will move in the right corner of the display. Charging is completed when the charging indicator on the top right is lit.

  • Page 14: Use This Unit

    will be entered. Please contact your service provider for more information. PUK code The PUK code is required to unblock the PIN code. The PUK (Personal Unblocking Code) code is provided by the network service provider along with the SIM card. Keep your PUK code in a safe place, do not discard it.

  • Page 15: Make A Call

    and the phone password are active, the device prompts you for the password and PIN code and switches to standby mode. After switching on, the phone automatically searches for the network. If the device has found the allowed network, it will display its name and signal strength.

  • Page 16: Receiving Calls

    5.3. Receiving Calls When you have an incoming call, your device will respond properly if your service provider supports the number display, then the caller or caller name appears on the display (depending on whether you have saved it in the phone book). 1.

  • Page 17: Functions Available During A Call

    numbers, so please contact your network operator. 5.5. Functions available during a call Some operations and services are available during an active call. Many of these depend on network support, please check with your network service provider for these options. Press the right soft key to activate the loudspeaker during an active call;...

  • Page 18: Main Menu

    special conditions. Such as: "Swap", which can only be achieved if one of the calls is held on the other active. To access the conference call, you need a service that you can activate with your network operator. 6. Main menu 6.1.
  • Page 19 successfully sent are automatically saved in the Sent items folder. If the feature is not activated, the sent messages will not be saved. 6.1.2 Incoming messages You can store received messages on your device or on the SIM card and access it. When you receive a message, a beep or vibration (as previously configured in the menu) ([Settings / User Profiles / Options / Personalization / Message]) will alert you to this or...

  • Page 20: Call

    location). 6.1.3 Drafts You can view unfinished messages in this folder. 6.1.4 Outgoing messages When [Save and send] is activated, unanswered messages are saved in this folder. In the messages list, press the View soft key (left soft key) to read the selected message.
  • Page 21 The machine logs missed calls, dialed calls, received calls, and their dates. You can only log calls if these features are supported by the network. You can access the call log in standby mode by pressing the Dial key or Menu> Call list. - Missed / Dialed / Received / All Calls Displays the list of Missed / Dialed / Received / All Calls - Delete call lists...
  • Page 22 unconditional [All voice divert redirection] or conditional (redirect if not available; redirection if no response; redirection if busy). Use the up / down arrows to select the appropriate divert type from the list, press the OK button or the Left soft key [OK] to select one of the following options: •...

  • Page 23: Phonebook

    6.2.3 Speed Dialing You can set frequently dialed numbers to the numeric keys on your machine, so you can make calls to these numbers at the touch of a button. To set up speed dial, go to Menu> Settings> Speed Dial. In the Status menu, turn on the function by pressing OK (left soft key), then selecting On.

  • Page 24: Camera

    Press Options (left soft key) to select one of the following options: · View: You can view the details of that contact. · Send SMS: Send a text message to the selected contact's phone number. · Call: Call the selected phone number. ·...

  • Page 25: Multimedia

    photo, press 0. In Photo Preview mode, you can choose from the following options by pressing Options (left soft key) in the popup window: · Photos: Opens saved photos. · Camera Settings: Use the Up / Down Navigation Keys to move between Shutter Sound, Anti-Flicker, Scene Mode, White Balance, Self-timer, Continuous Shutter Functions.
  • Page 26 Insert a memory card to make a video recording. Go to Menu> Multimedia> Video recorder. To start recording, press 5. You can pause the recording by pressing button 5 again. To stop, press the right soft key. By pressing the options (left soft key), the following options are available: ·...
  • Page 27 pressing the left soft key [Options] again to access the player program: play, details, update the list, settings. In Settings, you can set repeating, mixing numbers, playing backgrounds. 6.5.5 Voice recorder You can make voice recordings with the voice recorder. Select Options (Left soft key)>...

  • Page 28: Organizer

    can also listen to the radio in standby or menu mode. You can also listen to the radio with handsfree, but do not remove the headset. 2. The quality of radio broadcasting is influenced by the environment. You can improve the quality by manual search and by placing your device closer to the window.
  • Page 29 alarm / alarm time. 3. You can select Snooze duration (minutes) using the 4 and 6 buttons. 4. To set Repeat, press Options (left soft key)> Select and then select Alarm, Daily, or Pre-set Day (Custom) to be active. With Options>...

  • Page 30: File Manager

    • Advanced: You can set the audio path and select the mass storage (you need a memory card to store attention files). 6.7. File Manager In Menu mode, go to Organizer> File Manager. You can view all or the free storage of the memory card (if it is connected to a memory card).
  • Page 31 then select the profile you want to change. There are 5 profiles in the device: General, Silent, Meeting, Headset, Outdoor. To change the profile, press [Options] and select Personalize. In this menu, you can change the following settings: alert type, ring type, ringing tone and volume of calls and messages, ring volume, keyboard sound, key volume, system alert, intelligent call alert.
  • Page 32 your taste. • Wallpaper: Choose a wallpaper for your phone from pre- installed wallpapers (System) or from your own files (Custom); this picture is displayed in standby mode. • Show date and time: to set whether the date and time should be displayed on the display in standby mode.
  • Page 33 otherwise contact your service provider. • Change PIN and Change PIN2: In this menu, you can change the PIN / PIN2 codes, enter the new codes twice twice after entering the old code for which a message appears on the display.

  • Page 34: Target Keys

    numbers in the list answers the call. Attention! Do not enter a number where call reception is automatic. • SOS SMS on / off: Enable and enable SOS SMS function. • SOS SMS: In this menu item, you can edit the text of an emergency message.

  • Page 35: Maintaining The Battery

    9. Declaration of Conformity The Blaupunkt BS 02 is compliant with the essential requirements and relevant provisions of RoHS Directive 2014/53 / EU and 2011/65 / EU. To view the Declaration of Conformity, please contact us at the following e-mail address: info@blaupunkt-mobile.eu.
  • Page 36 Import: HTM Mobile Ltd. Address: 1118 Budapest, Dayka Gábor street 3. For more information on this product, visit our website at www.htmmobile.hu or www.blaupunkt.com.
