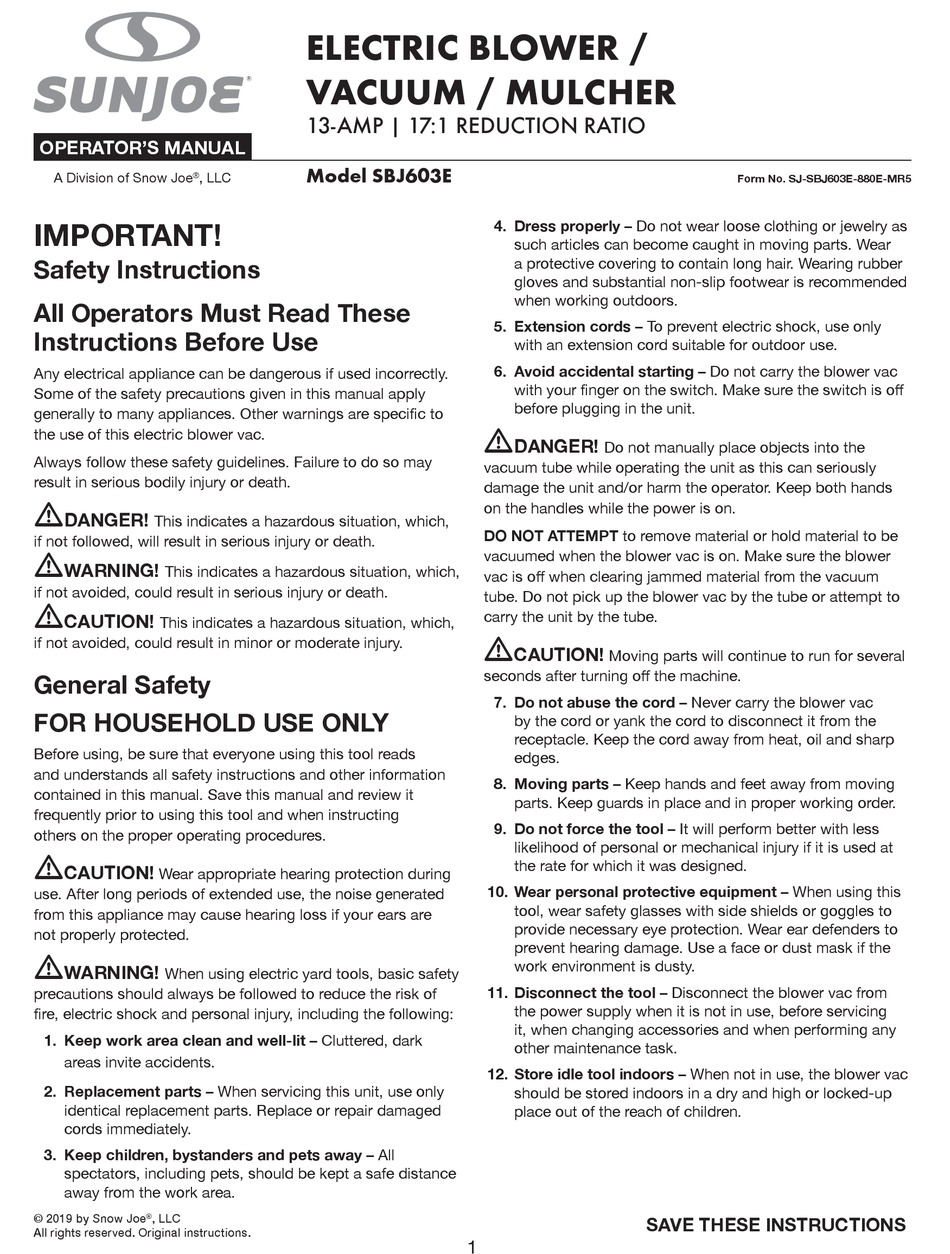

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
the use of this electric blower vac.
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in serious injury or death.
m
WARNING!
This indicates a hazardous situation, which,
if not avoided, could result in serious injury or death.
m
CAUTION!
This indicates a hazardous situation, which,
if not avoided, could result in minor or moderate injury.
General Safety
FOR HOUSEHOLD USE ONLY
Before using, be sure that everyone using this tool reads
and understands all safety instructions and other information
contained in this manual. Save this manual and review it
frequently prior to using this tool and when instructing
others on the proper operating procedures.
m
CAUTION!
Wear appropriate hearing protection during
use. After long periods of extended use, the noise generated
from this appliance may cause hearing loss if your ears are
not properly protected.
m
WARNING!
When using electric yard tools, basic safety
precautions should always be followed to reduce the risk of
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
cords immediately.
3. Keep children, bystanders and pets away – All
spectators, including pets, should be kept a safe distance
away from the work area.
© 2019 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
ELECTRIC BLOWER /
R
VACUUM / MULCHER
13-AMP | 17:1 REDUCTION RATIO
Model SBJ603E
4. Dress properly – Do not wear loose clothing or jewelry as
such articles can become caught in moving parts. Wear
a protective covering to contain long hair. Wearing rubber
gloves and substantial non-slip footwear is recommended
when working outdoors.
5. Extension cords – To prevent electric shock, use only
with an extension cord suitable for outdoor use.
6. Avoid accidental starting – Do not carry the blower vac
before plugging in the unit.
m
DANGER!
Do not manually place objects into the
vacuum tube while operating the unit as this can seriously
damage the unit and/or harm the operator. Keep both hands
on the handles while the power is on.
DO NOT ATTEMPT to remove material or hold material to be
tube. Do not pick up the blower vac by the tube or attempt to
carry the unit by the tube.
m
CAUTION!
7. Do not abuse the cord – Never carry the blower vac
by the cord or yank the cord to disconnect it from the
receptacle. Keep the cord away from heat, oil and sharp
edges.
8. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
9. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
10. Wear personal protective equipment – When using this
tool, wear safety glasses with side shields or goggles to
provide necessary eye protection. Wear ear defenders to
prevent hearing damage. Use a face or dust mask if the
work environment is dusty.
11. Disconnect the tool – Disconnect the blower vac from
the power supply when it is not in use, before servicing
it, when changing accessories and when performing any
other maintenance task.
12. Store idle tool indoors – When not in use, the blower vac
should be stored indoors in a dry and high or locked-up
place out of the reach of children.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-SBJ603E-880E-MR5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNJOE SBJ603E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SNOWJOE SUNJOE SBJ603E

  • Page 1 ELECTRIC BLOWER / VACUUM / MULCHER 13-AMP | 17:1 REDUCTION RATIO OPERATOR’S MANUAL Model SBJ603E A Division of Snow Joe , LLC ® Form No. SJ-SBJ603E-880E-MR5 IMPORTANT! 4. Dress properly – Do not wear loose clothing or jewelry as such articles can become caught in moving parts. Wear Safety Instructions a protective covering to contain long hair.
  • Page 2: Additional Safety Instructions

    13. Maintain the blower vac with care – Keep the blower tube and the fan area clear and clean for optimal label and marking instructions. performance and to reduce the risk of injury. Inspect the extension cord periodically and immediately replace it body.
  • Page 3 Before use, check that the extension cord is in good 5. To prevent the appliance cord from disconnecting from the condition. When using an extension cord, make sure to extension cord during operation, make a knot with the two use one heavy enough to carry the current your product cords as shown in Table 1.
  • Page 4: Double-Insulated Appliances

    Double-Insulated Appliances In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by ®...
  • Page 5: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand and follow all Keep bystanders and children instructions in the user...
  • Page 6: Technical Data

    Know Your Electric Blower/Vacuum/Mulcher Read the owner’s manual and safety instructions carefully before operating the electric blower vac. Compare the illustration below to the electric blower vac in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 7: Carton Contents

    Unpacking 2. Insert the concentrator nozzle onto the end of the blower tube until it locks into position (Fig. 1). NOTE: The concentrator nozzle is used to increase Carton Contents under decks, etc.). Fig. 1 Front vacuum/mulcher tube Notched area Rear vacuum/mulcher tube Slot Collection bag...
  • Page 8 Assemble as a Vacuum/Mulcher 4. Insert the collection bag adaptor into the blower air outlet until the collection bag is securely fastened (Fig. 7), 1. Slide the front and rear vacuum/mulcher tubes together then clip the bag to the strap holder. Simply press the tube until the lock button engages (Fig.
  • Page 9: Operation

    Operation Fig. 12 6 5 4 3 2 1 Connecting to a Power Source Variable blower speed control 1. Secure the extension cord to the motor housing using the cord retainer located at the rear of the blower. Securing the extension cord in this manner prevents accidental removal of the electrical cord during operation (Fig.
  • Page 10: Air Vents

    for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches and better suited to low speeds rather than high speeds. gardens. High speed blowing is best for moving heavier items like large debris or gravel. pets, open windows or freshly washed cars.
  • Page 11: Maintenance

    During the vacuuming process, certain objects such as cloth, 2. Wear eye protection and a dust mask. Clean the bag as needed. Turn the bag inside out after initial emptying and rope or large diameter sticks may obstruct the fan and block vigorously shake out dust and debris.
  • Page 12: Troubleshooting

    Troubleshooting WARNING! Always unplug the power cord before performing any adjustments, maintenance or repairs to your electric blower vac. Problem Possible Cause Solution 1. Bag full 1. Empty the bag. 2. Blocked tube 2. Clear the blockage. 3. Blocked impeller 3.
  • Page 13: Optional Accessories

    Optional Accessories WARNING! ALWAYS use only authorized Snow Joe + Sun Joe ® ® replacement parts or accessories that are not intended for use with this electric blower vac. Contact Snow Joe + Sun Joe ® ® you are unsure whether it is safe to use a particular replacement part or accessory with your electric blower vac. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.
