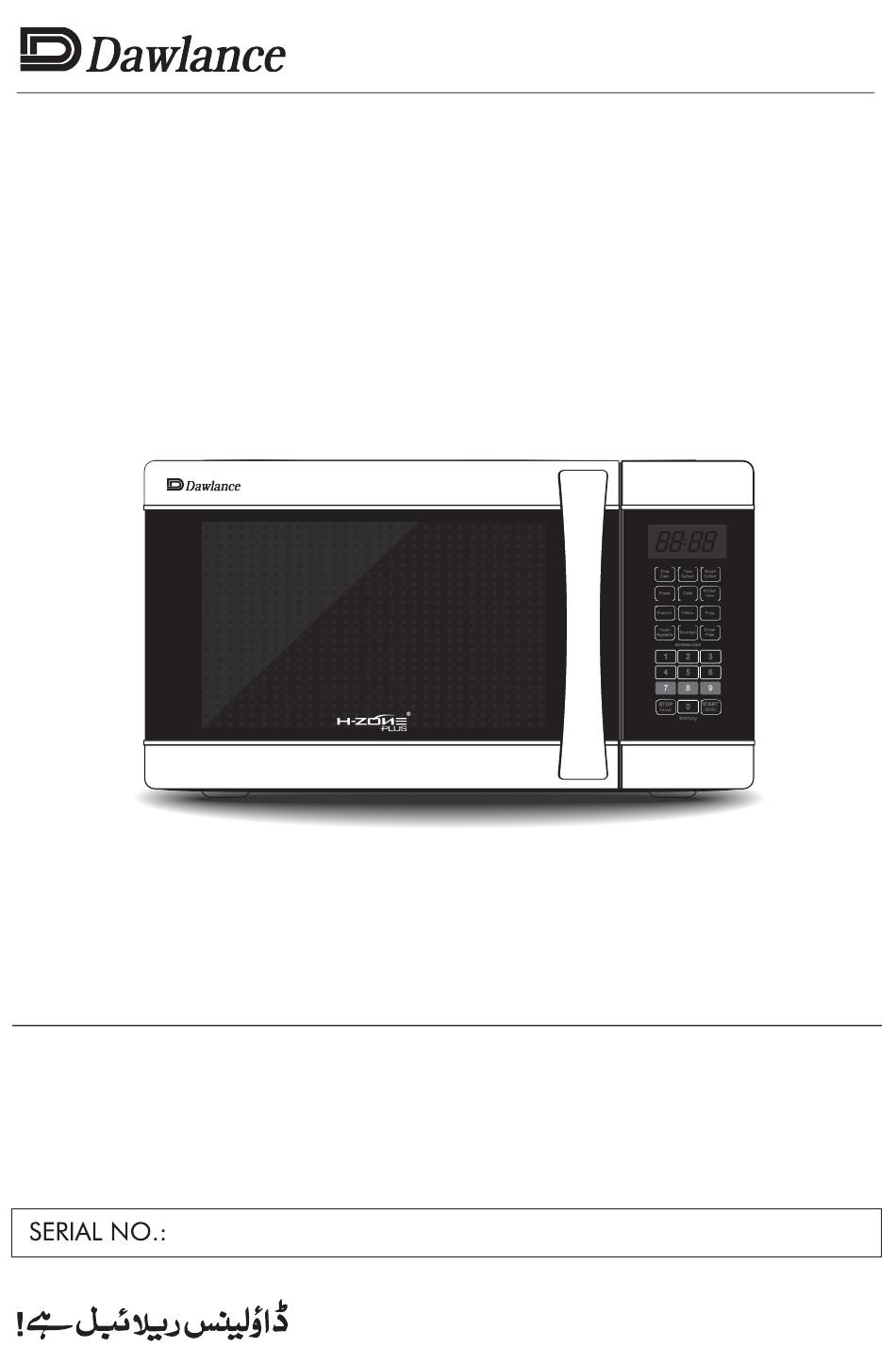

MICROWAVE OVEN
This owner's guide book is for the following 1200 watts
microwave oven model:
DW-162 HZP
1. Read these instructions carefully before installing and operating the oven.
Keep them for further reference.
2. Record in the space below the SERIAL NO. found on the nameplate on your
oven and retain this information for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW-162 HZP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dawlance DW-162 HZP

Summary of Contents for Dawlance DW-162 HZP

  • Page 1 MICROWAVE OVEN This owner’s guide book is for the following 1200 watts microwave oven model: DW-162 HZP 1. Read these instructions carefully before installing and operating the oven. Keep them for further reference. 2. Record in the space below the SERIAL NO. found on the nameplate on your...

  • Page 3: Table Of Contents

    CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY..................2 SPECIFICATION..................2 IMPORTANT SAFETY INSTRUCTION..............3 GROUNDING INSTALLATION................5 MATERIALS YOU CAN USE IN MICROWAVE OVEN.........7 MATERIALS TO BE AVOIDED IN MICROWAVE OVEN........8 SETTING UP YOUR OVEN..................8 TURNTABLE INSTALLATION................9 INSTALLATION....................10 OPERATION................11 TROUBLESHOOTING................16...

  • Page 4: Precautions To Avoid Possible Exposure To Excessive

    If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. SPECIFICATIONS Model: DW-162 HZP Rated Voltage: 230V~ 50Hz Rated Input Power (Microwave): 1800W...

  • Page 5: Important Safety Instruction

    IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of re, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
  • Page 6 16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly quali ed persons in order to avoid a hazard. 17. Do not store or use this appliance outdoors. 18. Do not use this oven near water, in a wet basement or near a swimming pool. 19.

  • Page 7: Grounding Installation

    TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.
  • Page 8 CAUTION PERSONAL INJURY HAZARD It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. UTENSILS See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."...

  • Page 9: Materials You Can Use In Microwave Oven

    MATERIALS YOU CAN USE IN MICROWAVE OVEN UTENSILS REMARKS Shielding only. Small smooth pieces can be used to cover thin parts Aluminium foil of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 2.5cm away from oven walls.

  • Page 10: Materials To Be Avoided In Microwave Oven

    MATERIALS TO BE AVOIDED IN MICROWAVE OVEN UTENSILS REMARKS May cause arcing. Transfer food into microwave-safe dish. Aluminium tray Food carton with May cause arcing. Transfer food into microwave-safe dish. metal handle Metal or metal- Metal shields the food from microwave energy. Metal trim may cause arcing.

  • Page 11: Turntable Installation

    A) Control panel E) Observation window B) Turntable shaft F) Door assembly C) Turntable ring assembly G) Safety interlock system D) Glass tray TURNTABLE INSTALLATION Hub (underside) a. Never place the glass tray upside down. The glass tray should never be restricted. b.

  • Page 12: Installation

    COUNTERTOP INSTALLATION Remove all packing material and Cabinet: Remove any protective lm found accessories. Examine the oven for on the microwave oven cabinet surface. any damage such as dents or Do not remove the light brown Mica cover broken door. Do not install if oven that is attached to the oven cavity to is damaged.

  • Page 13: Operation

    OPERATION 1. Power Level 11 power levels are available. Level Power 100% Display PL10 2. Clock Setting (1) Press "CLOCK", "00:00" will display. (2) Press the number keys and enter the current time. For example, time is 12:10 now, please press "1,2,1,0" in turn. (3) Press "CLOCK"...
  • Page 14 Example: to cook the food with 50% microwave power for 15 minutes. a. Press "TIME COOK" once."00:00" displays. b.Press "1","5","0","0" in order. c.Press "POWER"once, then press "5" to select 50% microwave power. d.Press "START/+30SEC." to start cooking. Note: 1) In the process of setting, if the "STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically.
  • Page 15 8. POPCORN a) Press "POPCORN" repeatedly until the number you wish appears in the display, "50","100"g will display in order. For example, press "POPCORN" once , "50" appears. b) Press "START/+30 SEC." to cook, buzzer sounds once. When cooking nishes, buzzer sounds ve times and then turn back to waiting state.
  • Page 16 12. DINNER PLATE a) Press "DINNER PLATE" repeatedly until the number you wish appears in the display, "250","350","500" g will display in order. For example, press "DINNER PLATE" once , "250" appears. b) Press "START/+30 SEC." to cook, buzzer sounds once. When cooking nishes, buzzer sounds ve times and then turn back to waiting state.
  • Page 17 (1) Press "TIME COOK" once, then press "5","0","0" to set the cooking time; (2) Press "POWER" once, then press "8" to select 80% microwave power. (3) Press "TIME COOK" once, then press "1","0","0","0" to set the cooking time; (4) Press "POWER" once, then press "6" to select 60% microwave power. (5) Press "START/+30 SEC."...

  • Page 18: Troubleshooting

    TROUBLESHOOTING Normal Radio and TV reception may be interfered when microwave oven is operating. It is Microwave oven interfering similar to the interference of small electrical TV reception appliances, like mixer, vaccum cleaner, and electric fan. It is normal. In low power microwave cooking, oven light Dim Oven light may become dim.
  • Page 20 B-II- IR, Mohammadi Chowk, Ph:(054) 4610578, 4623236 Gulshan St # 1, Nishat Park, Paris Road, Opp. Chamber of Commerce Building Ph:(052) 4290502-3...
  • Page 24 PN:16170000A11110...
