Before using your Microwave Oven, please read this manual carefully and
keep it for future reference.

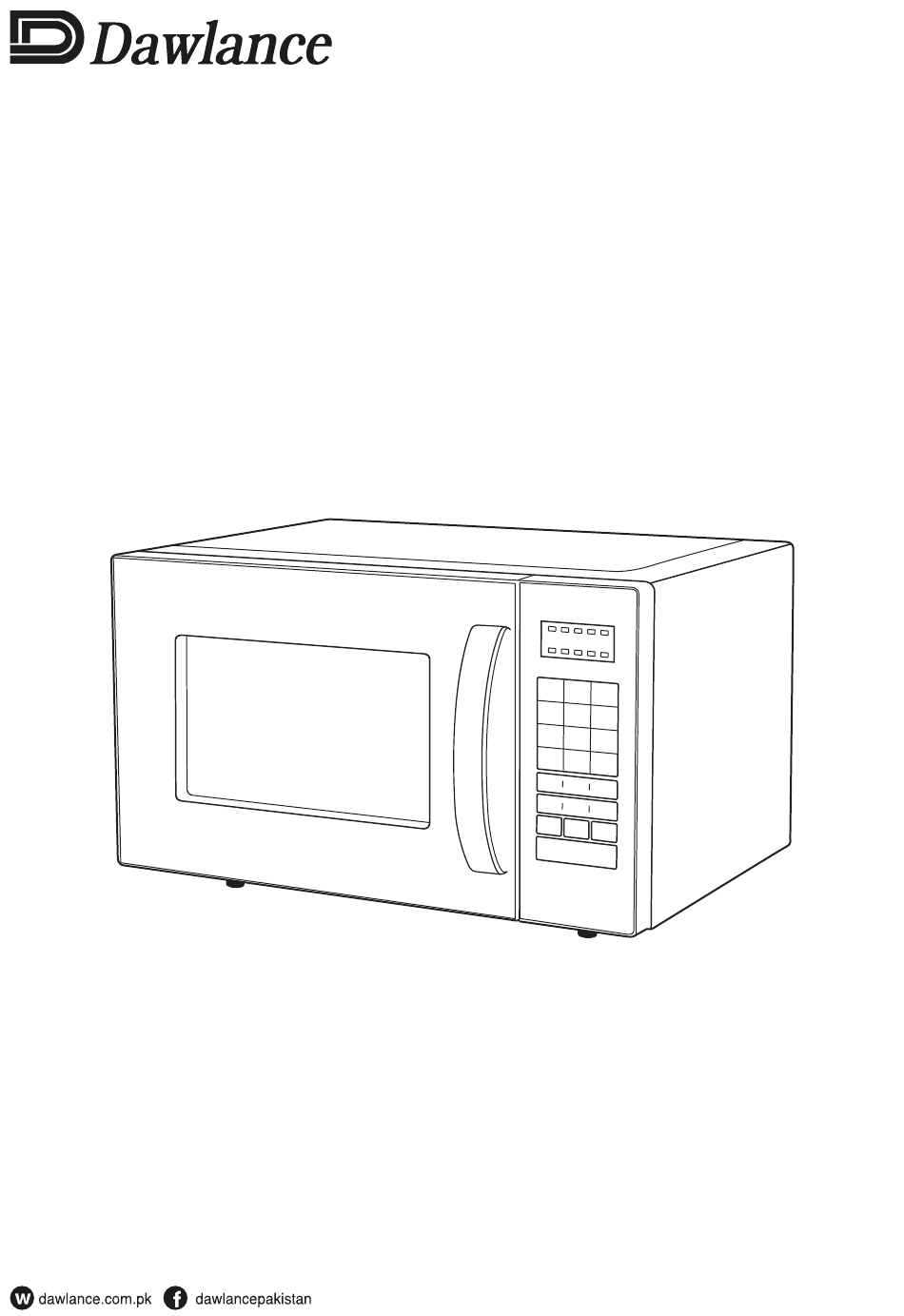

Microwave Oven
User Manual
MODEL: DW 530 AF
Read This Manual
Inside, you will find many helpful hints on how to use and maintain your Microwave Oven properly. Just a little
preventive care on your part can save you a great deal of time and money over the life of your Microwave Oven.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW 530 AF and is the answer not in the manual?

Questions and answers

Related Manuals for Dawlance DW 530 AF

Summary of Contents for Dawlance DW 530 AF

  • Page 1 Microwave Oven User Manual MODEL: DW 530 AF Read This Manual Inside, you will find many helpful hints on how to use and maintain your Microwave Oven properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your Microwave Oven.

  • Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model DW 530 AF 230V~ 50Hz Rated Voltage Rated Input Power (Microwave) 1450W...

  • Page 3: Important Safety Instructions / Warning

    IMPORTANT SAFETY INSTRUCTIONS / WARNING To reduce the risk of fire, electric shock, injury to persons, or exposure to excessive microwave oven energy when using your appliance, follow the basic precautions including those given underneath: 1. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
  • Page 4 8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. 9. Only use utensils that are suitable for use in microwave ovens. 10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
  • Page 5 19. The microwave oven must be operated with the decorative door open. (For ovens with a decorative door). 20. This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments;...

  • Page 6: To Reduce The Risk Of Injury To Persons Grounding Installation

    TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION Danger Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. Warning Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.
  • Page 7 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. Cleaning Be sure to unplug the appliance from the power supply.

  • Page 8: Materials You Can Use In Microwave Oven

    Materials you can use in microwave oven Utensils Remarks Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.

  • Page 9: Turntable Installation

    SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction manual A) Control panel B) Turntable ring assembly C) Glass tray D) Observation window E) Door assembly...

  • Page 10: Countertop Installation

    Countertop Installation Remove all packing material and accessories. Cabinet: Remove any protective film found Examine the oven for any damage such as on the microwave oven cabinet surface. dents or broken door. Do not install if oven is Do not remove the light brown Mica cover damaged.

  • Page 11: Clock Setting

    OPERATION INSTRUCTION This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. 1. Clock Setting When the microwave oven is electrified, the screen will display " : ", and buzzer will ring once. 1) In waiting state, press “Clock/Timer"...

  • Page 12: Microwave Cooking

    3. Microwave Cooking 1) In waiting state, press “Cook Time”, and “0:00” will display. 2) Press number key "10min", "1min" or" 10sec" to enter cooking time. The maximum time is 99 minutes 50 seconds. 3) Press "Power Level" to choose power level. There are 11 power levels, including P100, P90, P80, P70, P60, P50, P40, P30, P20, P10 and P0.

  • Page 13: Convection Cooking

    5. Convection Cooking 1) Press "Conv" once. and "150" will flash on the screen. 2) Press "Conv" repeatedly to choose temperature from 150 to 240. 3) Press the "Start/+30sec" to confirm the temperature. 4) If you press "Start/+30sec" again, the oven will start preheating. When the preheating temperature is reached, the buzzer will sound twice.

  • Page 14: Defrost By Time

    1) Press "Combi." once, and the screen displays "C-1" 2) Adjust the cooking time until the oven displays "10:00". 3) Press "Start/+30Sec" to start cooking. Note: Combination instructions Convection Instructions Display Microwave Grill 8. Defrost by Time 1) In waiting state, press "Time Defrost" once, and the screen displays "0:00". 2) Press number key "10min", "1min"...

  • Page 15: Lock-Out Function For Children

    10. Quick Microwave Cooking 1) In standby state, press "Start/+30sec" to start cooking with 100% power for 30 seconds. Each added press will increase 30 seconds. 11. Lock-out Function for Children Lock: In standby state, press "Stop/Cancel" for 3 seconds. There will be a "beep"...
  • Page 16 UTENSILS Caution Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."...

  • Page 17: Troubleshooting

    Troubleshooting Normal Radio and TV reception may be interfered when Microwave oven interfering microwave oven is operating. It is similar to the interference of small electrical appliances, like TV reception mixer, vacuum cleaner, and electric fan. It is normal. In low power microwave cooking, oven light may Dim oven light become dim.
