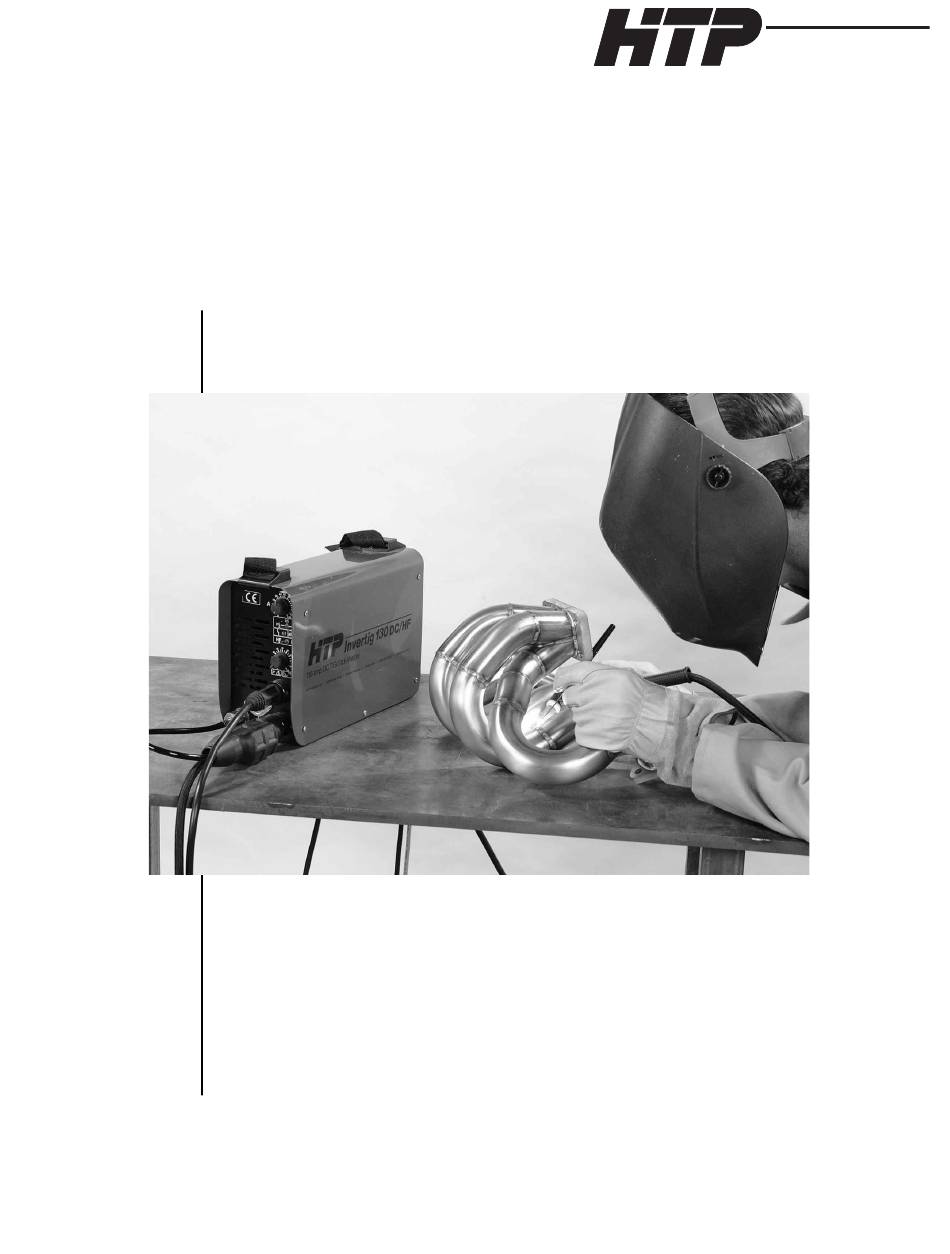

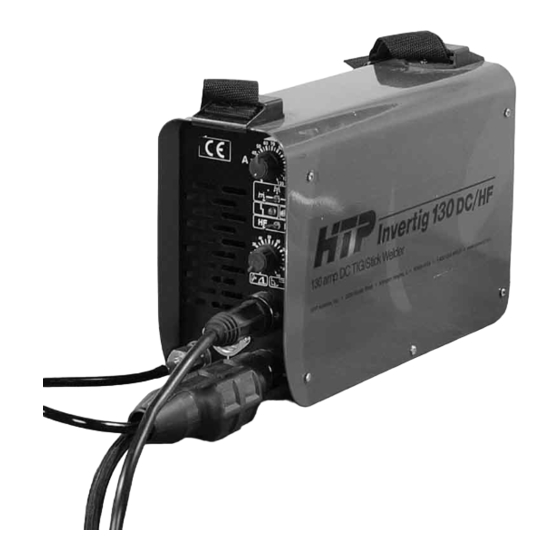

- Page 1 America Inc. Invertig 131 DC/HF Owner’s Manual HTP America, Inc. 180 Joey Drive Elk Grove Village, IL 60007-1304 • • 1-800-USA-WELD 847-357-0700 FAX: 847-357-0744 www.usaweld.com • • •...
-
Page 2: Manufacturer's Warranty
HTP America, Inc. will repair and replace, at its factory, any part or parts thereof, products to be returned to HTP America, Inc. with transportation charges prepaid and which its examination shall disclose to its satisfaction to have been thus defective. -
Page 3: Safety Suggestions
Safety Suggestions For more information, refer to the following standards and Electric arc welding produces ultra-violet rays, which are comply as applicable. harmful to skin and eyes. Ultra-violet radiation can penetrate 1. ANSI Standard Z49.1 SAFETY IN WELDING AND lightweight clothing, reflect from light colored surfaces, and CUTTING, obtainable from the American Welding Society, burn the skin and eyes. -
Page 4: Electrical Connection
A. TIG 2T Mode- With the torch trigger or foot pedal depressed, local codes and ordinances. your Invertig 131 DC/HF will start the arc. When the trigger is released, the unit will stop. Select this welding mode for Front Panel Controls (See Fig. - Page 5 The thermoswitch indicator lamp will light up yellow when the front of the TIG Adapter. That’s right, we said the ground the duty cycle of your Invertig 131 DC/HF has been cable. This is called straight polarity, with the torch negative exceeded.
-
Page 6: Rear Panel Controls
Flow Gauge and Flow Meter Use a flow gauge such as HTP Part #12020 or a flow meter such as the HTP Part #12020F which is compatible with Argon cylinders and has a barbed fitting for the delivery hose. Connect the gas hose to the gas fitting at the rear of the machine and to Fig 2 –... - Page 7 * May require beveling – depends on joint Fig 5 – Tungsten Electrodes Filler Rod for TIG Welding HTP offers you high quality filler rods in affordable quantities. Tungsten Type Diameter All filler rod is packaged in 1lb airtight plastic tubes to keep .040"...
- Page 8 1/8" and less. Use a 3/32" diameter rod for 1/8" and thicker. The following Filler Rod is available from HTP in 1 lb. tubes which are tightly sealed to prevent oxidation. Fig 9 – Tungsten Stickout...
- Page 9 Arc Welding with your Invertig 131 DC/HF position. Set the Touch Start/HF switch to HF. Depress the foot You can arc weld with your Invertig 131 DC/HF if you have pedal to start the current flow and the shield gas. Pushing the purchased the optional electrode holder # 22315-ARCMTS.
- Page 10 Pyrex Cup Kits Nothing makes welding easier than being able to see what you are doing. HTP’s Pyrex Cup kits do just that! The clear Pyrex cup gives you unparalleled visibility of the arc and work. The Pyrex Cup kit also comes standard with our special gas saver gas lens kit.
- Page 11 Pyrex Cup Parts Tungsten Diameter Illus # Description 0.040" 1/16" 3/32" 1/8" Price For 9 and 20 Tig Torches Pyrex Cup PYR8S PYR8S PYR8S PYR8S Tungsten Adapter PYR040TA PYR116TA PYR332TA PYR18TA Collet Body PYR20CB PYR20CB PYR20CB PYR20CB Wedge Collet PYR20C040 PYR20C116 PYR20C332 PYR20C18...
- Page 12 Need to change the angle of your Tig torch to get into that tight area? Trouble is, with a standard Tig torch you can’t. Well, HTP has the answer: our Flex Neck Tig Torch. This unique torch lets you bend the end of your Tig torch into virtually any position, allowing you quick, easy access to practically any tight, cramped or out-of-the-way spot.
