WSA-5RP-PLUS / WSA-5RP-PLUS-RX
5.2G/5.8G WIRELESS SURROUND SOUND REAR SPEAKER KIT / 2 x 100W AMPLIFIER BUILT-IN
Tired of running cables around doors or hiding under carpet to connect your rear surround speakers and
subwoofer to the receiver? Or having limited options on rear surround speakers and subwoofer placement
due to cable length and component location? The WSA-5RP-PLUS providing premium-quality audio for stereo
audio applications operating in the 5.2G/5.8GHz bands with 2 x 100 W low-hear class D amplifier built-in.
Simply connect the transmitter module to you're A/V processor and the receiver to your passive bookshelf /
rear surround sound speakers and powered/active subwoofer
Features:
* Lossless Audio - 5.2 & 5.8GHz selectable digital wireless with an advanced channel selection for near lossless
audio, provides excellent transmission stability
* Wide Range - Up to 100 ft (30M) operational distance between transmitter and receiver (line of sight)
* High Performance - 24-bit 48KHz full CD quality high resolution/uncompressed audio
* Works with any AV receiver or power amplifier - Speaker Line Level Input & Stereo RCA Input
* High efficiency 2 x 100W RMS class D amplifier built-in to connects directly to any passive bookshelf or the
rear surround sound loudspeakers
*An additional subwoofer mono input and output for connecting between AV Receiver and Power/Active
Subwoofer Speaker or Subwoofer Amplifier
Package Contents:
1. Transmitter
2. Receiver (built-in amplifier)
3. 9V AC Adapter (for transmitter)
4. Power Cord (for receiver)
5. 6-foot Speaker Wires (2)
6. Owner's Manual
Advertisement
Related Manuals for Dynasty ProAudio WSA-5RP-PLUS
Summary of Contents for Dynasty ProAudio WSA-5RP-PLUS
- Page 1 Or having limited options on rear surround speakers and subwoofer placement due to cable length and component location? The WSA-5RP-PLUS providing premium-quality audio for stereo audio applications operating in the 5.2G/5.8GHz bands with 2 x 100 W low-hear class D amplifier built-in.

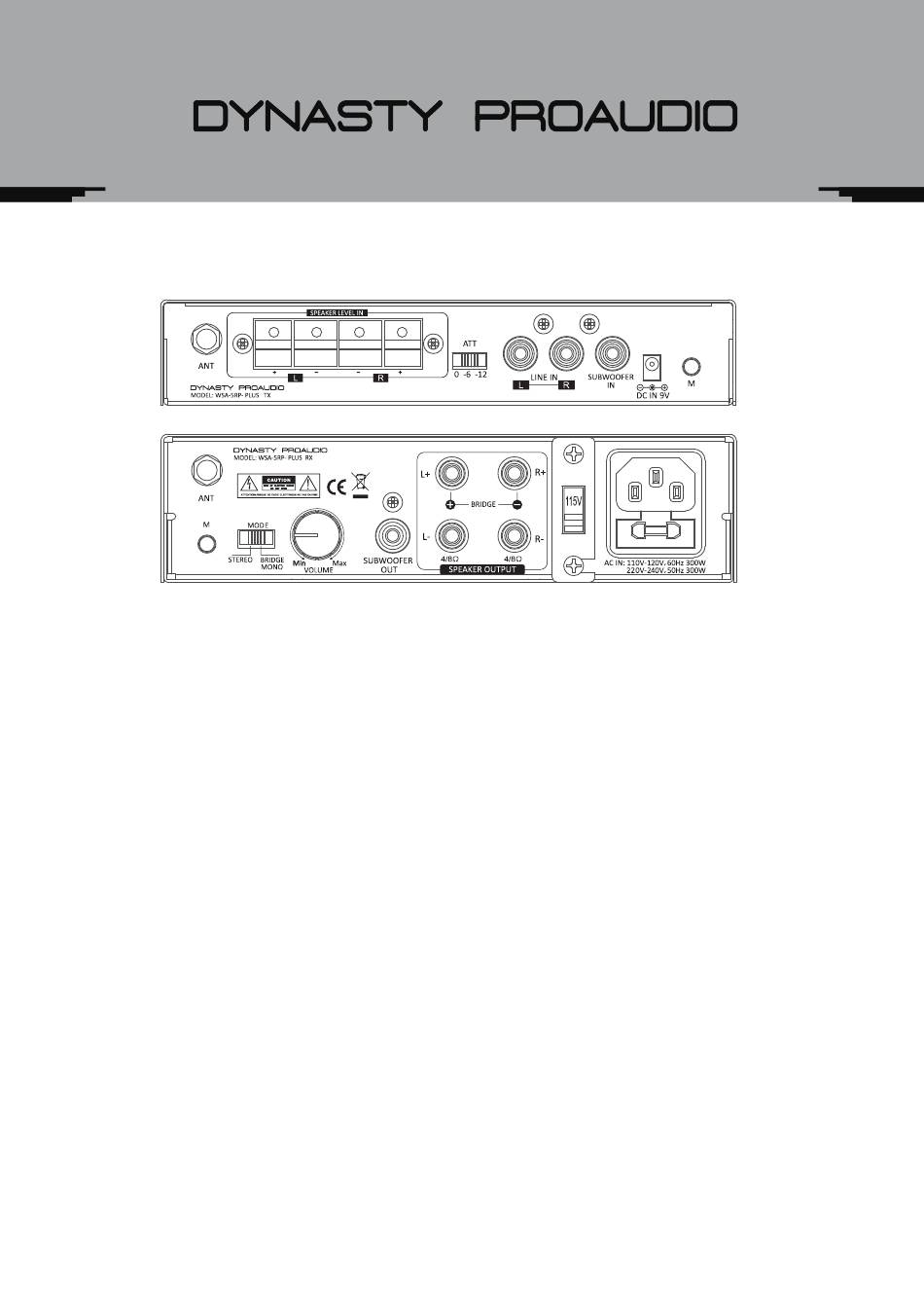

- Page 2 WSA-5RP-PLUS Wireless Transmitter (Front View) Power Switch Power/Status Indicator LED WSA-5RP-PLUS Wireless Transmitter (Back View) 1. Left Speaker Level Audio Input Terminals 5. DC-IN Jack (9V) 2. Right Speaker Level Audio Input Terminals 6. M Paring Button 7. Output Gain Switches 3.
- Page 3 Install the WSA-5RP-PLUS Wireless Transmitter (The WSA-5RP-PLUS wireless transmitter can be connected via SPEAKER-LEVEL-IN or LINE-IN Audio with your AV Receiver / Amplifier, when the RCA cables are connected, audio input from the speaker terminal will be mixed, make sure your home theater AV receiver /ampli er is power on while connecting the speaker kit.
- Page 4 Install the WSA-5RP-PLUS Wireless Transmitter (Option 2) Application 2. Connect the transmitter via LINE IN: 1. Connect your WSA-5RP-PLUS wireless transmitter to the amplifier’s RCA output ports with RCA cables 2. Connect the supplied power cord, then plug it into a standard household outlet (Caution: To avoid risk of fire, and to prevent damage, only use the supplied power...
- Page 5 Install the WSA-5RP-PLUS Wireless Receiver 1. Connect the right speaker to the right speaker terminals of the WSA-5RP-PLUS wireless receiver, and the left speaker to the left speaker terminals. 2. If the speaker wires are attached to the speakers already, connect the positive (+) wire...
- Page 6 We suggest that you place the WSA-5RP-PLUS wireless transmitter on top (or beside) of your audio source (AV receiver / amplifier), If no line of sight is possible, place the WSA-5RP-PLUS wireless transmitter and receiver such that there is the minimum possible number of walls and obstacles between the transmitter and receiver.
- Page 7 On the contrary, the rear surround sound speaker’s volume will be decreased once it set to “-12dB” position. * Set the WSA-5RP-PLUS wireless receiver s volume control to a low level to prevent clipping inside the amplier * Set your audio source to output the maximum audio level that you will encounter during normal operation such that both the left and right channel are balanced.
- Page 8 Pairing the WSA-5RP-PLUS transmitter and wireless amplifier receiver The WSA-5RP-PLUS wireless Transmitter and Receiver are automatically paired and synced at the factory, both LEDs should be solid Blue in 5.8G mode as default when powered on. We use the latest 5.8G wireless technology connection with 62 channels auto selection from RF channel 5727~5848, which are not easily disturbed by 2.4G (the frequency...
- Page 9 TroubleShoot...
- Page 10 1. Set the original wireless receiver to “Bridge” position, and follow the bridge speaker wiring connection. 2. Set the additional wireless receiver (model WSA-5RP-PLUS-RX) to the Bridge “Mono R” position, and follow the bridge speaker wiring connection. 3. Short press the “M” paring button on the 1 x Transmitter and 2 x Receiver to restart the new pairing process, and toggle between the 5.8GHz (blinking Blue LED) channels, or press...
- Page 11 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
